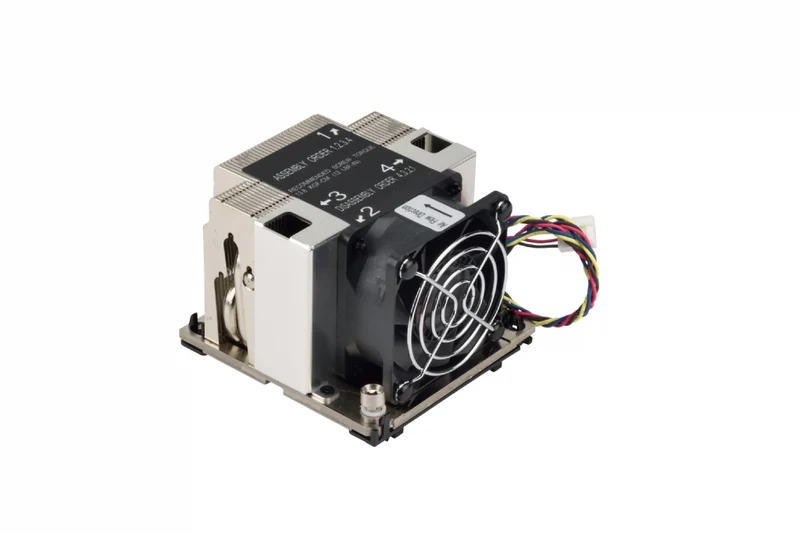

Supermicro 2U Active CPU Heat Sink Socket LGA3647-0

This CPU heat sink is designed for Supermicro X11DPL-i motherboard with 2U and above chassis equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

MANUFACTURER	Supermicro
SERVER FORM FACTOR	2U
COOLING TYPE	Active
CPU CONFIGURATION	Uni Processor, Dual Processor
SUPPORTED CPU SKU	Intel® Xeon® Scalable Processors
SUPPORTED CPU SOCKET	FCLGA3647-0 (Square Mounting Mechanism)
SUPPORTED CPU TDP	Up to 140 Watts
ATTACHED COOLING FAN	Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 8,400 RPM Acoustic Noise: 52.0 dB(A) at Rated Speed Fan Dimensions: 60L x 60H x 25D mm Position: Front Side MTBF/MTTF: 145,190 Hours @ 40 C Ambient
WARRANTY	1 year warranty
PRODUCT ENVIRONMENTAL COMPLIANCE	RoHS and REACH compliant, details available upon request
