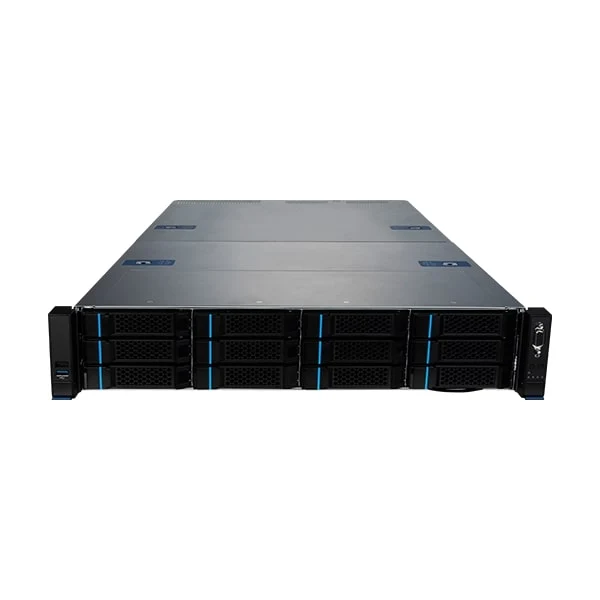

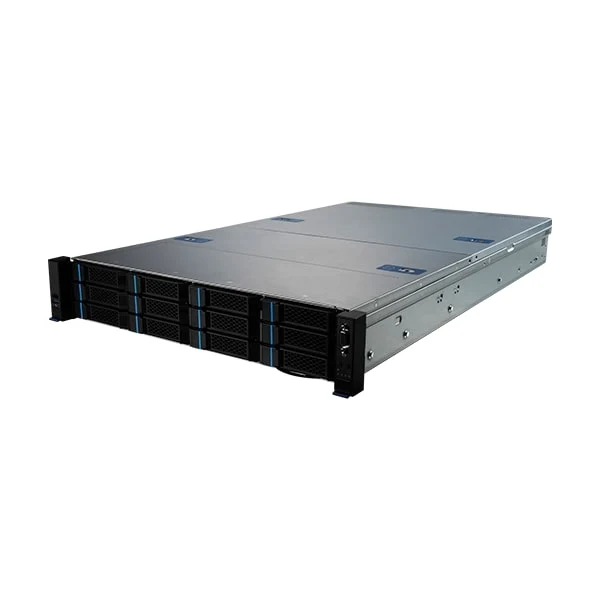

MSI S2206-02 2U Rackmount Dual AMD EPYC Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU

0,00 €
Menge

Beschreibung

Form Factor 2U
Processor Dual AMD EPYC™ 9004 Series Processor and EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology, up to TDP 360W
Memory (24) DDR5 DIMM Slots, 12 channels per CPU(1DPC), RDIMM/RIMM-3DS
- Max. Frequency 4800MT/s
- Max. Capacity per DIMM:
RDIMM: 96GB
RDIMM-3DS: 256GB
Networking (2) 1000Base-T Ethernet Ports (Intel® I350AM2)
Storage (2) M.2 2280 PCIe3.0 x2 ports from CPU0
Drive Bays (12) Hot-swap 3.5"/2.5" drive bays support (8)SATA 3.0/SAS + (4)U.2 PCIe 4.0 NVMe
*SAS card is required for SAS devices support
Expansion Slot Riser 1:
(1) PCIe 5.0 x16 slot from CPU0 supports FHFL GPU card
(1) PCIe 5.0 x16 slot((x8 signal) ) from CPU0 support FHFL PCIe card
(1) PCIe 5.0 x16 slot((x8 signal) ) from CPU0 support FHHL PCIe card
Riser 2:
(1) PCIe 5.0 x16 slot from CPU1 supports FHFL GPU card
(1) PCIe 5.0 x16 slot((x8 signal) ) from CPU1 support FHFL PCIe card
(1) PCIe 5.0 x16 slot((x8 signal) ) from CPU1 support FHHL PCIe card
Riser 3:
(1) PCIe 5.0 x16 slot from CPU1 supports FHFL GPU Card
OCP3.0:
(1) PCIe 5.0 x16 OCP3.0 slot from CPU0, supports NCSI function

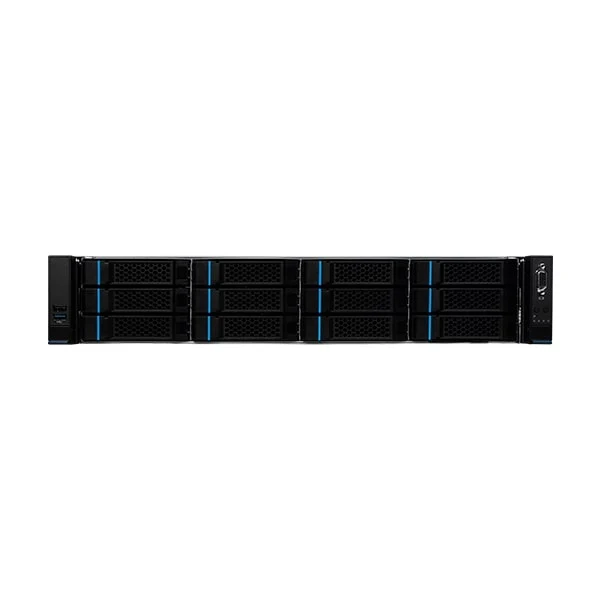

Front I/O (12) Hot-swap 3.5"/2.5" drive bays
(2) USB 3.0 Type-A Port
(1) VGA D-Sub Port
(1) System Power LED Button
(1) UID LED Button
(1) Reset Button
(4) Status LEDs: Fault/LAN/M.2

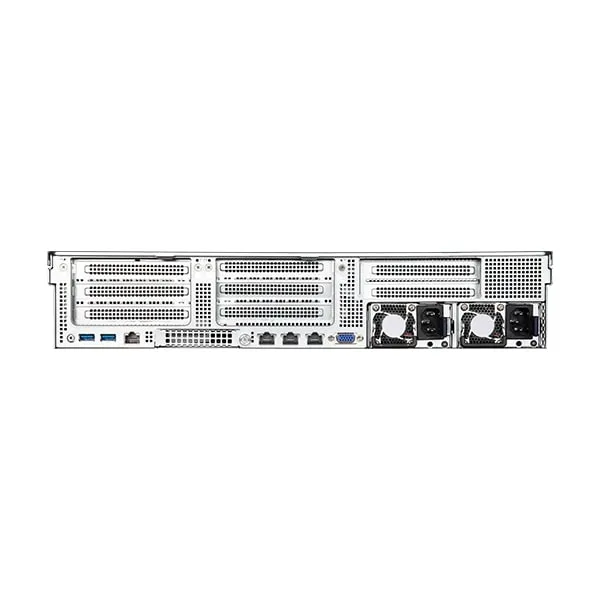

Rear I/O (2) 1000Base-T Ethernet Ports
(1) 1000Base-T Dedicated Server Management Port
(2) USB 3.0 Type-A Port
(1) VGA D-Sub Port
(1) COM RJ45 Port
(1) UID LED Button
RAID N/A
Server Management ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
(1) MicroSD card slot for BMC log

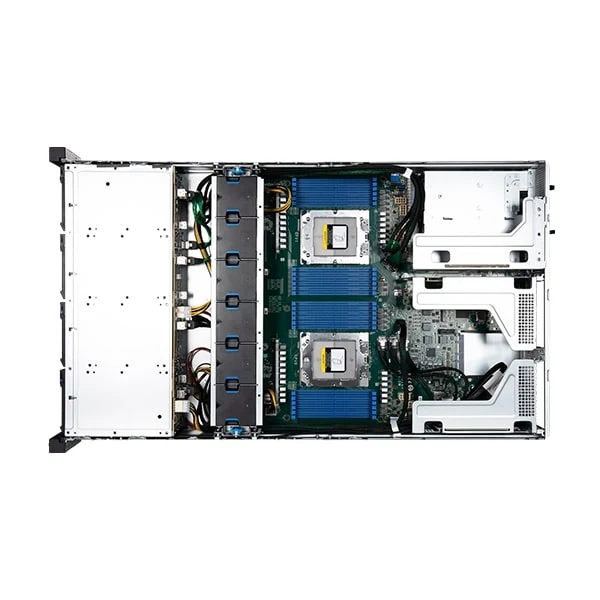

Cooling (2) EVAC air cooling modules for max. 360W CPU
(6) 6038 Hot-swap System Fans
(1) Air duct supports FL GPU cards
Environment System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C
Non-operating Relative Humidity: 5% to 85% (non-condensing)
Certification CE, FCC (Class A)
Dimensions 438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D
Power Supply (1+1) Redundant 2000W CRPS 80+ Platinum
Security TPM 2.0
Socket (2) AMD Socket SP5
TPM (1) TPM header with SPI interface
Package Contents (1) Barebone S2206-02
(1) Quick guide
(1) Slide rail Kit
(2) CPU Coolers
(2) CRPS PSUs
(2) Power cables
(2) Power cable adapters for GPU
Parts List (1) Quick guide:G52-S3122X2-Q13
(1) Slide rail Kit: E21-S258030-C27
(2) CPU Coolers: E31-0807350-824
(2) CRPS PSUs: S93-0913131-S14
(2) Power cables: K33-3001002-I45 for NA
(2) Power cable adapters for GPU: K1G-3008085-V03
(1) Air duct: OE2-S322001-C27
(1) Air duct (Mylar): E26-S322020-LB4
Optional parts TPM2.0 module: TPM20-IR
