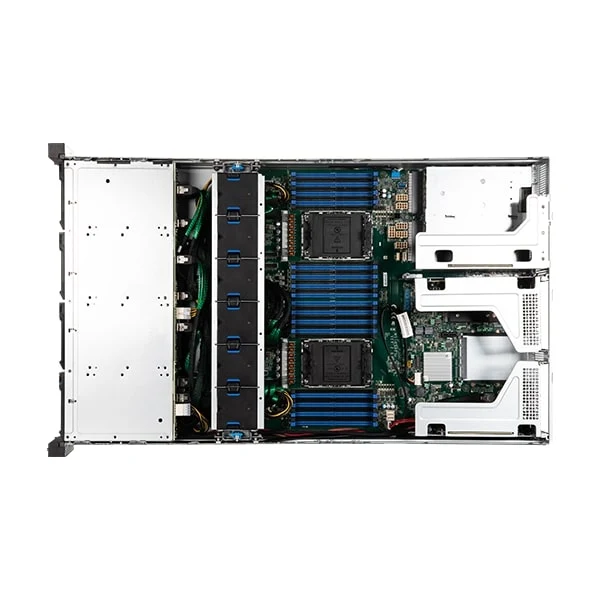

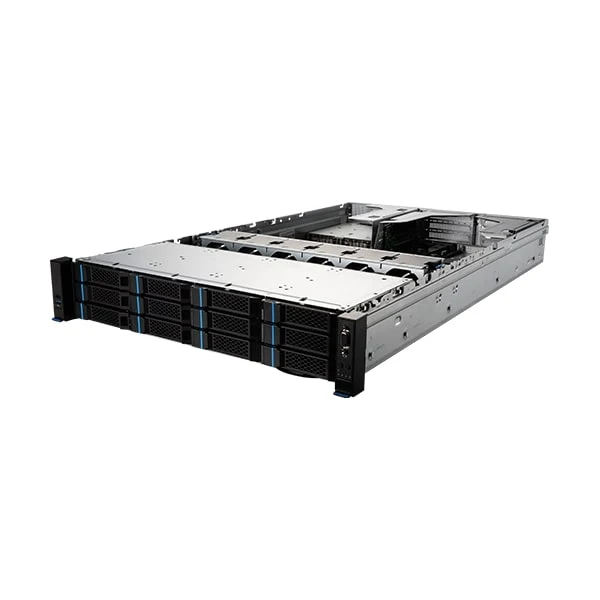

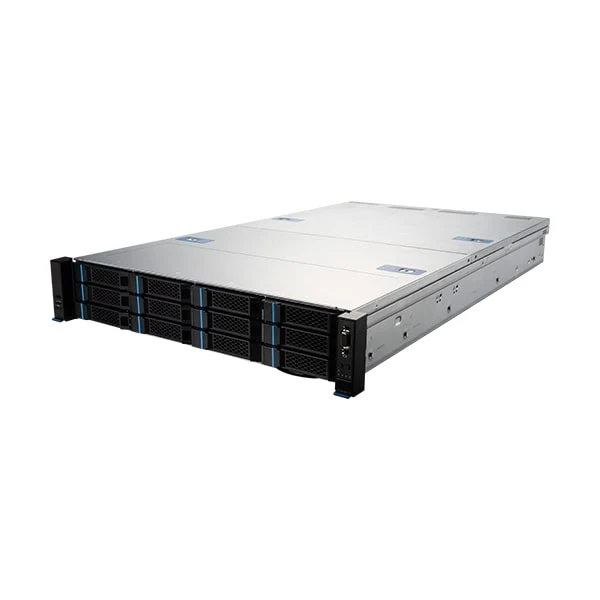

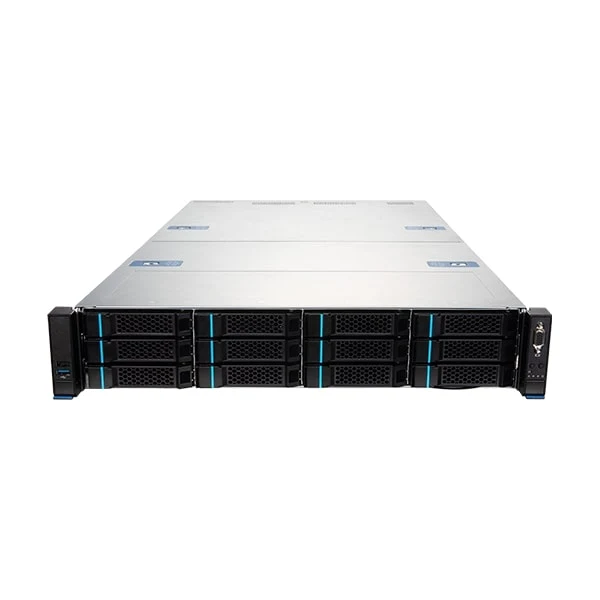

MSI S2205-01 2U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU

0,00 €
Menge

Beschreibung

Form Factor 2U
Processor Dual 4th/5th Generation Intel® Xeon® Scalable Processors, TDP up to 350W
Chipset Intel® C741
Memory (32) DDR5 DIMM Slots, 8 channels per CPU(2DPC), RDIMM/3DS
- Max. Frequency
5th Gen Intel® Xeon®: 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: 4800 MT/s (1DPC), 4400 MT/s (2DPC)
- Max Capacity per DIMM:
RDIMM: 96GB
RDIMM-3DS: 256GB
Networking No onboard LAN
(2) 1000GBase-T Ethernet Ports w/ optional M.2 LAN module NAD-101
Storage (2) M.2 2280/22110 PCIe3.0 x2 ports from PCH
Drive Bays (12) Hot-swap 3.5"/2.5" drive bays support SATA 3.0/SAS/U.2 PCIe 4.0 NVMe
*SAS card is required for SAS devices support
Expansion Slot Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU0 support FHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card
Riser 3:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU Card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function

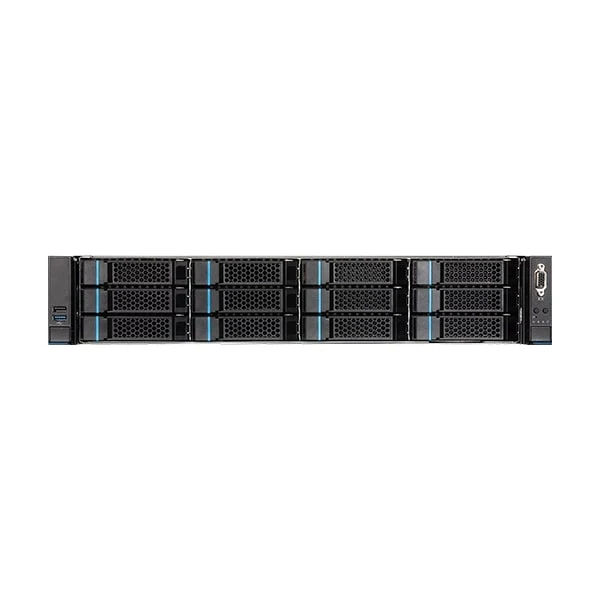

Front I/O (12) Hot-swap 3.5"/2.5" drive bays
(2) USB 2.0 Type-A Port
(1) VGA D-Sub Port
(1) System Power LED Button
(1) UID LED Button
(1) Reset Button
(4) Status LEDs: Fault/LAN/M.2
Rear I/O (1) 1000Base-T Dedicated Server Management Port
(2) USB 2.0 Type-A Port
(1) VGA D-Sub Port
(1) COM RJ45 Port
(1) UID LED Button
RAID Intel® SATA RAID 0/1/10/5
(1) VROC header for Intel® VROC key
Server Management ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
(1) MicroSD card slot for BMC log
Cooling (2) EVAC air cooling modules for max. 350W CPU
(6) 6038 Hot-swap System Fans
(1) Air duct supports FL GPU cards
Environment System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C
Non-operating Relative Humidity: 5% ~ 85% (non-condensing)
Certification CE, FCC (Class A)
Dimensions 438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D
Power Supply (1+1) Redundant 2000W CRPS 80+ Platinum
Security TPM 2.0
Package Contents (1) Barebone G2205-01
(1) Quick guide
(1) Slide rail Kit
(2) CPU Coolers
(2) CRPS PSUs
(2) Power cables
(2) Power cable adapters for GPU
TPM (1) TPM header with SPI interface
Parts List (1) Quick guide: G52-S3222X2-Q13
(1) Slide rail Kit: E21-S258030-C27
(2) CPU Coolers: E31-0807360-824
(2) CRPS PSUs: S93-0913131-S14
(2) Power cables: K33-3001002-I45 for NA
(2 )Power cable adapters for GPU: (1)K1G-3008085-V03 & (1)K1G-3008086-V03
(1) Air duct: OE2-S322001-C27
(1) Air duct (Mylar): E26-S322020-LB4
Optional parts TPM2.0 module: TPM20-IR
M.2 LAN module: MEZ-E11
