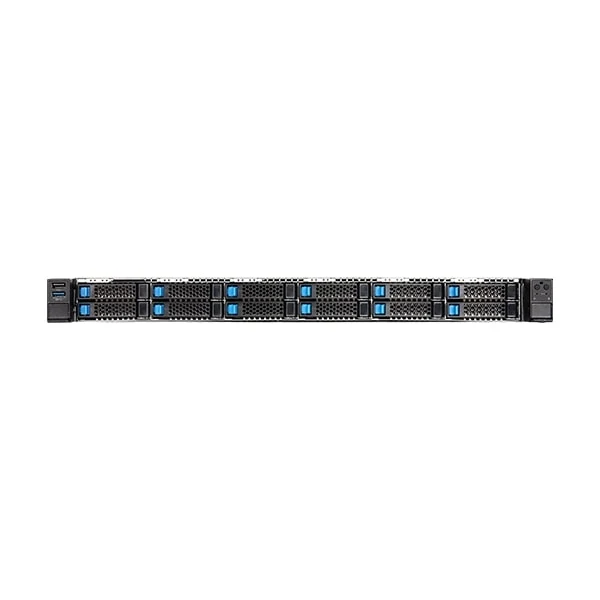

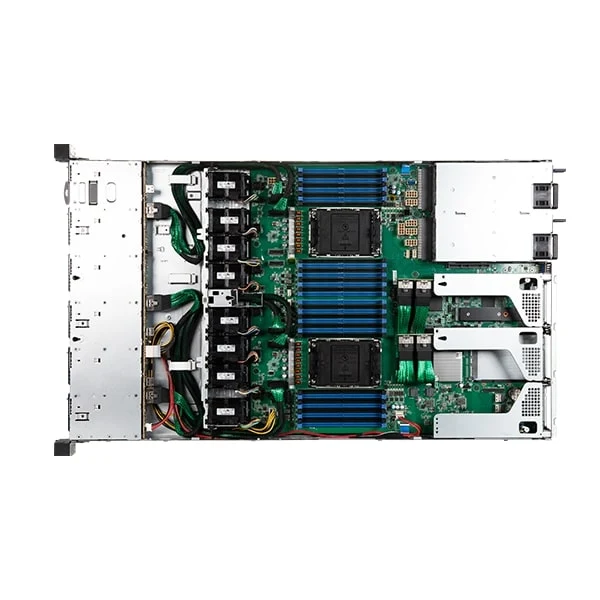

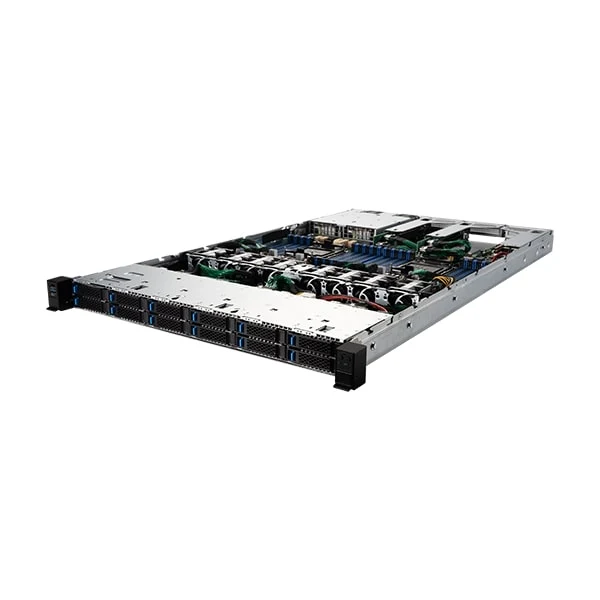

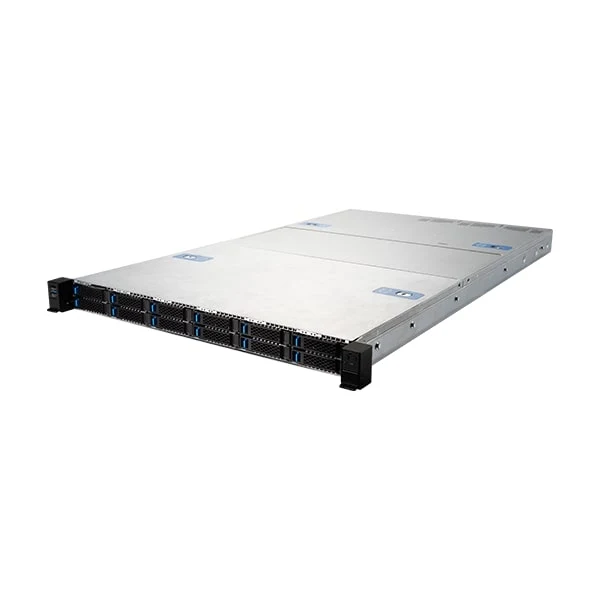

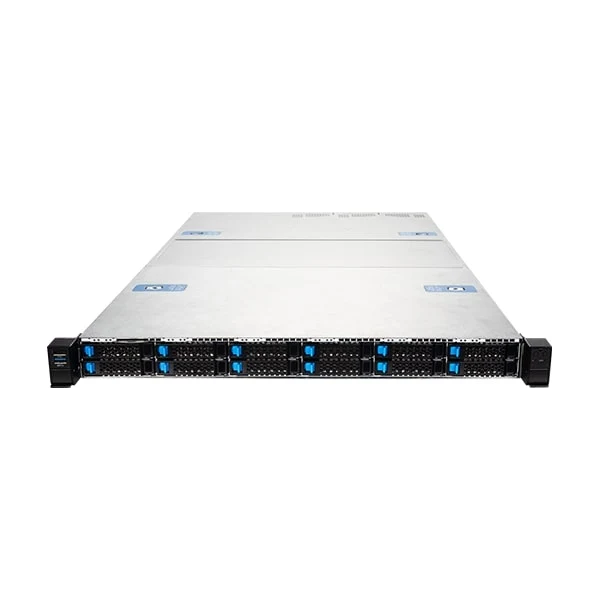

MSI S1205-01 1U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU

0,00 €
Menge

Beschreibung

Form Factor 1U
Processor Dual 4th/5th Generation Intel® Xeon® Scalable Processors, TDP up to 205W
Chipset Intel® C741
Memory (32) DDR5 DIMM Slots, 8 channels per CPU(2DPC), RDIMM/3DS
- Max. Frequency
5th Gen Intel® Xeon®: 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: 4800 MT/s (1DPC), 4400 MT/s (2DPC)
- Max Capacity per DIMM:
RDIMM: 96GB
RDIMM-3DS: 256GB
Networking No onboard LAN
(2) 1000GBase-T Ethernet Ports w/ optional M.2 LAN module NAD-101
Storage (2) M.2 2280/22110 PCIe3.0 x2 ports from PCH
Drive Bays (12) Hot-swap 2.5" drive bays support U.2 PCIe 4.0 NVMe
Expansion Slot Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports HHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports HHHL PCIe card
Riser 4:
(1) PCIe 3.0 x16 slot from CPU1 supports HHHL PCIe card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function
Front I/O (12) Hot-swap 2.5" drive bays
(2) USB 2.0 Type-A Port
(1) System Power LED Button
(1) UID LED Button
(1) Reset Button
(4) Status LEDs: Fault/LAN/M.2
Rear I/O (1) 1000Base-T Dedicated Server Management Port
(2) USB 2.0 Type-A Port
(1) VGA D-Sub Port
(1) COM RJ45 Port
(1) UID LED Button
RAID Intel® SATA RAID 0/1/10/5
(1) VROC header for Intel® VROC key
Server Management ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
(1) MicroSD card slot for BMC log
Cooling (2) Passive air cooling modules for max. 205W CPU
(8) 4056 Easy-Swap System Fans
Environment System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C
Non-operating Relative Humidity: 5% ~ 85% (non-condensing)
Certification CE, FCC (Class A)
Dimensions 438mm(17.2") Wx 43.2mm(1.7")H x 770mm(30.3")D
Power Supply (1+1) Redundant 1300W CRPS 80+ Platinum
Security TPM 2.0
TPM (1) TPM header with SPI interface
Package Contents (1) Barebone G1205-01
(1) Quick guide
(1) Slide rail Kit
(2) CPU Coolers
(2) CRPS PSUs
(2) Power cables
Parts List (1) Quick guide: G52-S3222X2-Q13
(1) Slide rail Kit: E21-S258030-C27
(2) CPU Coolers: E31-0807290-A87
(2) CRPS PSUs: S93-0913150-S14
(2) Power cable: K33-3001002-I45 for NA
Optional parts TPM2.0 module: TPM20-IR
M.2 LAN module: MEZ-E11
