In-Win IW-RS224-07 - 2U Server Chassis with 24x SATA/SAS/NVMe Hot-Swap Bays - Includes 800W CRPS Redundant PSU and Rail Kit

0,00 €
Menge

Beschreibung

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

 0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 0

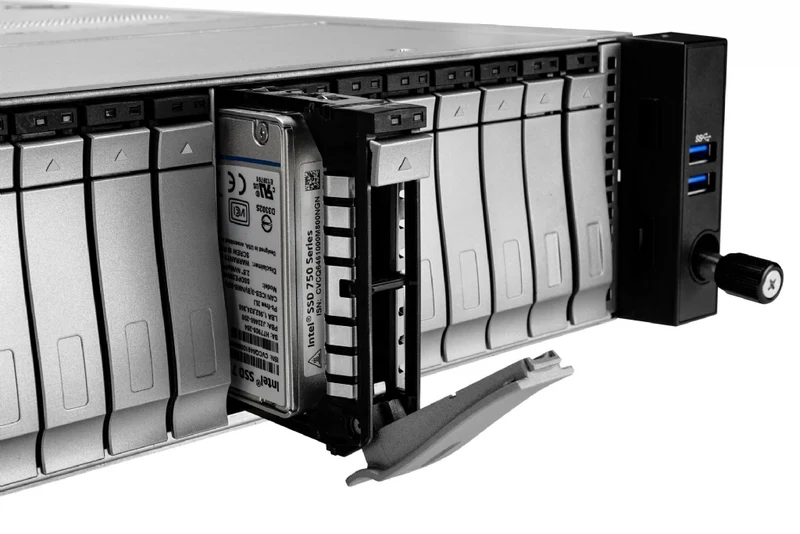

Hotswap 2.5" 24 (Front)
2 (Rear)
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 2x SFF-8643 12Gbps for SATA/SAS Connectivity with Expander Backplane
8x SlimSAS for NVMe Connectivity (8x NVMe Drive Max - First 4x and Last 4x Bays)
Expansion Slots Full Height 0
Low Profile 7

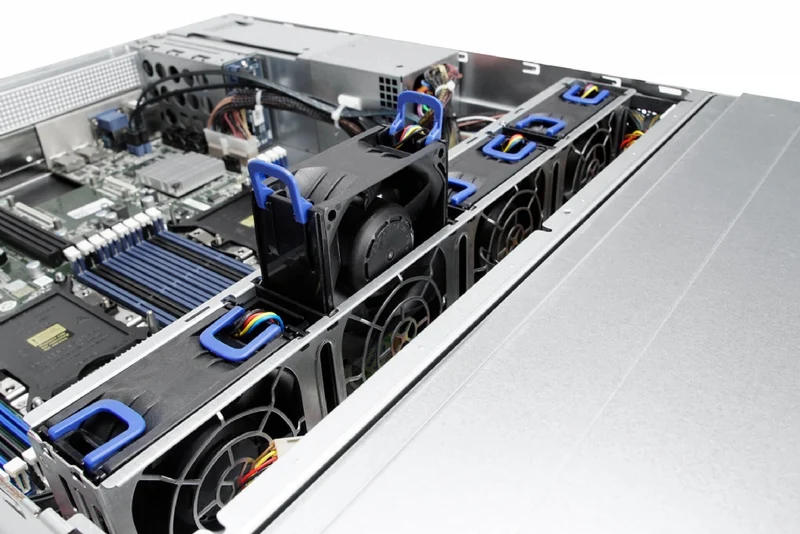

Cooling 4x 80mm PWM Hot-Swap Fans, 12,000RPM
Power Supply Form Factor Includes 800W 1U 1+1 redundant PSU, 80 Plus Platinum
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 660 x 448 x 87.5mm (DxWxH mm)
Weight 13kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Dual 1200W Redundant PSU
  • 1 x Rail Kit
  • 1 x Accessory Box
