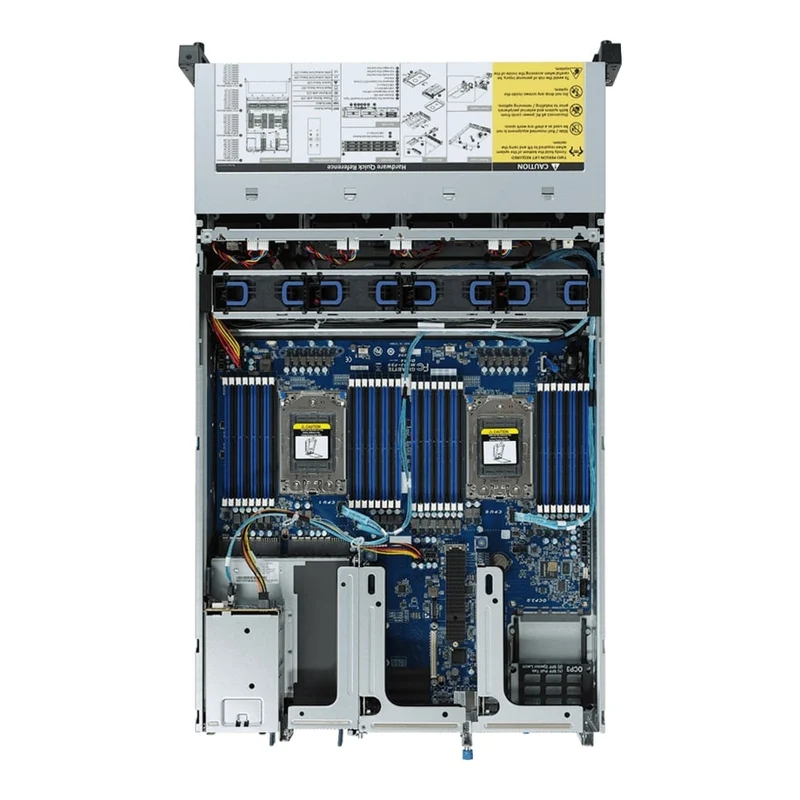

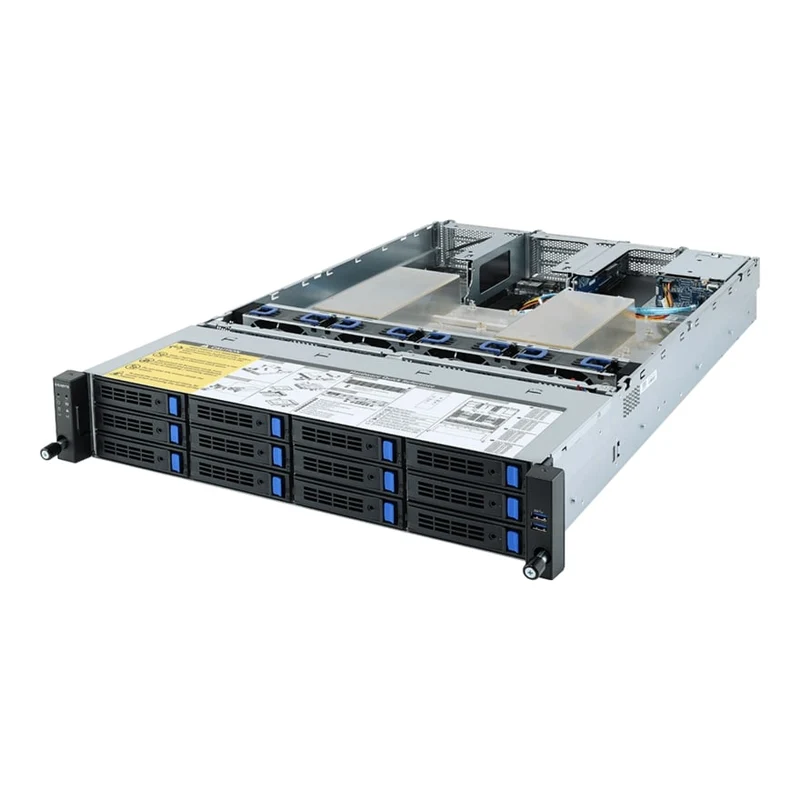

Gigabyte R282-Z90 2U Rackmount Dual 3rd Gen AMD ROME Server - 14x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 2U
438 x 87 x 730 Motherboard MZ92-FS0 Rev. 3.0 CPU AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7003 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processors Socket 2 x LGA 4094
Socket SP3 Chipset System on Chip Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC LAN Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp Storage Front side:

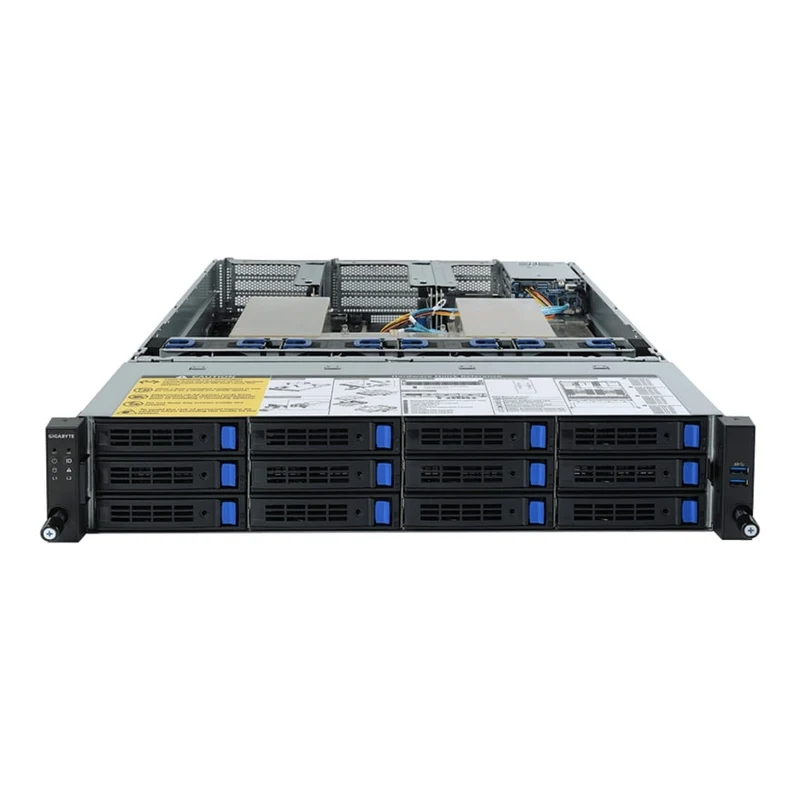

12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- (8 x from CPU_0, 4 x from CPU_1)

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_1

Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA

SAS card is required for SAS devices support SAS Depends on SAS Add-on card RAID N/A Expansion Slots Riser Card CRS2027:
- 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1

Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device Internal I/O 1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED

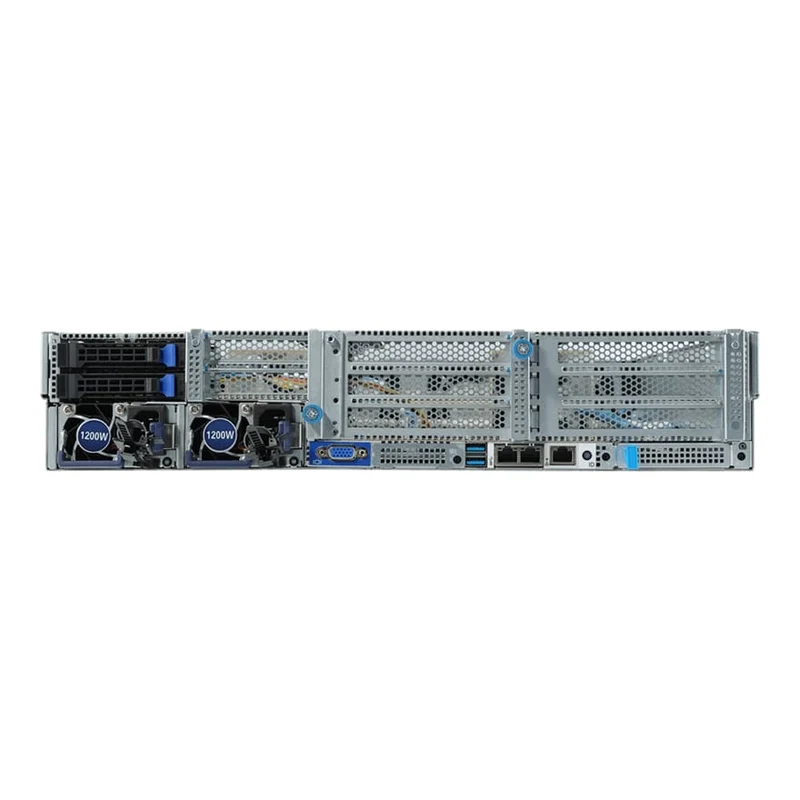

2 x LAN activity LEDs Rear I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED Backplane I/O Speed and bandwidth:
Front side - CBP20C4: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2020: SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 2 x 1200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz

DC Output:
- Max 1000W/ 100-127V~
+ 12V/ 82A
+ 12Vsb/ 2A
- Max 1200W/ 200-240V~
+ 12V/ 98A
+ 12Vsb/ 2A

NOTE: Select 1600W power supply if using 280W CPU with full loading configuration System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later Weight Net Weight: 18 kg
Gross Weight: 25.5 kg System Fans 4 x 80x80x38mm (16,300rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 982 x 588 x 268 mm Packaging Content 1 x R282-Z90
2 x CPU heatsinks
1 x Rail kit Part Numbers - Barebone package: 6NR282Z90MR-00-A*
- Motherboard: 9MZ92FS0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Backplane board - CBP20C4: 9CBP20C4NR-00
- Backplane board - CBP2020: 9CBP2020NR-00
- Front panel board - CFP2001: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2033: 9CRS2033NR-00
- 4 x NVMe optional kit: 6NR282Z9BSR-00-100
- Power supply: 25EP0-212008-D0S
