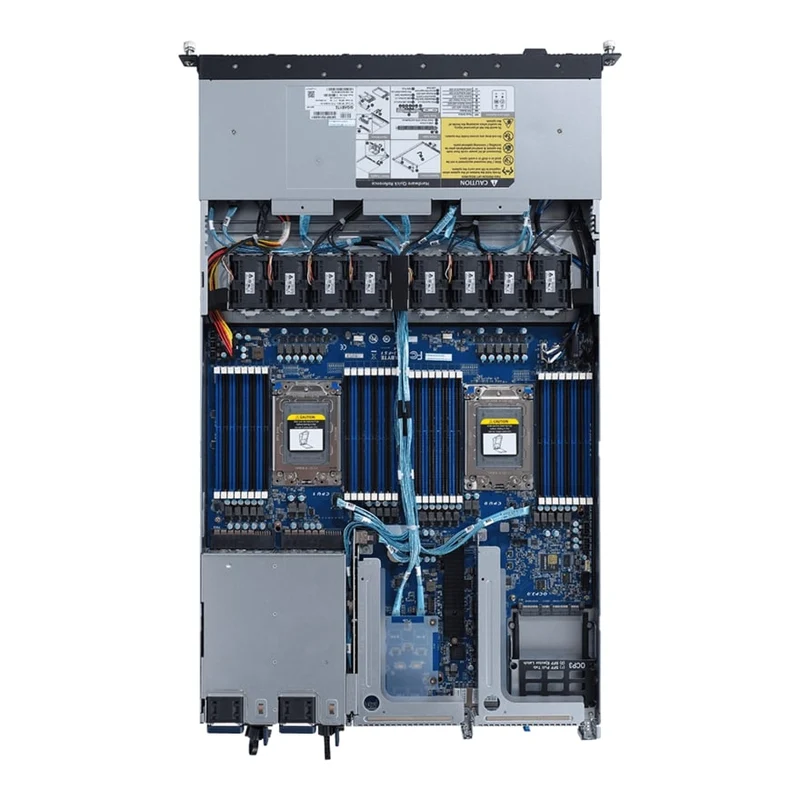

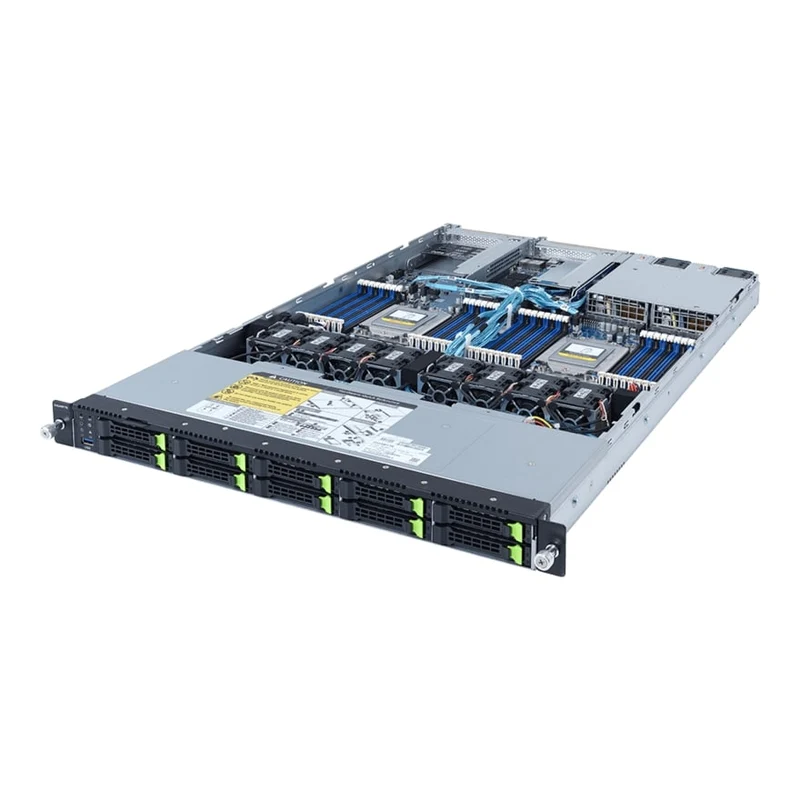

Gigabyte R182-Z93 1U Rackmount Dual 3rd Gen AMD ROME Server - 10x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 1U
438 x 43.5 x 730 Motherboard MZ92-FS1 CPU AMD EPYC™ 7002 series processor family
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports 280W CPU at ambient 30°C

Compatible with AMD EPYC™ 7001 series processor family

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Socket 2 x LGA 4094
Socket SP3 Chipset System on Chip Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC LAN Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp Storage Front side:
10 x 2.5" Gen4 NVMe hot-swappable bays
- (2 x from CPU_0, 8 x from CPU_1) SAS N/A RAID N/A Expansion Slots Riser Card CRS101E x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO132, 2 x NVMe HBA
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device Internal I/O 1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper

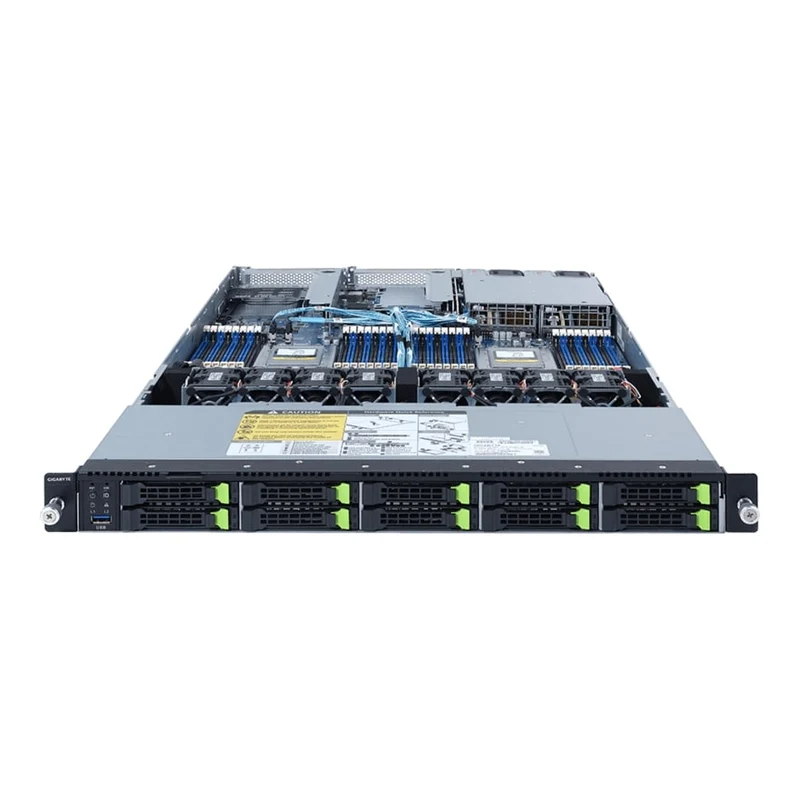

1 x BIOS recovery jumper Front I/O 1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED

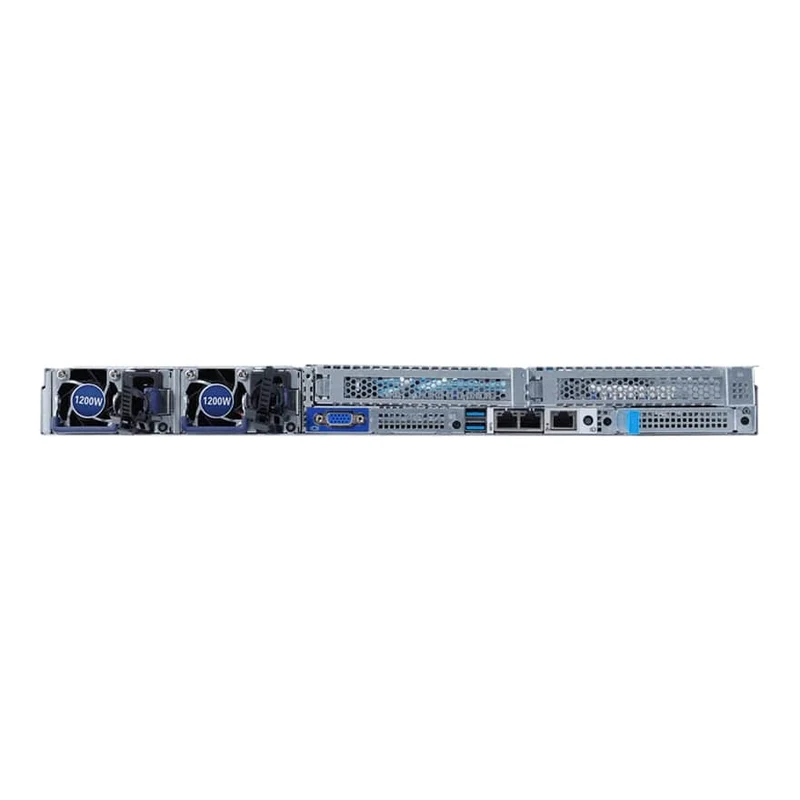

1 x System status LED Rear I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 2 x 1200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-7A, 50-60Hz

DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+ 12V/ 97A
+ 12Vsb/ 3A

NOTE: Select 1600W power supply if using 280W CPU with full loading configuration System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later Weight Net Weight: 13 kg
Gross Weight: 22 kg System Fans 8 x 40x40x56mm (23,000rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 985 x 588 x 250 mm Packaging Content 1 x R182-Z93
2 x CPU heatsinks
1 x Rail kit Part Numbers - Barebone package: 6NR182Z93MR-00-1*
- Motherboard: 9MZ92FS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101E: 9CRS101ENR-00
- NVMe HBA_CNVP141: 9CNVP142NR-00
- NVMe HBA_OCP_CNVO132: 9CNVO132NR-00
- Power supply: 25EP0-212007-F3S
- GRAID SupremeRAID Core Software Module License (optional)
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
