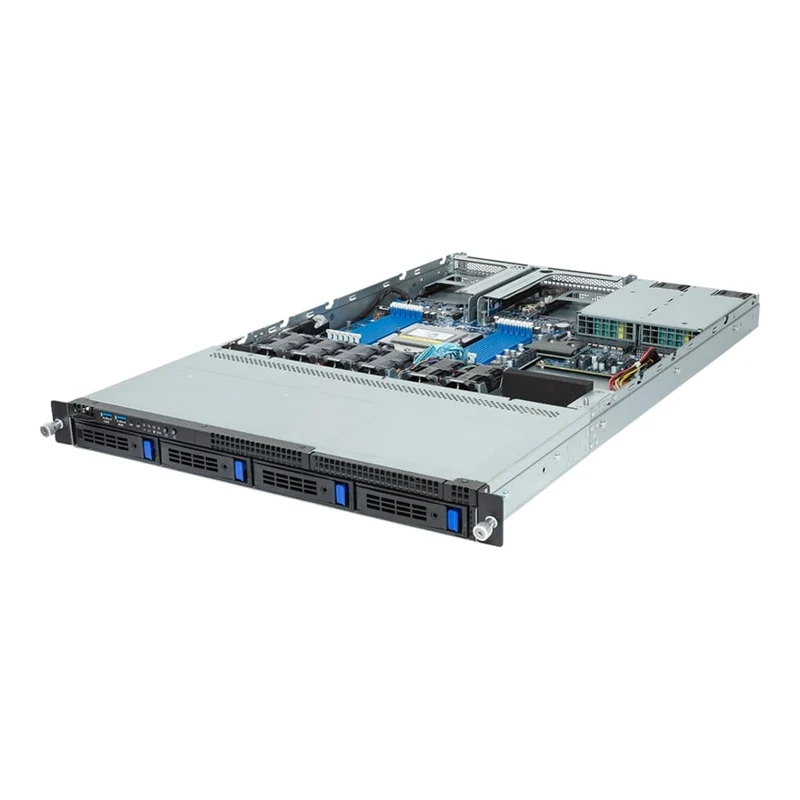

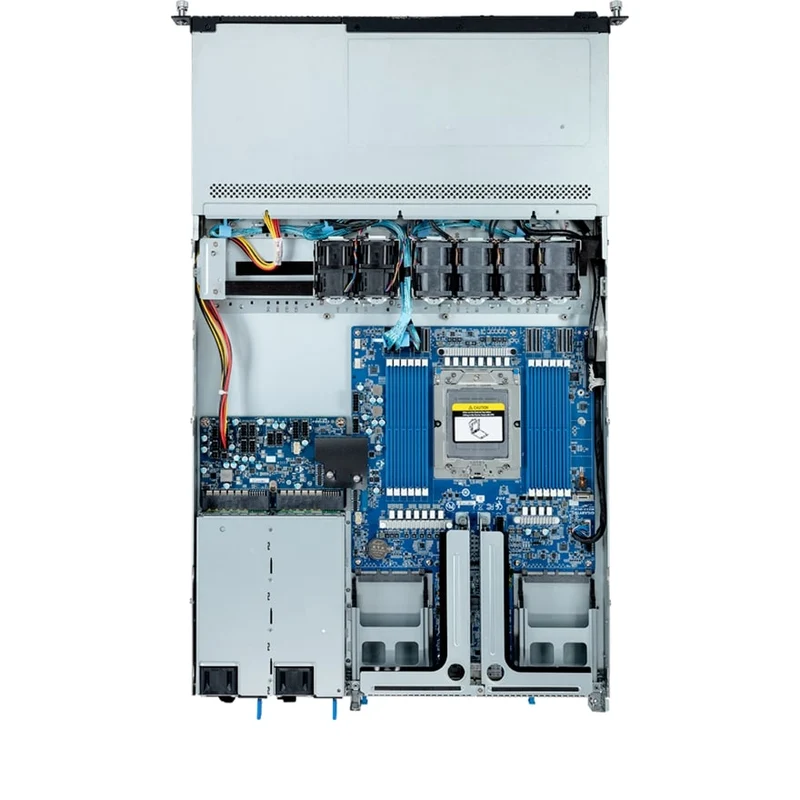

Gigabyte R163-Z30 1U Rackmount Single Socket 4th Gen AMD GENOA Server - 4x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 1U
438 x 43.5 x 710 Motherboard MZ33-DC0 CPU AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
*Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details. Socket 1 x LGA 6096
Socket SP5 Chipset System on Chip Memory 12 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz LAN Rear side:
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support SAS Depends on SAS Add-on card RAID N/A Expansion Slots Riser Card CRS101V:
- 1 x PCIe x16 (Gen5 x16) FHHL slot

Riser Card CRS101W:
- 1 x PCIe x16 (Gen5 x16) FHHL slot

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards Internal I/O 1 x M.2 slot
1 x TPM header

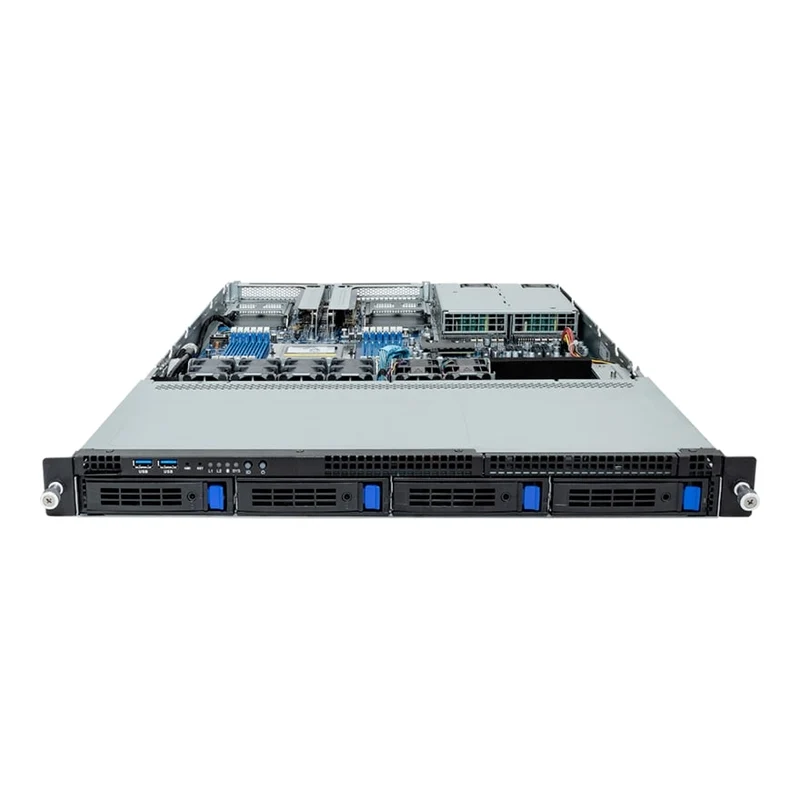

2 x OCP 3.0 slots Front I/O 2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x HDD activity LED

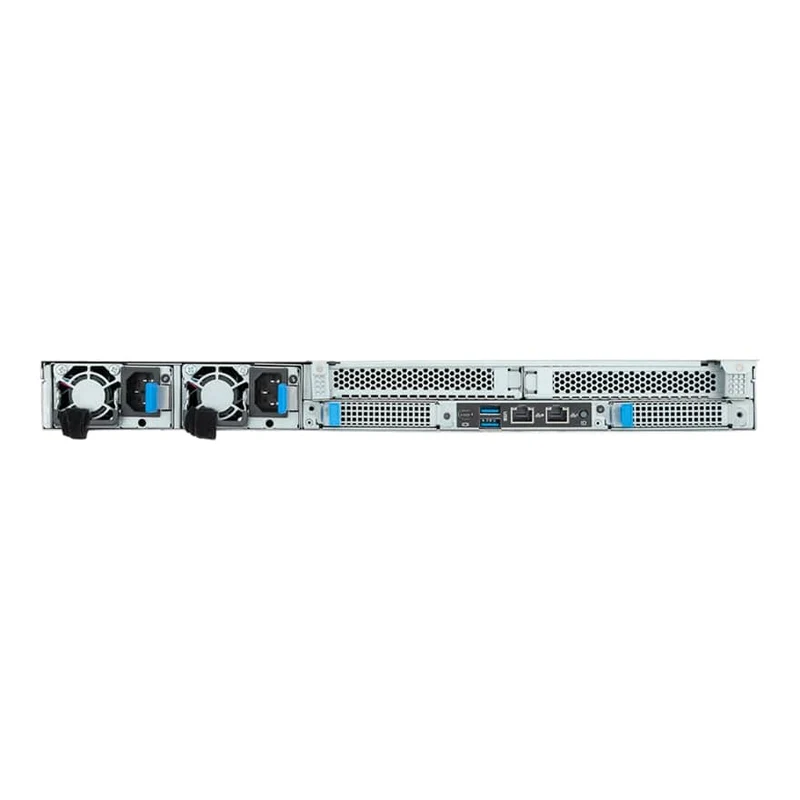

1 x System status LED Rear I/O 2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED Backplane I/O Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 1+1 800W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz

DC Input:
- 240Vdc/ 5A

DC Output:
- Max 800W
+ 12.2V/ 65A
+ 12Vsb/ 3A

NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency. System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Please refer to OS compatibility table in support page System Fans 4 x 40x40x56mm (29,700rpm)
2 x 40x40x28mm (25,000rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 977 x 588 x 236 mm Packaging Content 1 x R163-Z30
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit Part Numbers - Barebone package: 6NR163Z30DR000AAG2*
- Motherboard: 9MZ33DC0UR-000
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405623-A0R/25ST2-442828-D0R
- Riser card - CRS101V: 9CRS101VNR-00
- Riser card - CRS101W: 9CRS101WNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800C-G1S

Optional parts:

- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HB1-R18100-K0R
