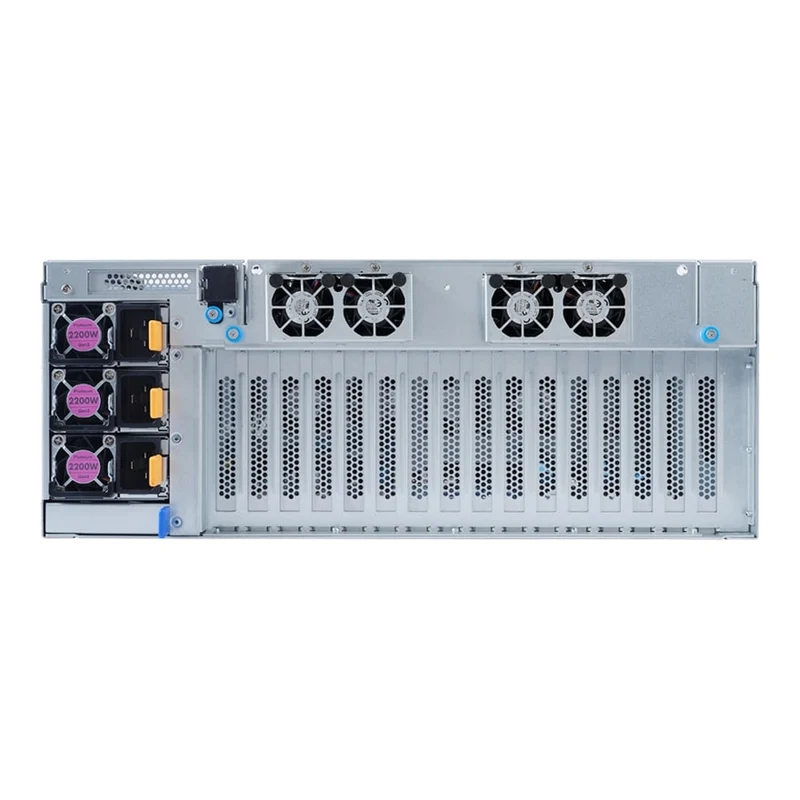

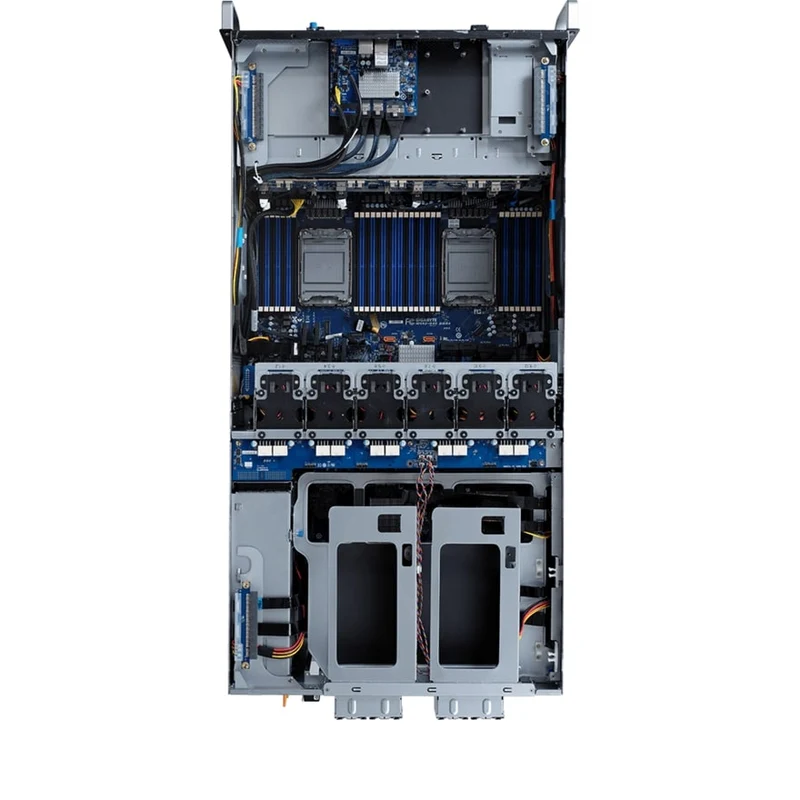

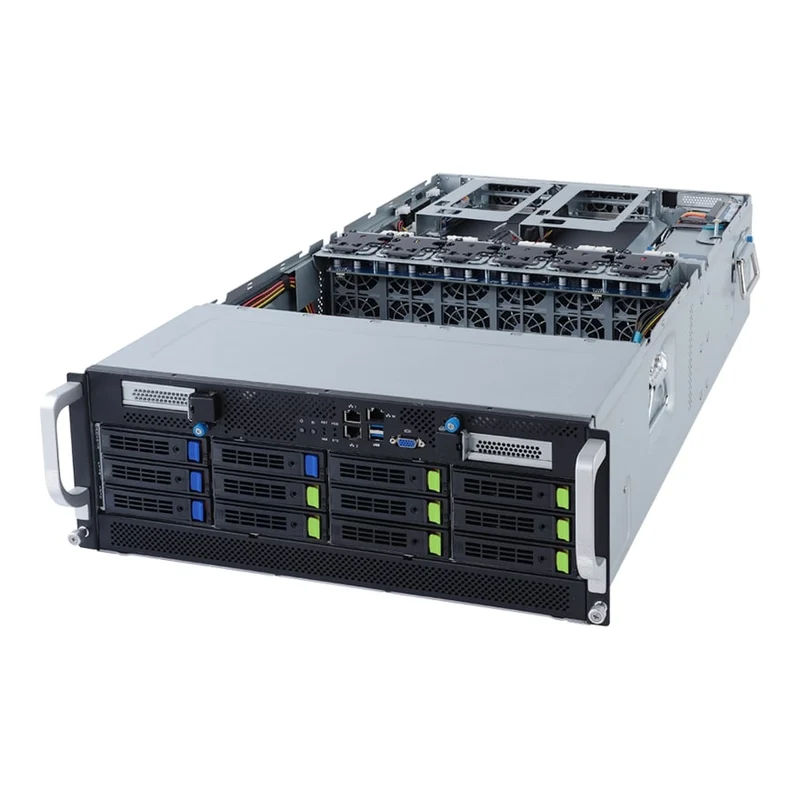

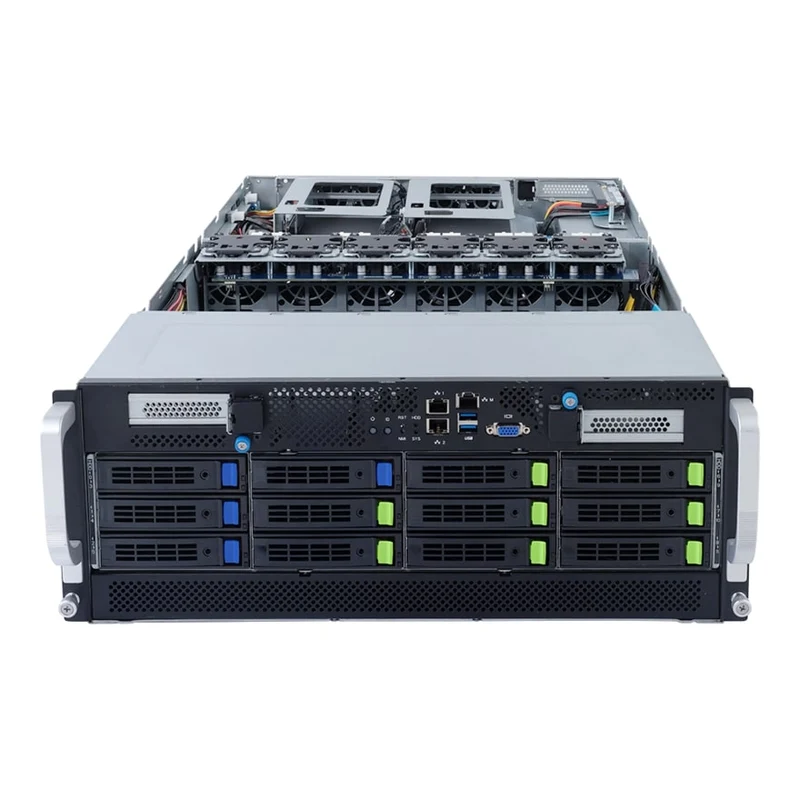

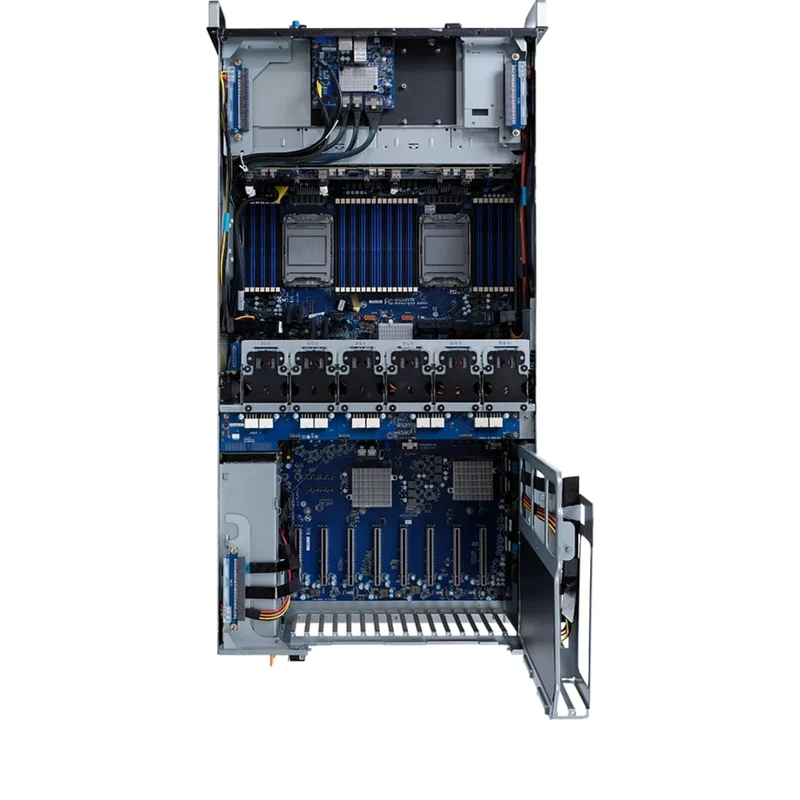

Gigabyte G492-HA0 4U Rackmount Dual 3rd Gen Intel Xeon Scalable Server - Multi-GPU Support - 12x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 4U
447 x 175.2 x 880 Motherboard MG62-G41 CPU 3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Socket 2 x LGA 4189
Socket P+ Chipset Intel® C621A Chipset Memory 32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz LAN Front side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
NCSI function supported

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Front side:
8 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Onboard 2 x SATA DOM supported SAS N/A RAID Intel® SATA RAID 0/1/10/5 Expansion Slots 10 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88096, for GPUs
1 x PCIe x16 (Gen4 x16) low-profile slot on rear side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth on rear side, from CPU_1
Supports NCSI function

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations Internal I/O 1 x TPM header
1 x VROC connector
2 x SATA DOM connectors
1 x Front VGA header
1 x Serial header Front I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED Rear I/O N/A Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 3 x 2200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later System Fans 4 x 40x40x28mm (25,000rpm)
6 x 60x60x76mm (21,700rpm)
1 x 55x55x7.5mm (6,000rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 1109 x 609 x 606 mm Packaging Content 1 x G492-HA0
2 x CPU Fansinks
1 x Rail kit Part Numbers - Barebone package: 6NG492HA0MR-00-1*
- Motherboard: 9MG62G41NR-00
- VROC module: 25FD0-R181N0-10R
(Supported for Intel SSD only, optional)
- Rail kit: 25HB2-A96100-K0R
- CPU Fansink: 25ST4-353203-M1R
- Front panel board - CFPG015: 9CFPG015NR-00
- Backplane board - CBP20C5: 9CBP20C5NR-00
- PCIe bridge board - CPBG780: 9CPBG780NR-00
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222008-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R (optional)
