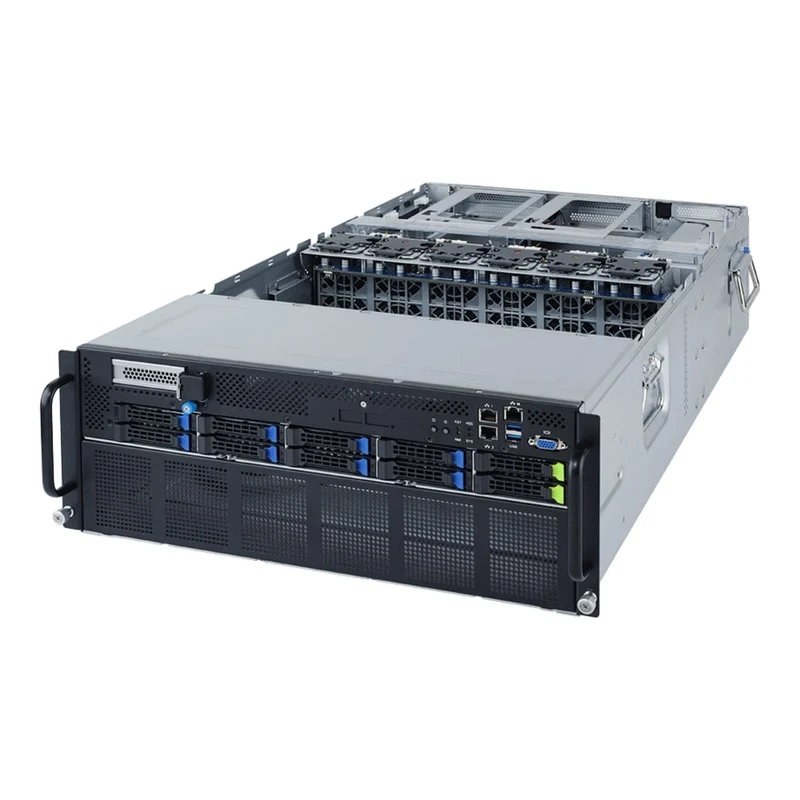

Gigabyte G482-Z54 4U Rackmount Dual 3rd Gen AMD ROME Server - Multi-GPU Support - 8x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 4U
448 x 176 x 880 Motherboard MZ52-G41 Rev. 3.0 CPU AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7003 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processors Socket 2 x LGA 4094
Socket SP3 Chipset System on Chip Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

* Please refer to memory matrix table in manual for more information about memory support frequency

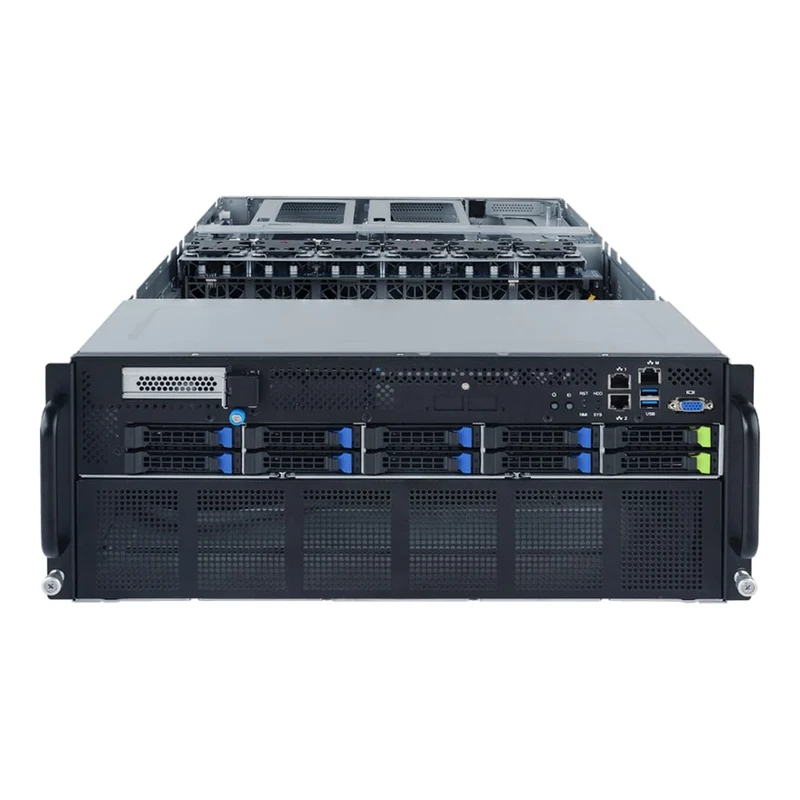

LAN Front side:
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Front side:
2 x 2.5" NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA hot-swappable bays, from CPU_0

SAS devices not supported SAS N/A RAID N/A Expansion Slots 4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1 x PCIe x16 (Gen4 x16) FHFL slot on rear side, from CPU_1*

*SAS cards with internal cables not supported due to cable routing limitation

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations Internal I/O 1 x TPM header
1 x Front panel header Front I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED Rear I/O N/A Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 3 x 2200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later System Fans 12 x 60x60x38mm (21,700rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 1109 x 609 x 606 mm Packaging Content 1 x G482-Z54
2 x CPU fansinks
1 x Rail kit Part Numbers - Barebone package: 6NG482Z54MR-00-A*
- Motherboard: 9MZ52G41NR-00
- Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- GPU cable for NVIDIA A10: 25CRI-100001-B0R (optional)
