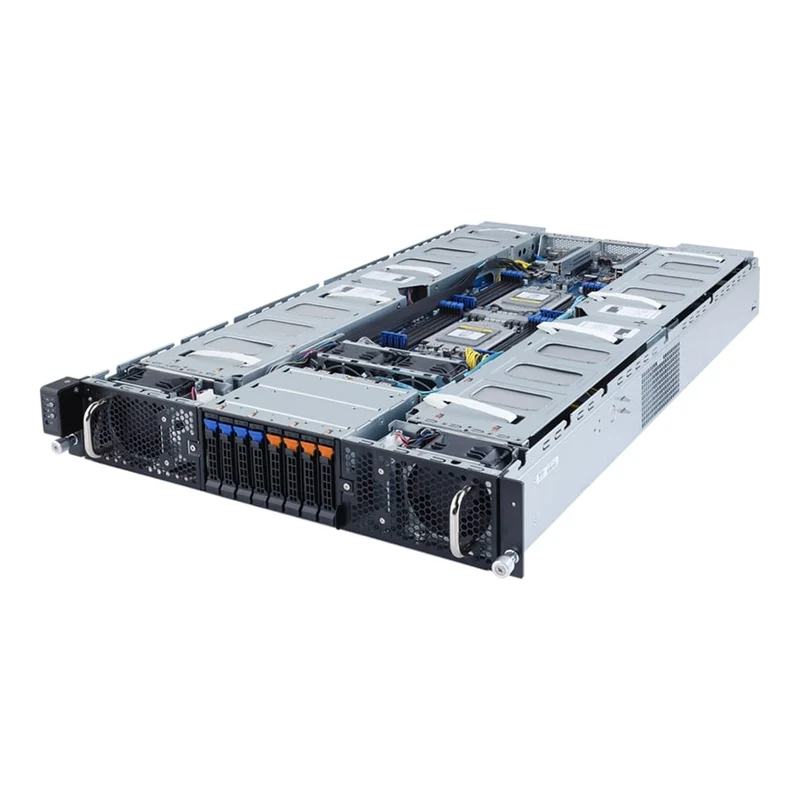

Gigabyte G292-Z44 2U Rackmount Dual 3rd Gen AMD ROME Server - 8x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 2U
448 x 87.5 x 800 Motherboard MZ42-G20 Rev. 3.0 CPU AMD EPYC™ 7003 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 240W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processors Socket 2 x LGA 4094
Socket SP3 Chipset System on Chip Memory 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz LAN Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller)
1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Front side:

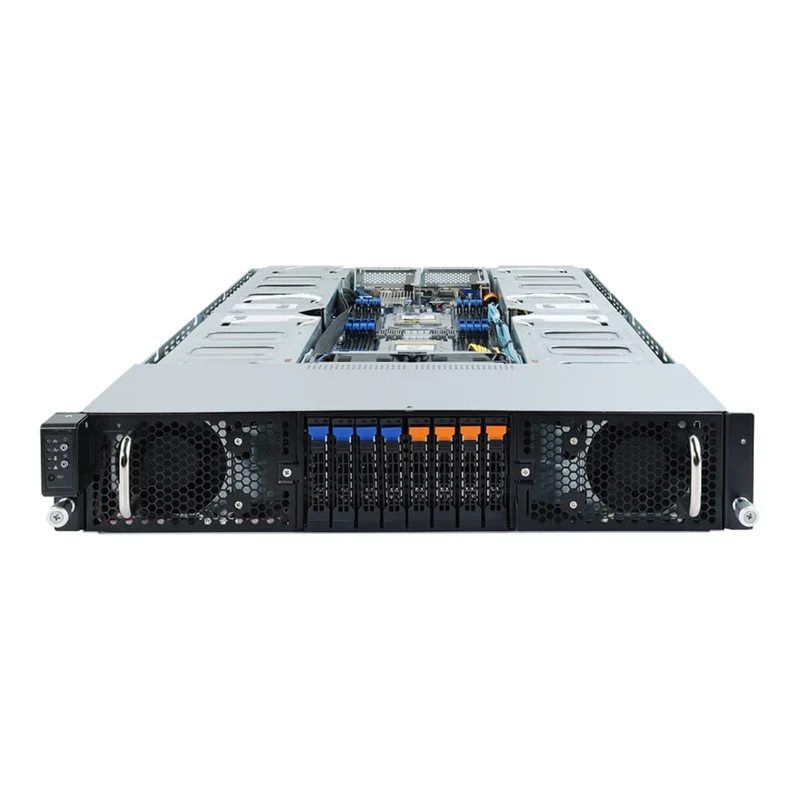

4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448

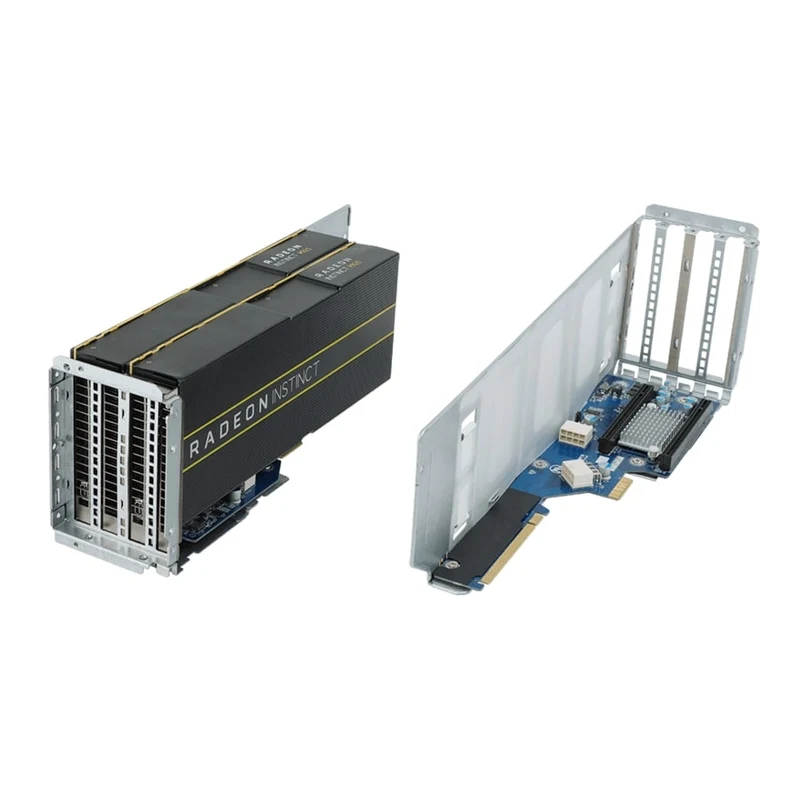

CRA4548 SAS Depends on SAS Add-on card RAID Depends on SAS Add-on card Expansion Slots 8 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs (Broadcom solution)
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
- Some limitations may apply depends on OS or user application Internal I/O 1 x TPM header Front I/O 1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

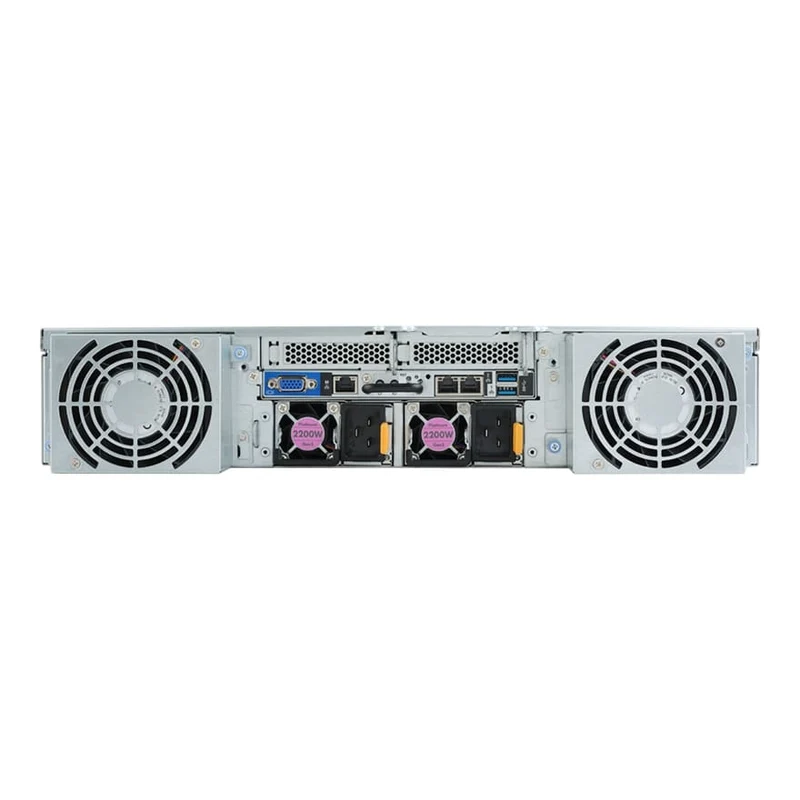

1 x Reset button Rear I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED Backplane I/O Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 2+0 2200W 80 PLUS Platinum power supplies

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage/Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP/AD/RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later System Fans 8 x 80x80x38mm (16,300rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU operating temperature Packaging Dimensions 1133 x 724 x 261 mm Packaging Content 1 x G292-Z44
2 x CPU heatsinks
1 x Rail kit Part Numbers - Barebone package: 6NG292Z44MR-00-A*
- Motherboard: 9MZ42G20NR-00
- Tool-less rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R
- Backplane board - CBPG083: 9CBPG083NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card for GPUs - CRSG620: 9CRSG620NR-00
- Riser card for GPUs - CRSG621: 9CRSG621NR-00
- Power supply: 25EP0-222006-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R (optional)
