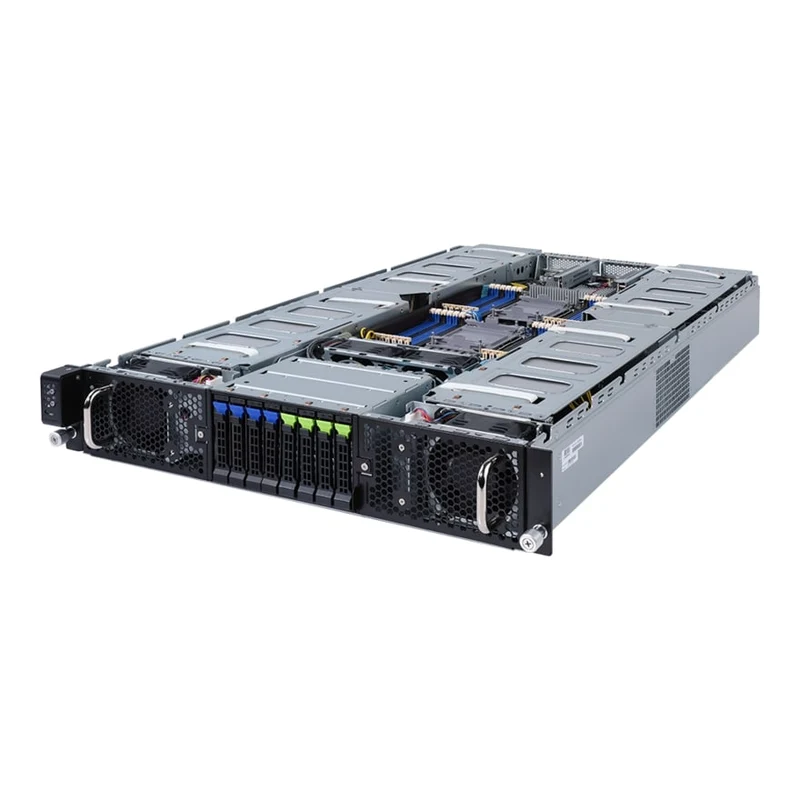

Gigabyte G292-280 2U Rackmount Dual 3rd Gen Intel Xeon Scalable Server - 8x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 2U
448 x 87.5 x 800 Motherboard MG52-G20 CPU 3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 250W

Supports 270W CPU at ambient 25°C

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Socket 2 x LGA 4189
Socket P+ Chipset Intel® C621A Chipset Memory 24 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz LAN Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Front side:

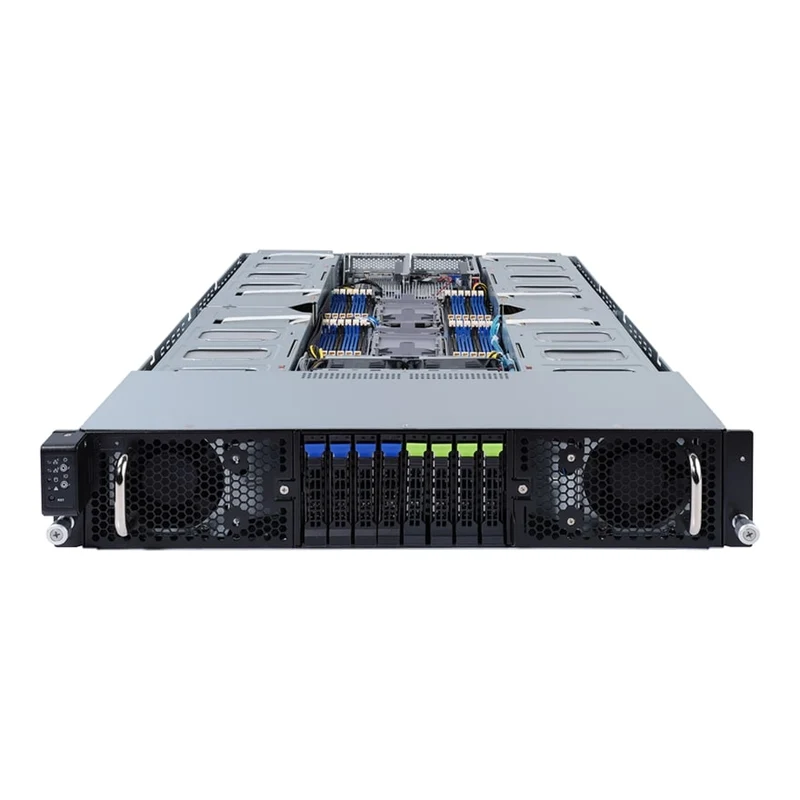

4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)

SAS card is required for SAS devices support SAS Depends on SAS Add-on card RAID Intel® SATA RAID 0/1/10/5 Expansion Slots Riser Card CRSG620 x 2:

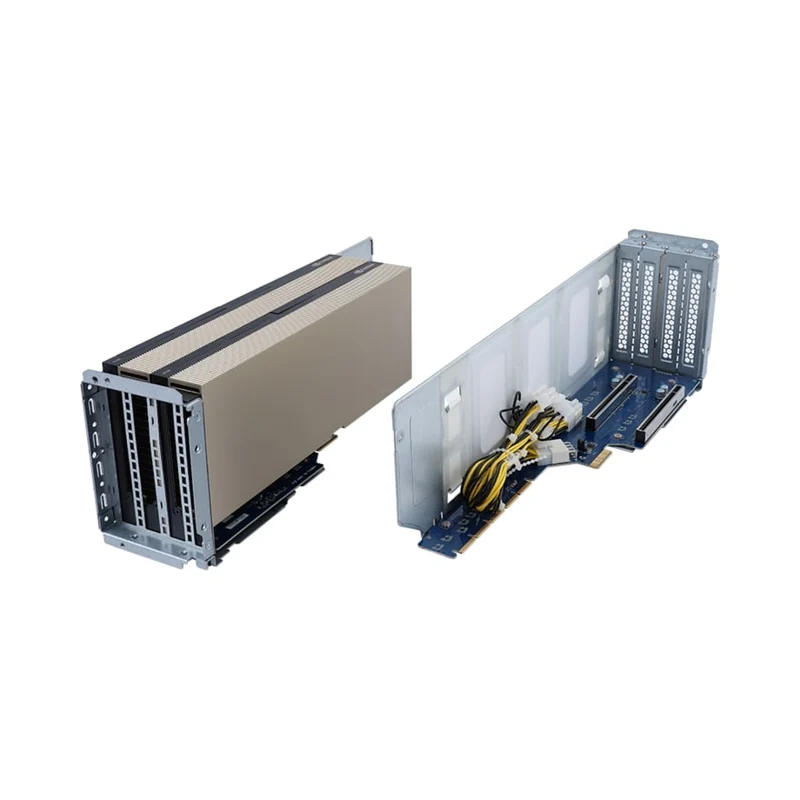

- 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs

Riser Card CRSG621 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs

Riser Card CRSG01A x 2:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O 1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Backplane board header Front I/O 1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

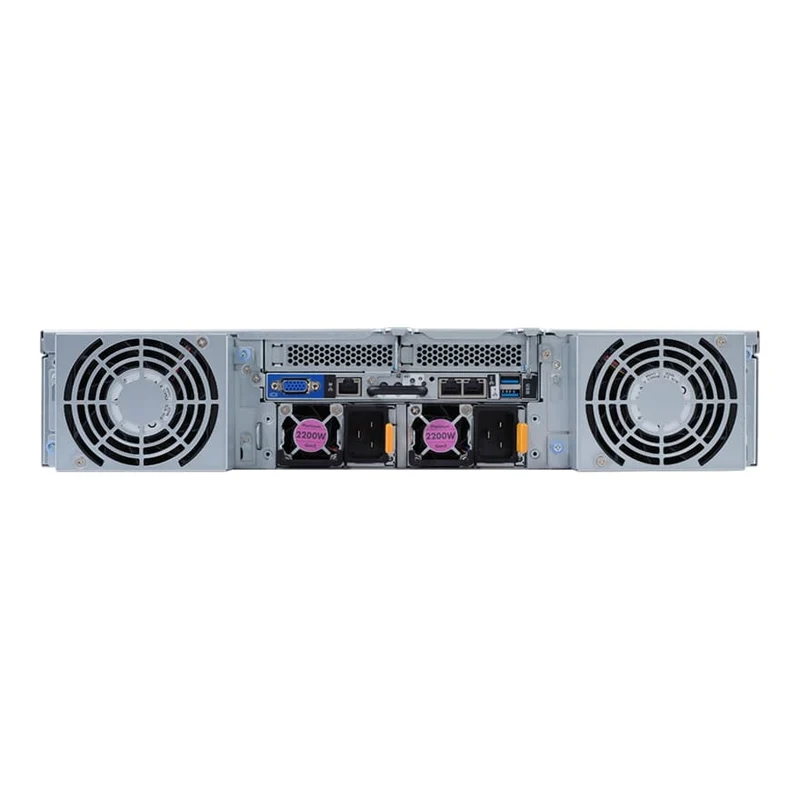

1 x Reset button Rear I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply Dual 3200W 80 PLUS Platinum power supply

AC Input:
- 100-127V~/ 14A, 50-60Hz
- 200-208V~/ 16A, 50-60Hz
- 214-234V~/ 16A, 50-60Hz
- 240V~/ 16A, 50-60Hz

DC Input:
- 240Vdc/ 16A

DC Output:
- Max 1100W/ 100-127V~
- Max 2434W/ 200-208V~
- Max 2828W/ 214-234V~
- Max 3234W/ 240V~

NOTE: The system power supply requires C19 power cord System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later System Fans 8 x 80x80x38mm (16,300rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU system operating temperature Packaging Dimensions 1133 x 724 x 261 mm Packaging Content 1 x G292-280
2 x CPU heatsinks
1 x L-shape Rail kit Part Numbers - Barebone package: 6NG292280MR-00-1*
- Motherboard: 9MG52G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320X-M1R/25ST1-44320Y-M1R
- Backplane board - CBPG084: 9CBPG084NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card - CRSG620: 9CRSG620NR-00
- Riser card - CRSG621: 9CRSG621NR-00
- Power supply: 25EP0-232001-D0S

Optional parts:

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2 x 7mm internal SSD cable kit: 6NG291281SR-00-100
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
