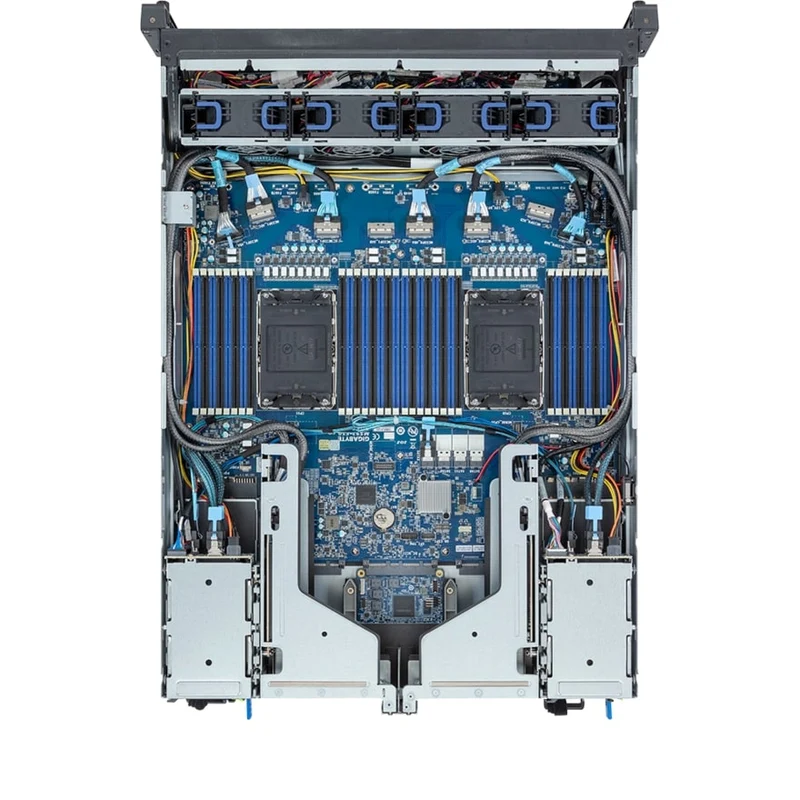

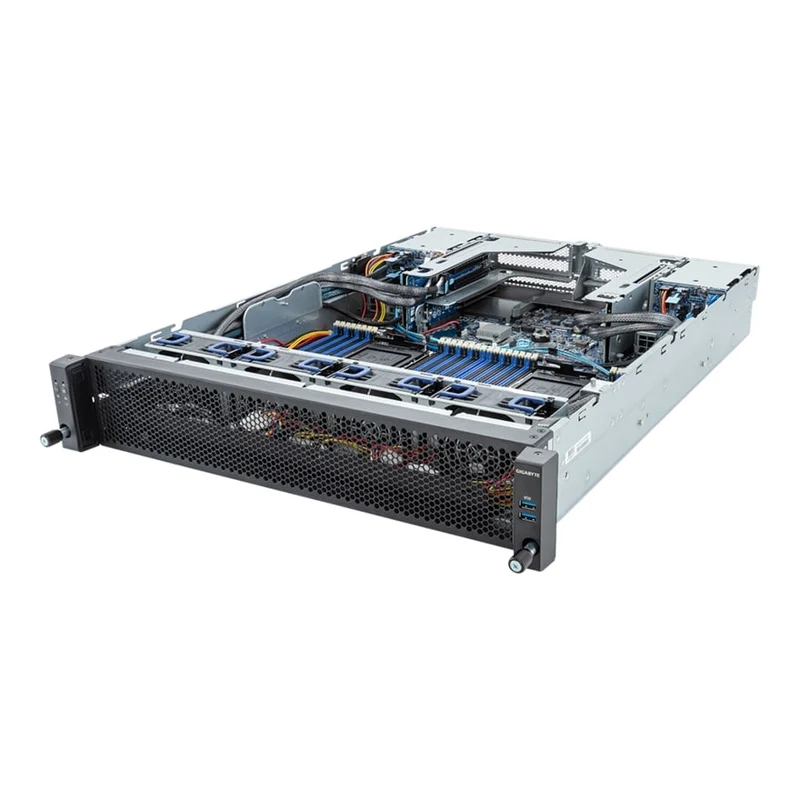

Gigabyte E283-S90 2U Rackmount Dual Socket 4th Gen Intel Xeon Scalable Server - Short Depth Edge Platform - Redundant PSU

Dimensions (WxHxD, mm) 2U
438 x 87.5 x 625 Motherboard MS93-FS0 CPU 4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, CPU TDP up to 350W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Socket 2 x LGA 4677
Socket E Chipset Intel® C741 Chipset Memory 32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC) LAN Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Rear side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)

SAS card is required for SAS devices support SAS Depends on SAS Add-on card RAID Intel® SATA RAID 0/1/10/5 Expansion Slots Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101K:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

Riser Card CRS202G:
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0*

*NOTE: Slot_10 would be downgraded to Gen4 if using XCC CPU with 4 x UPI

Riser Card CRS202H:
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function Internal I/O 1 x TPM header
1 x VROC connector

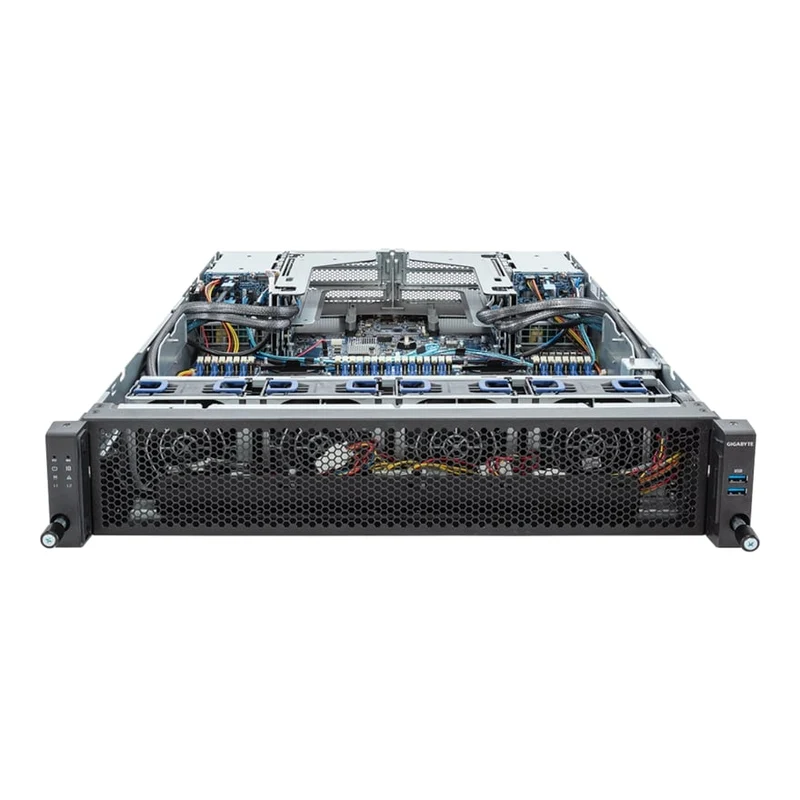

2 x OCP 3.0 slots Front I/O 2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED

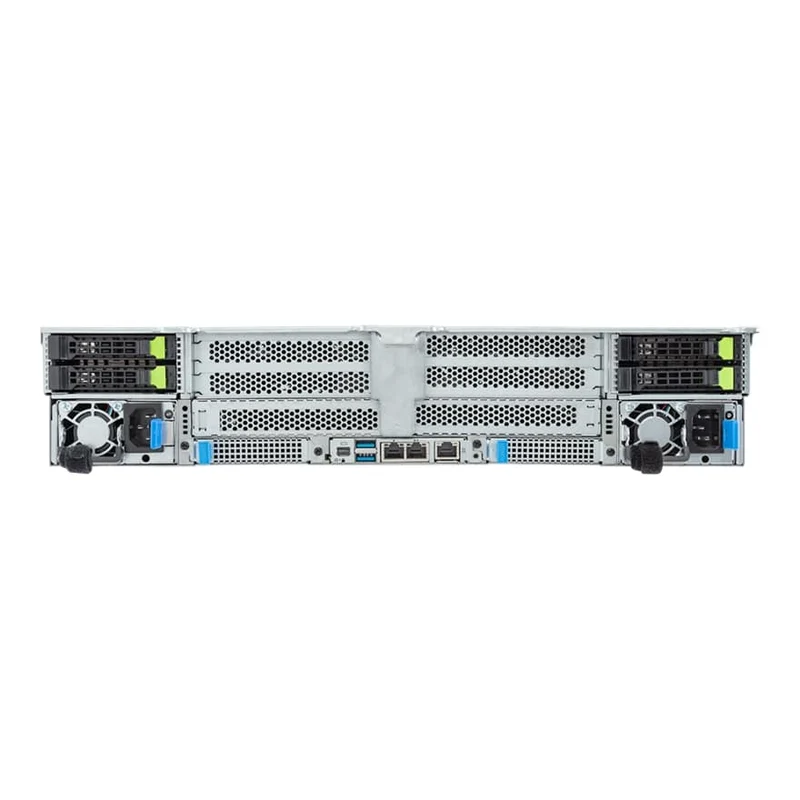

1 x System status LED Rear I/O 2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply Dual 1600W (240V) 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~
+ 12.2V/ 132A
+ 12Vsb/ 3A System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64) System Fans 4 x 80x80x38mm (18,300rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 982 x 588 x 268 mm Packaging Content 1 x E283-S90
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carrier clips

*Rail kit not included. Please refer to optional parts for compatible rail kit. Part Numbers - Barebone package: 6NE283S90DR000AAV1*
- Motherboard: 9AS93FS0UR-000
- CPU heatsink: 25ST1-323208-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00
- Riser card - CRS101K: 9CRS101KNR-00
- Riser card - CRS202G: 9CRS202GNR-00
- Riser card - CRS202H: 9CRS202HNR-00
- G-SC Module - CDCR112: 9CDCR112NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600D-G1S

Optional parts:

- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
