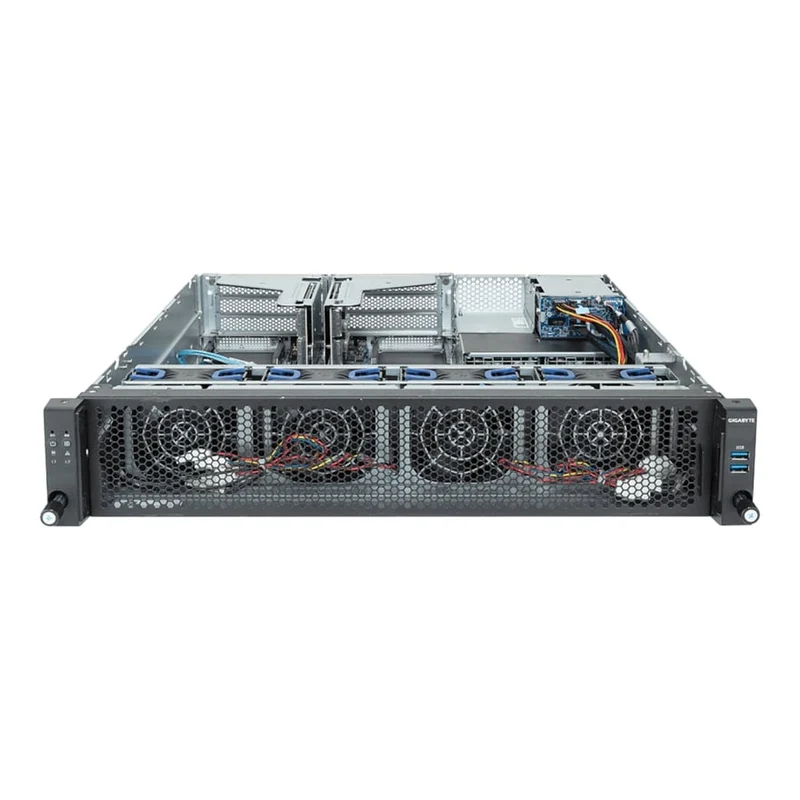

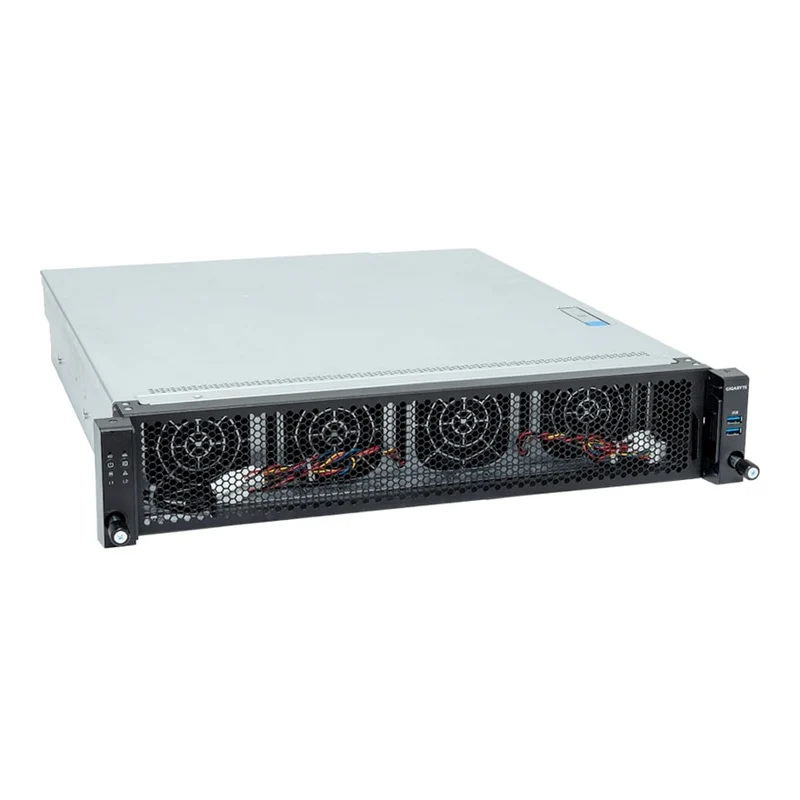

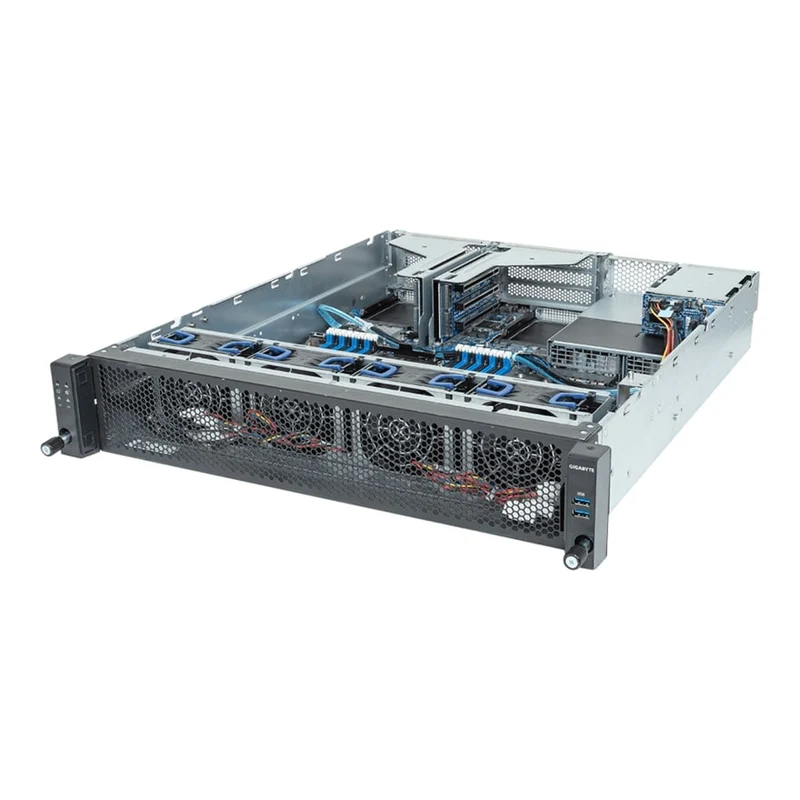

Gigabyte E263-S30 2U Rackmount Single Socket 4th Gen Intel Xeon Scalable Server - Short Depth Edge Platform - Redundant PSU

Dimensions (WxHxD, mm) 2U

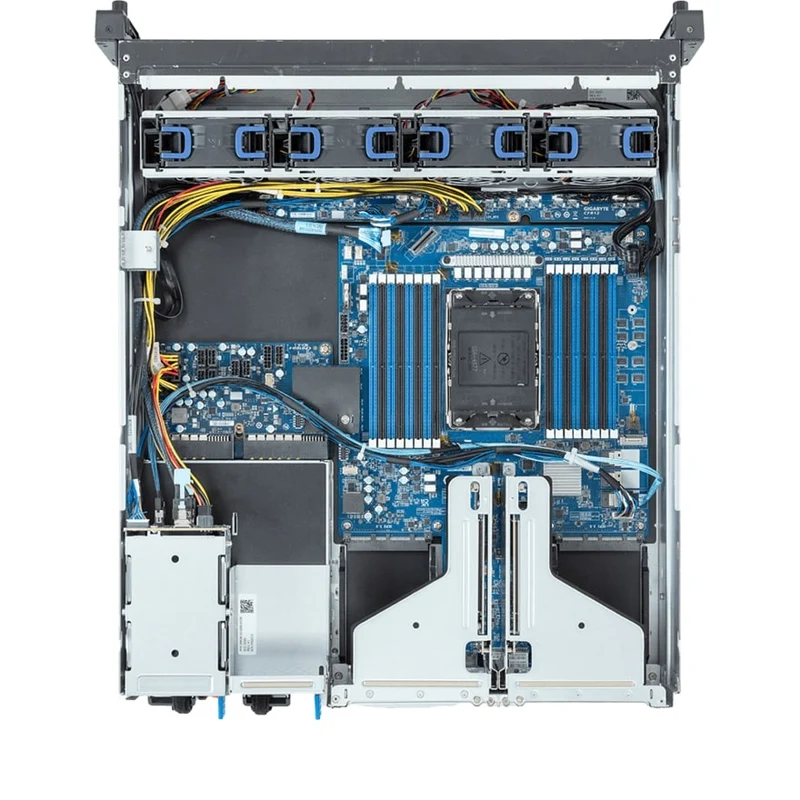

438 x 87.5 x 520 Motherboard MS33-DC0 CPU 4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Single processor, CPU TDP up to 350W Socket 1 x LGA 4677
Socket E Chipset Intel® C741 Chipset Memory 16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC) LAN Rear side:
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Rear Side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support SAS Depends on SAS Add-on card RAID Intel® SATA RAID 0/1 Expansion Slots Riser Card CRS201C:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs

Riser Card CRS201D:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards Internal I/O 1 x M.2 slot
1 x TPM header
1 x VROC connector
2 x OCP 3.0 slots Front I/O 2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x HDD activity LED

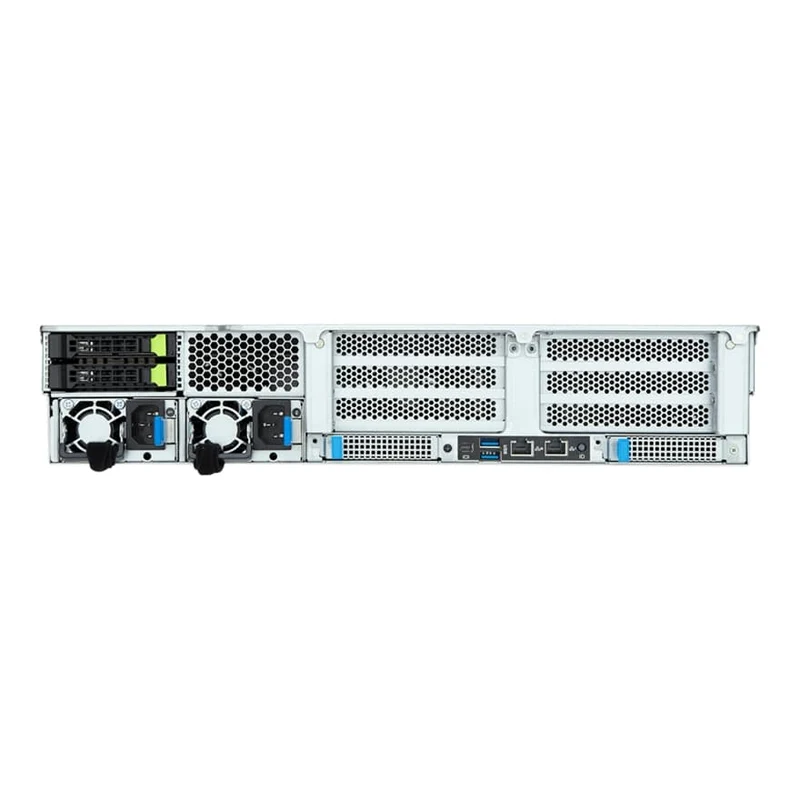

1 x System status LED Rear I/O 2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 1+1 1600W (240V) 80 PLUS Titanium redundant power supplies

AC Input:
- 100-240V~/ 12-9.5A, 50-60Hz

DC Input:
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-120V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12.2V/ 131.2A
+ 12Vsb/ 3A

NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency. System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64) System Fans 4 x 80x80x38mm (18,300rpm) Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 732 x 588 x 285 mm Packaging Content 1 x E263-S30
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
3 x Carrier clips

*Rail kit not included. Please refer to optional parts for compatible rail kit. Part Numbers - Barebone package: 6NE263S30DR000AAV1*
- Motherboard: 9MS33DC0UR-000
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201C: 9CRS201CNR-00
- Riser card - CRS201D: 9CRS201DNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (6P+2P) 350mm: 25CRI-350305-Y4R
- GPU power cable (6P+2P) 480mm: 25CRI-480300-Y4R
- Power supply: 25EP0-21600E-L0S

Optional parts:

- 2-Section Rail kit: 25HB2-3A0204-K0R
