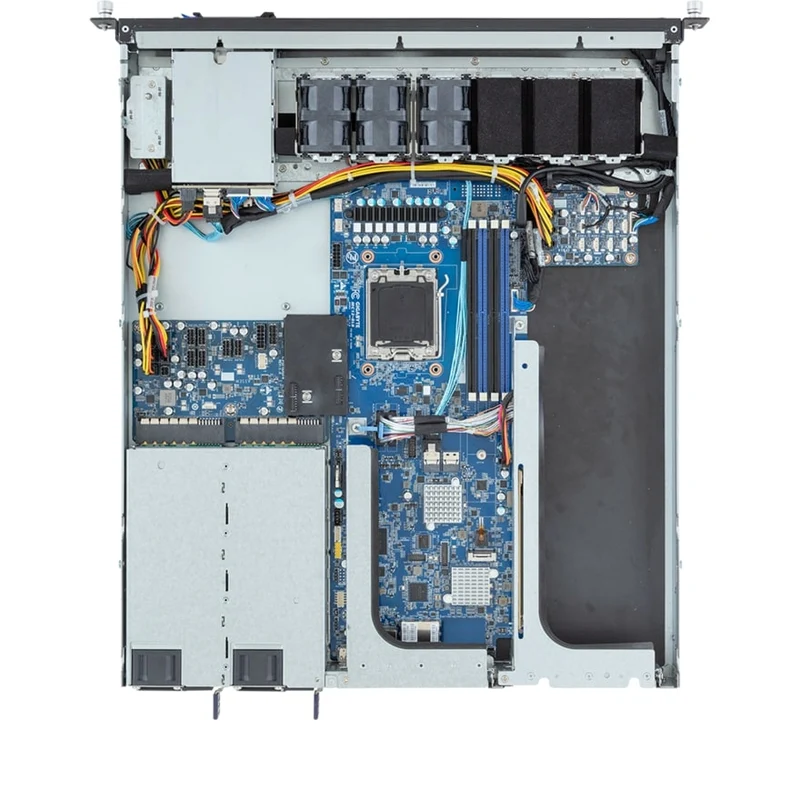

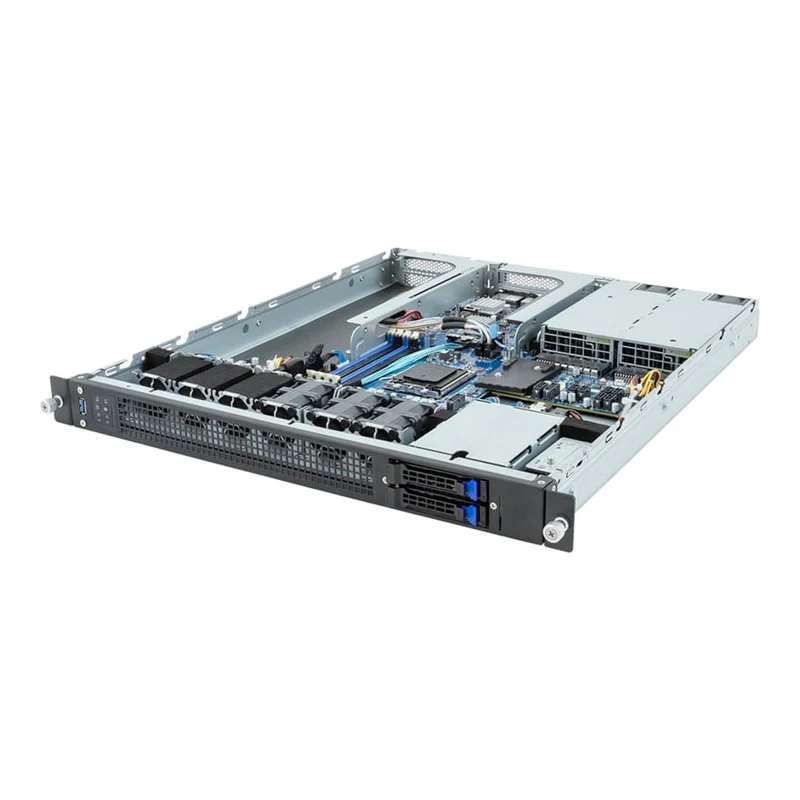

Gigabyte E133-C10 1U Rackmount Single AMD Ryzen 7000 Series Server - Short Depth - 2x Hot-Swap Bays - Redundant PSU

Dimensions (WxHxD, mm) 1U
438 x 43.5 x 520 Motherboard MC13-BL1 CPU AMD Ryzen™ 7000 series processors
Single processor, 5nm technology
TDP up to 105W

*Overclocking not supported due to thermal limitation. Socket AM5 Chipset AMD B650E Memory 4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM modules up to 32GB supported
ECC Unbuffered DIMM 1Rx8/2Rx8 modules supported
Non-ECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 modules supported
Memory speed: up to 5200 MHz (1DPC), 3600 MHz (2DPC) LAN Rear side:
2 x 1Gb/s LAN ports (2 x Broadcom® BCM5720)
Support NCSI function

1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM Storage Front side:
2 x 2.5" SATA hot-swappable bays

SATA supported only SAS N/A RAID RAID 0/1 Expansion Slots PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU

Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from CPU

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from FCH
- Supports 2280/22110 cards Internal I/O 2 x USB 3.2 Gen1
2 x USB 2.0
1 x Front panel header
1 x Back panel header
2 x Fan headers (4 pin)
1 x M.2 slot
1 x TPM header

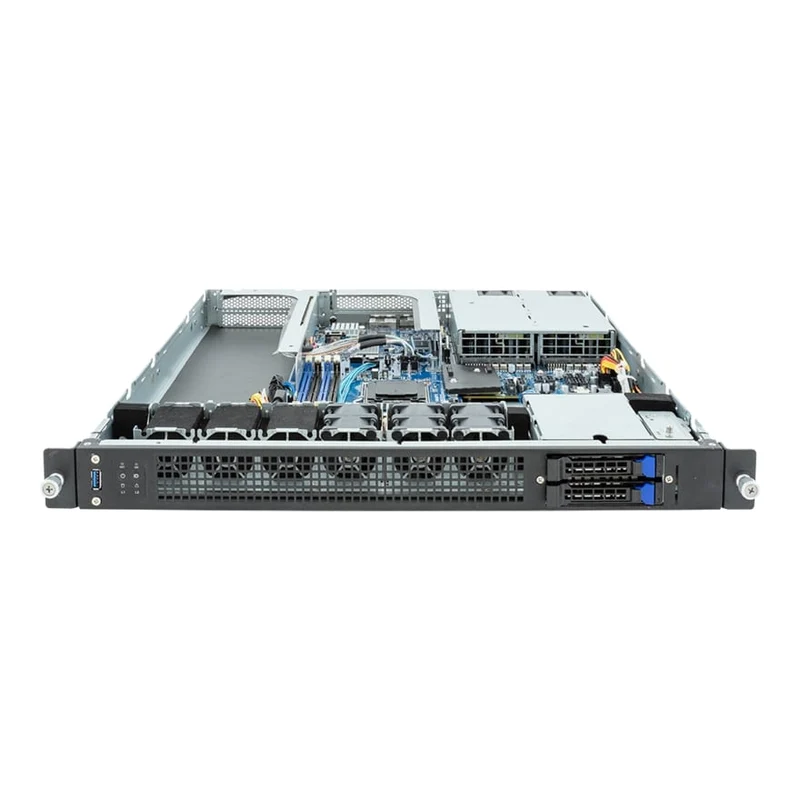

1 x PMBus header Front I/O 1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED

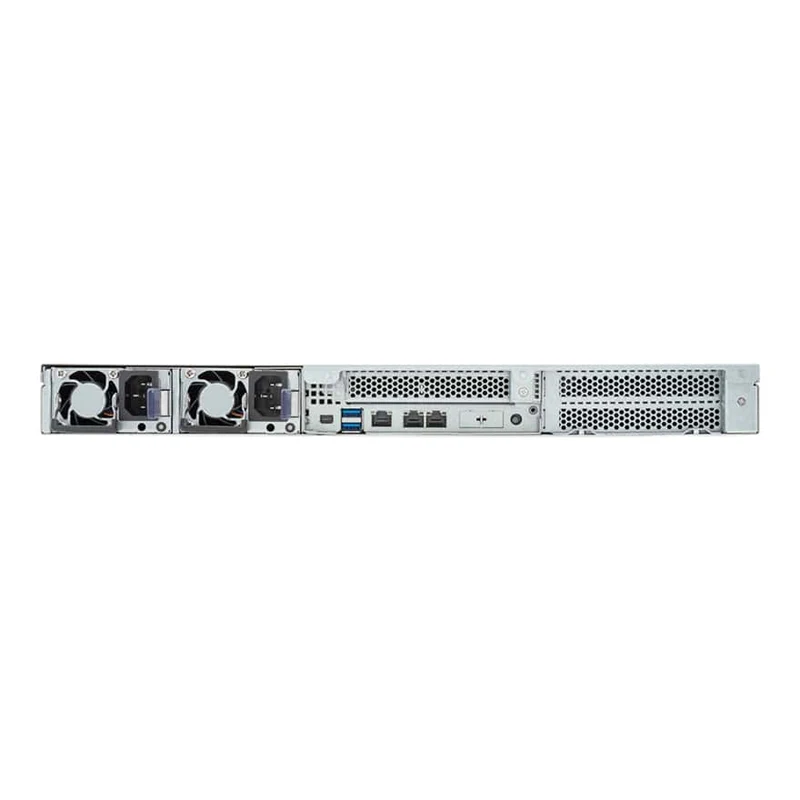

1 x System status LED Rear I/O 2 x USB 3.2 Gen2
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED Backplane I/O Speed and bandwidth:
SATA 6Gb/s TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply 1+1 800W (240V) 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz

DC Input:
- 240Vdc/ 5A

DC Output:
- Max 800W
+ 12.2V/ 65A
+ 12Vsb/ 3A System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced Power Capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility Windows 10 21H2 (x64)
Windows 11 (x64) System Fans 3 x 40x40x56mm (29,700rpm) Operating Properties Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) Packaging Dimensions 782 x 588 x 212 mm Packaging Content 1 x E133-C10
1 x CPU heatsink
1 x Mini-DP to D-Sub cable

*Rail kit not included. Please refer to optional parts for compatible rail kit. Part Numbers - Barebone package: 6NE133C10MR000AAG1*
- Motherboard: 9MC13BL1NR-000
- CPU heatsink: 25ST1-121100-A7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBP2023: 9CBP2023NR-00
- Fan module: 25ST2-405623-A0R
- Riser card - CRSE016: 9CRSE01016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800A-G1S

Optional parts:

- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
