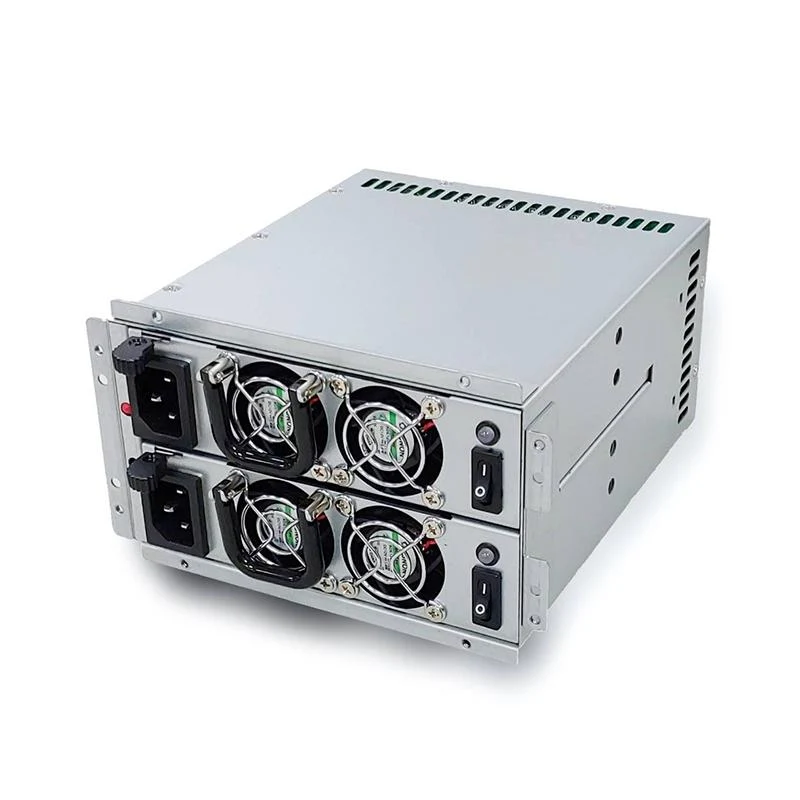

CRS 800W x 2 Mini Redundant PSU 80+ Silver Power

Key Features

• Hot-Swappable & Power Sharing capability
• High Efficiency 80+ Silver
• PS/2 Size design
• 2x40mm fan(Each module)
• Cerified to UL62368-1, CAN/CSA62368-1-14, EN62368-1:2014/A11:2017, IEC62368-1:2014

Dimension (LxWxH)
199x150x86mm)/7.83x5.9x3.38(inches)

AC Input
-Voltage:100-240V,(115/230 Auto)
-Frequency:50/60Hz.
-Input Current:8A/4A for 115/230VAC
-Inrush Current:60A/80A Max for 115/230

DC Output
-Output Voltage: +5VDC +12VDC +3.3VDC -12VDC +5VSB
-Output Current(max): 32A 65A 32A 0.8A 3.5A
-Output Current(min): 1A 3A 1A 0A 0.1A
-Ripple/Noise Max.(P-P): 50mv 70mv 50mv 70mv 50mv
-Line Regulation: 1% 1% 1% 1% 1%
-Load Regulation: 5% 5% 5% 5% 5%

Features
>Dimension:LxWxHx:199x150x86(mm)/7.83x5.9x3.38(inches)
>Cooling:By forced air 2x40mm fan(each module)
>PS/2 Size design.
>Hot-Swappable & Power Sharing capability.
>Meet EN61000-3-2 Class D(Active PFC)
>High Efficiency 80+ Silver

Safty Certificates

UL62368-1
CAN/CSA62368-1-14
EN62368-1:2014/A11:2017
IEC62368-1:2014
TUV
CB
CE
FCC
BSMI
C-TICK
