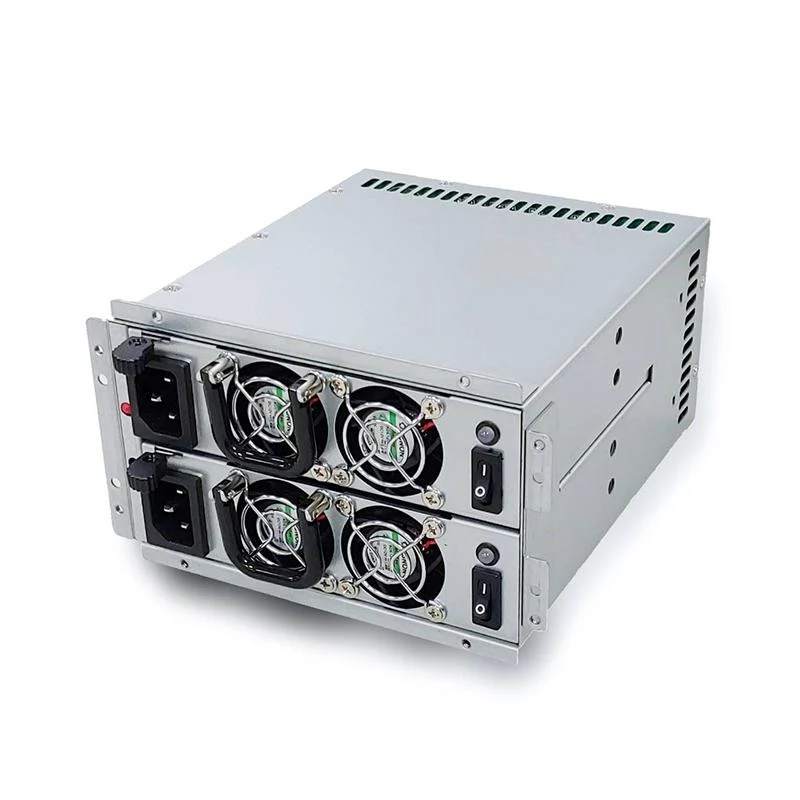

CRS 500W x 2 Mini Redundant PSU 80+ Silver Power

Key Features

• Hot-Swappable & Power Sharing capability
• High Efficiency 80+ Silver
• PS/2 Size design
• 2x40mm fan(Each module)
• Cerified to UL62368-1, CAN/CSA62368-1-14, EN62368-1:2014/A11:2017, IEC62368-1:2014

Dimension (LxWxH):
199x150x86(mm)/7.83x5.9x3.38(inches)

AC Input
Voltage:100-240V,(115/230 Auto)
Frequency:50/60Hz
Input Current:8A/4A for 115230VAC
Inrush Current:60A/80A Max for 115/230

DC Output
Output Voltage: +5VDC +12VDC +3.3VDC -12VDC +5VSB
Output Current(Max): 25A 41A 25A 0.8A 3.5A
Output Current(Min): 1A 3A 1A 0A 0.1A
Ripple/Noise Max.(P-P): 50mv 70mv 50mv 70mv 50mv
Line Regulation: 1% 1% 1% 1% 1%
Load Regulation: 5% 5% 5% 5% 5%

Features
Dimension:LxWxH:199x150x86(mm)/7.83x5.9x3.38(inches)
Cooling:By forced air 2x40mm fan(Each module)
PS/2 Size design.
Hot-Swappable & Power Sharing capability.
Meet EN61000-3-2 Class D(Active PFC)
High Efficiency 80+ Silver.

Safty Certificates

UL62368-1
CAN/CSA62368-1-14
EN62368-1:2014/A11:2017
IEC62368-1:2014
TUV
CB
CE
FCC
BSMI
C-TICK
