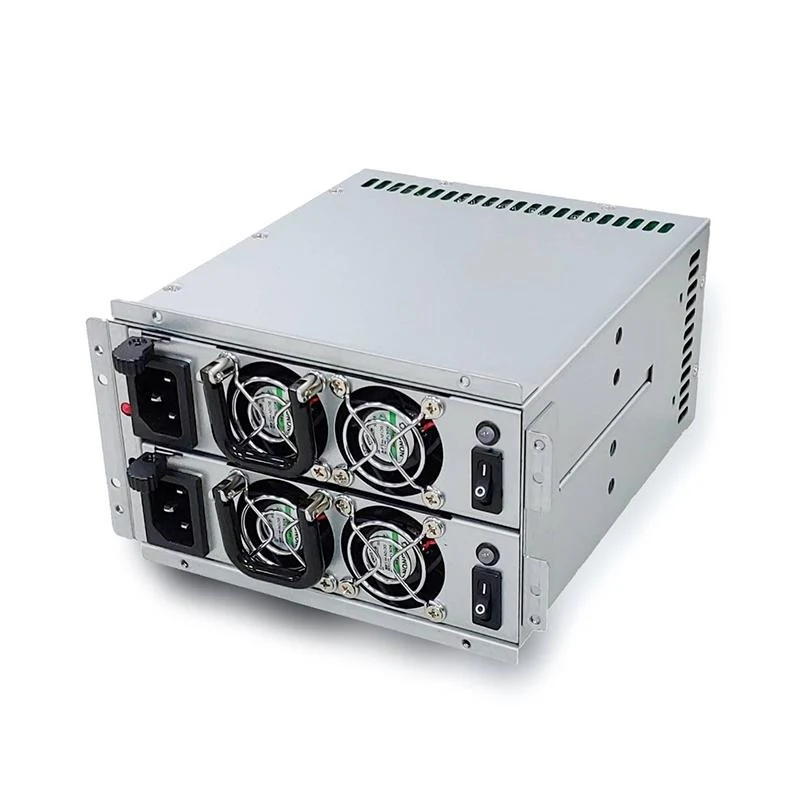

CRS 400W x 2 Mini Redundant PSU 80+ (Short Depth)

Key Features

• Meet the RoHS COMPLIANT.
• Meet the WEEE Directive (2002/96/EC)
• Temperature Range: Operating 0℃ ~ 50℃, Storage -20℃ ~ 70℃
• Hold up time: 16 ms Minimum at full load & Normal input voltage.
• Over Voltage Protection
• Under Voltage Protection
• Over Current Protection
• Short Corcuit Protection
• Thermal Protection
• Remote On/Off Control
• Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC. (Class B),IEC/EN/UL62368-1
• Altitude during operation: Up to 5000m

Model
PIST2040-EPSH-80

Watts
400W (1+1)

Input

Input voltage: 90 ~ 264VAC FullRange.
Frequency: 47 - 63 Hz.
Input Current: 8A for 115VAC, 4A for 230VAC.
Inrush Current: 25A for 115VAC, 50A for 230VAC.
The Minimum efficiency of the power supply is 80% with full load and 1150Vac/60HZ input.
The minimum power factor at full load shall be 0.98 / 115V 60 Hz and 0.96 / 230V 50 Hz.

Output

Output Voltage: +5V DC +12V DC +3.3V DC -12V DC +5VSB

Output Current(Max): 25A 33A 25A 0.8A 3.5A

Output Current(Min.): 1A 1A 1A 0A 0.5A

Ripple/Noise Max.(P-P):60mVp-p 120mVp-p 60mVp-p 120mVp-p 50mVp-p

The combined total power from 5V & 3.3V shall not exceed 170W.

FEATURES

• Meet the RoHS COMPLIANT.
• Meet the WEEE Directive (2002/96/EC)
• Temperature Range: Operating 0℃ ~ 50℃, Storage -20℃ ~ 70℃
• Hold up time: 16 ms Minimum at full load & Normal input voltage.
• Over Voltage Protection
• Under Voltage Protection
• Over Current Protection
• Short Corcuit Protection
• Thermal Protection
• Remote On/Off Control
• Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC. (Class B)
• Altitude during operation: Up to 5000m

Dimensions (LxWxH)
174 x 150 x 86 (mm)
6.85 x 5.9 x 3.38 (inches)
