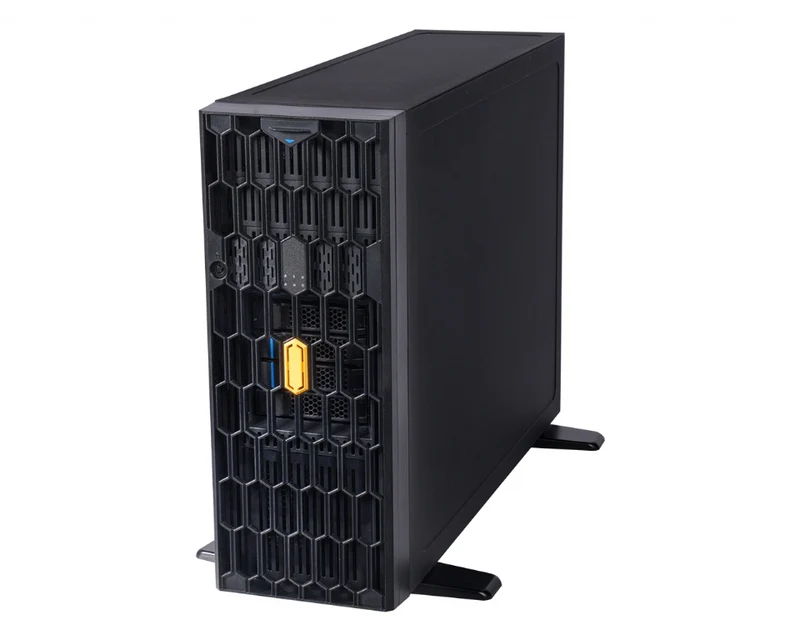

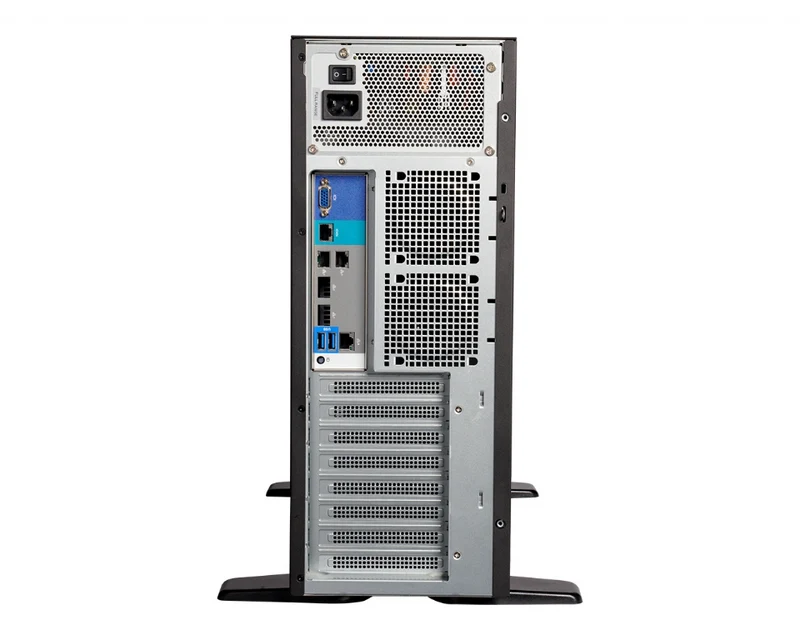

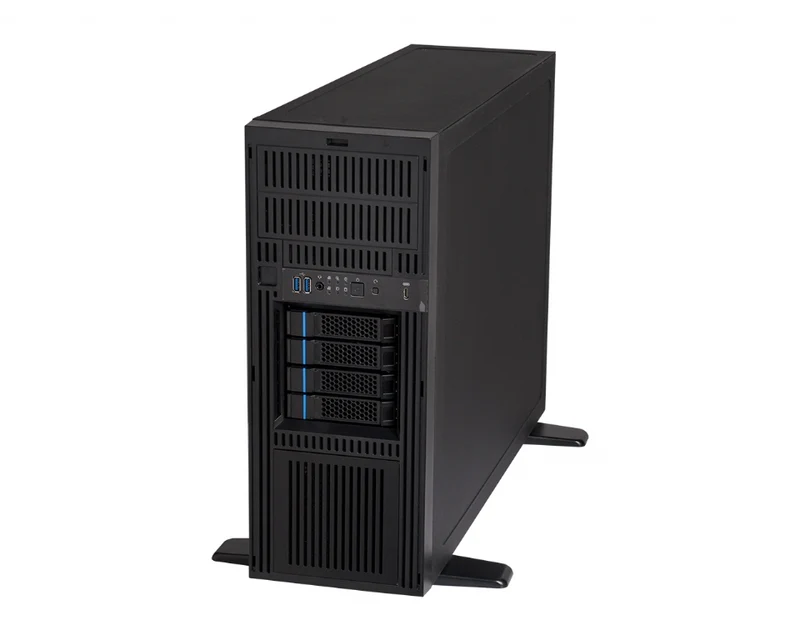

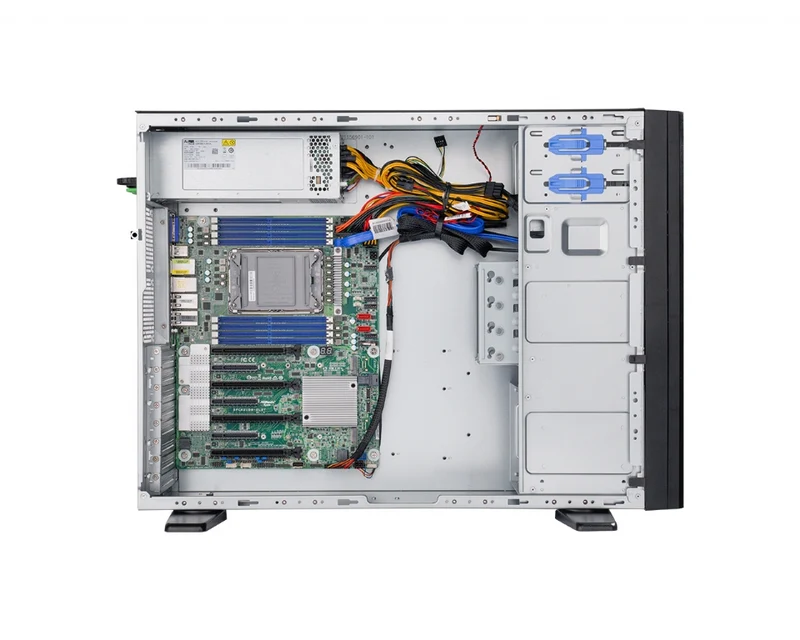

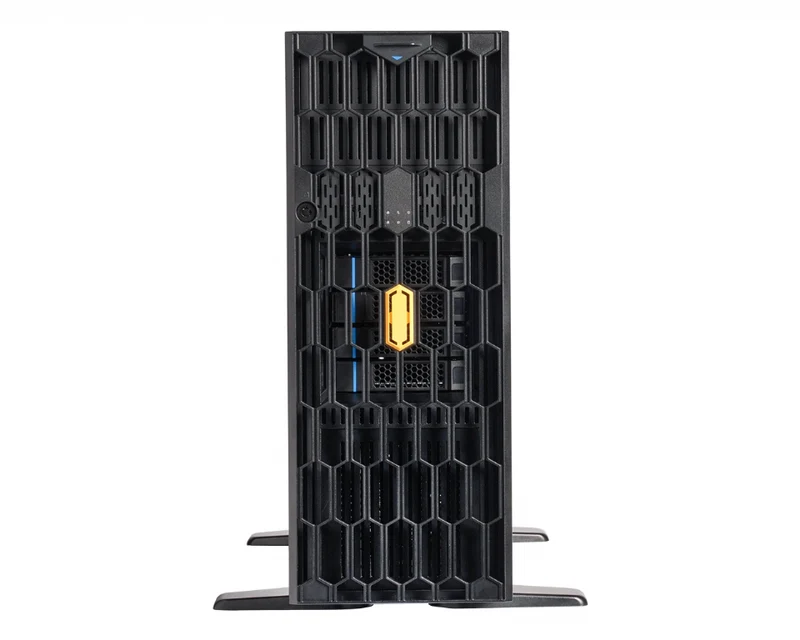

Chenbro SR115 - Tower Workstation Case

Features & Benefits

• 4U tower and rackable supports rack kit option: ear handle, slide rail, and CMA
• Eight PCIe slots support more I/O applications, including double-width GPU card
• Flexible PSU support PS2 or CRPS
• Multi-Storage: Internal or external storage kit support 2.5” or 3.5” HDD
• Security bezel and user-friendly toolless side cover
• Coverage server and workstation applications
• Lower acoustic

Technical Details
Case Form Factor	Toer
Motherboard Compatibility	Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays	External 5.25"	2
	External 3.5"	1
	Internal 3.5"	0
	Internal 2.5"	0
	Hotswap 3.5"	0
	Hotswap 2.5"	0
	Slim Optical	0
	Slim FDD	0
Hot-Swap Backplane	Optional 4-Bay internal HDD cage with 80mm fan, 4500RPM, 12Gb/s miniSAS-HD, option
Expansion Slots	Full Height	8
	Low Profile	0
Cooling	2x 80mm (T=25mm), PWM, 4500RPM, rear, option 1x 120mm (T=25mm), PWM, 2600RPM, middle, option
Power Supply Form Factor	Standard ATX or Mini Redundant
Front Panel Connectors, Switches & Indicators	Power Switch	YES
	Reset Switch	YES
	USB 2.0	0
	USB 3.0	2
	Serial	0
	Indicators	Power, LAN, and HDD LEDs
Colour	Black
Material	SGCC
Dimensions & Weights
Packaging	Single Box
Dimensions	581.9 x 175.0 x 438.0 (mm) ; 23" x 6.89" x 17.24" (bezel not included)
Weight	17kg (Approx)
What's Included
1 x Chassis 1 x Accessory Box
