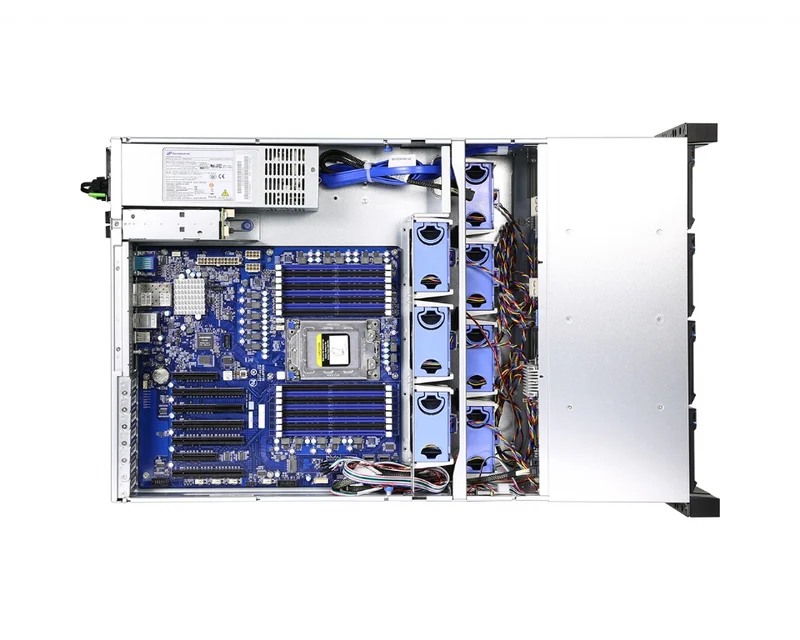

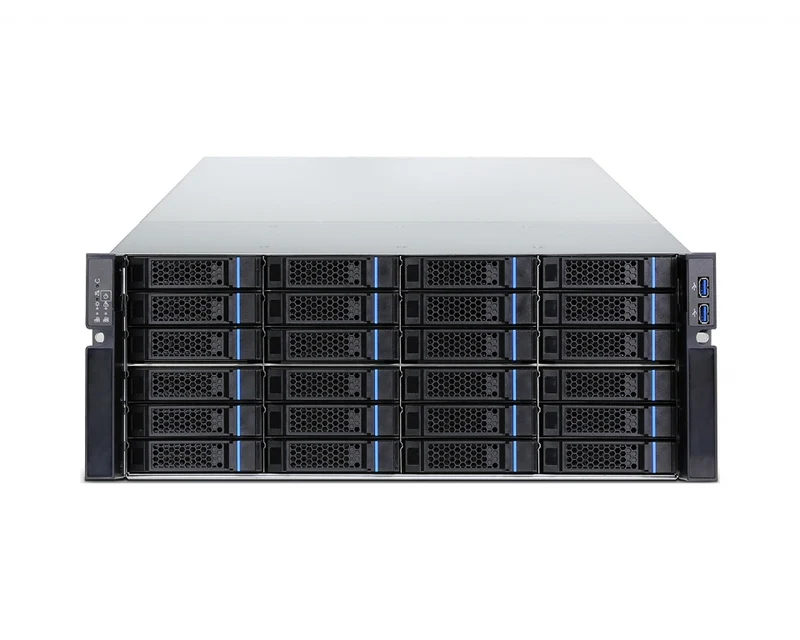

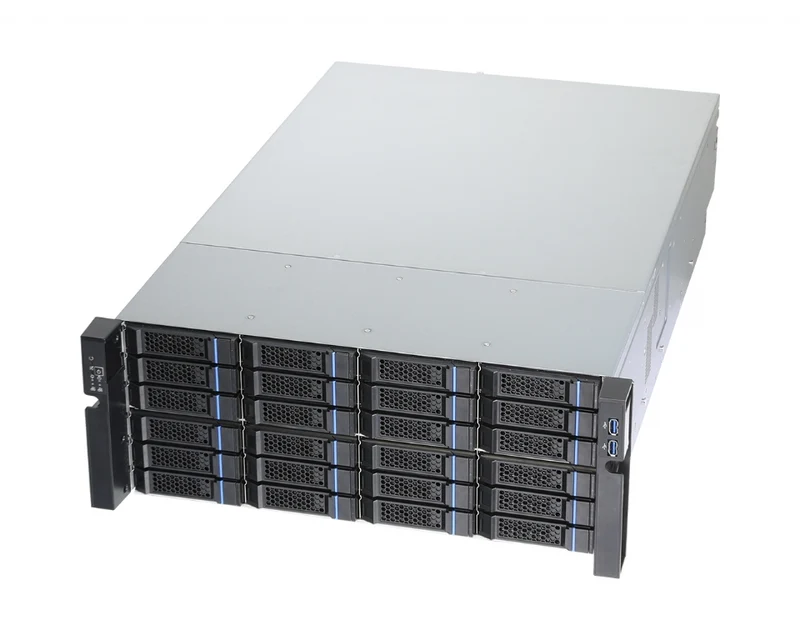

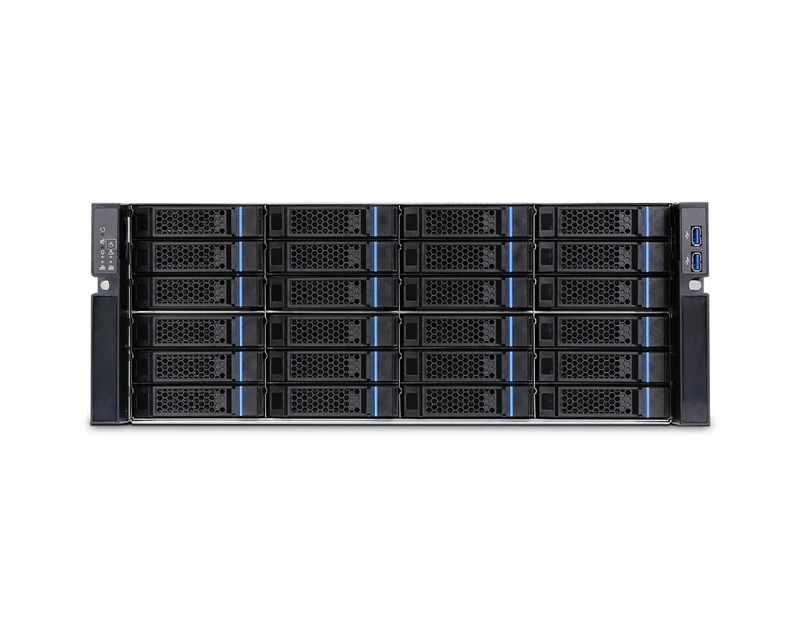

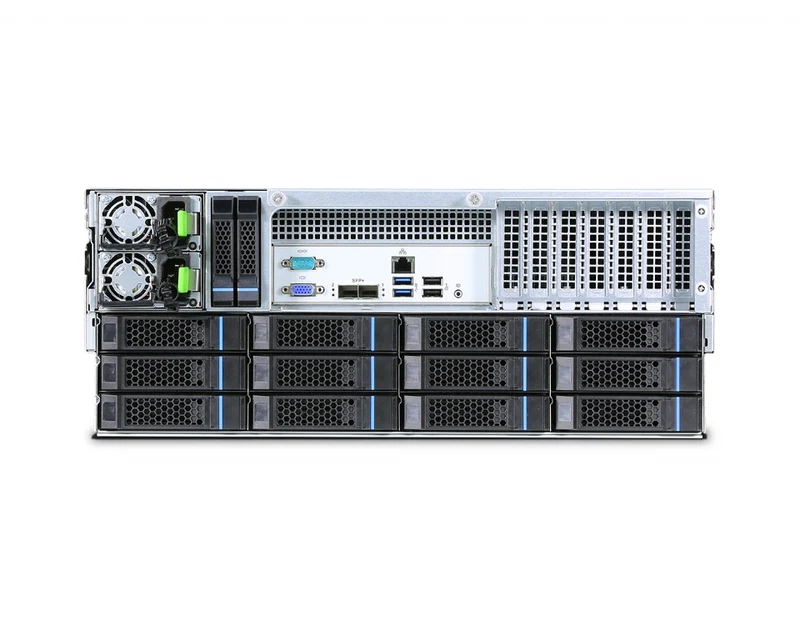

Chenbro RM41736 Plus - 4U 36-Bay High Density Storage Server Chassis

Features & Benefits

• Supports 36 x 3.5" SAS/SATA with front/rear access of high-density storage server
• Supports MB size up to SSI EEB (12" x 13")
• High-speed Data Transmission (HDT): 12Gbps SAS expander IC on backplane.
• Supports two front access USB3.0 ports
• Optional rear-mounted OS drives tray: 2-bay 2.5" hot-swap HDD with 12Gbps backplane or 2 x 2.5" internal drive bay.
• Tool-less design of Top Cover, MB carrier, Slide Rail and HDD tray which supports easy maintenance
• Economic power-consumption cooling: 7 x 8038 hot-swap Fan, 7500RPM.
• High power efficiency: 1+1 CRPS 1200W 80 PLUS Platinum power supply.

Technical Details
Case Form Factor	4U Rackmount
Motherboard Compatibility	Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays	External 5.25"	0
	External 3.5"	0
	Internal 3.5"	0
	Internal 2.5"	0
	Hotswap 3.5"	36
	Hotswap 2.5"	0
	Slim Optical	0
	Slim FDD	0
Hot-Swap Backplane	Front: 3.5” 24-port 12Gbps, Mini-SAS HD, Expander (1) Rear: 3.5" 12-port 12Gbps, Mini-SAS HD, Expander (1)
Expansion Slots	Full Height	0
	Low Profile	7
Cooling	Middle: 7 x 80 mm (T=38 mm)
Power Supply Form Factor	1+1 CRPS 1200W
Front Panel Connectors, Switches & Indicators	Power Switch	YES
	Reset Switch	YES
	USB 2.0	0
	USB 3.0	2
	Serial	0
	Indicators	Power, LAN, and HDD LEDs
Colour	Black
Material	SGCC
Dimensions & Weights
Packaging	Single Box
Dimensions	699.0 x 432.0 x 176.0 (mm) 27.52” x 17.01” x 6.93”
Weight	27kg (Approx)
What's Included
1 x Chassis 1 x Accessory Box
