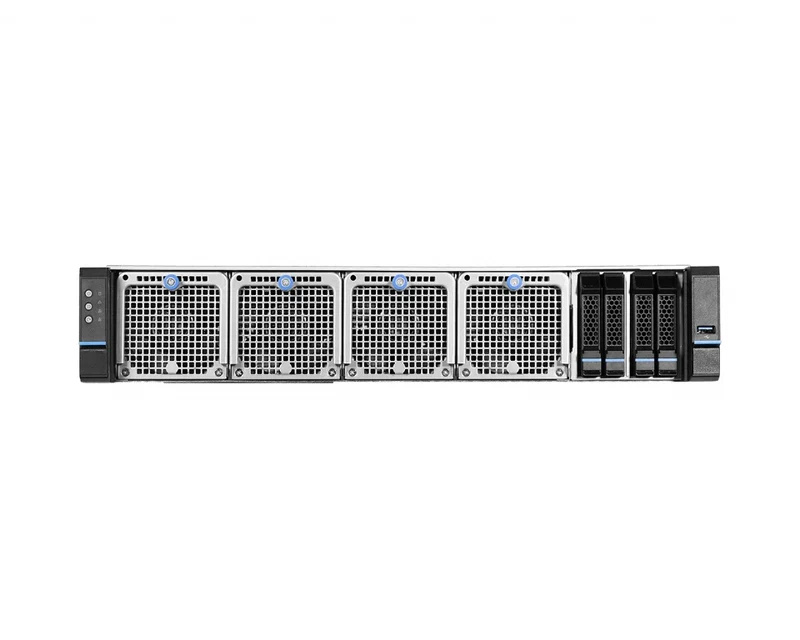

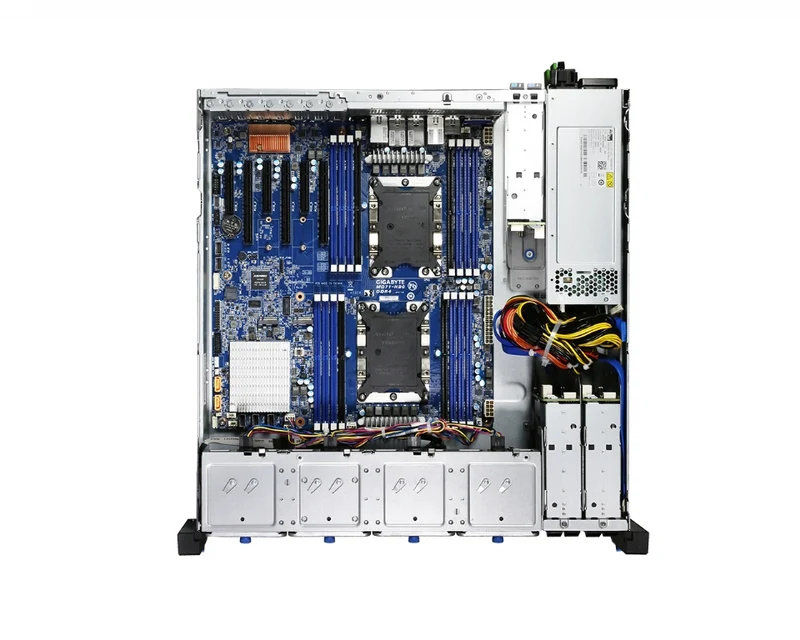

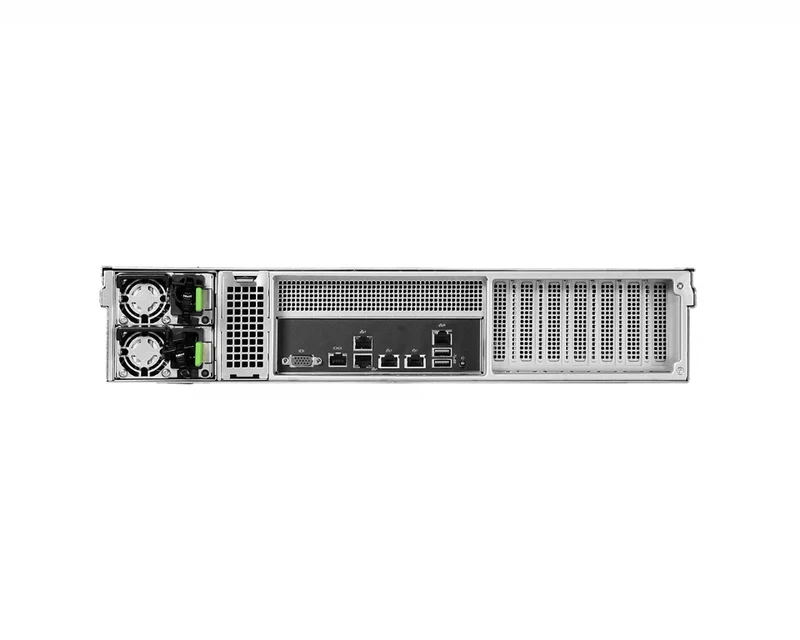

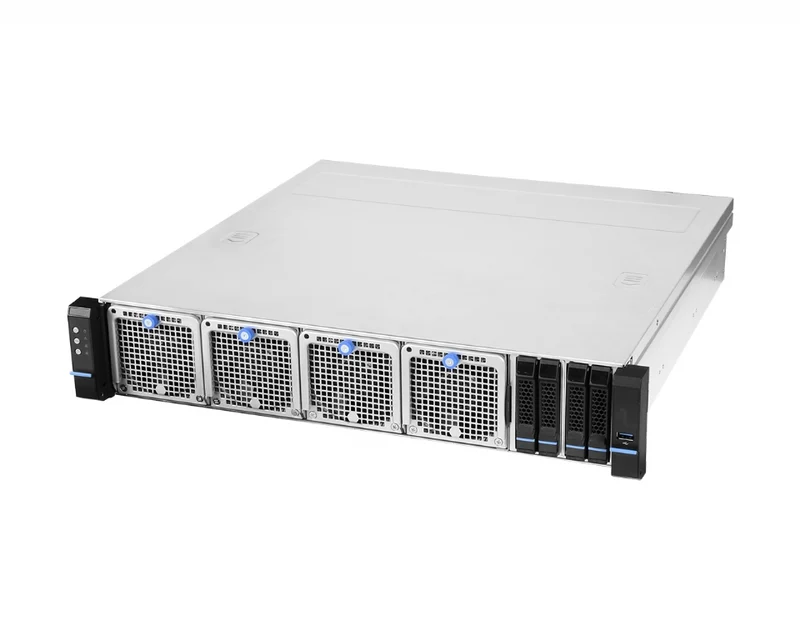

Chenbro RM252 - 2U Expandable Short Depth Edge Computing Server Chassis

Features & Benefits

• 450 mm ultra-short chassis fits various environments and is perfect for footprint minimization.
• Optimized I/O design for machine learning in edge sites offering up to three full-height or seven low-profile PCIe expansion slots for GPU/FPGA accelerator cards
• Equipped with the latest tool-less design, storage, HDD trays, system fans and PCIe riser brackets for easy upgrades and maintenance.

Technical Details
Case Form Factor	2U Rackmount
Motherboard Compatibility	Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays	External 5.25"	0
	External 3.5"	0
	Internal 3.5"	0
	Internal 2.5"	0
	Hotswap 3.5"	0
	Hotswap 2.5"	4
	Slim Optical	0
	Slim FDD	0
Hot-Swap Backplane	RM25204/RIO: - 2.5” 2-port 12Gbps SAS/SATA
Expansion Slots	Full Height	0
	Low Profile	7
Cooling	Rear : 80 mm (4), 11000 RPM up to T=38 mm, Hot-swap
Power Supply Form Factor	2U 800W 1+1 CRPS
Front Panel Connectors, Switches & Indicators	Power Switch	YES
	Reset Switch	YES
	USB 2.0	0
	USB 3.0	1
	Serial	0
	Indicators	Power, LAN, and HDD LEDs
Colour	Black
Material	SGCC
Dimensions & Weights
Packaging	Single Box
Dimensions	450.0 x 438.0 x 87.0 mm; 17.72” x 17.24” x 3.43”
Weight	10kg (Approx)
What's Included
1 x Chassis 1 x Accessory Box
