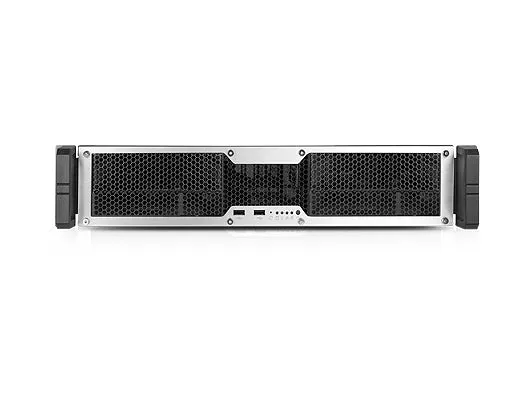

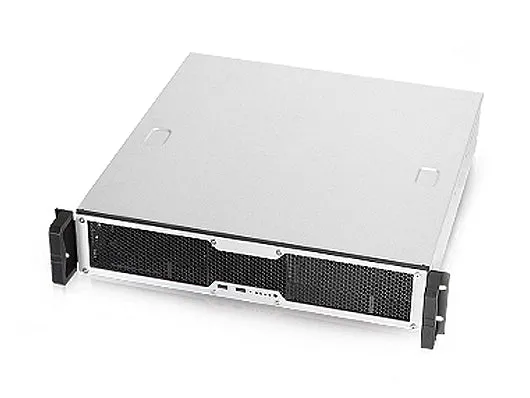

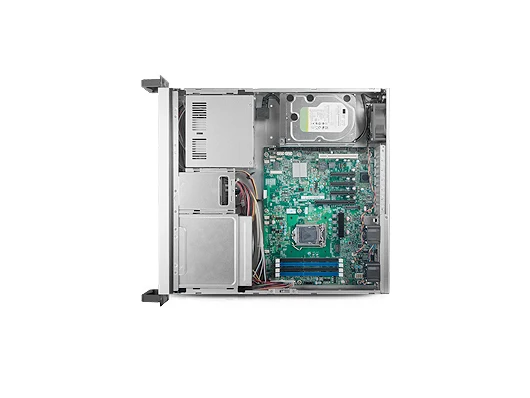

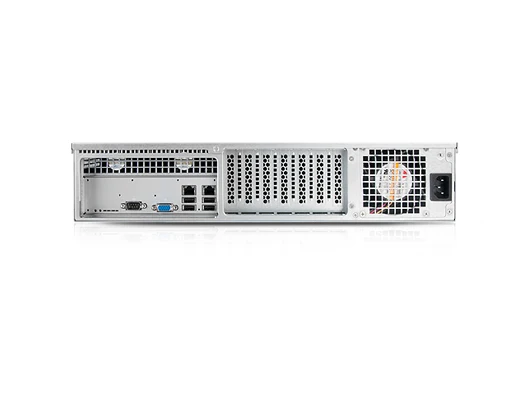

Chenbro RM24100 - 2U Feature-Advanced Industrial Server Chassis

Features & Benefits

• Depth 18” of chassis for space-sensitive applications
• Modular 3-slot riser or 7-slot low profile rear window for flexible configuration
• Cushion on 3.5” and 2.5” HDD cages to depress HDD vibration
• Removable drive cages for easy installation
• Supports PS/2 PSU and other standard components to lower TCO

Technical Details
Case Form Factor	2U Rackmount
Motherboard Compatibility	Mini-ITX, Micro ATX, Standard ATX
Drive Bays	External 5.25"	1
	External 3.5"	1
	Internal 3.5"	2
	Internal 2.5"	2
	Hotswap 3.5"	0
	Hotswap 2.5"	0
	Slim Optical	0
	Slim FDD	0
Hot-Swap Backplane	Not Applicable
Expansion Slots	Full Height	0
	Low Profile	7
Cooling	Middle: 80 x 32 mm (1), Option Rear: 80 x 32 mm (1), 40 x 28 mm (2), Option
Power Supply Form Factor	Standard ATX (80mm Fan PSU Only)
Front Panel Connectors, Switches & Indicators	Power Switch	YES
	Reset Switch	YES
	USB 2.0	0
	USB 3.0	2
	Serial	0
	Indicators	Power, LAN, and HDD LEDs
Colour	Black
Material	SGCC
Dimensions & Weights
Packaging	Single Box
Dimensions	457.0 x 430.0 x 88.1 (mm) 18.00” x 16.93” x 3.47”
Weight	7kg (Approx)
What's Included
1 x Chassis 1 x Accessory Box
