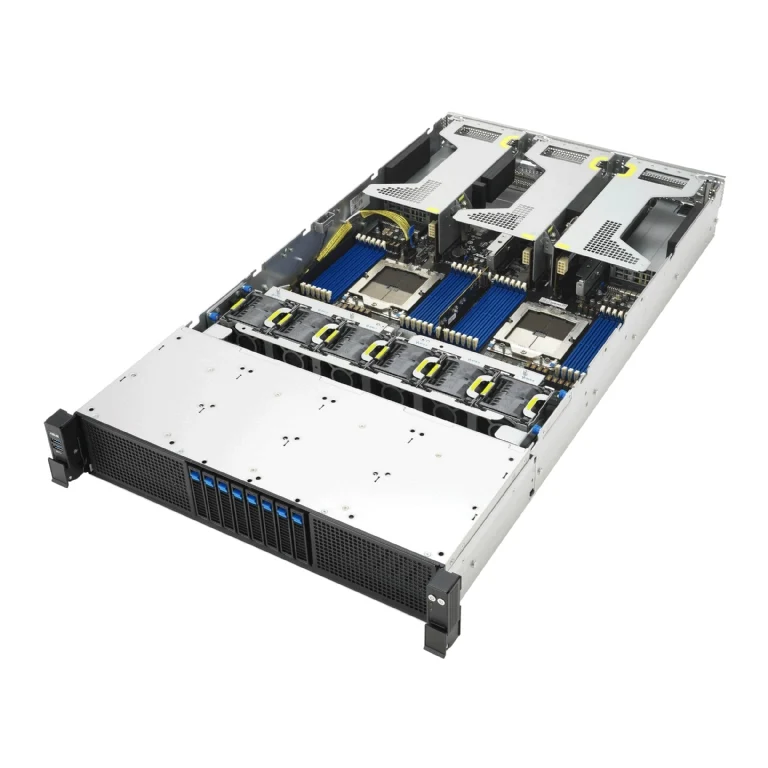

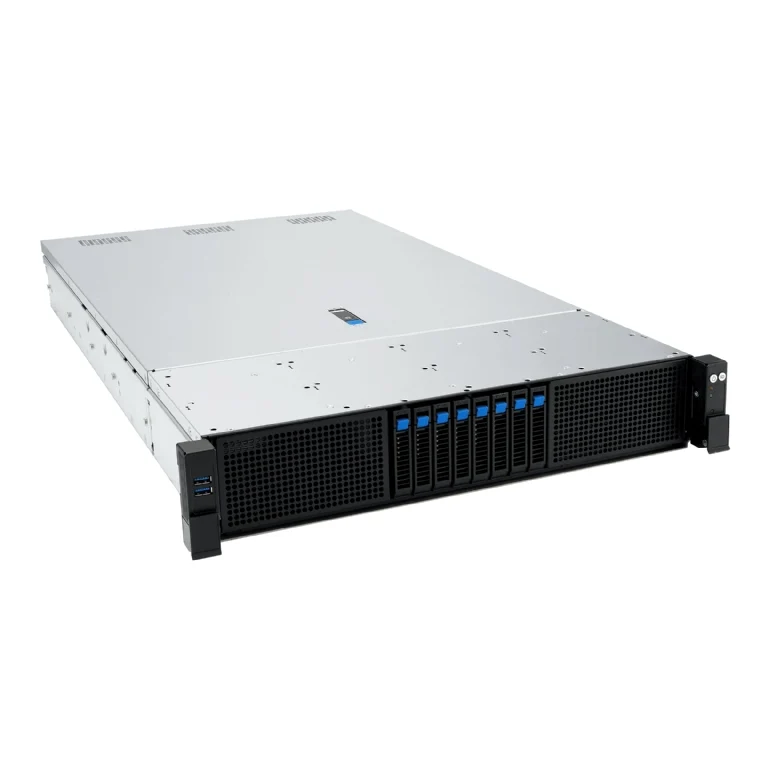

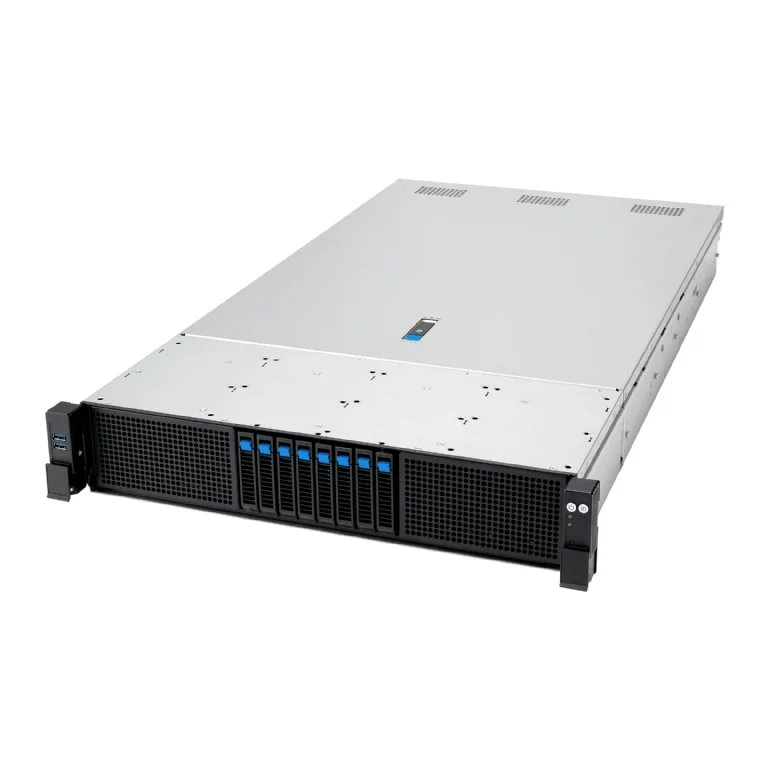

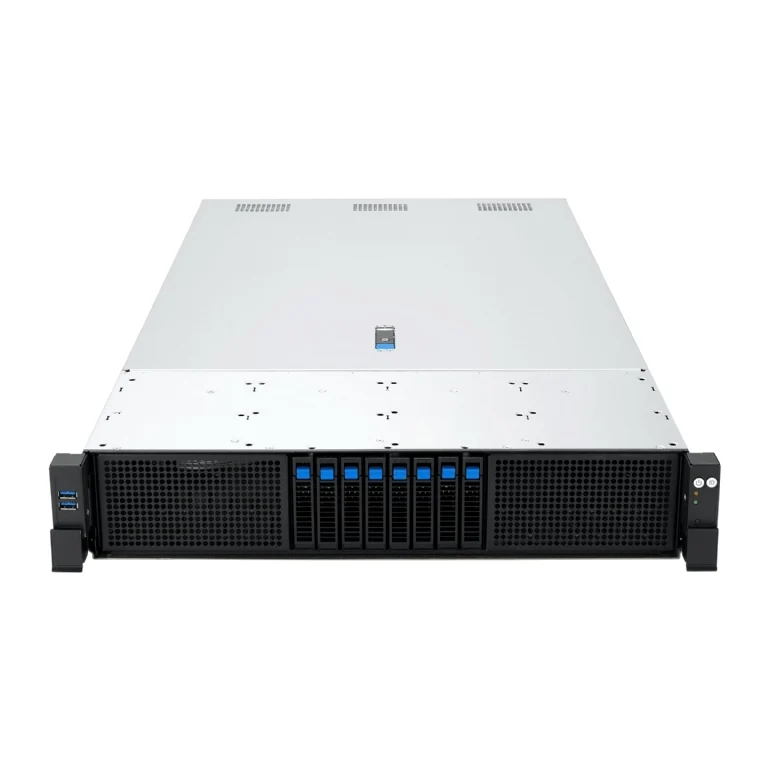

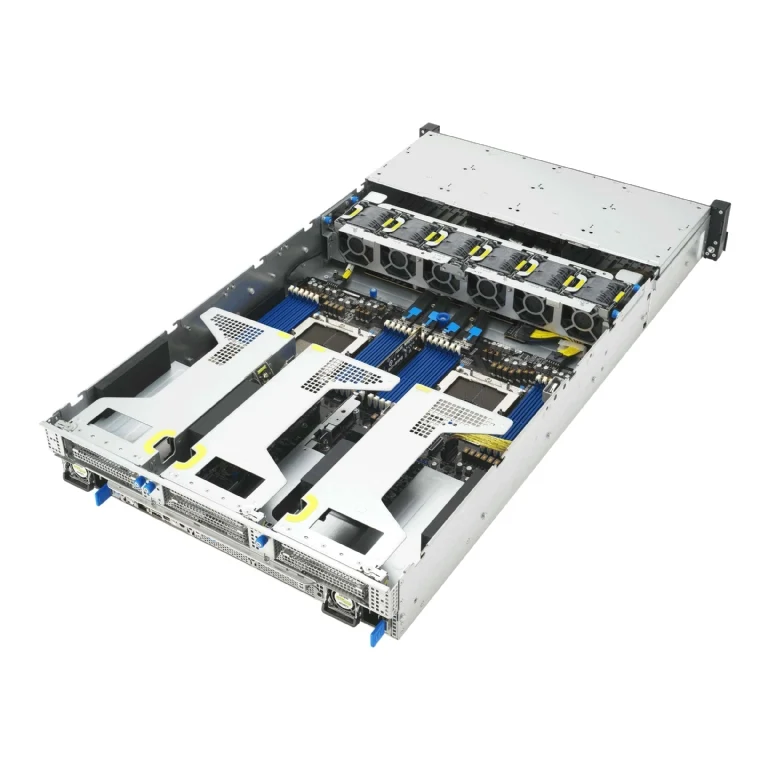

ASUS RS720A-E13-RS8U 2U Rackmount Dual 9005 Series AMD EPYC Server - 8x All-Flash Hot-Swap Bays - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    2 x Socket SP5 (LGA 6096P)
    AMD EPYC™ 9005 processors (Up to TDP 500W)
    *TDP support by configuration.

  • Generation

    E13

  • Memory

    Total Slots :
    24 (12-channel per CPU, 1 DIMM per CPU)
    Capacity :
    Total Maximum up to 3072GB
    Memory Type :
    DDR5 6400/5600 RDIMM/ 3DS RDIMM
    Memory Size :
    128GB, 96GB, 64GB, 32GB RDIMM
    128GB, 96GB, 64GB, 32GB 3DS RDIMM
    * Refer to www.asus.com/support for more information

  • Expansion Slots

    Total 10 expansion slots
    6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
    2 x PCIE Gen5 x16 (FHHL)
    2 x OCP3.0 Gen5 x16 (SFF)

  • Drive Bays

    8x 2.5” hot-swap drive bays
    Support 8x NVMe/SATA/SAS*

    *HBA/ RAID card is required to support SAS hard drives

  • System Fan

    6

  • Networking

    1 x Management Port

  • Graphic

    Aspeed AST2600 64MB

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x Mini-DP port
    1 x RJ-45 Management LAN port
    1 x Debug port

  • Switch/LED

    Front Switch/LED:
    1 x Power Switch w/ LED
    1 x Reset Switch
    1 x Location Switch w/ LED
    1 x HDD Access LED
    1 x Message LED
    Rear Switch/LED:
    1 x Power Switch w/ LED
    1 x Location Switch w/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    On-Board ASMB12-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Classic C)(Optional)

  • Regulatory Compliance

    BSMI, CE, CB, RCM, FCC(Class A), ISED

  • Dimensions

    822.16(L) x 484.65(W) x 87.3(H) mm
    32.37(L) x 19.08(W) x 3.44(H) inch

  • Form Factor

    2U

  • Weight

    Net Weight : 17.82KG
    Gross Weight : 21.34KG

  • Power Supply

    1+1 Redundant 80 PLUS 3200W/2700W Titanium PSU

    Rating:
    100-120V~/220-240V~, 16A (x2), 50/60Hz
    100-127V~/220-240V~, 12A/16A (x2), 50-60Hz

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% (Non condensing)

  • Optional Items

    Security:
    Dual BMC Module (default)
    Accessory:
    2U Front Bezel
    1.5U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if cable arm needed.

  • Note

    *SAS support only from SAS HBA/RAID Card

  • CPU Heatsink/ Cooler

    2 x 2U EVAC Heatsink
