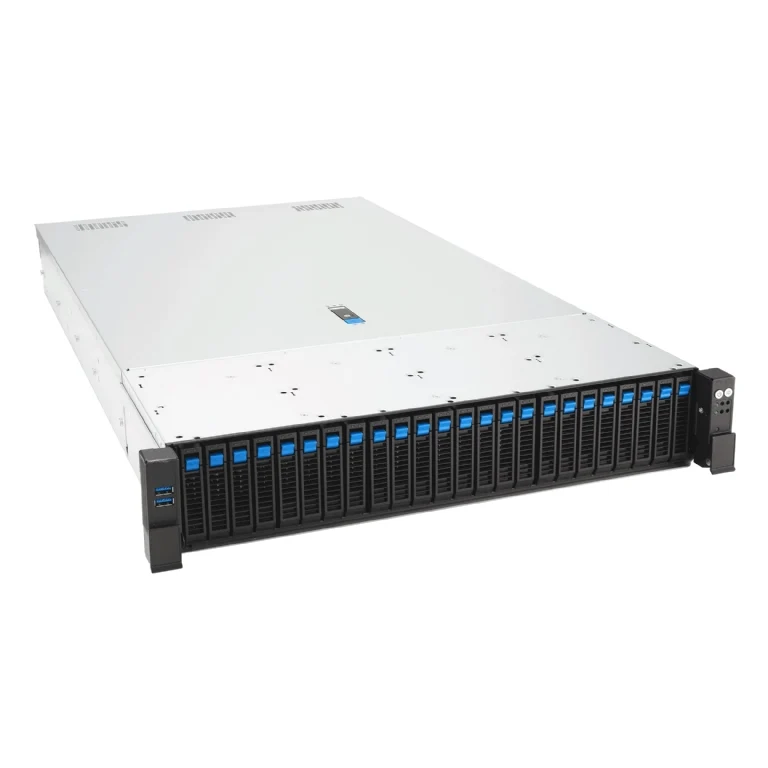

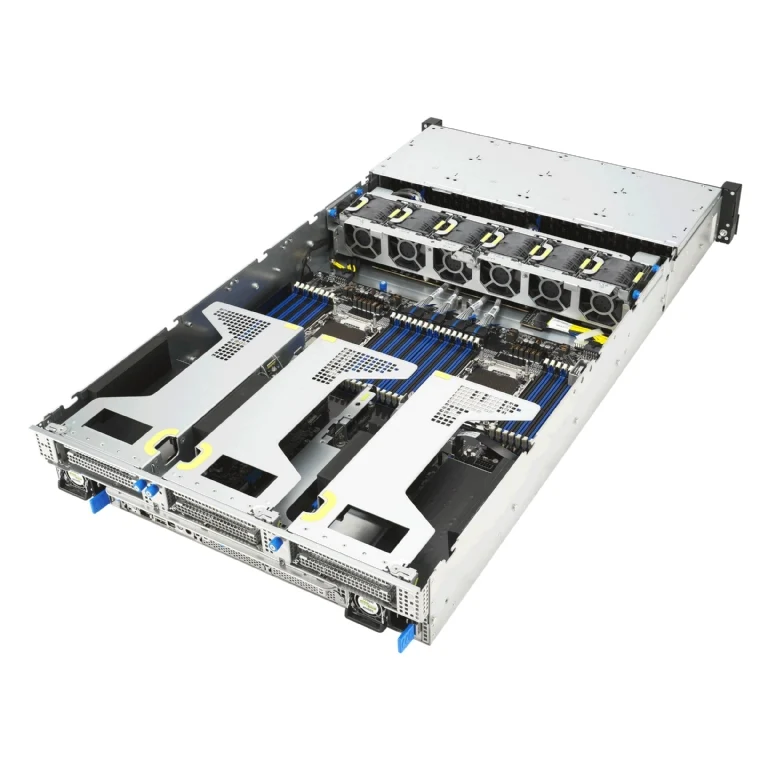

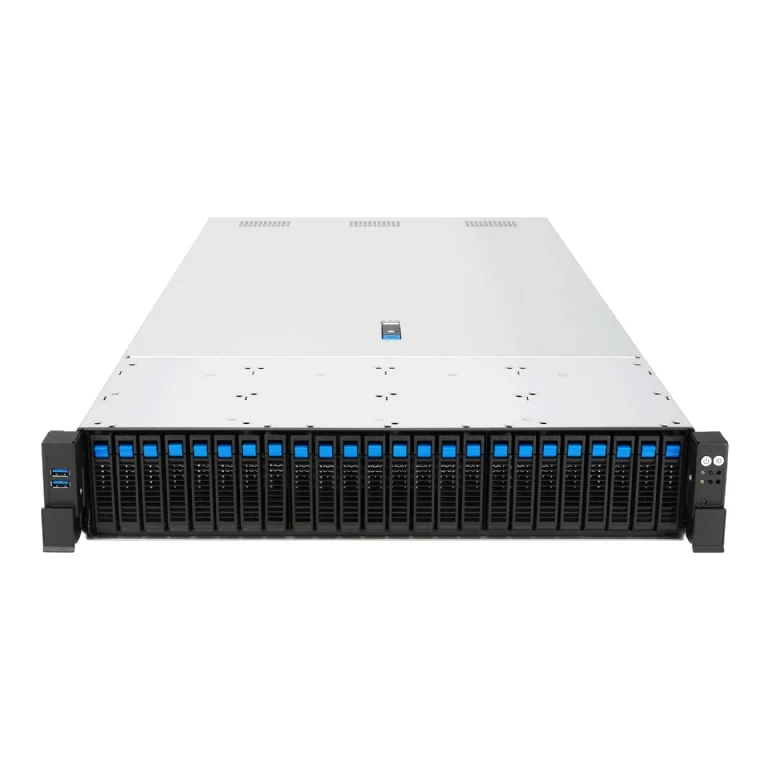

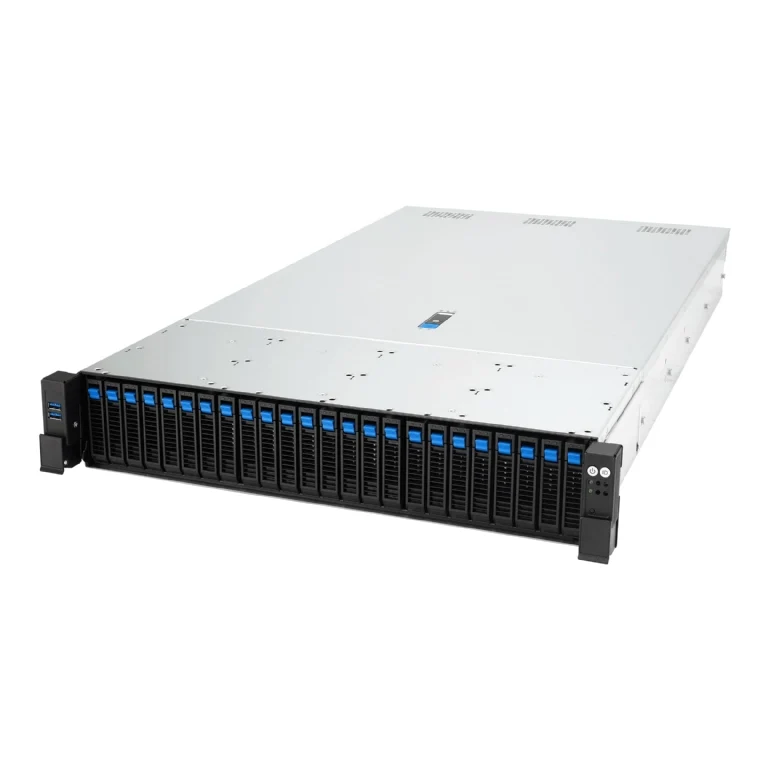

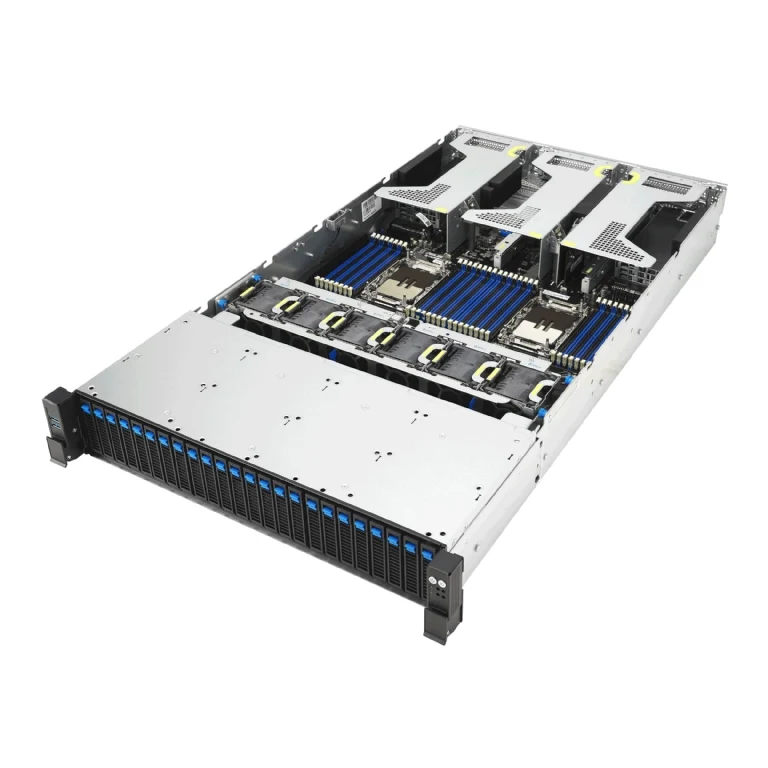

ASUS RS720-E12-RS24G 2U Rackmount Dual Intel Xeon 6 Scalable Server - 24x All-Flash Hot-Swap Bays - GPU Support - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    Intel®Xeon® Processor Scalable Family

  • Generation

    E12

  • Memory

    Total slot:
    32 (8-channel per CPU, 16 DIMM per CPU)
    Capacity:
    Maximum up to 4TB
    Memory type:
    6th: 6400MHz (1DPC)/5200(2DPC)
    Memory size:
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS
    * Refer to www.asus.com/support for more informatio

  • Expansion Slots

    Total 10 expansion slots
    6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
    2 x PCIE Gen5 x16 (FHHL)
    2 x OCP3.0 Gen5 x16 (SFF)

  • Storage

    24 x 2.5" hot-swap drive bays
    Support 8x NVMe/SATA*/SAS*
    *HBA/ RAID card is required to support SATA/SAS hard drives EDIT

  • System Fan

    6

  • Networking

    1 x Management Port

  • Graphic

    Aspeed AST2600 64MB

  • Multi-GPU Support

    Please find the latest GPU support from https://funkelart.com/support/gpu

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x Mini-DP port
    1 x RJ-45 Management LAN port
    1 x Debug port

  • Switch/LED

    Front Switch/LED:
    1 x Power Switch w/ LED
    1 x Reset Switch
    1 x Location Switch w/ LED
    1 x HDD Access LED
    1 x Message LED
    Rear Switch/LED:
    1 x Power Switch w/ LED
    1 x Location Switch w/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    On-Board ASMB12-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Classic C)(Optional)

  • Regulatory Compliance

    BSMI, CE, CB, RCM, FCC(Class A), ISED EDIT

  • Dimensions

    449 (W) x 88 (H) x 830 (D) mm
    17.68 (W) x 3.5 (H) x 32.7 (D) inches

  • Form Factor

    2U

  • Weight

    Net Weight : 17.82KG
    Gross Weight : 21.34KG

  • Power Supply

    1+1 Redundant 80 PLUS 3200W/2700W Titanium PSU
    Rating:
    100-120V~/220-240V~, 16A (x2), 50/60Hz
    100-127V~/220-240V~, 12A/16A (x2), 50-60Hz

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% (Non condensing) EDIT

  • Optional Items

    Security:
    Dual BMC Module (default)
    Accessory:
    2U Front Bezel
    1.5U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if cable arm needed.

  • Note

    *SATA/SAS support only from HBA/RAID

  • CPU Heatsink/ Cooler

    2U Standard Heatsink*2
