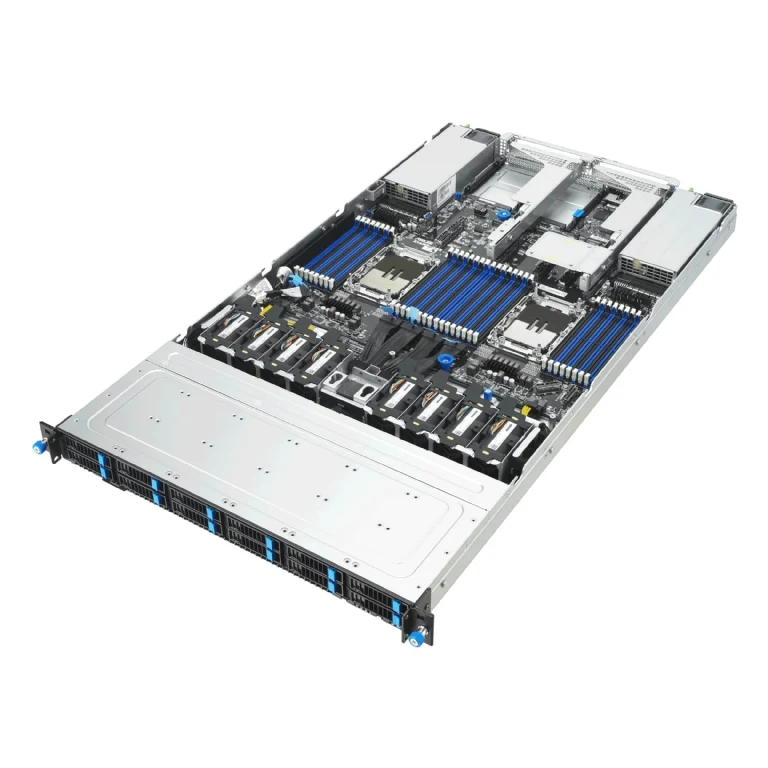

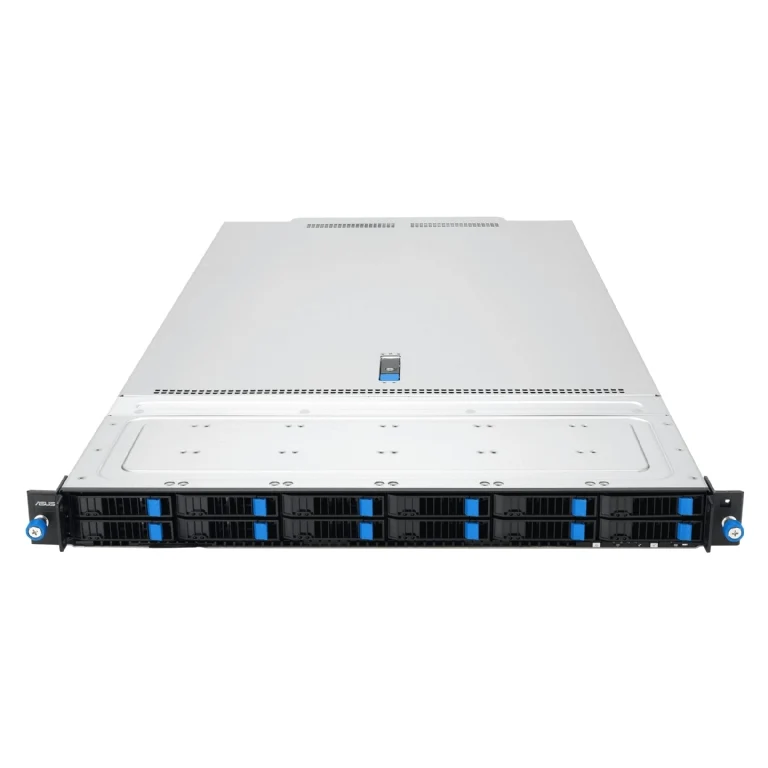

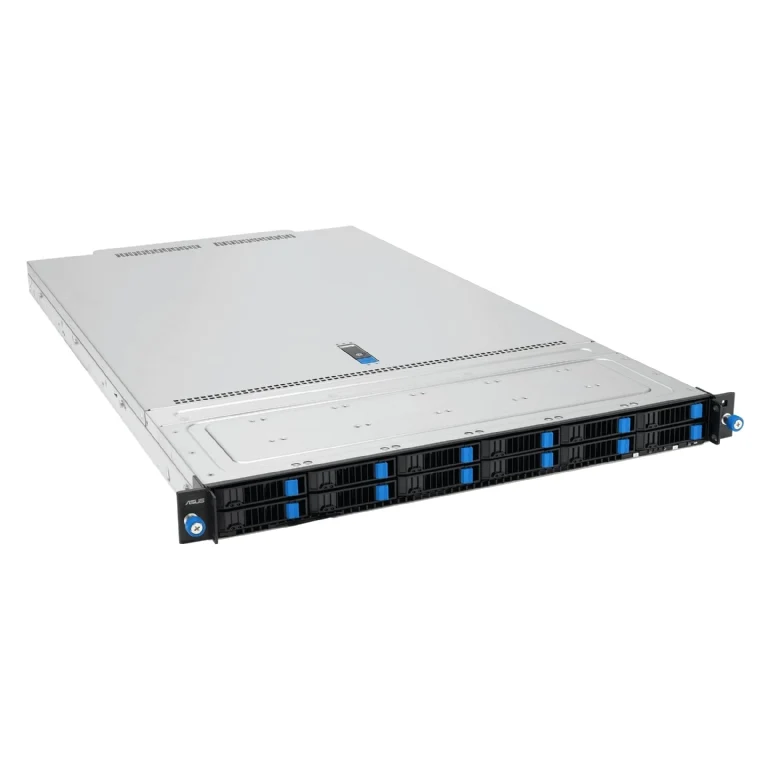

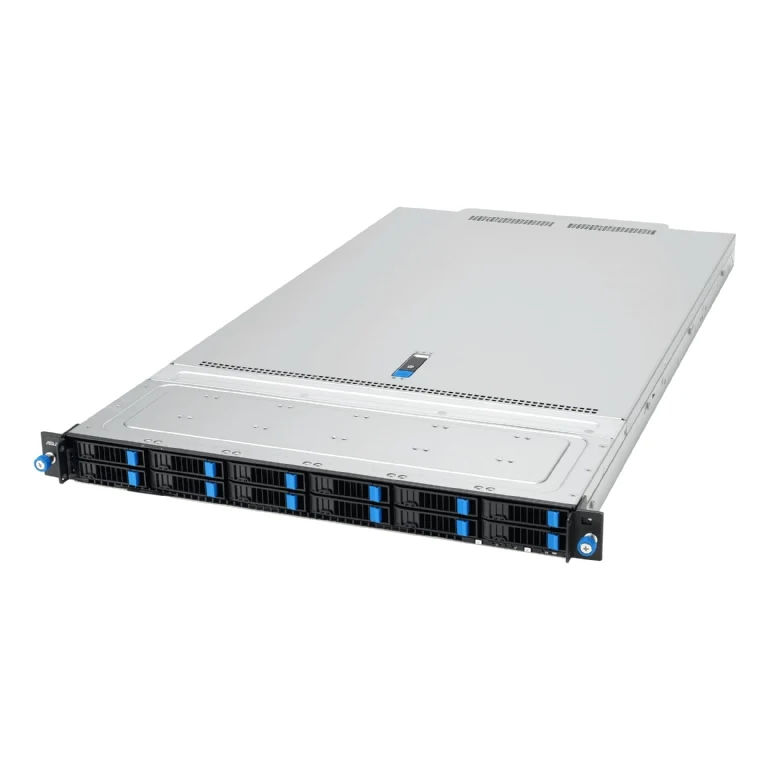

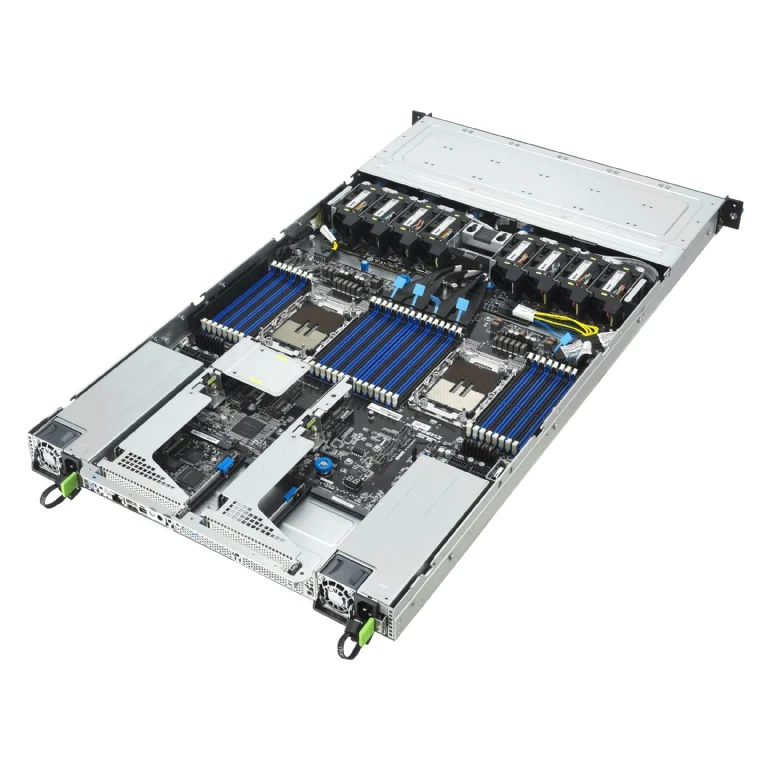

ASUS RS700-E12-RS12U 1U Rackmount Dual Intel Xeon 6 Scalable Server - 12x Hot-Swap Bays - Redundant PSU

0,00 €
Menge

Beschreibung

    • Processor / System Bus

      Intel®Xeon® Processor Scalable Family

    • Generation

      E12

    • Memory

      Total slot:
      32 (8-channel per CPU, 16 DIMM per CPU)
      Capacity:
      Maximum up to 4TB
      Memory type:
      6th: 6400MHz (1DPC)/5200(2DPC)
      Memory size:
      64GB, 32GB, 16GB RDIMM
      256GB, 128GB RDIMM 3DS
      * Refer to www.asus.com/support for more information

    • Expansion Slots

      Total 4 expansion slots
      2 x PCIE Gen5 x16 (FHHL)
      2 x OCP3.0 Gen5 x16 (SFF)

    • Drive Bays

      12 x 2.5"hot-swap drive bays
      12NVMe/SATA/SAS*
      *HBA/ RAID card is required to support SAS hard drives

    • System Fan

      8

    • Networking

      1 x Management Port

    • Graphic

      Aspeed AST2600 64MB

    • Rear I/O Ports

      2 x USB 3.2 Gen1 ports
      1 x Mini-DP port
      1 x RJ-45 Management LAN port
      1 x Debug port

    • Switch/LED

      Front Switch/LED:
      1 x Power Switch w/ LED
      1 x Reset Switch
      1 x Location Switch w/ LED
      1 x HDD Access LED
      1 x Message LED
      Rear Switch/LED:
      1 x Power Switch w/ LED
      1 x Location Switch w/LED
      1 x Message LED

    • OS Support

      Please find the latest OS support from https://funkelart.com/support/os

    • Management Solution

      On-Board ASMB12-iKVM for KVM-over-IP
      ASUS Control Center Enterprise (Classic C)(Optional)

    • Regulatory Compliance

      BSMI, CE, CB, RCM, FCC(Class A), ISED

    • Dimensions

      449 (W) x 43.85 (H) x 800 (D) mm
      17.68 (W) x 1.73 (H) x 31.5 (D) inches

    • Form Factor

      1U

    • Weight

      Net Weight : 13.81KG
      Gross Weight : 16.71KG

    • Power Supply

      1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
      Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz

    • Environment

      Operation temperature: 10℃ ~ 35℃
      Non operation temperature: -40℃ ~ 60℃
      Non operation humidity: 20% ~ 90% (Non condensing)

    • Optional Items

      Security:
      Dual BMC Module (default)
      Accessory:
      1U Front Bezel
      1U Height Full Extension Ball bearing Type Rail Kit
      *Please consult sales if cable arm needed.

    • Note

      *SATA/SAS support only from HBA/RAID Card

    • CPU Heatsink/ Cooler

      1U EVAC Heatsink*2
