Anbieter: The Server Group Ltd

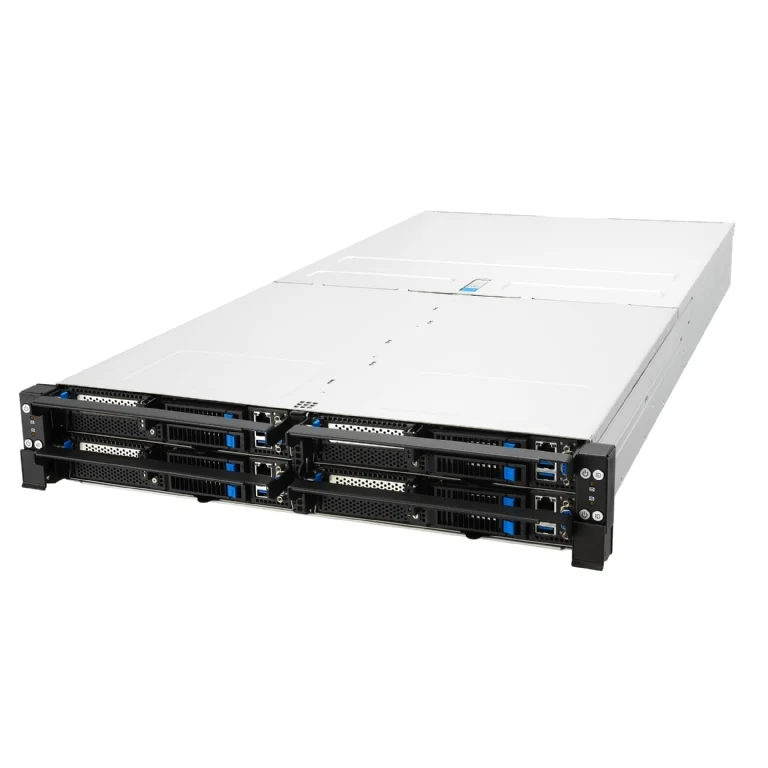

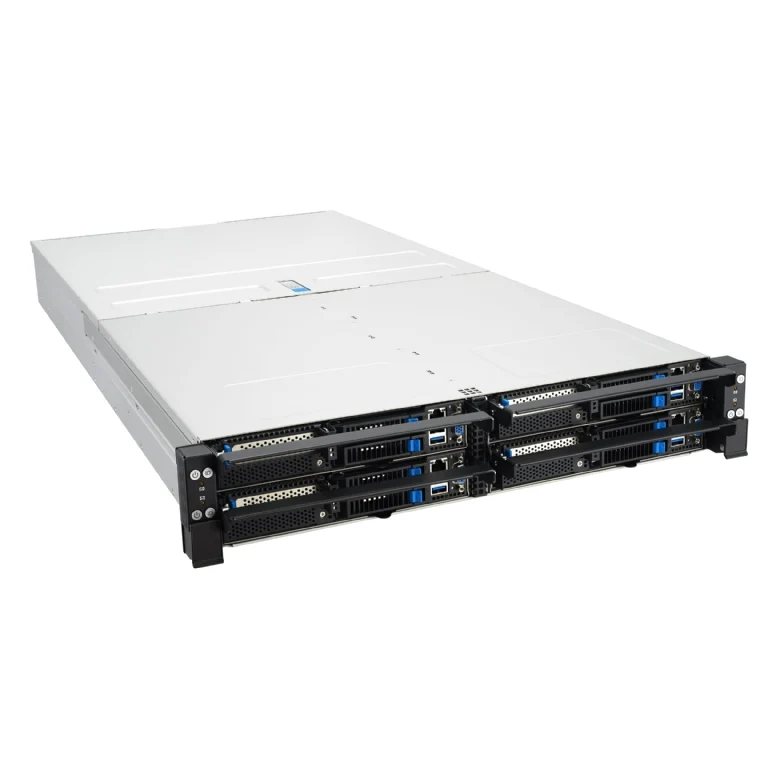

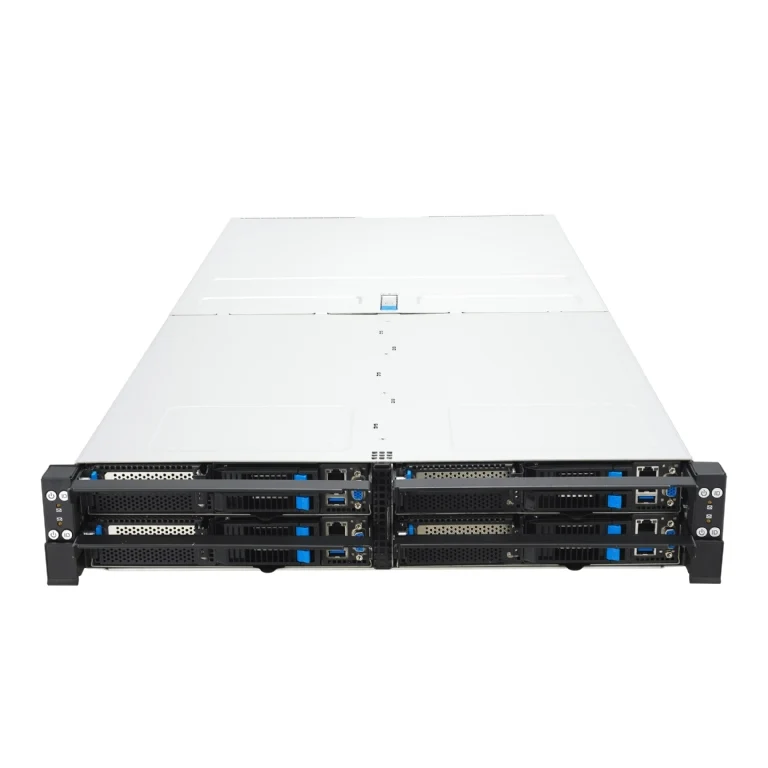

ASUS RS520QA-E13-RS8U 2U Quad Node Rackmount Single 9005 Series AMD EPYC Server - 8x Hot-Swap Bays - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    Per node: 1 x Socket SP5 (LGA 6096P)
    AMD EPYC™ 9005 Series Processors (Up to 400W/500W* TDP)
    *500W TDP requires an operating temperature of 25°C

  • Generation

    E13

  • Memory

    Total Slots :
    Per node: 12 + 8 DIMM slots
    12 x on-board, additional 8 x on CXL module (Optional)
    Capacity :
    Per node: Total Maximum up to 2560GB
    Memory Type :
    On-board: DDR5 up to 6400 MT/s
    CXL module: DDR5 up to 5600*/4400 MT/s
    * CXL modules support 5600 MT/s in 1DPC mode
    Memory Size :
    128GB, 96GB, 64GB, 32GB RDIMM
    128GB, 96GB, 64GB, 32GB 3DS RDIMM
    ** CXL is optional and dependent on configuration
    *** Refer to www.asus.com/support for more information

  • Expansion Slots

    Per node:
    1 x PCIe (Gen5 x16 link, HHHL)
    1 x OCP 3.0 (SFF)

  • Drive Bays

    Per node:
    2 x 2.5” hot-swap drive bays (NVMe/SATA/SAS*)
    * SAS support requires an optional HBA/RAID card
    2 x M.2 connectors (Gen5 x4 link, 2280)

  • System Fan

    4

  • Networking

    Per node:
    1 x Management Port

  • Graphic

    Aspeed AST2600 64MB

  • Front I/O Ports

    Per node:
    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Management LAN port

  • Rear I/O Ports

    Per node:
    1 x UART debug port

  • Switch/LED

    Per node:
    Front Switch/LED:
    1 x Power switch w/ LED
    1 x Message LED
    1 x Location switch w/ LED
    1 x BMC heartbeat LED
    1 x LAN LED
    2 x HDD Access LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    On-Board ASMB12-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)

  • Regulatory Compliance

    BSMI, CE, FCC(Class A)

  • Dimensions

    900(L) x 446(W) x 87.2(H) mm
    35.43(L) x 17.56(W) x 3.43(H) inch

  • Form Factor

    2U

  • Weight

    Net Weight : 27KG
    Gross Weight : 41.7KG

  • Power Supply

    2 + 0 3200W 80 PLUS Titanium Power Supply
    Rating: 220-240 Vac, 16A, 50/60Hz
    * Support 1 + 1 Redundant 3200W with particular configuration

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% (Non condensing)

  • CPU Heatsink/ Cooler

    4 x 1U EVAC Heatsink
