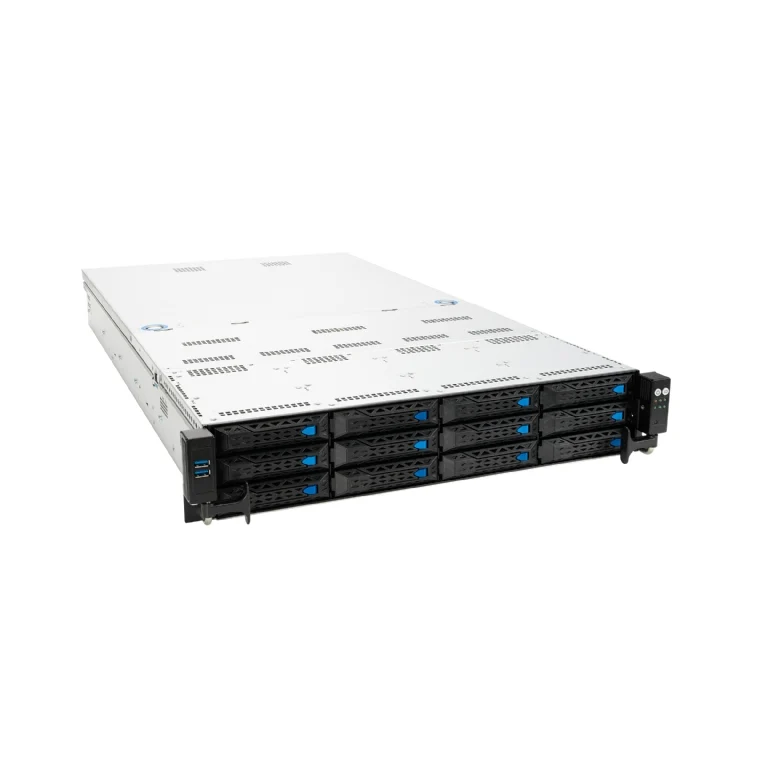

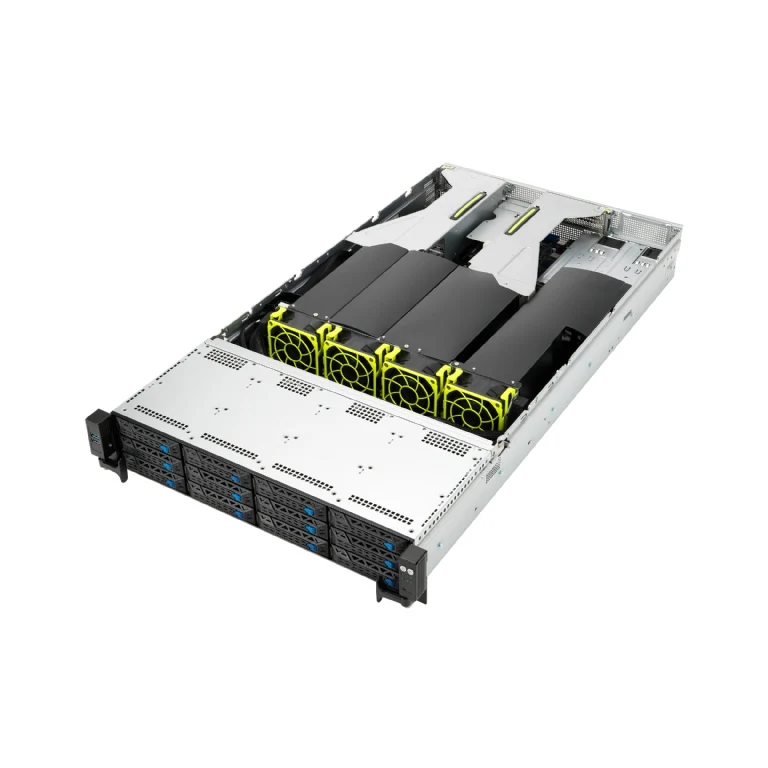

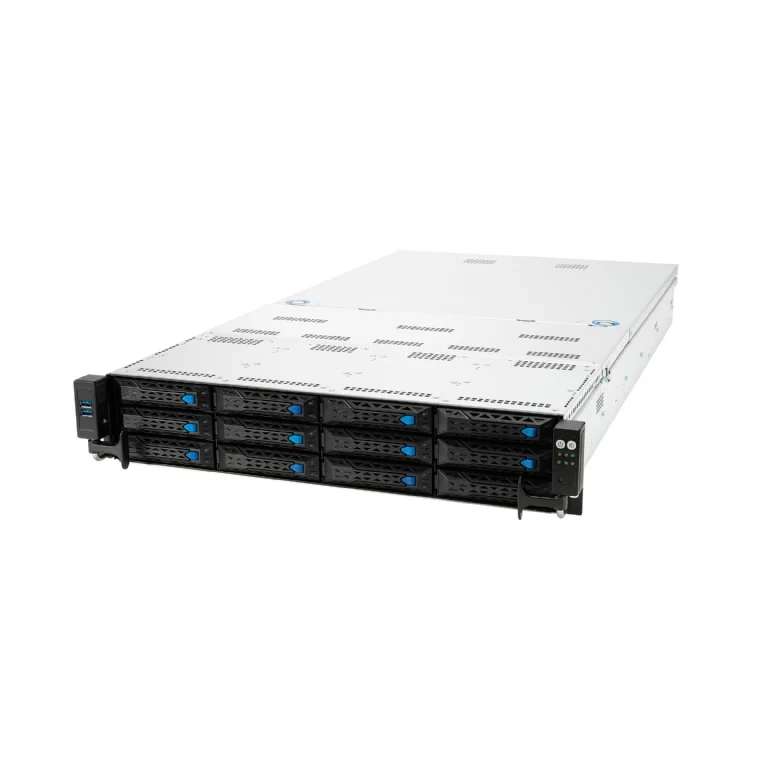

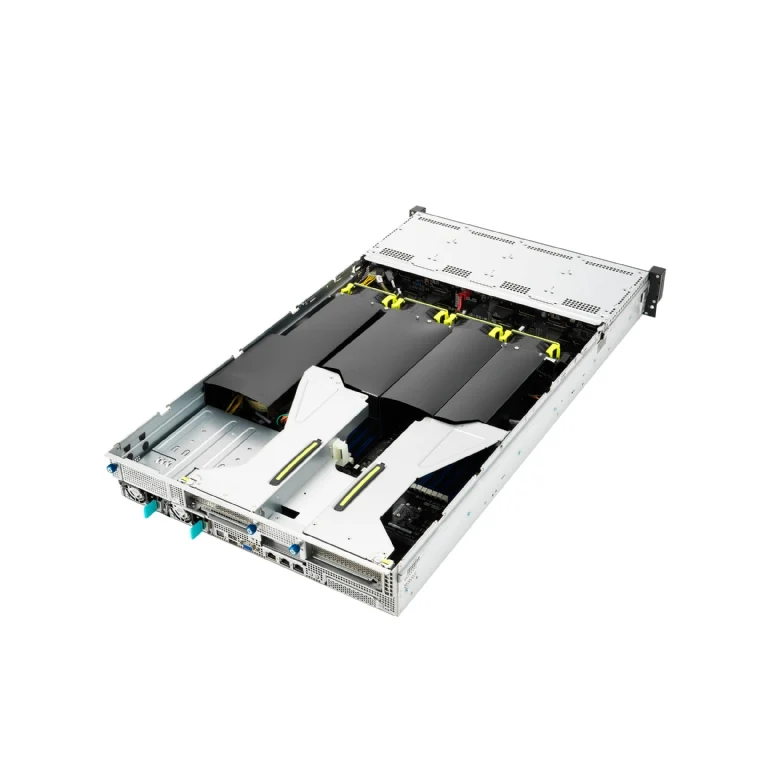

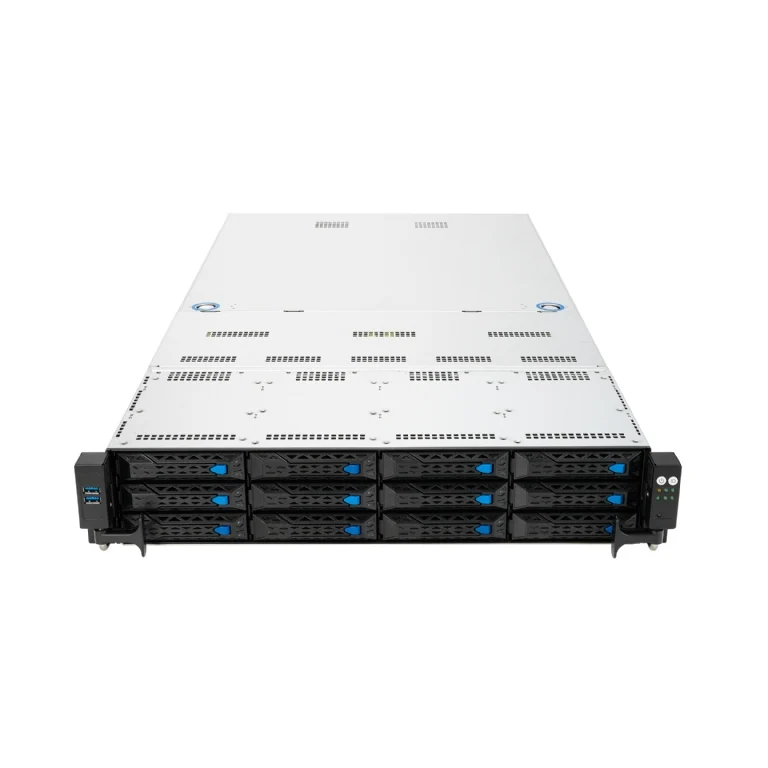

ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU

0,00 €
Menge

Beschreibung

    • Processor / System Bus


      1 x Socket SP3 (LGA 4094)
      3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
      AMD EPYC™ 7003 Series
      AMD EPYC™ 7002 Series

    • Memory

      Total Slots :
      16 (8-channel)
      Capacity :
      Maximum up to 4096GB RDIMM
      Memory Type :
      DDR4 3200/2933 RDIMM
      DDR4 3200/2933 LRDIMM
      DDR4 3200/2933 LR-DIMM 3DS
      Memory Size :
      128GB, 64GB, 32GB, 16GB RDIMM
      128GB, 64GB LRDIMM
      256GB, 128GB, 64GB LR-DIMM 3DS
      * Refer to support page for more information

    • Expansion Slots

      2 x PCIe x16 slot(Gen4 x16 link, FHFL)or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL)
      1 x PCIe x16 slot(Gen4 x8 link, LP)
      1 x OCP 3.0 Mezzanine slo

    • Storage

      Storage Controller :
      CPU Integrated
      SAS Controller :
      ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
      ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

    • Drive Bays

      12 x 3.5” hot-swap drive bays(12x NVMe/SATA/SAS) 2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s*2 or PCIe Gen4 x4 link*1 or PCIe Gen4 x2 link*2) *SAS support only from SAS HBA/RAID Card

    • System Fan

      4 (if choose redundant fan, total:8)

    • Networking

      1 x Dual Port Intel I350-AM2 Gigabit LAN controller
      + 1 x Mgmt LAN

    • Graphic

      Aspeed AST2600 with 64MB VRAM

    • Front I/O Ports

      2 x USB 3.2 Gen1 ports

    • Rear I/O Ports


      2 x USB 3.2 Gen1 port
      1 x VGA port
      1 x Management port (RJ45)
      2 x Gigabit LAN ports (RJ45)

    • Switch/LED

      Front Switch/LED:

      1 x Power switch (w/LED)

      1 x Reset Switch

      1 x Location Switch (w/LED)

      1 x HDD Access LED

      1 x Message LED

      LAN 1-2 LED



      Rear Switch/LED:

      1 x Power switch w/LED

      1 x Port 80 LED(Q-Code)

      1 x Location Switch w/LED

      1 x Message LED

    • OS Support

      Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    On-Board ASMB10-iKVM for KVM-over-IP

  • Regulatory Compliance

    BSMI, CE, RCM, FCC(Class A)

  • Dimensions

    840mm x 449mm x 88.1mm

    (33.07" x 17.68" x 3.47")

  • Form Factor

    2U

  • Weight

    Net Weight : 18.83KG

    Gross Weight : 28.42KG

  • Power Supply

    1+1 Redundant 800W 80 PLUS Platinum Power Supply
    Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I

    1+1 Redundant 850W 80 PLUS Titanium Power Supply

    Rating: 100-127 / 200-240Vac, 11A / 5A (for each inlet), 47-63Hz or 240Vdc, 4A

    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply

    Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A

    240Vdc Only for China

  • Environment

    Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing)

  • CPU Heatsink/ Cooler

    1
