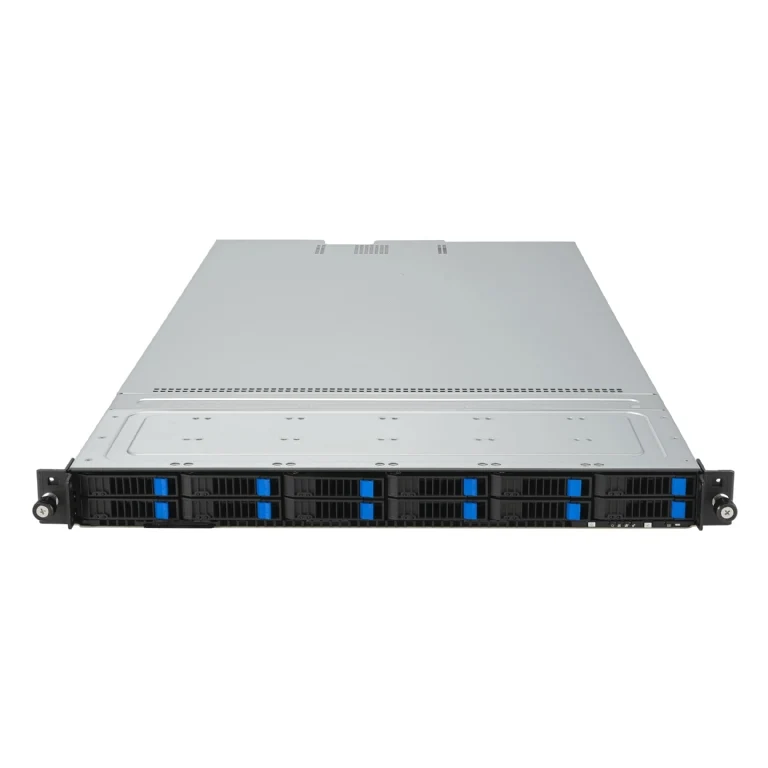

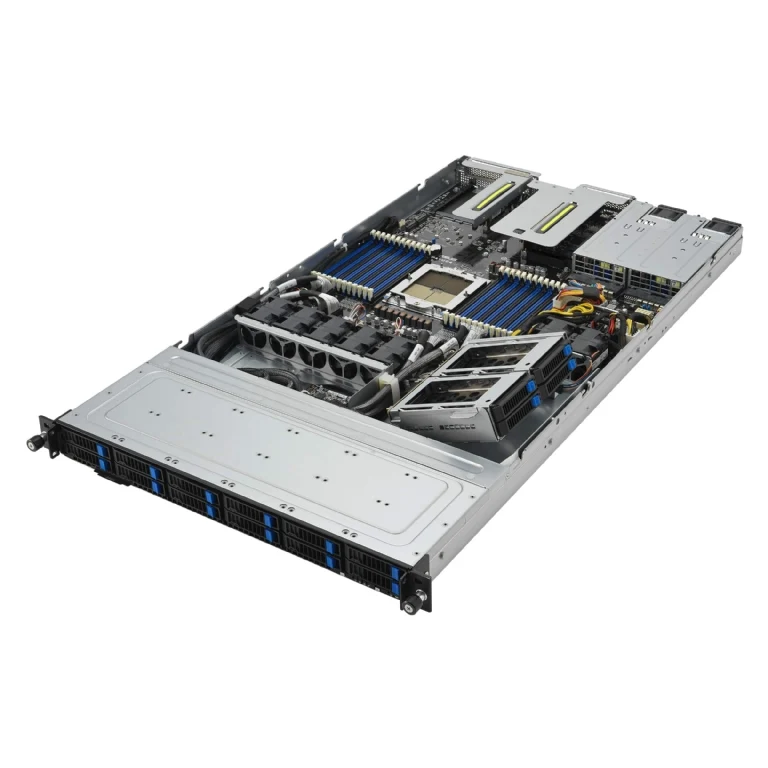

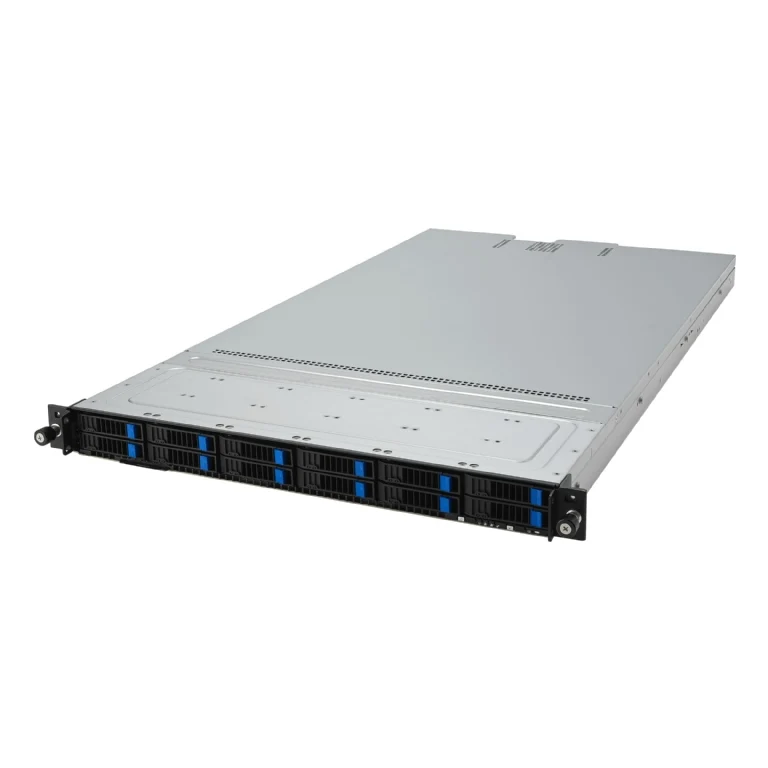

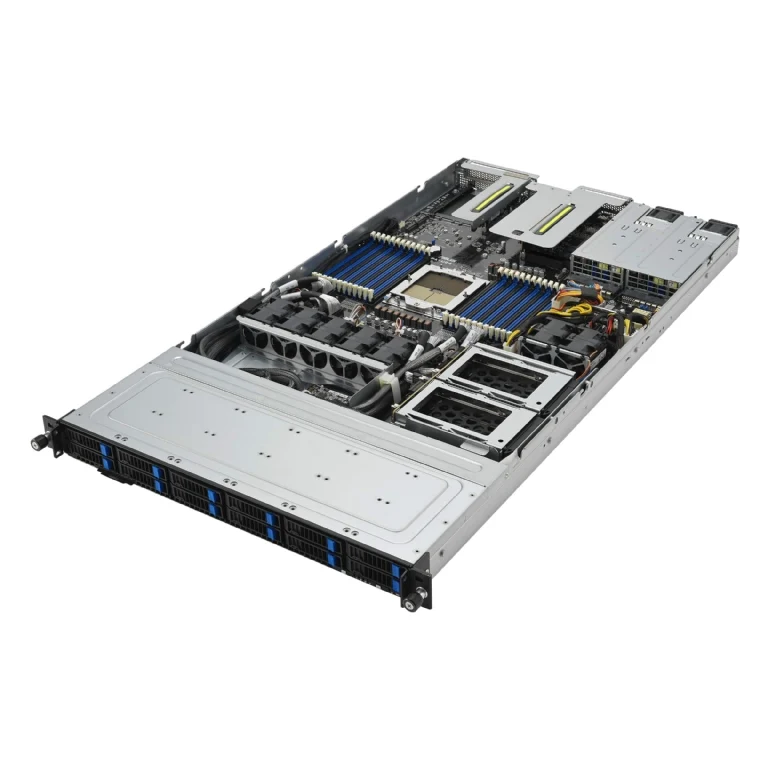

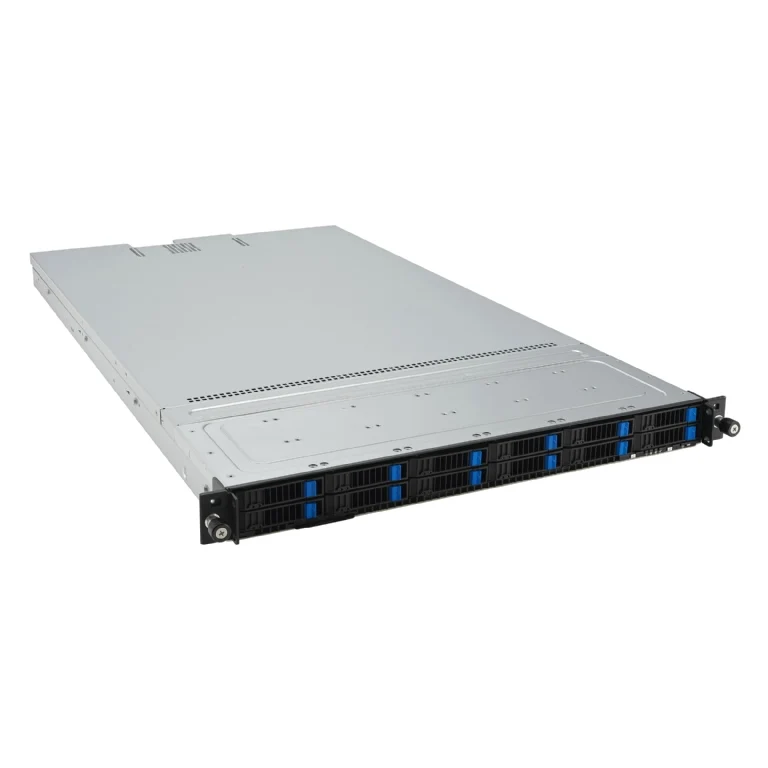

ASUS RS500A-E12-RS12U 1U Rackmount Single 9004 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    AMD EPYC™ 9004 Series Processors (up to 400W)

  • Memory

    24 x DIMM slots
    DDR5 4800/4400 RDIMM/ 3DS RDIMM
    Maximum 6144GB

    *2DPC support depends on AMD schedule
    * Refer to support page for more information

  • Expansion Slots

    Up to 3 PCIe Gen5 slots + 1 OCP3.0
    1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
    1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
    1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
    1 x OCP3.0 socket (Gen5 x16 link)

  • Storage

    Storage Controller :
    CPU Integrated
    Optional kits Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

  • Drive Bays

    Front bays:
    12 x 2.5” Hot-swap Storage Bays
    12 x SATA/SAS/NVME
    Optional 4 x 2.5” Internal Storage Bays
    4 x SATA/NVME
    *SAS support only from optional SAS
    HBA/RAID card

    2 x M.2 connectors

  • Networking

    1 x Dual Port Intel I350-AM2 GbE LAN Controller
    1 x Management Port

  • Graphic

    Up to 2 single-slot GPU cards

    *Internal Storage Bays SKU only support 1 single-slot GPU card

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x Management port
    2 x 1GbE LAN ports

  • Switch/LED

    Front:
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    LAN 1-2 LED
    Rear:
    1 x Port80 LED (Q-Code)
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)

  • Regulatory Compliance

    BSMI, CB, CE, RCM, FCC(Class A)

  • Dimensions

    842.5mm x 449mm x 43.85mm (1U)
    33.17" x 17.68" x 1.73"

  • Form Factor

    1U

  • Weight

    (approximate)
    Net Weight: 14.16 kg
    Gross Weight: 19.16 kg

  • Power Supply

    1+1 Redundant 1600W 80 PLUS Titanium
    Power Supply
    1+1 Redundant 1600W/1200W 80 PLUS Platinum
    Power Supply

  • Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)

    Note
    Operating Temperature based on configurations

  • Optional Items

    Rail Kit:
    Tool-less Friction Rail Kit
    1.2m Half Extension Ball bearing Type Rail Kit
    1m Half Extension Ball bearing Type Rail Kit
    1U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if cable arm needed.
    1U Front Bezel
