Anbieter: The Server Group Ltd

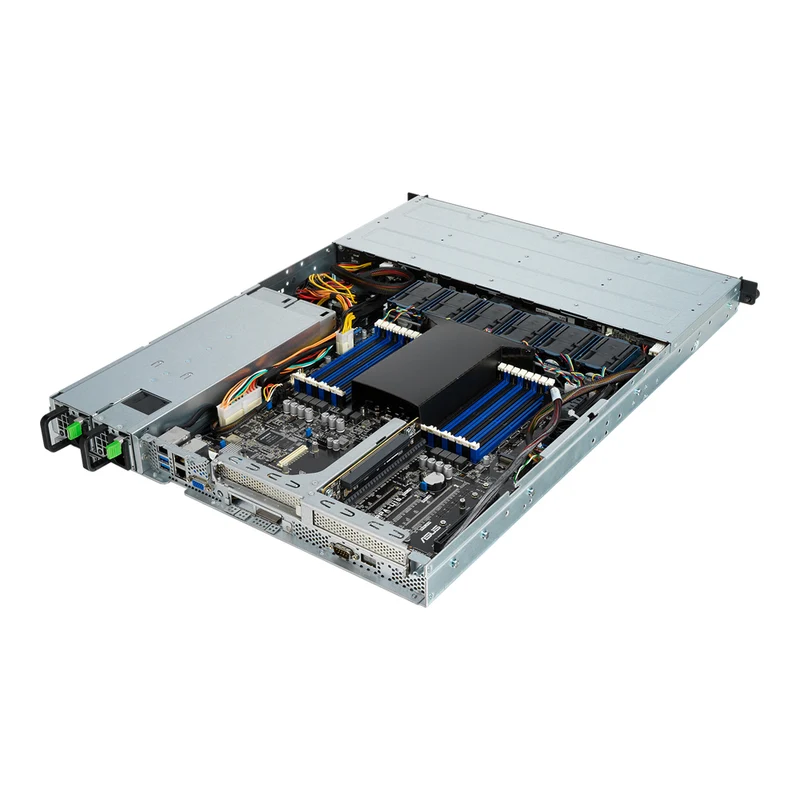

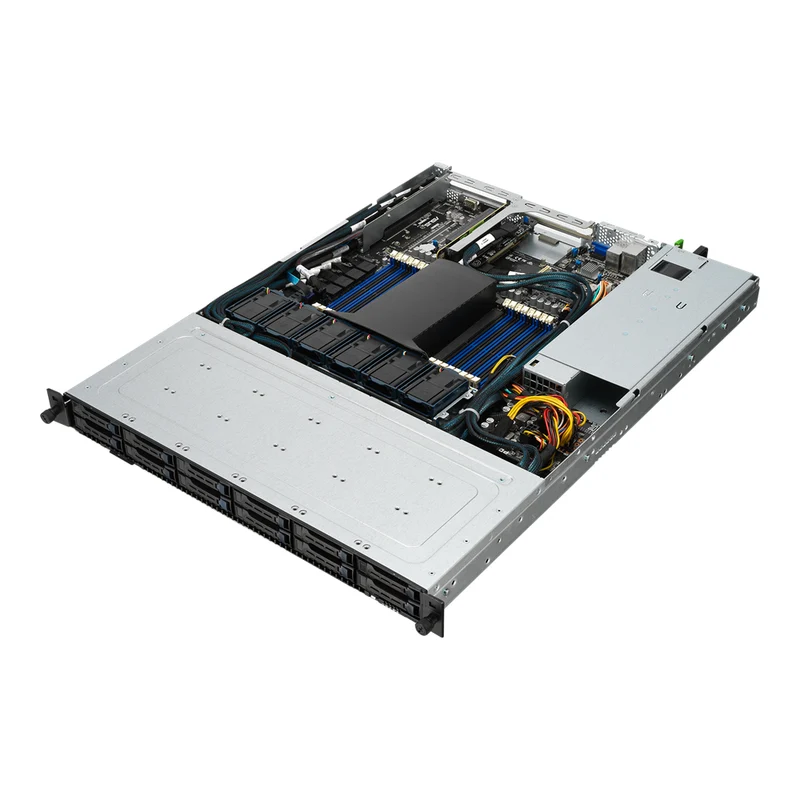

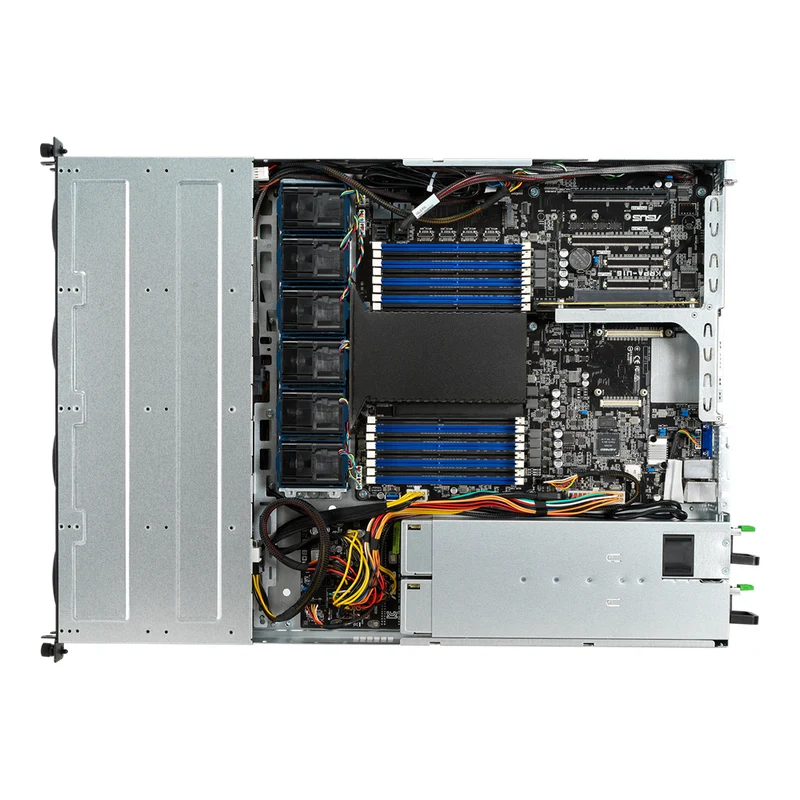

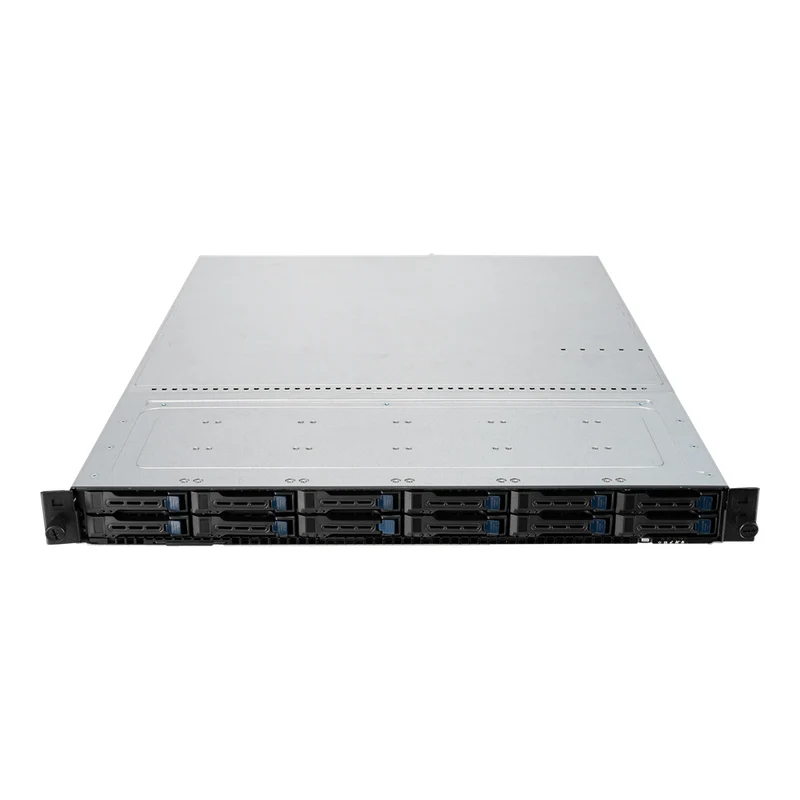

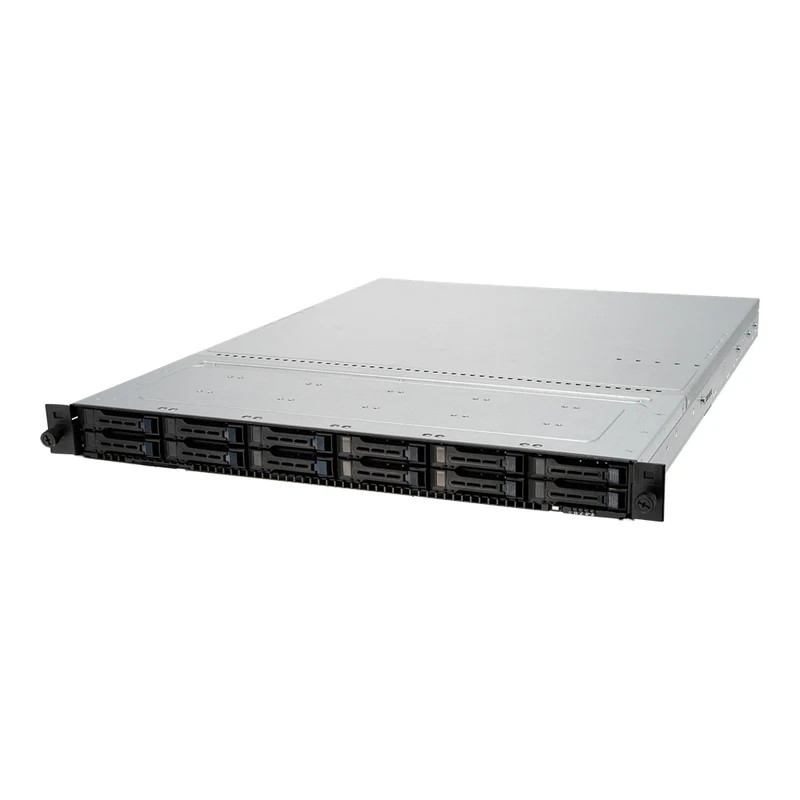

ASUS RS500A-E10-RS12U 1U Rackmount Single 7002/7003 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    1 x Socket SP3 (LGA 4094)
    AMD EPYC™ 7003 Series
    AMD EPYC™ 7002 Series
    *Refer to support page for more information

  • Generation

    E10

  • Core Logic

    System on Chip (SoC)

  • Memory

    Total Slots : 16 (8-channel)
    Capacity : Maximum up to 2048GB LRDIMM
    Memory Type :
    DDR4 3200/2933/2666 RDIMM
    DDR4 3200/2933/2666 LRDIMM
    DDR4 3200/2933/2666 LR-DIMM 3DS
    Memory Size :
    * Refer to support page for more information

  • Expansion Slots

    1 x PCIe 4.0 x16 slot (Gen 4 x16 link);FH, HL (LP only when RS12U)
    1 x PCIe 4.0 x8 slot (Gen 4 x8 link);FH, HL (Occupied when RS12U)
    1 x OCP 2.0 Mezzanine Conn.(Gen4 x16 link)

  • Storage

    SATA Controller :
    CPU Integrated
    Optional kits Controller :
    ASUS PIKE II 3008 8-port SAS HBA card
    ASUS PIKE II 3108 8-port SAS HW RAID card

  • Drive Bays

    12 x 2.5” hot-swap storage bays (Backplane Supports 12 x 2.5" NVMe/SATA/SAS Devices)

    1 x M.2 socket (up to 22110, SATA 6Gbps or PCIe Gen3 x4 link)

  • Networking

    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

  • Rear I/O Ports

    2 x USB 3.0 ports
    1 x VGA port
    2 x RJ-45 1GbE LAN ports
    1 x RJ-45 Management port
    1 x COM port

  • Switch/LED

    Front:
    - 1 x Power Button/LED
    - 1 x Location LED
    - 1 x Message LED
    - 2 x LAN LED

    Rear:
    - 1 x Power Button/LED
    - 1 x Q-Code/Port 80 LED
    - 1 x Location LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    ASMB9-iKVM for KVM-over-IP (Default BMC, AST2500)

  • Regulatory Compliance

    BSMI, CE, FCC(Class A)

  • Form Factor

    1U

  • Weight

    Net Weight: 11 Kg
    Gross Weight: 17 Kg

  • Power Supply

    1+1 Redundant 650W 80 PLUS Platinum
    Power Supply
    Rating: 100~127/200~240 Vac, 10A/5A,
    50~60Hz, Class I

  • Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)
