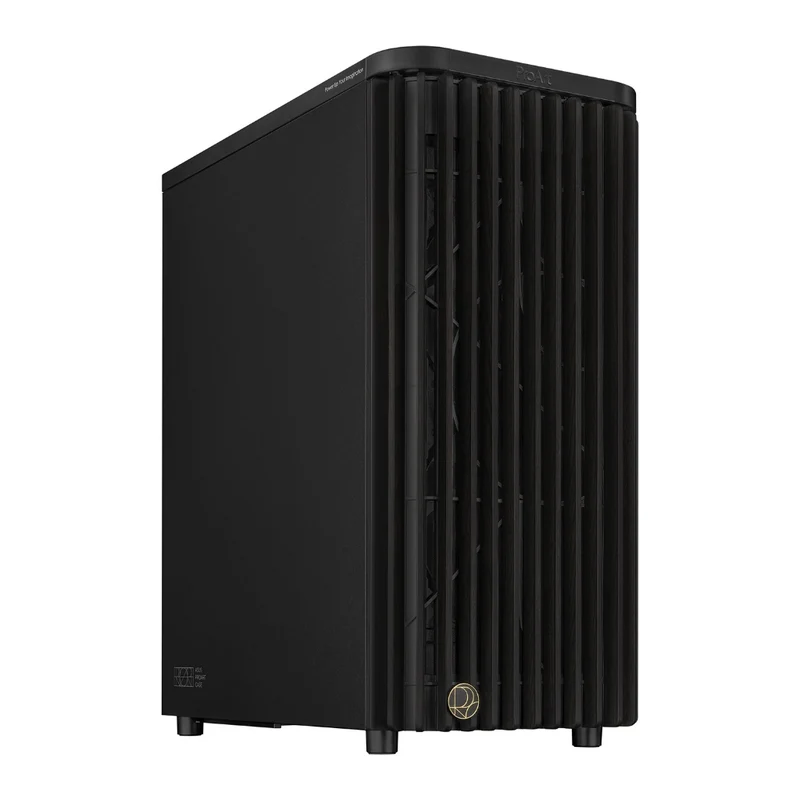

ASUS ProArt PA401 Wood Edition Chassis, Black, Metal Panel, 2x 140mm/1x 120mm Fans, USB 3.2 Gen 2, mITX/mATX/ATX

Natural Elegance, Optimal Airflow

The ProArt PA401 Wood Edition showcases a wooden front panel that creates a distinctive, elegant style while promoting sustainability. The wood used is certified by the Forest Stewardship Council® (FSC®), and is finished using a six-stage process. The case also boasts optimal built-in cooling, with two 160mm front fans and one 120mm rear fan, along with an integrated fan hub, enabling optimal airflow.


Exceptional Cooling Performance
The PA401 Wood Edition features a front grille with 33% porosity to maximize airflow and ventilation. Meanwhile, built-in dual 160mm front fans efficiently deliver up to 138cfm of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and the 120mm rear fan with PWM control yield optimal airflow, low noise, low vibration and high reliability.


Crafted Wood
Ash wood, an uncommon choice for this style of case, has been selected for its durability. The special six-stage production process used to create the front panel begins with thermowood treatment, protecting the wood from insects, humidity and heat. The panel material is then shaped to exact specification. Finally, a two-step coating elevates the unique Ash grain with a glossy finish.
Flexible, Fast I/O
Connectivity options are easily accessible via the front I/O panel, including one two-section PWM control, one 20Gbps USB Type-C® port, two USB-A 3.0 ports, HD audio and a Power and Reset button lock.


Builder-Friendly Installation
The ProArt PA401 Wood Edition optimizes the PC building experience, offering better functionality with user-focused features.

• The left side panel can be secured via a physical latch to help prevent intrusion
• Integrated fan hub with support for up to 5 PWM fans
• Tool-free 3.5” hard drive installation enables flexibility
• Rear bracket detaches from case so that a power supply can slide in for easier installation
• Rear cable clips help ensure clean cable management

Compact Form, Ample Interior
The ProArt PA401 Wood Edition features two pre-installed 160mm front fans and accommodates both horizontal and vertical graphics card mounting.

Specification

• Form Factor: ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• #Hide#Power Supply:
• Motherboard Support: ATX, Micro ATX, Mini ITX
• #Hide#Window(s): No
• #Hide#LED Lighting:
• Connectors / Controls: 2 x USB 3.2 Gen1
  1 x USB 3.2 Gen 2x2 Type-C
  1 x Headphone / Microphone
  Fan Speed Control
  Power and Reset Button Lock
• #Hide#5.25 Bay:
• Drive Bays: 2 x 2.5" Bay
  2 x 2.5"/3.5" Combo Bay
• Expansion Slots: 7 Expansion Slots
• Cooling System: Included:
  Front Fans: 2 x 160 mm
  Rear Fans: 1 x 120 mm PWM
  5 Port PWM Fan Hub

  Fan Mounts
  Front: 2 x 140 / 2 x 160 mm
  Top: 2 x 120 / 2 x 140 mm
  Rear: 1 x 120 mm
• .:
  Radiator Support:
  Top: Up to 240 mm
• Colour: Black
• Material: Certified Durable Ash Wood Front
  Metal Side Panel
• Compatibility: GPU Max Length:
  315 mm

  CPU Cooler Max Height:
  160 mm

  PSU Max Length:
  170 mm
• Weight/Dimensions: 8.61 kg
  412 x 225 x 503 mm
• Power Supply Connectors:
• Additional Features:
• Accessories:
• Package Weight: 18.5500 kg
• Package Dimensions:
• Warranty: 2 Years
