Anbieter: The Server Group Ltd

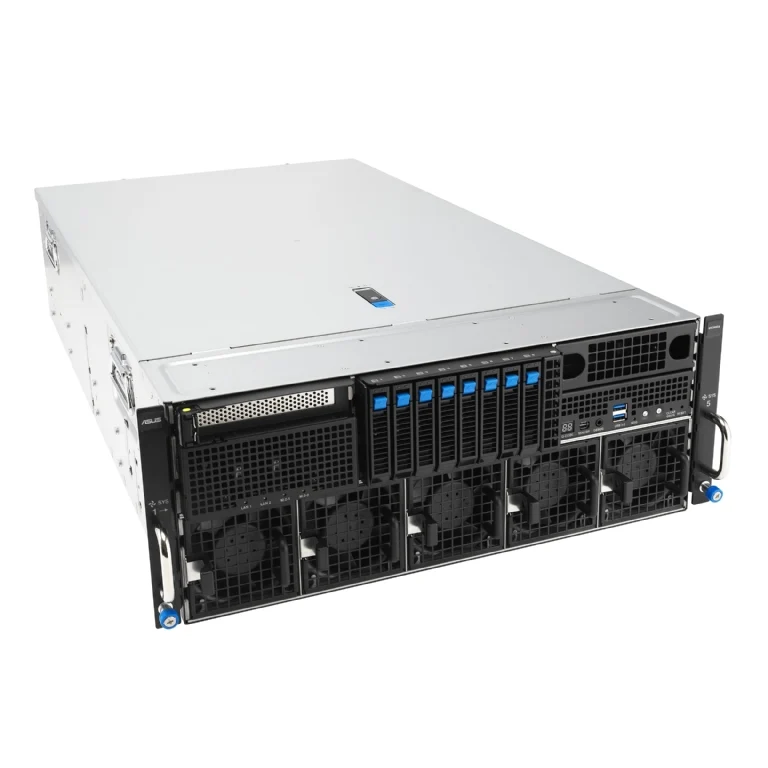

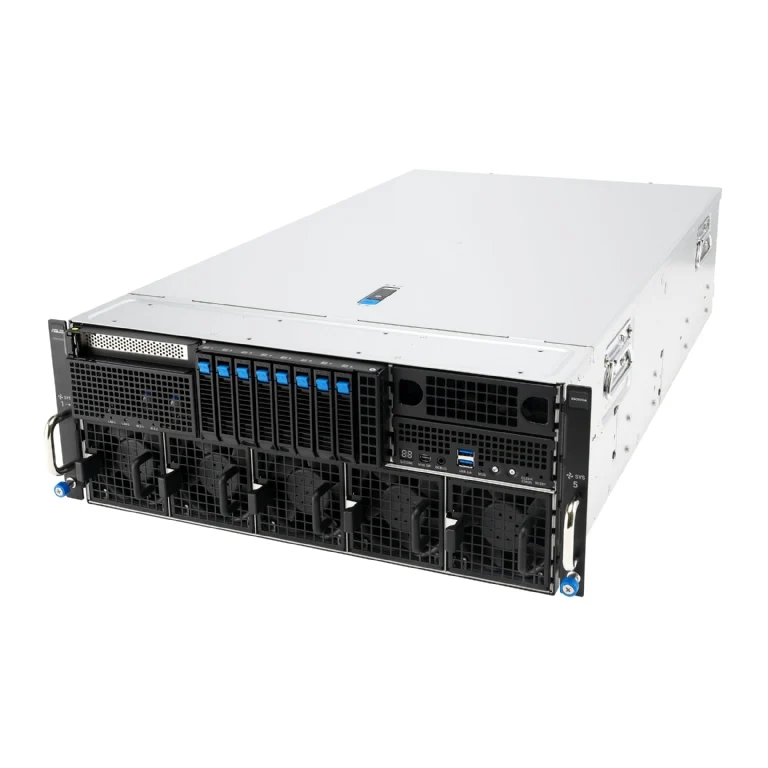

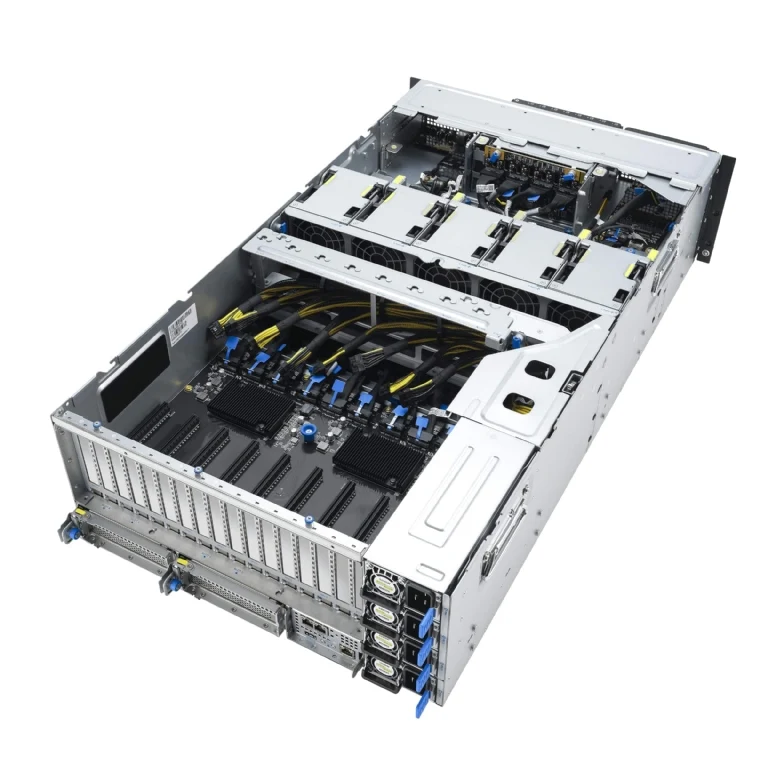

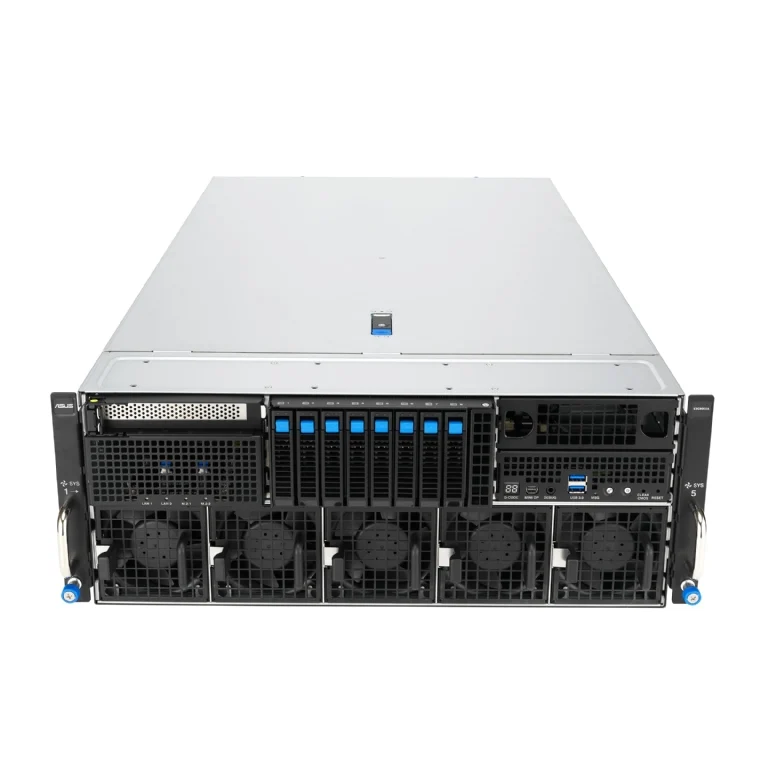

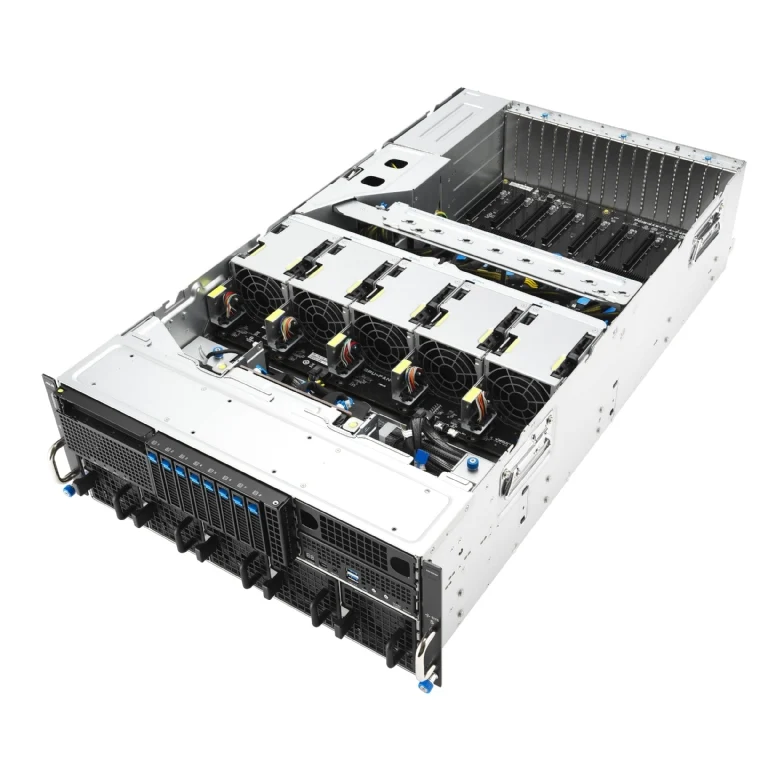

ASUS ESC8000A-E13P 4U Rackmount Dual 9005 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Dual 3200W PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    2 x Socket SP5 (LGA 6096)
    AMD EPYC™ 9005 series processors*
    * Up to 500W cTDP, TDP support varies by configuration

  • Memory

    Total Slots:
    24 (12 channel per CPU, 12 DIMM per CPU)
    Capacity:
    Maximum up to 3TB
    Memory Type:
    DDR5 6400/5600 RDIMM
    Memory Size:
    128GB, 96GB, 64GB, 32GB, 16GB RDIMM

    * Refer to ASUS server AVL for the latest update

  • Expansion Slots

    Up to 14 slots

    Rear:
    8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
    5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)

    Front:
    1 x PCIe x16 (Gen5 x8 link, FH/HL)

  • Storage

    8 x 2.5" Front Hot-swap Storage Bays
    (Backplane supports up to 8 x NVMe)

    2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link)
    (M.2 board supports up to 2 x NVMe

  • Networking

    2 x 10GbE LAN ports (RJ45, X710-AT2)
    1 x Management Port

  • Multi-GPU Support

    Please find the latest GPU support from https://funkelart.com/support/gpu

  • Front I/O Ports

    1 x Mini DisplayPort
    2 x USB 5Gbps ports
    1 x Debug port

  • Rear I/O Ports

    1 x USB 5Gbps port
    2 x RJ-45 LAN ports
    1 x RJ-45 management LAN port

  • Switch/LED

    Front :
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Message LED
    1 x Clear CMOS switch
    1 x Reset Switch
    2 x M.2 LEDs
    2 x LAN LEDs
    1 x Q-code/Port 80 LED
    Rear :
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (in-band)
    ASMB12-iKVM for (out-of-band/BMC AST2600)

  • Regulatory Compliance

    BSMI, CB, CE, FCC(Class A), RCM

  • Dimensions

    800mm x 439.5mm x 175mm
    31.5” x 17.3” x 6.9”

  • Form Factor

    4U

  • Weight

    Net Weight: 42 Kg
    Gross Weight: 44.23 Kg

  • Power Supply

    3+1 redundant 3200W 80 PLUS Titanium power supply
    20-240 Vac, 16A (x4) 50/60Hz

  • Environment

    Operating temperature: 10°C ~ 35°C
    Non-operating temperature: -40°C ~ 60°C
    Non-operating humidity: 20% ~ 95% (Non-condensing)
