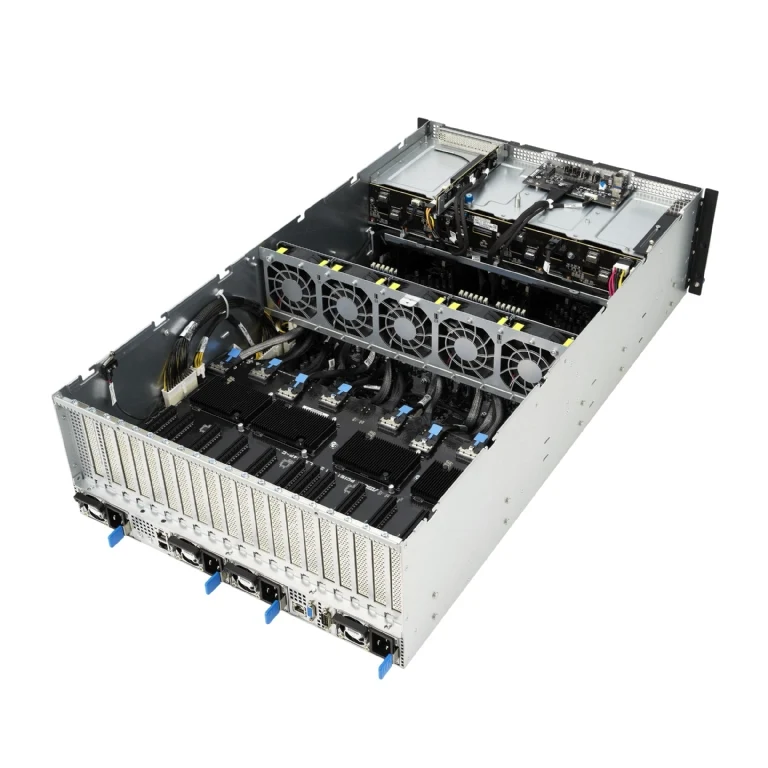

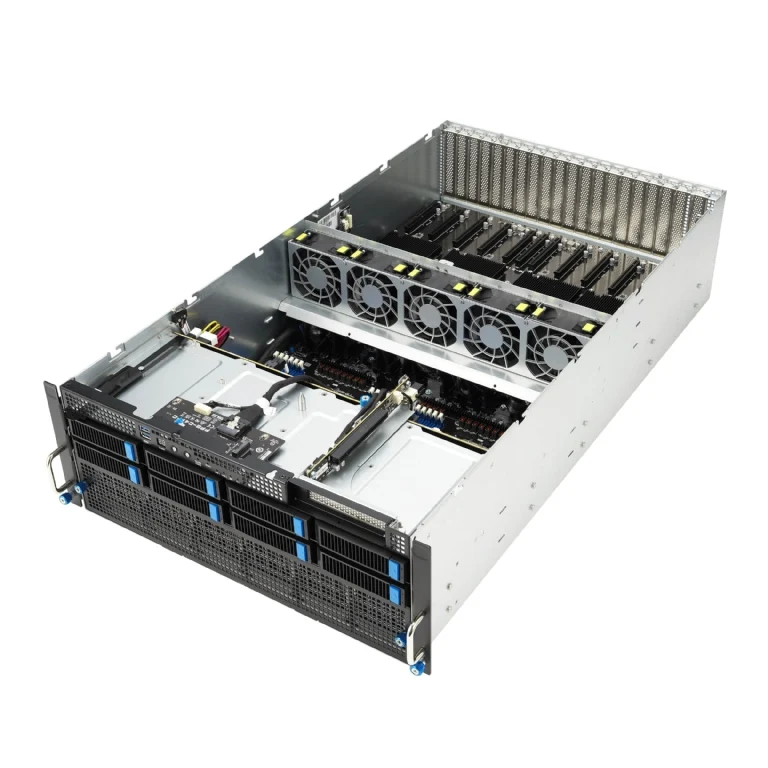

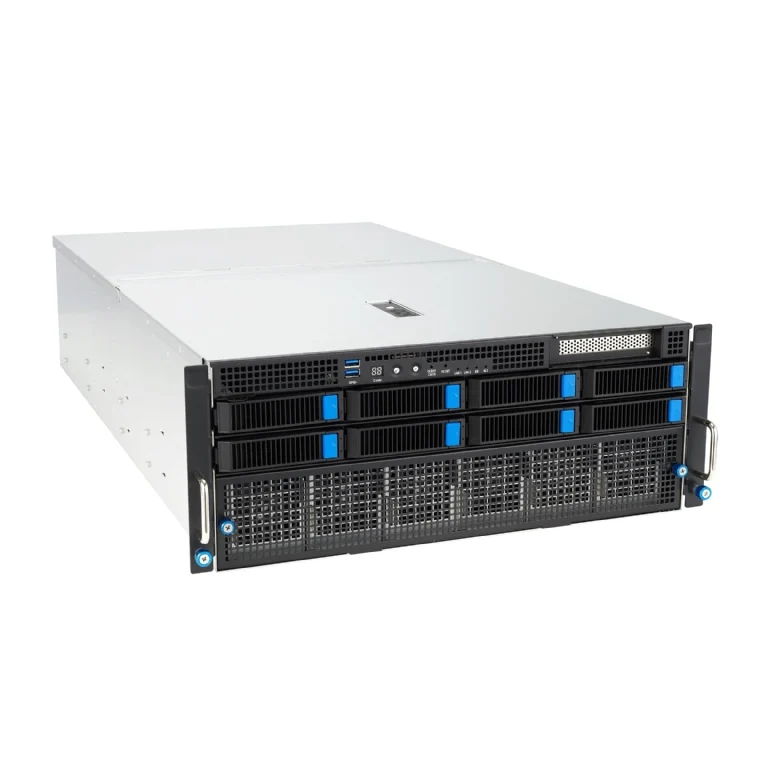

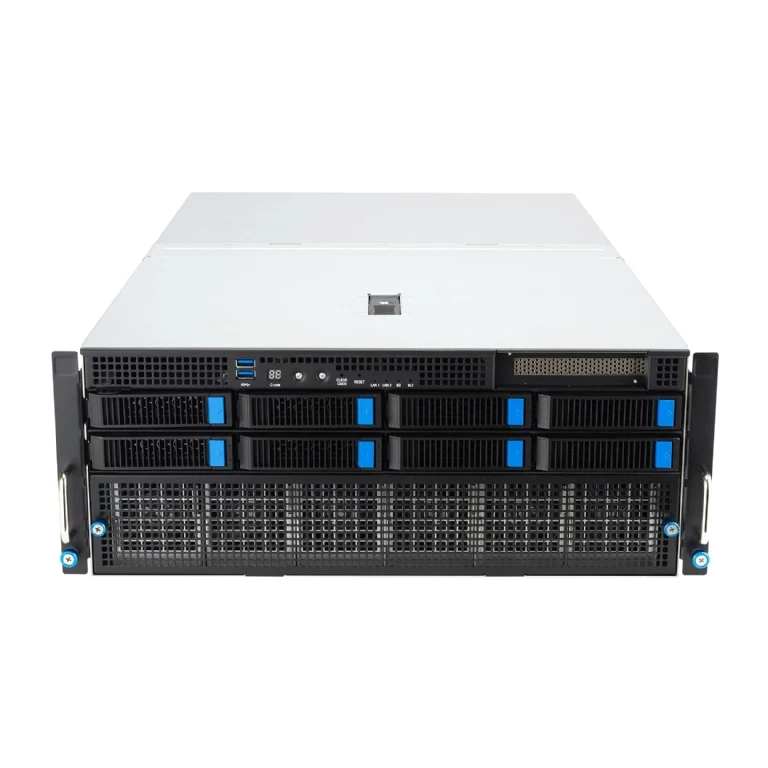

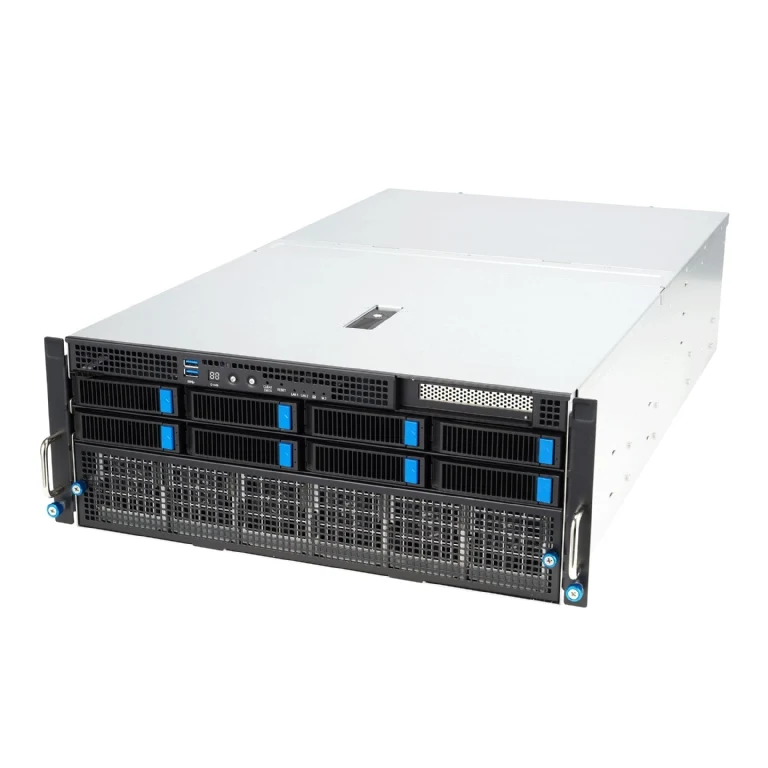

ASUS ESC8000A-E12P 4U Rackmount Dual 9005 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    2 x Socket (LGA 6096)
    AMD EPYC™ 9004 series(up to 400W)
    4th Generation AMD EPYC Processors with AMD 3D V-Cache technology

  • Memory

    Total Slots:
    24 (12 channel per CPU, 12 DIMM per CPU)
    Capacity:
    Maximum up to 3TB per CPU socket
    Memory Type:
    DDR5 4800/4400 RDIMM/ 3DS RDIMM
    Memory Size:
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS

    * Refer to support page for more information

  • Expansion Slots

    8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards

    SKU-1 (5PCIe + 4NVMe)
    Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards
    Rear: 4 x PCIe slot (Gen5 x16 link) for NIC

    SKU-2 (4PCIe + 1OCP3.0)(optional)
    Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards
    Rear: 3 x PCIe slot (Gen5 x16 link) for NIC
    1 x OCP3.0 NIC socket (Gen5 x16 link)

  • Storage

    Optional Kits:
    -Broadcom MegaRAID 9560-16i
    -Broadcom MegaRAID 9540-8i
    -ASUS PIKE II 3008 8-port HBA Card
    -ASUS PIKE II 3108 8-port HW RAID Card

  • Networking

    2 x 10GbE LAN ports (RJ45, X710-AT2)
    or 2 x Gigabit LAN ports (RJ45, I350-AM2)
    1 x Management Port

  • Multi-GPU Support

    Please find the latest GPU support from https://funkelart.com/support/gpu

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Rear I/O Ports

    1 x COM port
    2 x 10GbE/1GbE LAN ports (RJ45, build for order)
    1 x Management port (RJ45)

  • Switch/LED

    Front :
    1 x Power Button w/LED
    1 x Location Button w/LED
    1 x Message LED
    1 x Q-Code/Port 80 LED
    1 x Clear CMOS Switch
    1 x Reset Switch
    1 x M.2 LED
    Rear :
    1 x Power Button w/LED
    1 x Location Button w/LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (in-band)
    ASMB11-iKVM for (out-of-band/BMC AST2600)

  • Regulatory Compliance

    BSMI, CB, CE, FCC(Class A), RCM

  • Dimensions

    800mm x 440mm x 174.5mm

  • Form Factor

    4U

  • Weight

    Net Weight: 27 Kg
    Gross Weight: 52 Kg

  • Power Supply

    2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply
    2+1 Redundant 3000W 80 PLUS Titanium Power Supply
    Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
