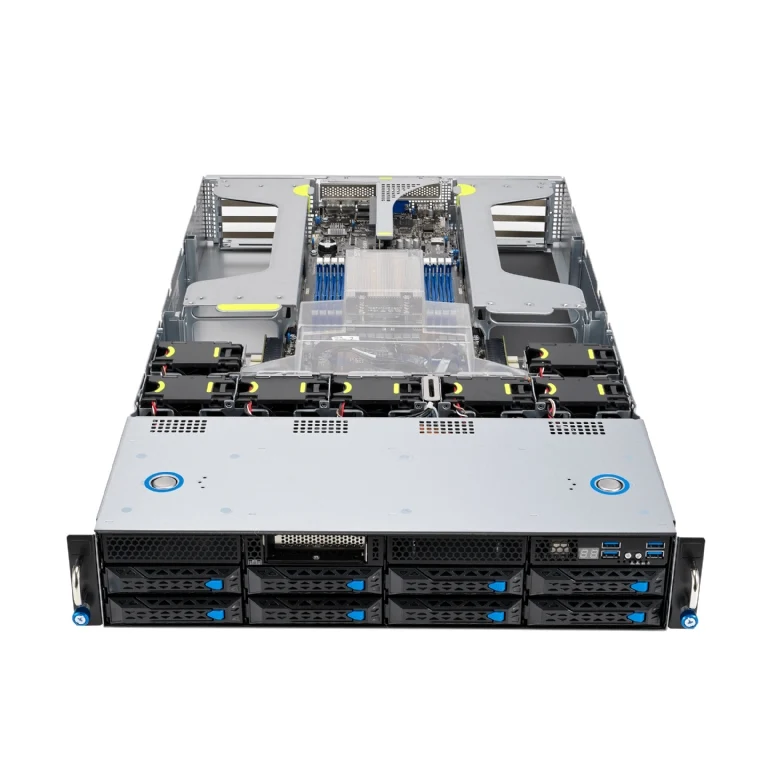

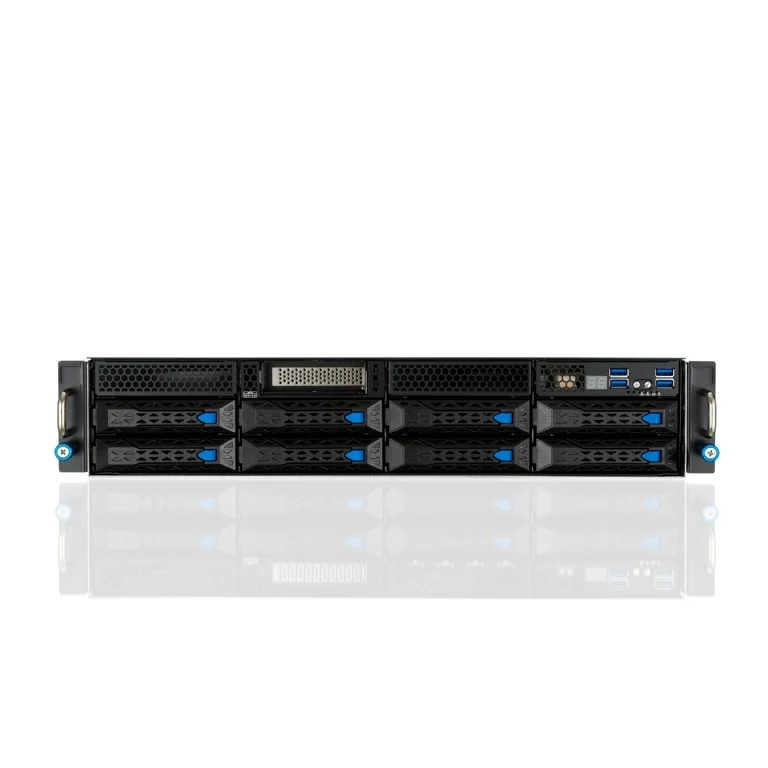

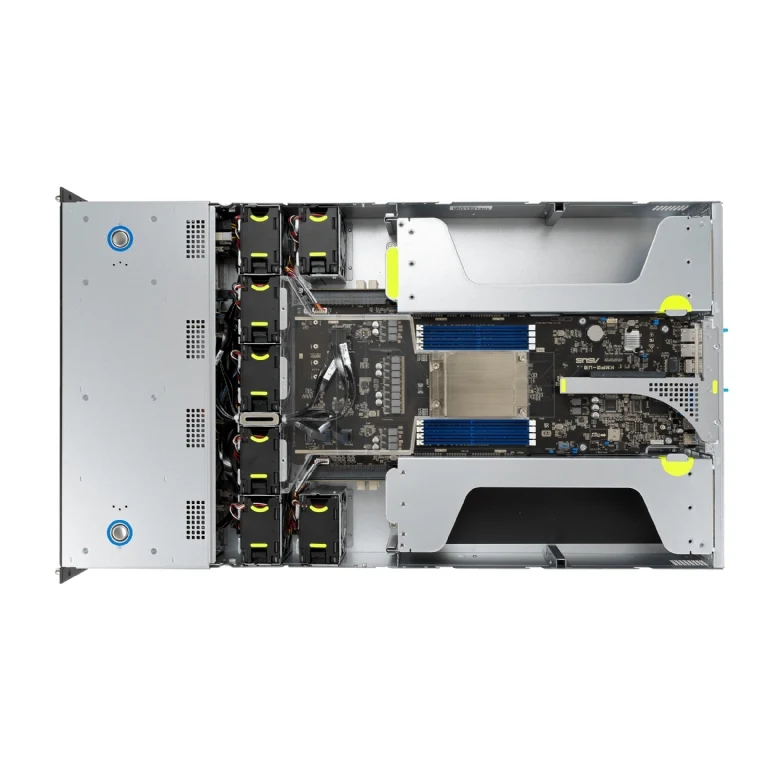

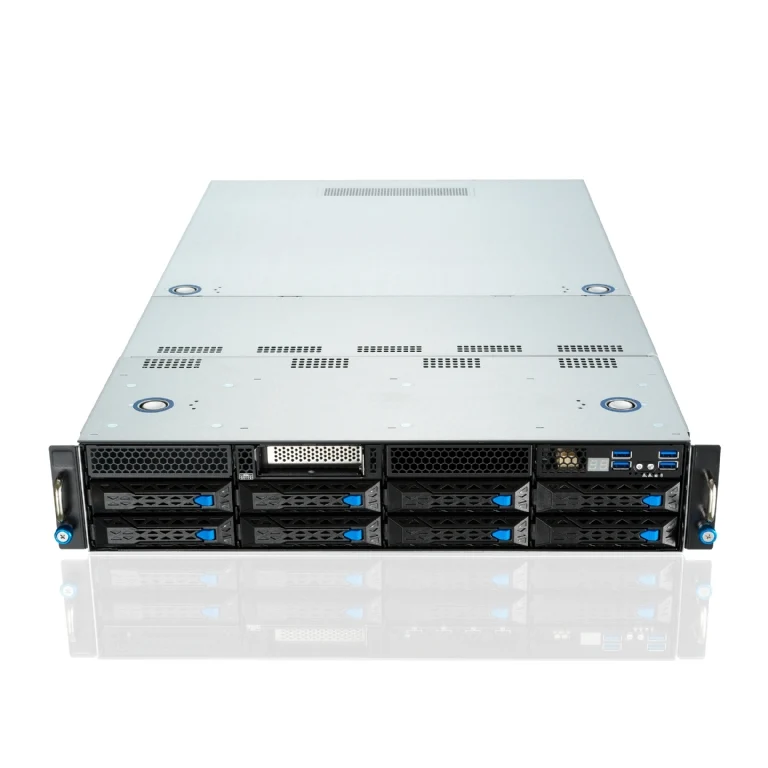

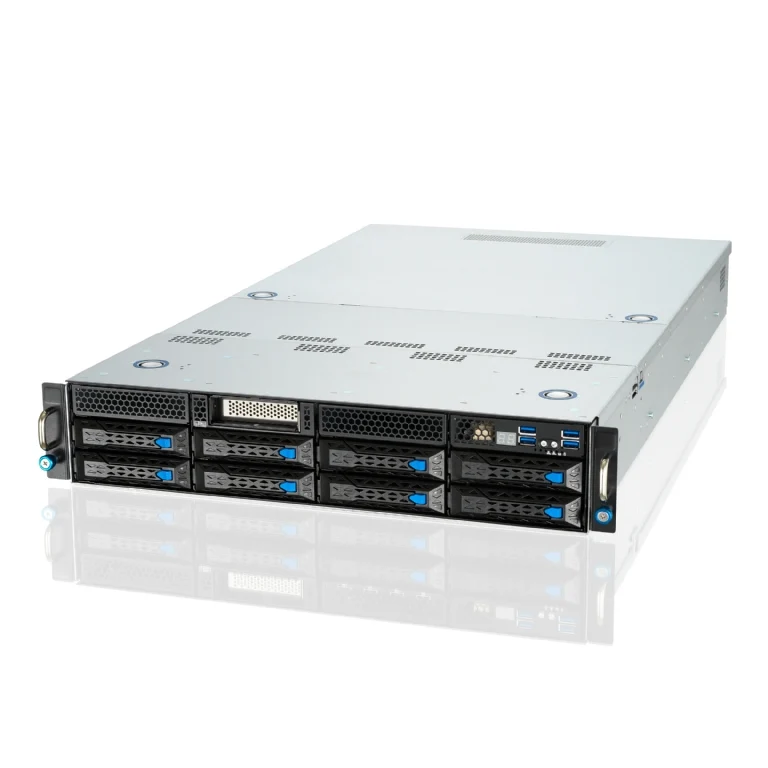

ASUS ESC4000A-E11 2U Rackmount Single 7002/7003 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Dual 2200W PSU

0,00 €
Menge

Beschreibung

    • Processor / System Bus

      1 x Socket SP3 (LGA 4094) Option 1
      AMD EPYC™ 7003 Series
      AMD EPYC™ 7002 Series
      3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

    • Memory

      Total Slots : 8 (8-channel)
      Capacity : Maximum up to 2048GB RDIMM
      Memory Type :
      DDR4 3200 RDIMM
      DDR4 3200 LRDIMM
      DDR4 3200 LR-DIMM 3DS
      Memory Size :
      256GB, 128GB, 64GB, 32GB, 16GB
      * Refer to support page for more information

    • Expansion Slots

      Rear:
      - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
      8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards

      - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)

      Front:
      - SKU-1 (default)
      　1 x PCIe x8 slot (Gen4 x8 link, LP,HL)

      - SKU-2 (by request)
      　1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
      　1 x OCP3.0 slot (Gen4 x8 link) by switching cables

      - SKU-3 (by request)
      　1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
      　2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables

    • Storage

      Storage Controller :
      CPU Integrated
      Optional kits Controller :
      ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
      ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

    • Drive Bays

      8 x 3.5" or 2.5" Hot-swap Storage Bays
      (Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices)

      1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard)

    • Networking

      1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

    • Multi-GPU Support

      Please find the latest GPU support from https://funkelart.com/support/GPU

  • Front I/O Ports

    1 x Q-code/port-80 LED
    4 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    2 x USB 3.2 Gen1 port
    1 x VGA port
    1 x Management port (RJ45)
    2 x Gigabit LAN ports (RJ45)

  • Switch/LED

    Rear:
    1 x Power Button/LED
    1 x Location LED
    1 x Message LED
    1 x HDD Access LED

    Front:
    1 x Power Button/LED
    1 x Location Button/LED
    2 x LAN LED
    1 x Message LED
    1 x HDD Access LED

    • OS Support

      Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (in-band)
    ASMB10-iKVM for KVM-over-IP (out-of-band/BMC AST2600)

  • Regulatory Compliance

    BSMI, CE, RCM, FCC(Class A)

  • Dimensions

    800mm x 440mm x 88.9mm (2U)
    31.50" x 17.22" x 3.5"

  • Weight

    Net Weight: 34 Kg.
    Gross Weight: 44 Kg.

  • Power Supply

    1+1 Redundant 1600W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz

    1+1 Redundant 2200W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz

  • Environment

    Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)

  • Note

    *Users need to remove Slimline cables from the PCIe riser board, and re-connect the cables to the backplane for total 4 x NVMe devices.

    ** There is a MicroSD slot on motherboard allowing you to install a MicroSD card to log BMC events.

    ***We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail.
