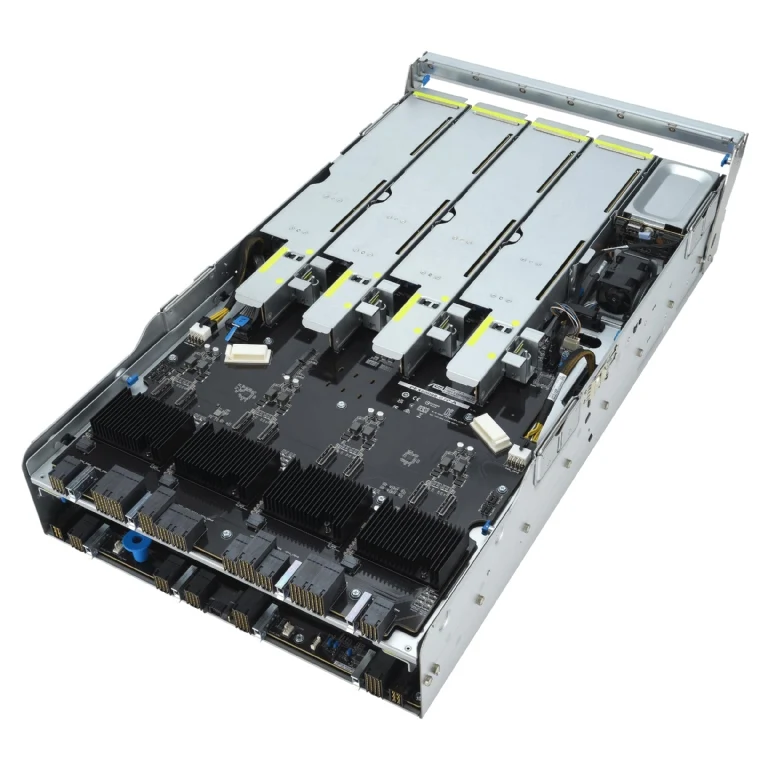

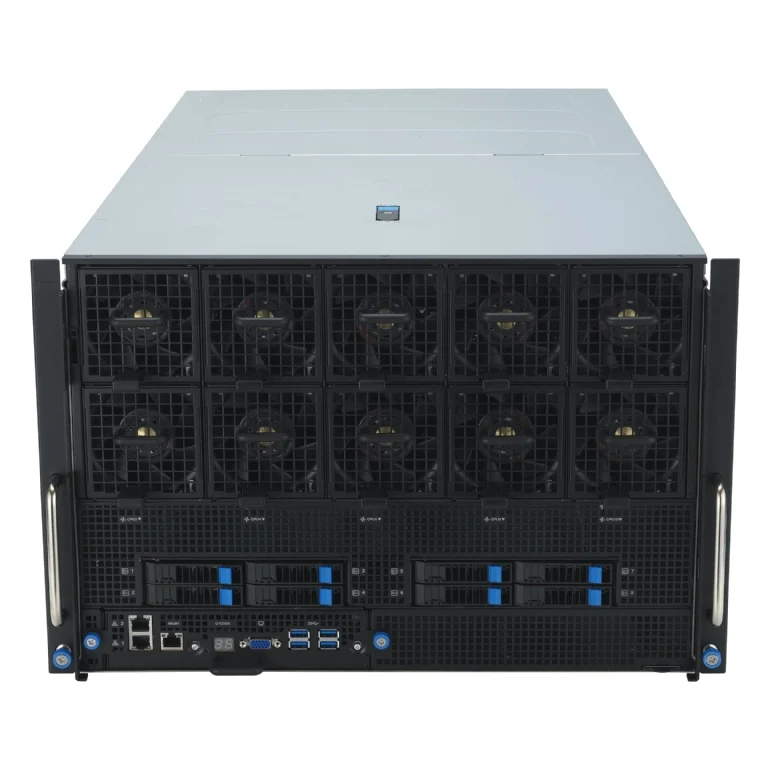

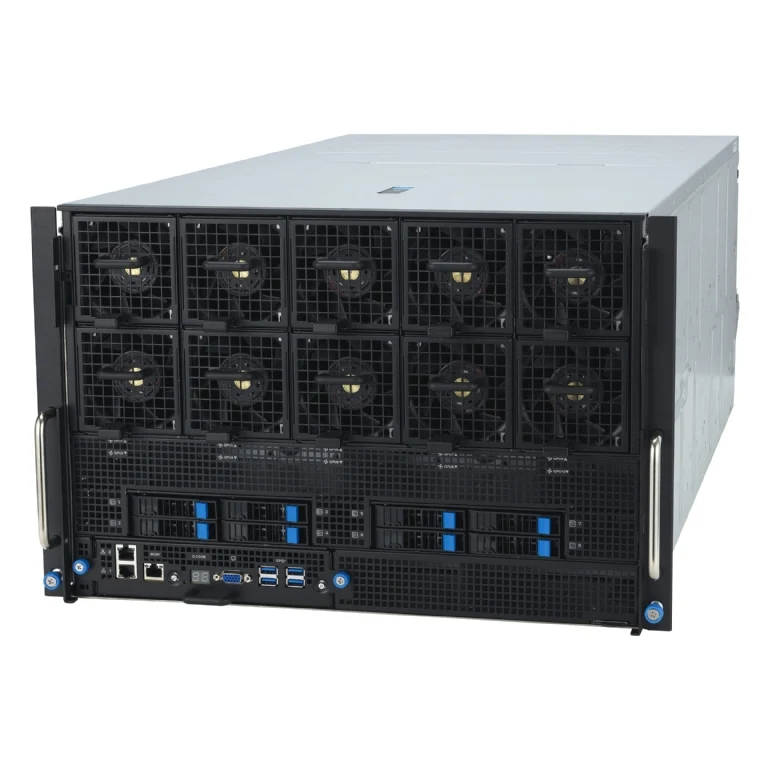

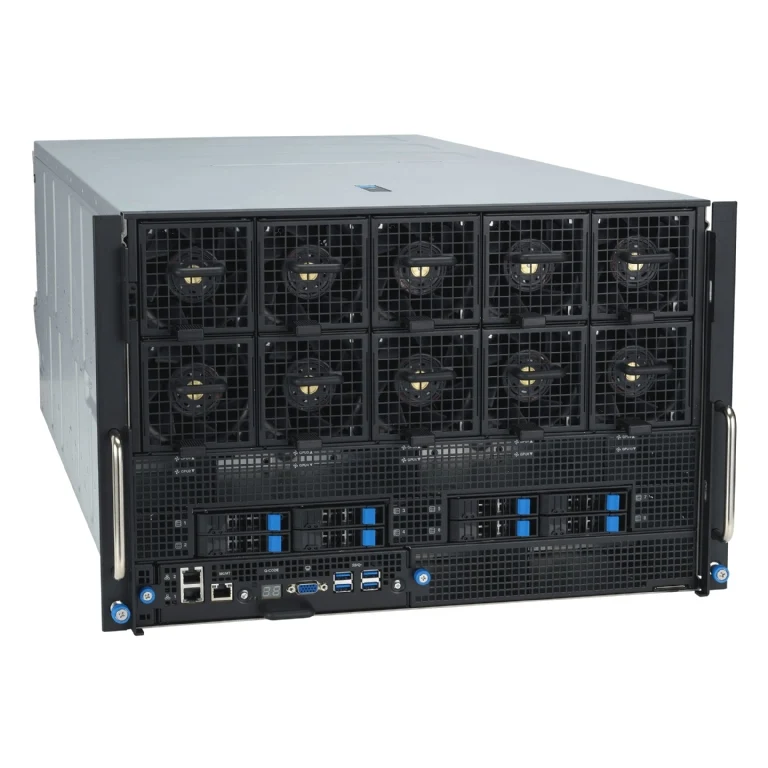

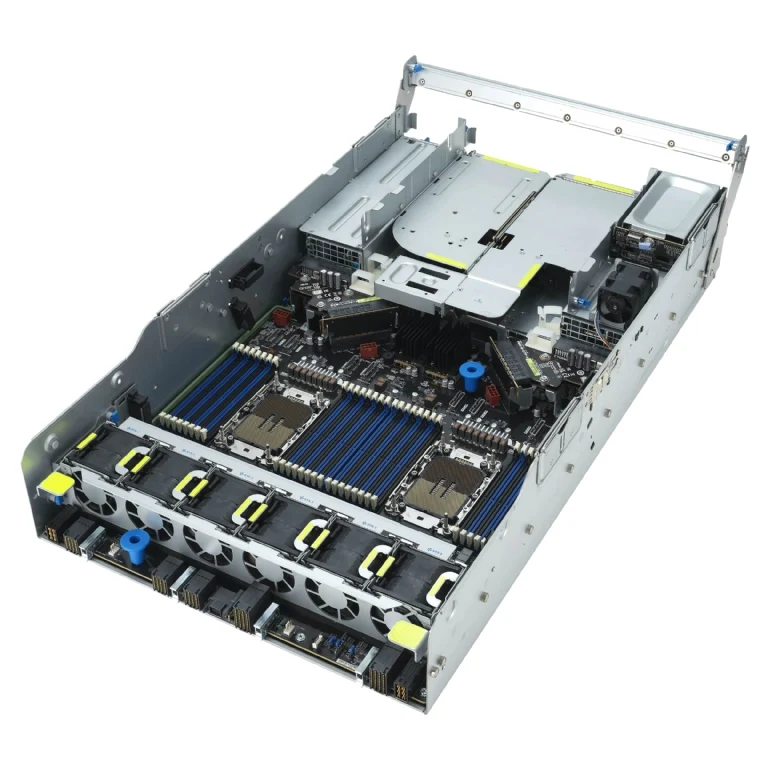

ASUS ESC N8-E11 7U Rackmount Dual Intel Xeon 5th Gen GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    2 x Socket

    4th Intel® Xeon® Processor Scalable Family (Up to 350W)
    5th Intel® Xeon® Processor Scalable Family (Up to 350W)

  • Memory

    Total Slots:
    32 (8 channel per CPU, 16 DIMM per CPU)
    Capacity:
    Maximum up to 4TB per CPU socket
    Memory Type:
    4th: DDR5 5600 RDIMM/ 3DS RDIMM (2DPC)
    5th: DDR5 5600 RDIMM/ 3DS RDIMM (2DPC)
    Memory Size:
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS

    * Refer to support page for more information

  • Expansion Slots

    ESC N8-E11 H100 SKU:
    12 x PCIe Gen5 slots

    [PCIe Switch directly]
    - 8 x PCIe Gen5 x16 link (LP, HL)
    [CPU directly]
    - 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)*
    - 1 x PCIe Gen5 x8 link (FH, HL) + 1 x PCIe Gen5 x8 link (FH, HL)

    *Support PCIe x16 link for DPU

    ESC N8-E11V H200 SKU:
    10+1 x PCIe Gen5 slots

    [PCIe Switch directly]
    - 8 x PCIe Gen5 x16 link (LP, HL)
    [CPU directly]
    - 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)*
    - 1 x PCIe Gen4 x8 link from CPU2 DMI (FH, HL)**

    *Support PCIe x16 link for DPU
    **For Raid card to connect storage

    [BF3 operation temperture 30℃ when using transceiver]

  • Storage

    Optional Kits:
    -Broadcom MegaRAID 9560-16i
    -Broadcom MegaRAID 9540-8i

  • Networking

    2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
    1 x Management Por

  • Multi-GPU Support

    Please find the latest GPU support from https://funkelart.com/support/gpu

  • Front I/O Ports

    4 x USB3.2 Gen1 ports
    1 x VGA port
    2 x 10Gb RJ45 LAN module (Intel-x710 Based)
    1 x Mgmt LAN
    1 x locate button
    1 x power button

  • Rear I/O Ports

    1 x locate button
    1 x power button

  • Switch/LED

    Front :
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    1 x Q-Code/Port 80 LED
    Rear :
    1 x Location LED
    1 x Power Button/LED

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)

  • Regulatory Compliance

    BSMI, CB, CE, FCC, KCC

  • Dimensions

    885mm x 447mm x 306.65mm
    *Please note that the addition of the handle will extend the overall chassis length by approximately 5 ~ 8 cm.

  • Form Factor

    7U

  • Weight

    Net Weight: 99kg (excluding CPU, DRAM, and HDD)
    Gross Weight: 154kg (including packaging, excluding CPU, DRAM, and HDD)

  • Power Supply

    4+2 Redundant 3000W 80 PLUS Titanium Power Supply

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
