Anbieter: The Server Group Ltd

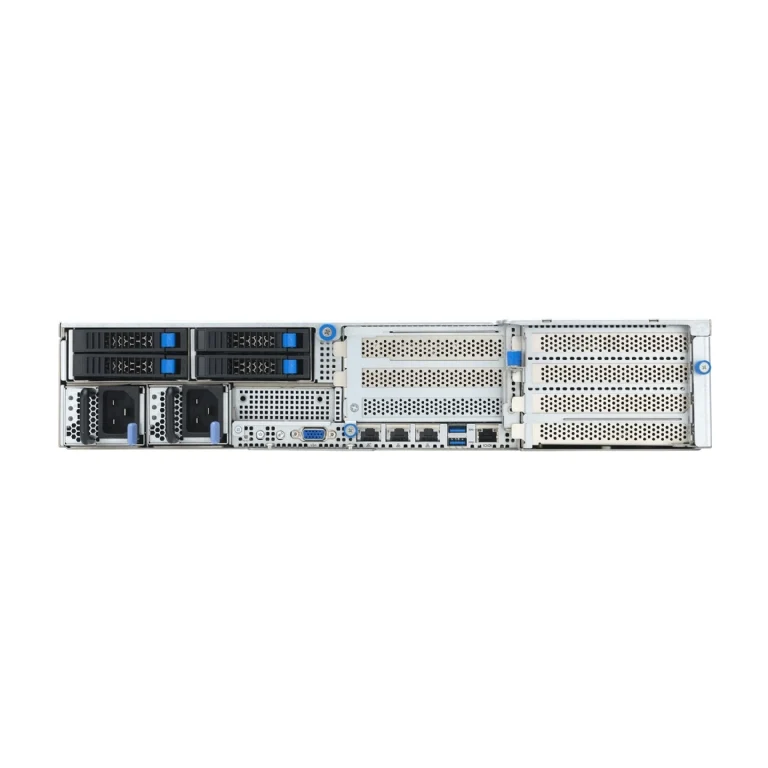

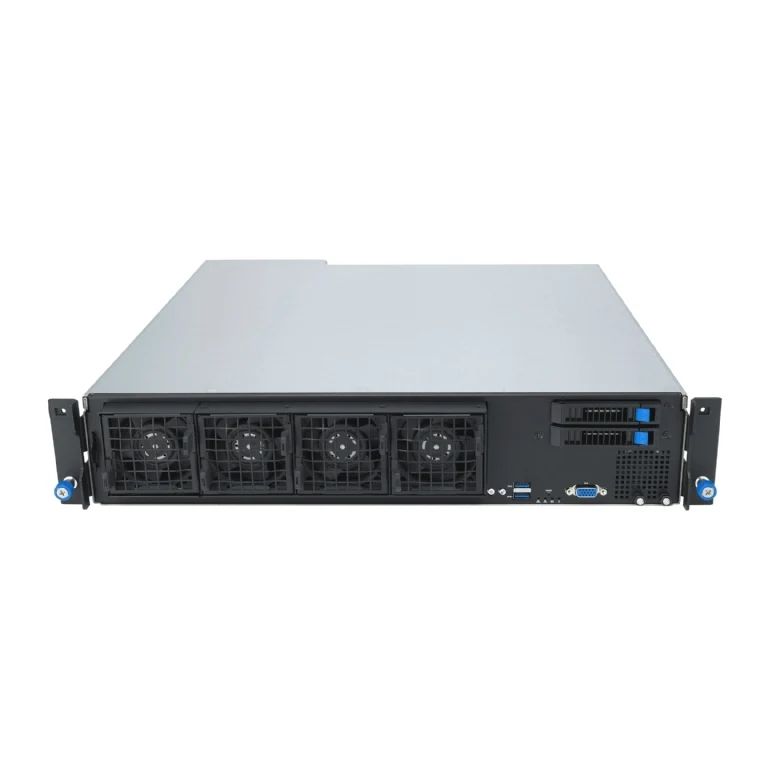

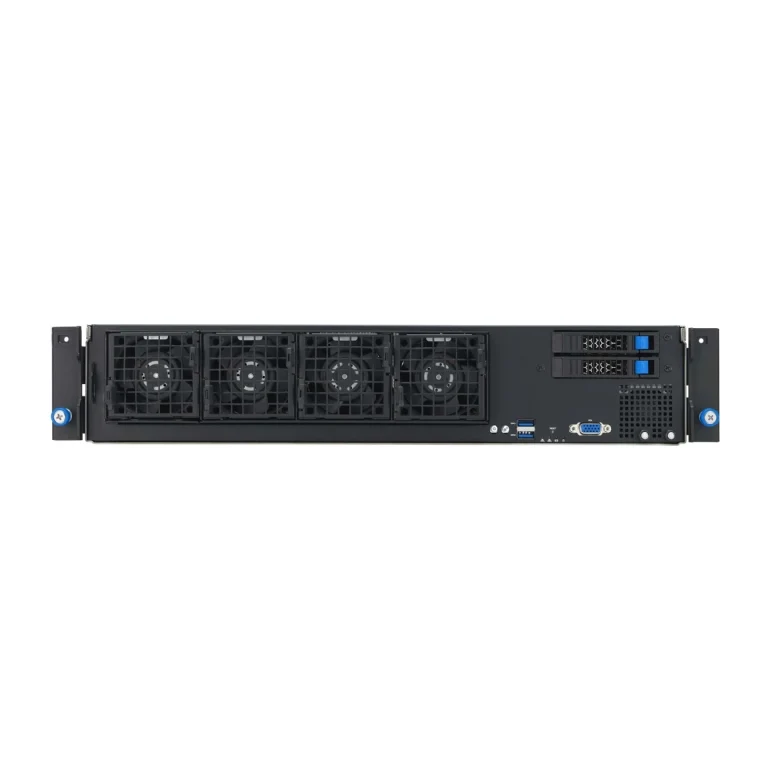

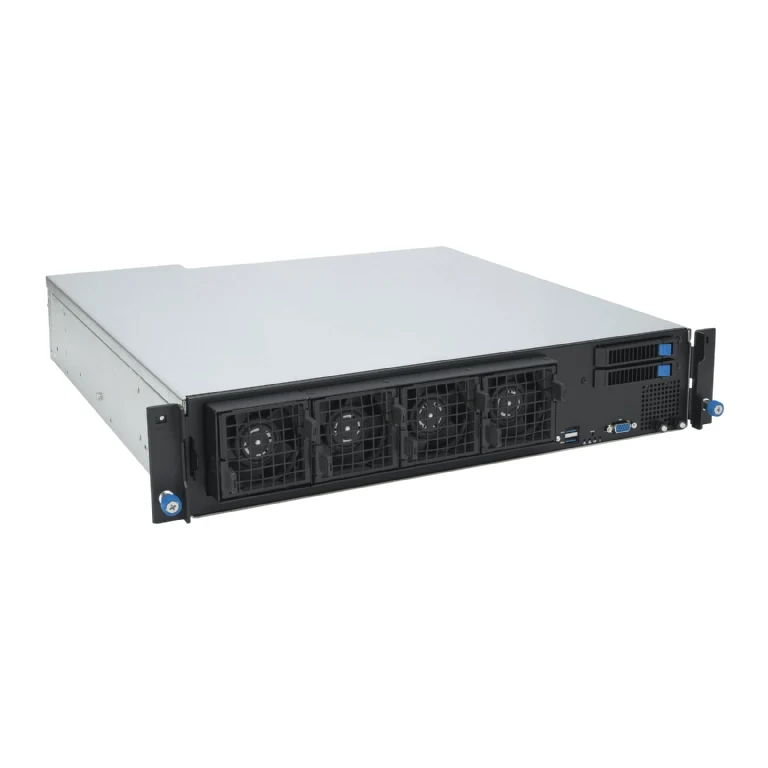

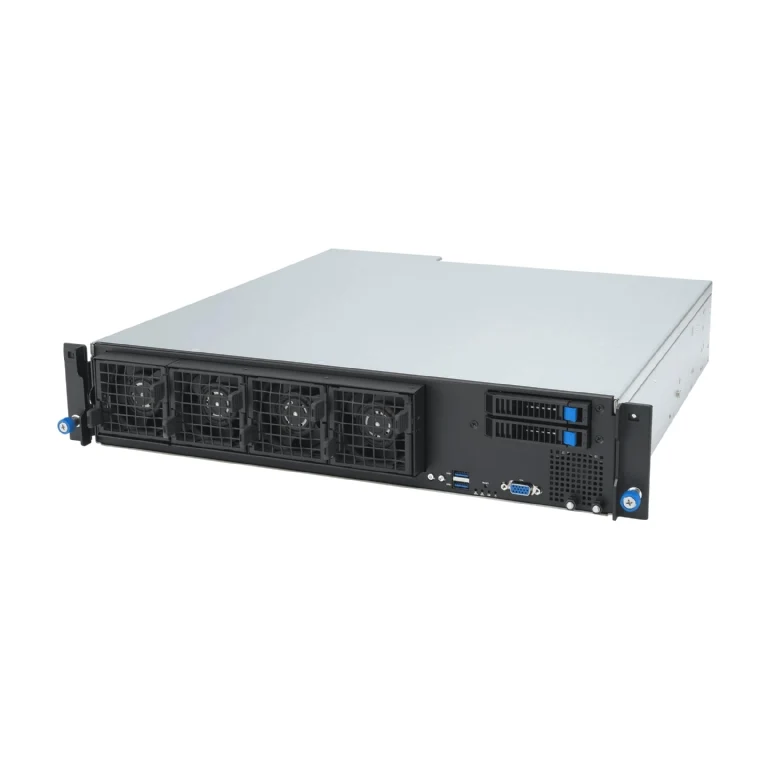

ASUS EG520-E11-RS6-R 2U Rackmount Single Xeon 5th Gen Edge Server - Short Depth - Rear IO - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    1x Socket E (LGA 4677)
    Intel®Xeon® Processor Scalable Family(Air cool with STD HSK Up to 350W)

    *Refer to support page for more information

  • Core Logic

    Intel® C741 Chipset

  • Memory

    8 x DIMM slots
    (8-channel,1 DIMM per channel)
    4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
    5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC)
    Maximum 2048GB

    * Refer to support page for more information

  • Expansion Slots

    Up to 5 slots
    PCIe Slot1~3: 2 x PCIe Gen5 x16 link (FHFL) or 3 x PCIe Gen5 x16/x8/x8 link (FHFL)
    PCIe Slot4~5: 1 x PCIe Gen5 x16 link (FHHL) or 2 x PCIe G5 x8 link (FHHL)

  • Storage

    2x 2.5'' Front Hot-swap drive bays(NVME/SATA)+
    4x 2.5'' Rear Hot-swap drive bays(SATA)
    2x M.2 (22110/2280, Gen4 x4 Link)

  • Networking

    2 x 10GbE LAN port
    1x Management port

  • Graphic

    Up to 2 double-slot GPU cards (PCIe Slot1~3)
    *0–35°C for GPU-equipped SKUs

    Please find the latest GPU support from https://funkelart.com/support/gpu

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Rear I/O Ports

    1 x VGA port
    2 x USB 3.2 Gen1 ports
    2 x RJ-45 10G LAN port
    1 x RJ-45 Mgmt LAN port
    1 x RJ-45 Console port

  • Switch/LED

    Front Switch/LED:
    1 x Power Switch w/ LED
    1 x Location Switch w/ LED
    1 x Message LED
    1 x reset button

    Rear Switch/LED:
    1 x Power Switch (w/ LED)
    1 x Location Switch (w/ LED)
    1 x Message LED
    2 x LAN LED
    1 x HDD LED
    1 x reset button

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    On-Board ASMB11-iKVM for KVM-over-IP

  • Dimensions

    430mm x 438.5mm x 87mm(2U)
    16.93" x 17.26" x 3.43"

  • Form Factor

    2U

  • Weight

    Net Weight Kg (CPU, DRAM & HDD not included):
    20.5kg (approximate)
    Gross Weight Kg (CPU, DRAM & HDD not included, Packing include):
    22 kg (approximate)

  • Power Supply

    1+1 Redundant
    1300W 50.5MM SLIM Platinum Power Supply
    2000W 54.5MM SLIM Titanium* Power Supply (TBD)
    *Titanium Power Supply is planning

  • Note

    Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.

  • Environment

    Operation temperature: 0℃ ~ 55℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
    Note:Operating Temperature based on configurations
