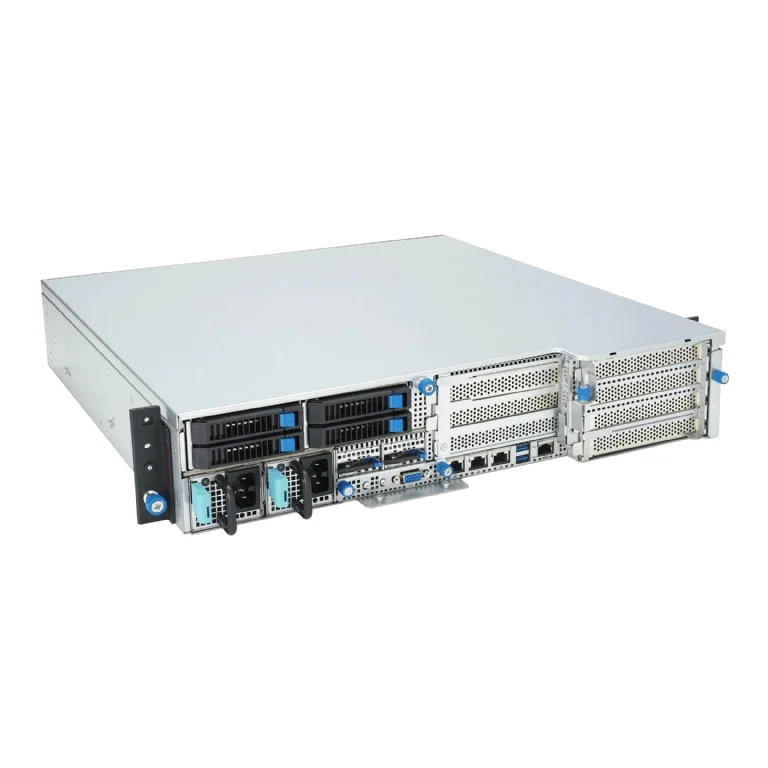

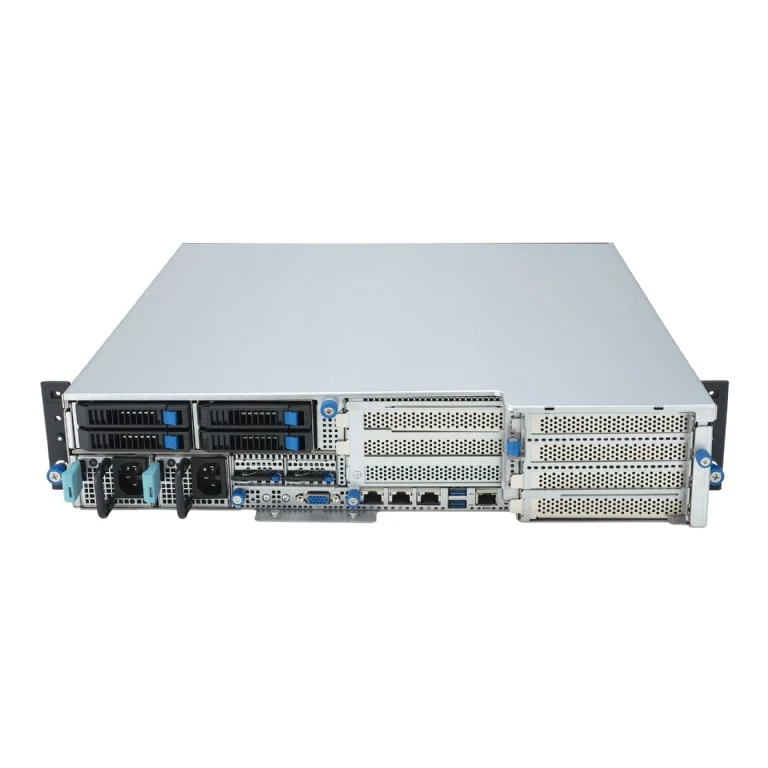

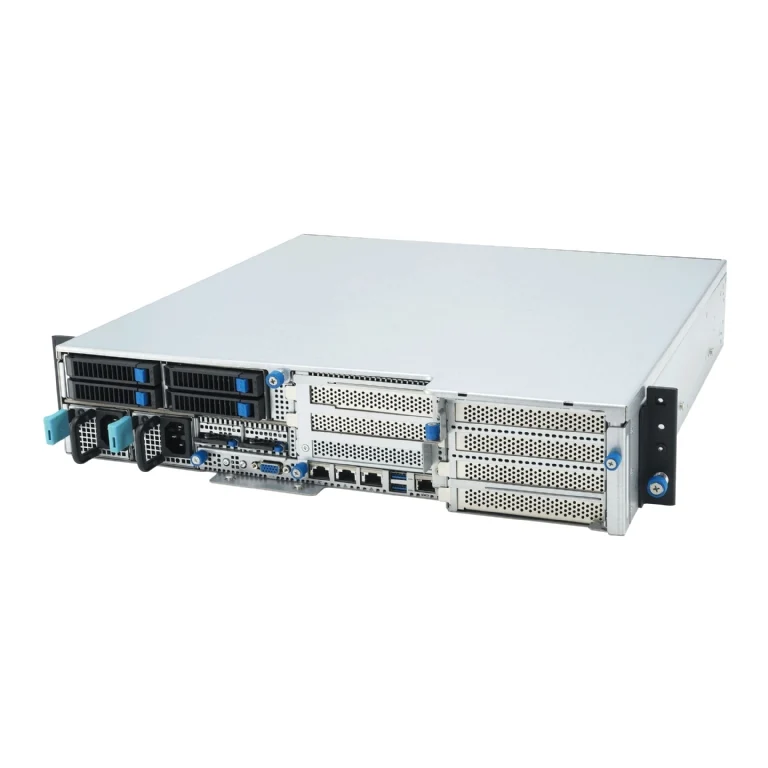

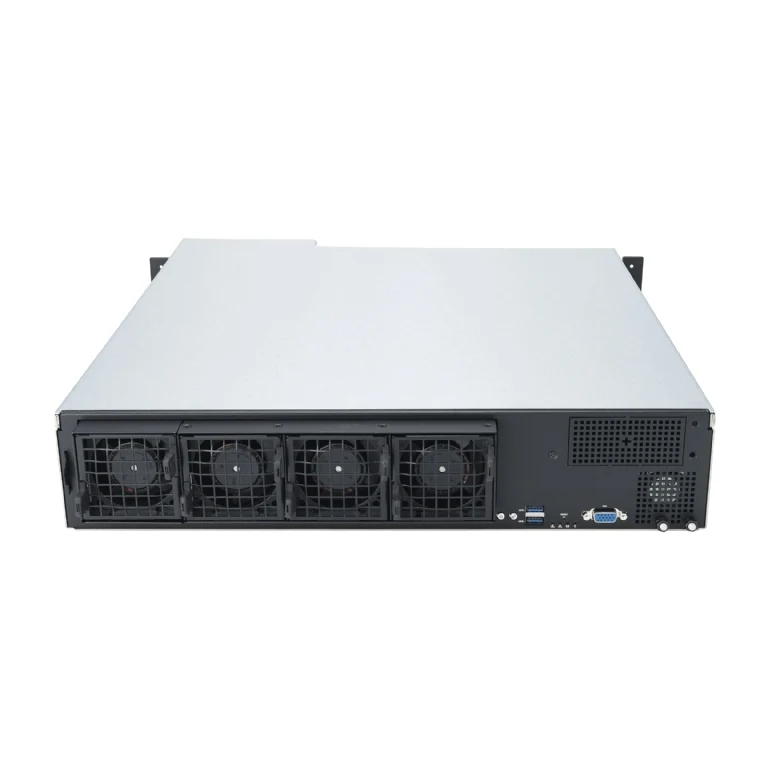

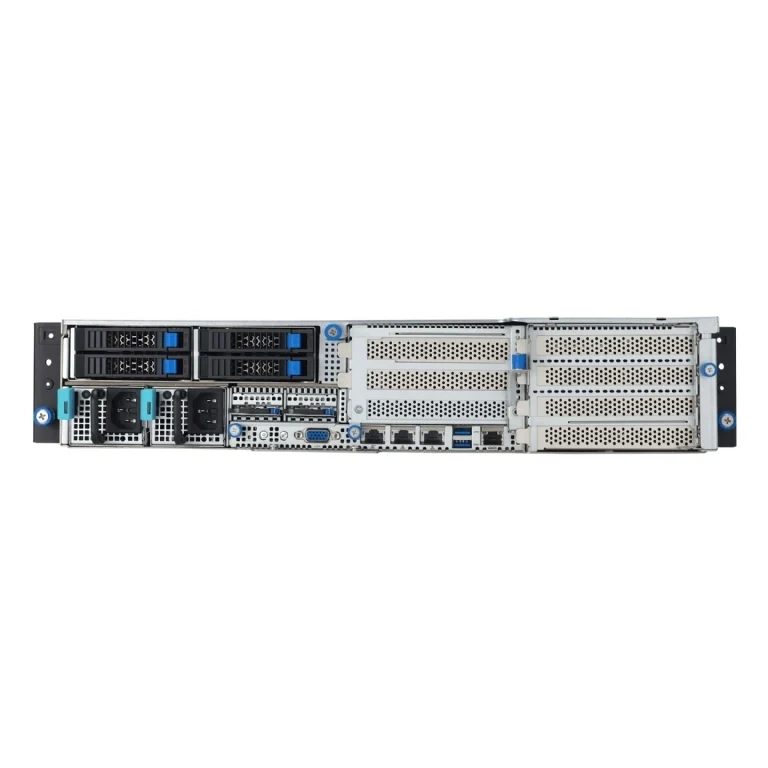

ASUS EG520-E11-RS6-F 2U Rackmount Single Xeon 5th Gen Edge Server - Short Depth - Front IO - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    1x Socket E (LGA 4677)
    Intel®Xeon® Processor Scalable Family
    (Air cool with STD HSK Up to 205W or 250W EE SKUs)
    *Refer to support page for more information

  • Core Logic

    Intel® C741 Chipset

  • Memory

    8 x DIMM slots
    (8-channel,1 DIMM per channel)
    4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
    5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC)
    Maximum 2048GB

    * Refer to support page for more information

  • Expansion Slots

    Up to 5 slots
    1 x PCIe G5 x16 link (FHHL) or 2 x PCIe G5 x8 link (FHHL)+
    2 x PCIe G5 x16 link (FHFL) or 3 x PCIe G5 x16/x8/x8 link (FHFL)

  • Storage

    4x 2.5'' Front Hot-swap drive bays(NVME/SATA)+
    2x E1.S (optional for E1.S SKU)
    2x M.2 (22110/2280, Gen5 x4 Link)
    *E1.S only supported for E1.S SKU,cannot be purchased separately

  • Networking

    2 x 10GbE LAN port
    1x Management port

  • Graphic

    Up to 2 double-slot GPU cards
    *0–35°C for GPU-equipped SKUs

    Please find the latest GPU support from https://funkelart.com/support/gpu

  • Front I/O Ports

    1 x VGA port
    2 x USB 3.2 Gen1 ports
    2 x RJ-45 10G LAN port
    1 x RJ-45 Mgmt LAN port
    1 x RJ-45 Console port

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Switch/LED

    Front Switch/LED:
    1 x Power Switch w/ LED
    1 x Location Switch w/ LED
    1 x Message LED
    1 x reset button

    Rear Switch/LED:
    1 x Power Switch (w/ LED)
    1 x Location Switch (w/ LED)
    1 x Message LED
    2 x LAN LED
    1 x HDD LED
    1 x reset button

  • OS Support

    Please find the latest OS support from https://funkelart.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    On-Board ASMB11-iKVM for KVM-over-IP

  • Dimensions

    399*mm x 438.5mm x 87mm(2U) 15.71" x 17.26" x 3.43"
    *ear to rear wal

  • Form Factor

    2U

  • Weight

    Net Weight Kg (CPU, DRAM & HDD not included):
    20.5kg (approximate)
    Gross Weight Kg (CPU, DRAM & HDD not included, Packing include):
    22 kg (approximate)

  • Power Supply

    1+1 Redundant AC/DC
    1300W 50.5MM SLIM Platinum Power Supply

  • Note

    1.Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
    2.We have a minimum order quantity for this model. Please contact ASUS for more details.

  • Environment

    Operation temperature: 0℃ ~ 55℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
    Note:Operating Temperature based on configurations
