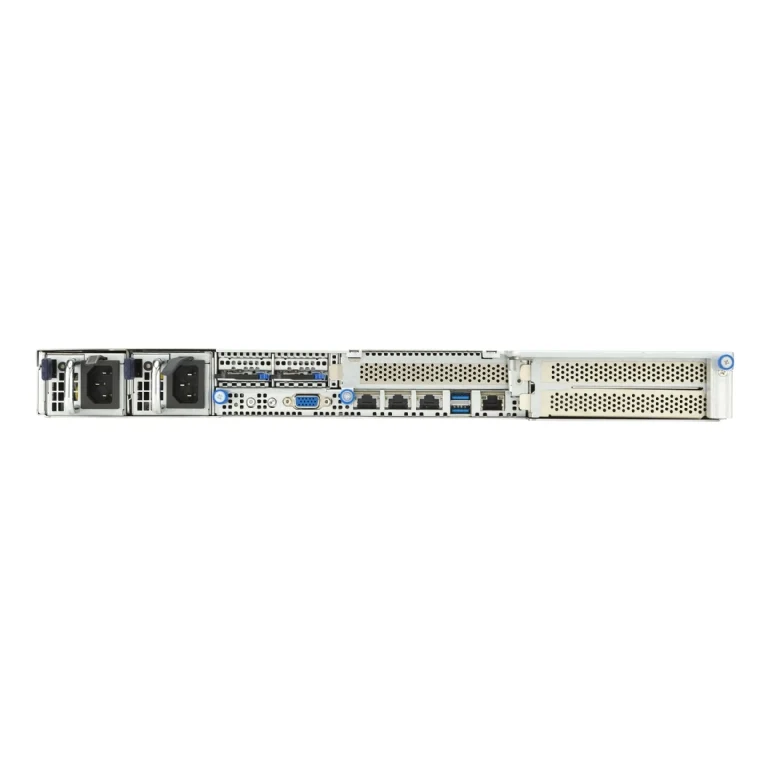

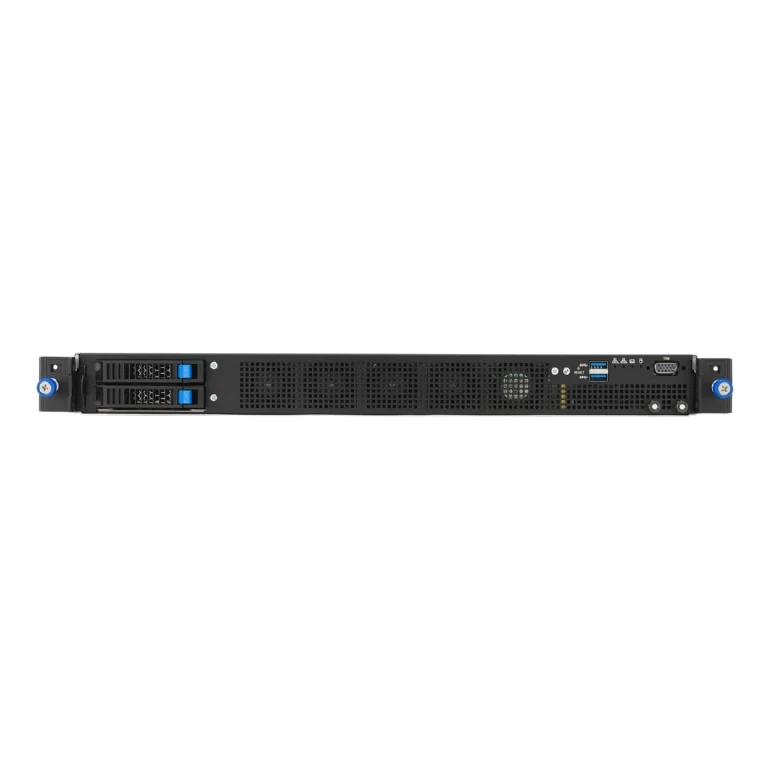

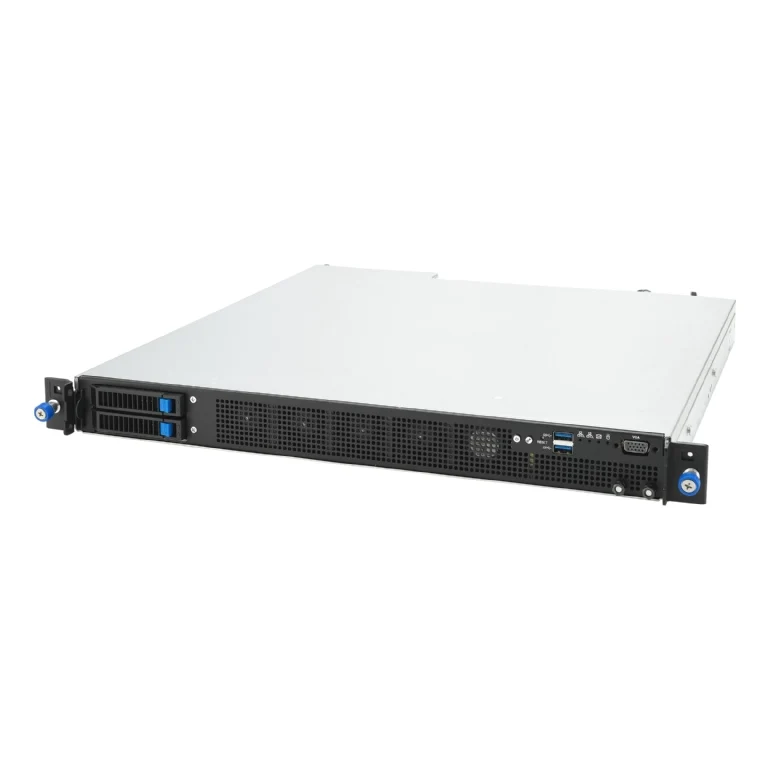

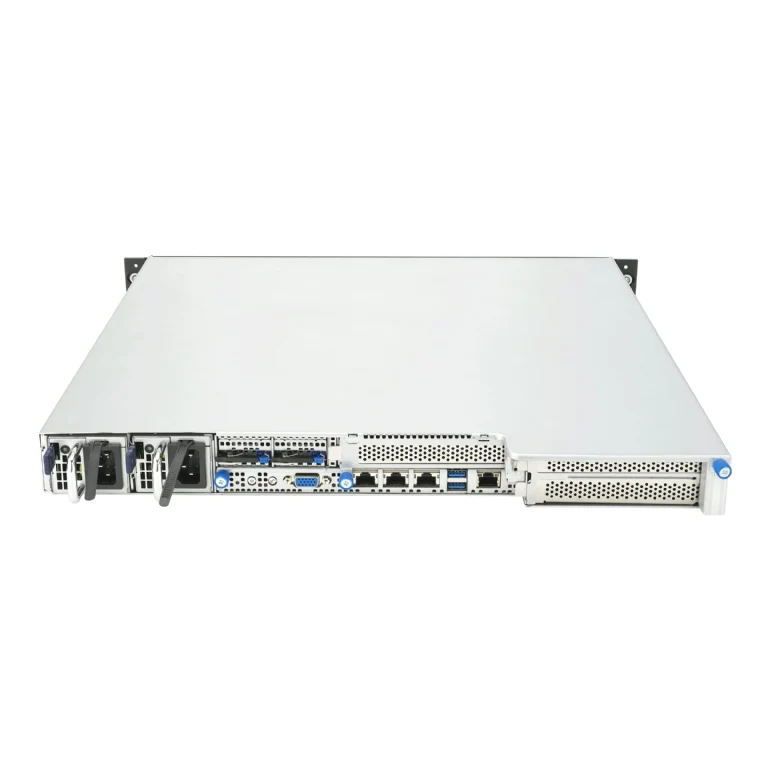

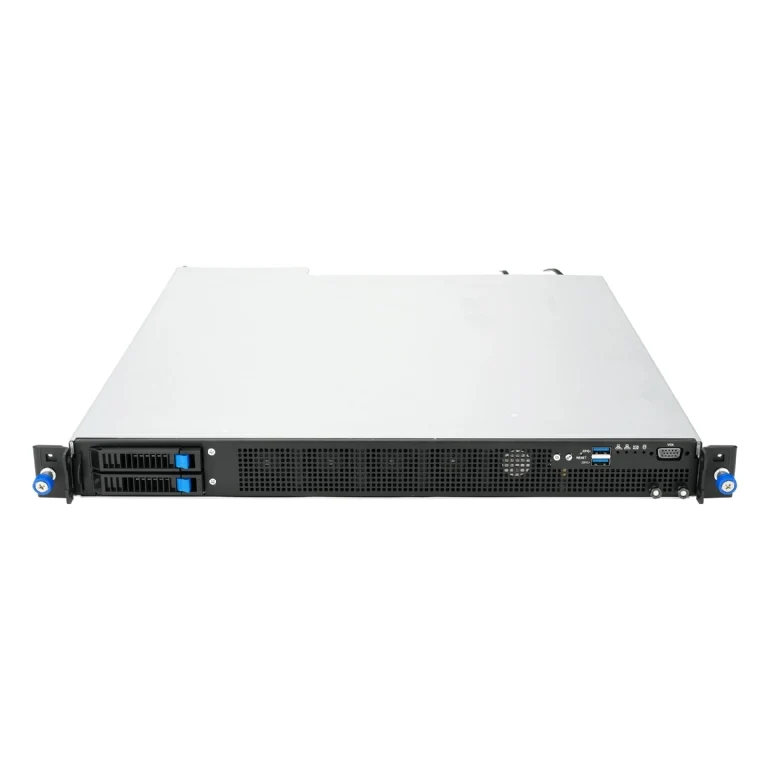

ASUS EG500-E11-RS4-R 1U Rackmount Single Xeon 5th Gen Edge Server - Short Depth - Rear IO - Redundant PSU

0,00 €
Menge

Beschreibung

  • Processor / System Bus

    1x Socket E (LGA 4677)
    Intel®Xeon® Processor Scalable Family (Air cool with EVAC Up to 350W)
    *Refer to support page for more information

  • Core Logic

    Intel® C741 Chipset

  • Memory

    8 x DIMM slots
    (8-channel,1 DIMM per channel)
    4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
    5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC)
    Maximum 2048GB

    * Refer to support page for more information

  • Expansion Slots

    Up to 3 slots
    3 x PCIe G5 x16 link (FHHL)

  • Storage

    2x 2.5'' Front Hot-swap drive bays (SATA/NVME)+ 2x 2.5'' Int. SATA + 2x E1.S Hot-swap drive bays
    2x M.2 (22110/2280,Gen5 x4 Link)
    *E1.S is optional and only supported for E1.S SKU, cannot be purchased separately
    *Internal SATA SSD is optional for 650W PSU/ short PSU and only for internal bay SKU, cannot be purchased separately

  • Networking

    2 x X710 10G LAN Ports+
    1 x Dedicated management port

  • Graphic

    Up to 3 GPU cards
    Please find the latest GPU support from https://funkelart.com/support/GPU

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Rear I/O Ports

    1 x VGA port
    2 x USB 3.2 Gen1 ports
    2 x RJ-45 10G LAN port
    1 x RJ-45 Mgmt LAN port
    1 x RJ-45 Console port

  • Switch/LED

    Front Switch/LED:
    1 x Power Switch w/ LED
    1 x Location Switch w/ LED
    1 x Message LED
    1 x reset button

    Rear Switch/LED:
    1 x Power Switch (w/ LED)
    1 x Location Switch (w/ LED)
    1 x Message LED
    2 x LAN LED
    1 x HDD LED
    1 x reset button

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    On-Board ASMB11-iKVM for KVM-over-IP

  • Dimensions

    430mm x 438.5mm x 43.7mm (D x W x H)
    16.93" x 17.26" x 1.72" (D x W x H)

    399*mm x 438.5mm x 43.7mm (D x W x H) *Ear to rear wall
    15.71" x 17.26" x 1.72" (D x W x H)

  • Form Factor

    1U

  • Weight

    Net Weight Kg (CPU, DRAM & HDD not included):
    15kg (approximate)

    Gross Weight Kg (CPU, DRAM & HDD not included, Packing include):
    17 kg (approximate)

  • Power Supply

    1+1 Redundant AC PSU
    650W 50.5MM SLIM Platinum Power Supply
    1300W 50.5MM SLIM Platinum Power Supply
    *Titanium Power Supply is planning
    *Different PSU may not swap for each other directly, please contact ASUS Technical Support for more detail.

  • Note

    Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
    Note:Operating Temperature based on configurations
