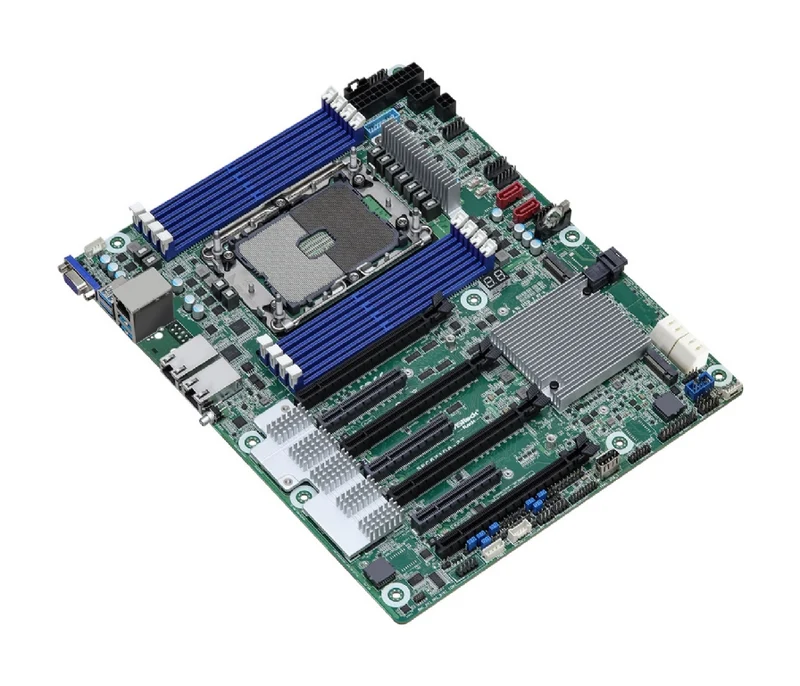

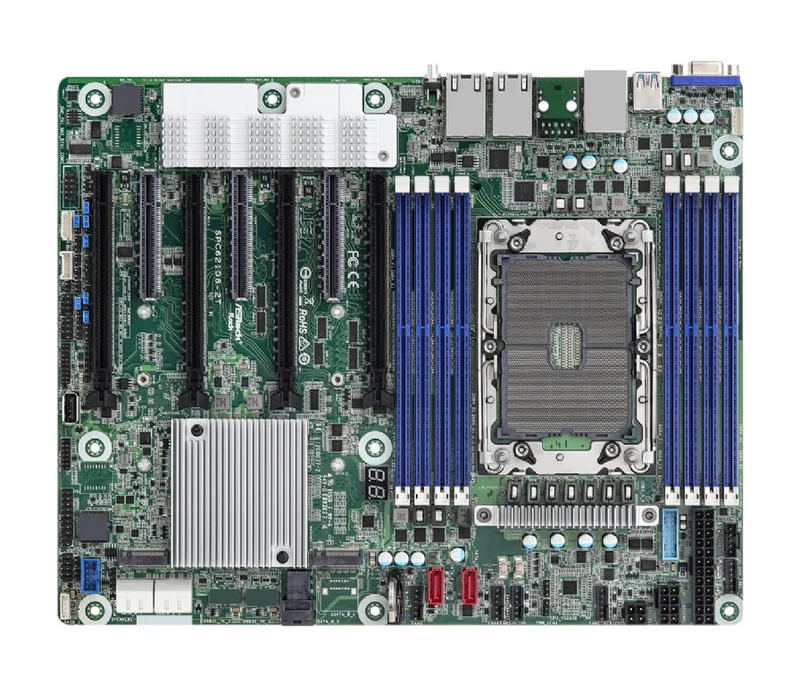

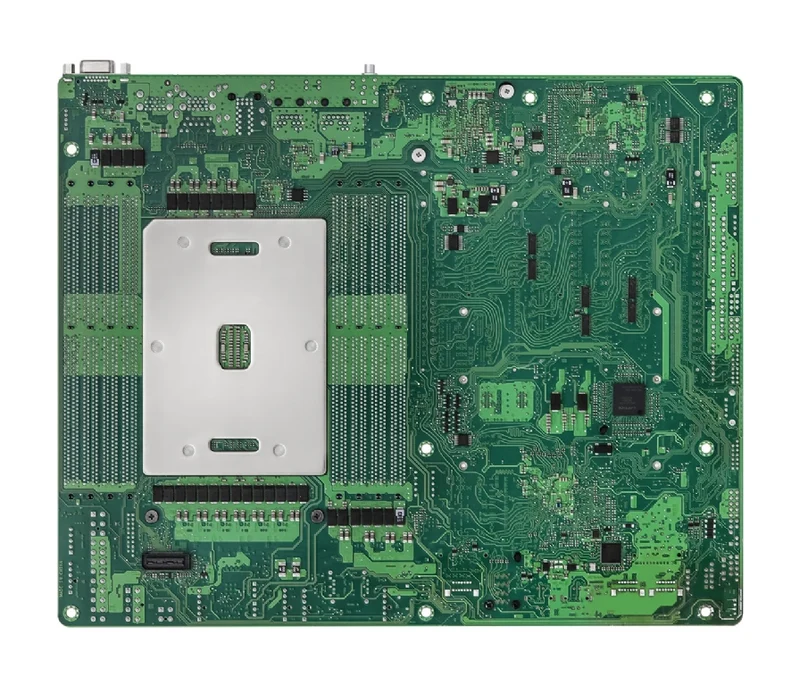

ASRock SPC621D8-2T Xeon Server Motherboard, S P+ LGA 4189, DDR4, SATA3, 10GbE, USB 3.2 Gen1, ATX

0,00 €
Menge

Beschreibung

Physical Status
Form Factor ATX
Dimensions 12" x 9.6"
Processor System
CPU Supports 3rd Gen Intel® Xeon® Scalable processors
Socket Single Socket P+ (LGA 4189)
Chipset Intel® C621A
System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series
Max. Capacity per DIMM RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
Max. DIMM Frequency max. 3200MHz
Voltage 1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT7: PCIe4.0 x16*
SLOT5: PCIe4.0 x16*
SLOT3: PCIe4.0 x16*
SLOT1: PCIe4.0 x16

* SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
PCIe x 8 SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8
Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor
SATA/SAS Storage
PCH Built-in Storage Intel® C621A (12 SATA 6Gb/s; RAID 0/1/5/10):
1 Mini-SAS HD, 4 SATA 7-pin, 2 SATA DOM, 2 M.2
Ethernet
Additional GbE Controller Intel® X710-AT2: 2 RJ45 (10 GbE)
Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller ASPEED AST2500
VRAM DDR4 16MB

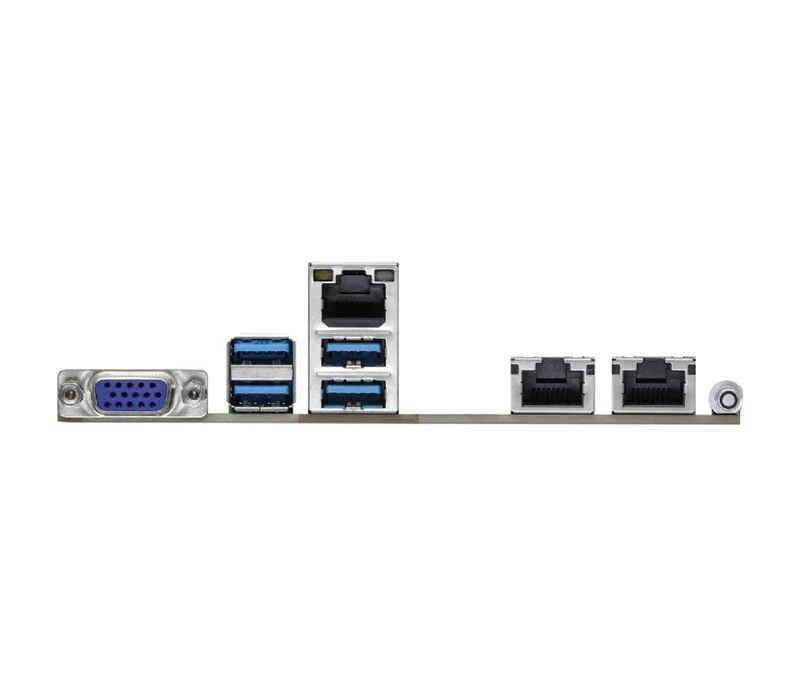

Rear I/O
UID Button/LED 1
VGA Port 1 DB15
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
Dedicate LAN 1 dedicated IPMI
Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
VGA header 1
Speaker Header 1
Buzzer 1
Fan Header 5 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (17-pin, LPC), 1 (13-pin, SPI)
VROC header 1
SGPIO Header 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
ME/SPS Recovery 1
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header 1 (9-pin, 2 USB2.0)
Type A USB 2.0 Port 1 (Type-A, 1 USB2.0)
NMI Header 1
NC-SI 1
LED Indicators
Standby PWR LED 5vsb 1
80 Debug Port LED 1
Fan Fail LED 5
System BIOS
BIOS Type 256Mb SPI Flash ROM
BIOS Features AMI UEFI BIOS
Hardware Monitor
Temperature CPU, PCH, MB, Card side Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSB
Supported OS
OS Microsoft® Windows® :
Server 2016 (64 bit)
Server 2019 (64 bit)

Linux :
Red Hat Enterprise Linux Server 7.9 (64 bit) / 8.3 (64 bit)
CentOs 7.9 (64 bit) / 8.3 (64 bit)
SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP2 (64 bit)
Ubuntu 20.04.1 (64 bit) / 20.10 (64 bit)

Hypervisor :
VMWare® ESXi 6.7 U3 / vSphere 6.7 U3
VMWare® ESXi 7.0.U1c / vSphere 7.0.U1c
Hyper-V Windows® Server 2016
Hyper-V Windows® Server 2019
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
