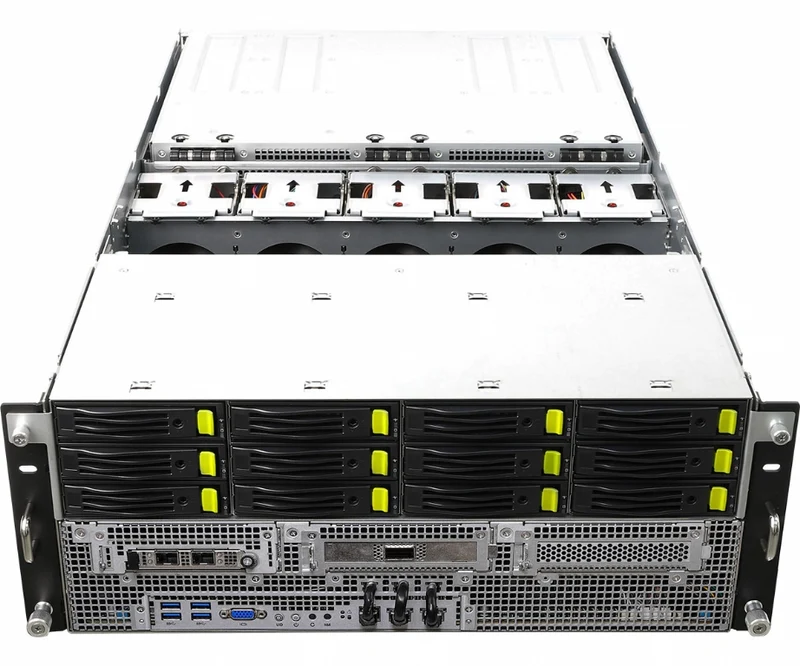

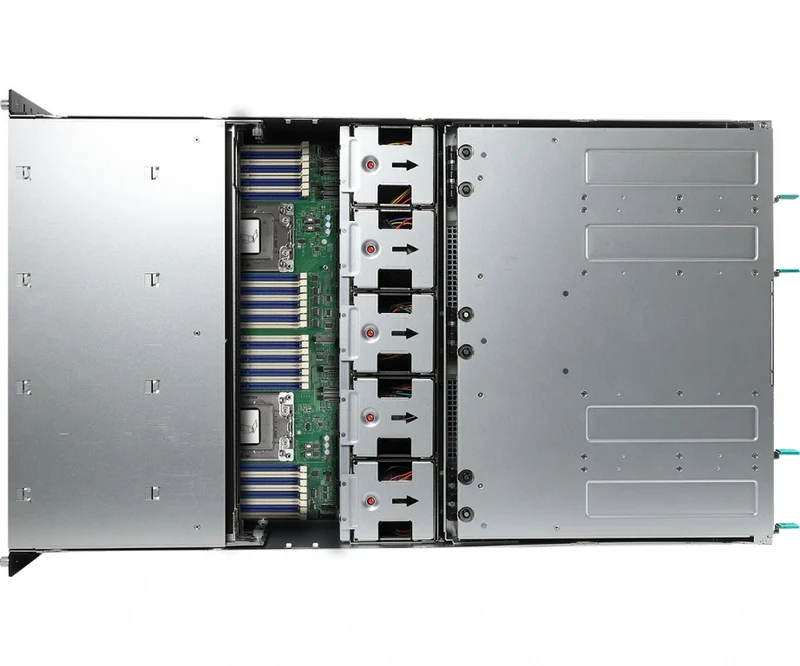

ASRock Rack 4U10G-ROME2/2T Rackmount Server Barebone - Supports Dual AMD ROME 3rd Gen CPU - 10x GPU Support - 12x Hot-Swap - 3+1 PSU

0,00 €
Menge

Beschreibung

System
Form Factor 4U Rackmount
Dimensions 845 x 438 x 176.5mm (33.3" x 17.2" x 6.9")
Support MB ROME2D32GM-2T

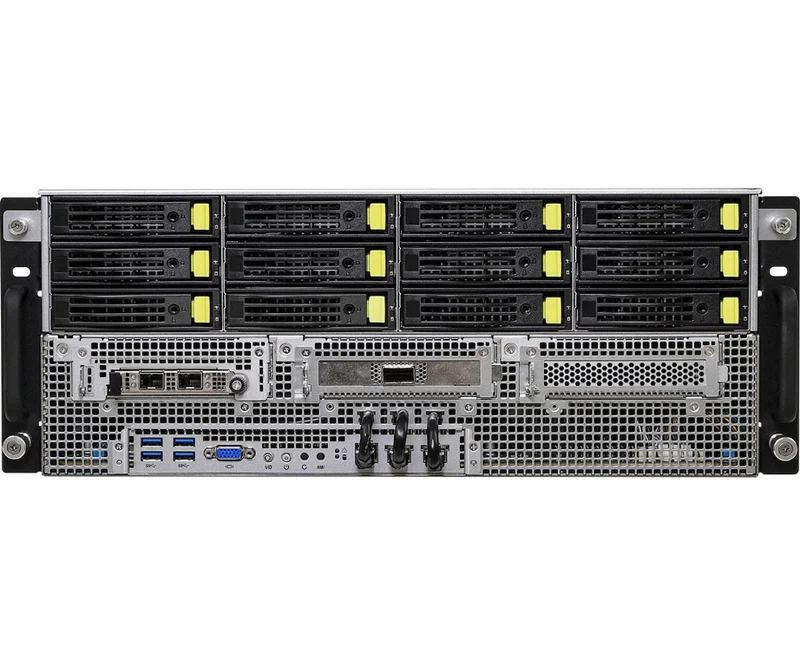

Front Panel
Buttons Power button w/ LED
Reset button
NMI button
UID button w/ LED
LEDs System fault LED
HDD activity LED
I/O Ports 1 DB15 (VGA)
4 USB Type-A (USB3.2 Gen1)
2 RJ45 (10GbE) by Intel® X550-AT2, shares with Rear Panel I/O
IPMI LAN 1 dedicated IPMI LAN, shares with Rear Panel I/O
External Drive Bay / Storage
Front Side Drive Bay 12 Hot-swap 3.5" drive bays,
supports 12 NVMe (PCIe4.0 x4) / SATA drives
supports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card
Front Side Backplane three 4-port NVMe/SAS/SATA passive backplanes
Internal Side 1 M-key (PCIe4.0 x4) supports 22110/2280 form factor
Power Supply
Type 3+1 CRPS
Output Watts 1600W
Efficiency 80-PLUS Platinum
AC Input Lowline: 100-127V, Highline: 200-240V
System Fan
Fan 5 Middle Hot-swap 80x80mm fans, 5 Rear Hot-swap 80x38mm fans
Fail LED Abnormal(DC on): LED ON (Solid Red)
Normal: LED OFF
GPGPU card
GPGPU Watts max. 350W per card
Support GPGPU NVIDIA® A100 PCIe
Processor System
CPU Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
Socket 1+1 SP3 (LGA4094)
Thermal Design Power 280W
Chipset System on Chip
System Memory
Supported DIMM Quantity 16+16 DIMM slots (2DPC)
Supported Type DDR4 288-pin RDIMM, LRDIMM
Max. Capacity per DIMM RDIMM: up to 64GB, LRDIMM: up to 256GB
Max. DIMM Frequency RDIMM/ LRDIMM: up to 3200 MHz
Voltage 1.2V

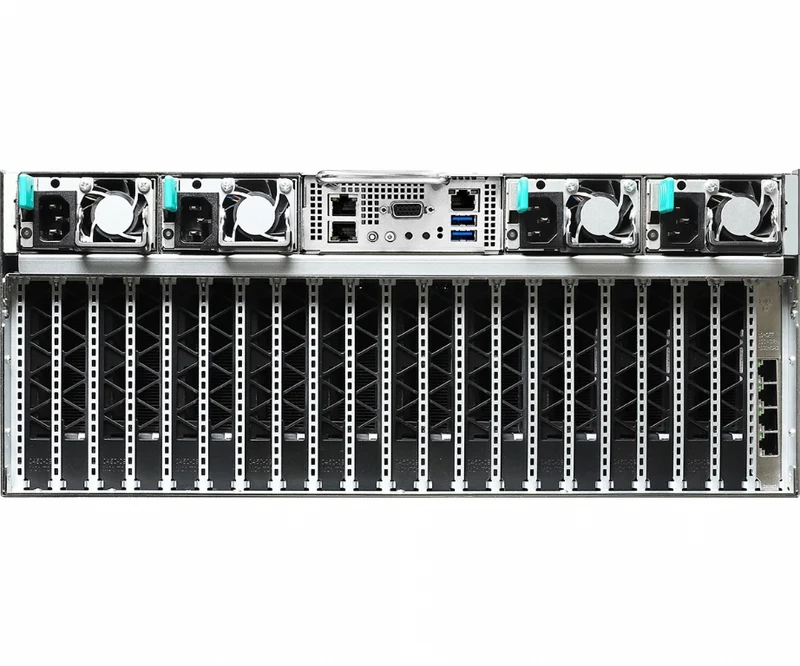

PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear:
10 FHFL dual-slot PCIe4.0 x16 on 4U10G_SWB96 or 20 FHFL single-slot PCIe4.0 x8 on 4U10G_SWB96 (attached to PEX88096)
1 FHFL single-slot PCIe4.0 x16 on 4U10G_SWB96 (direct link to CPU)
Front:
1 FHHL PCIe4.0 x16 via 4UXG_SL2P
1 OCP3.0 PCIe4.0 x16 via 4UXG_SL2OCP3

*Please contact ASRock Rack for other required configuration
PCIe x 8 Front:
1 FHHL PCIe4.0 x8 via 4UXG_SL2P
Additional PCIe switch 2 PEX88096
TPM
TPM support 1 (17-pin, LPC)
Server Management
BMC Controller ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 Realtek RTL8211E for dedicated management GLAN
Graphics
Controller ASPEED AST2500
VRAM DDR4 4GB

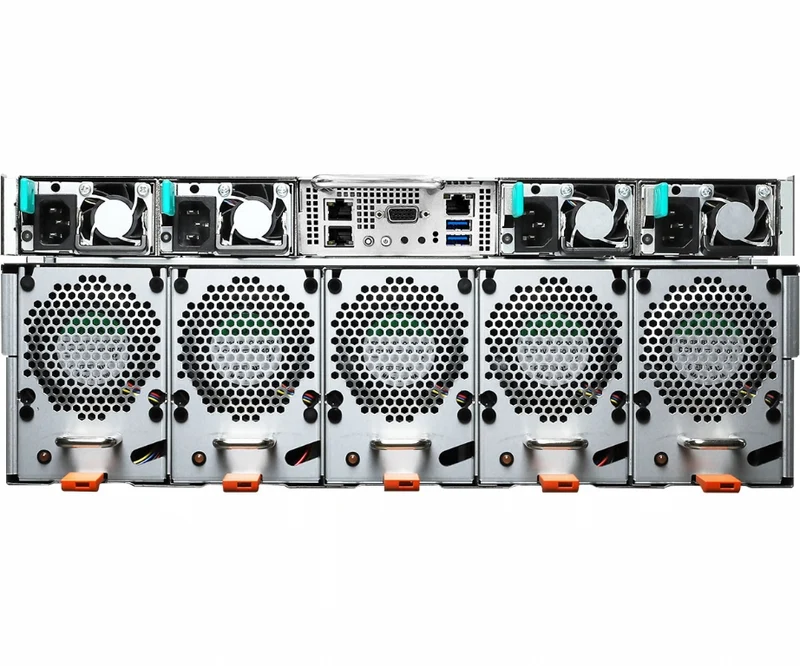

Rear I/O
UID Button/LED UID button w/ LED
Other Button/LED Power button w/ LED
Reset button
NMI button
System fault LED
HDD activity LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE) by Intel® X550-AT2, shares with front panel
1 dedicated IPMI LAN, shares with front panel
System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature CPU Temperature Sensing
System Temperature Sensing
Card Side Temperature Sensing
Fan Middle/ Rear Fan Tachometer
Middle/ Rear Fan Multi-Speed Control
Voltage Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity - Non operation humidity: 20% ~ 90% ( Non condensing)
