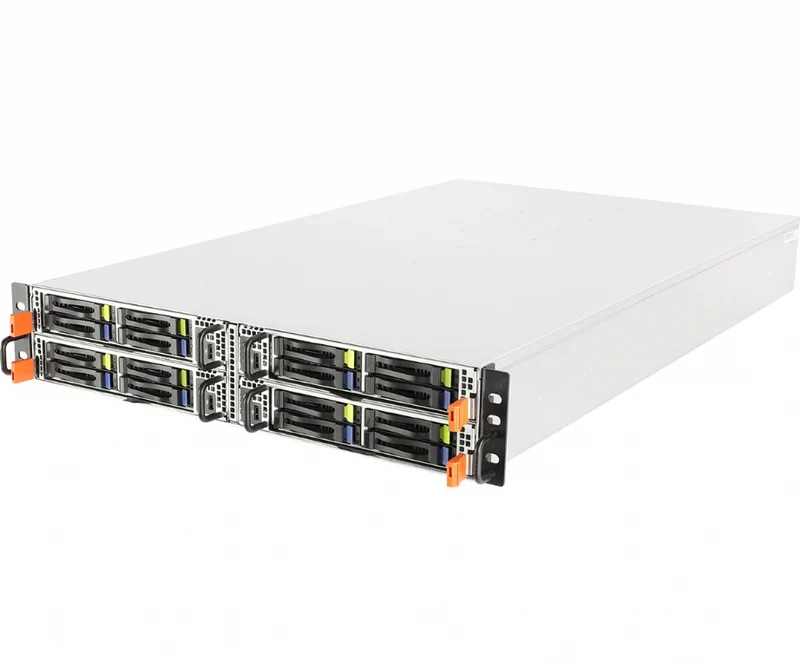

ASRock Rack 2U4N-F/ROME-M3 Rackmount Server Barebone - Quad Node Each Supporting Single AMD ROME 3rd Gen CPU - Dual PSU

0,00 €
Menge

Beschreibung

System
Form Factor - 2U Rackmount
Chassis Model - 2U4N-F
Dimensions - 820 x 442.2 x 86.6mm (32.3'' x 17.4'' x 3.4'')
Support MB - 17”X6.5”(431.8mm X 165.1mm)
Front Panel
Buttons - Power On/Standby button(per node) in the front
- System reset button(per node) in the front
- UID button(per node) in the rear
LEDs - HDD Act/Err/Locate LED
- Power LED (Front Panel per Node)
- UID LED (Front Panel per Node)
I/O Ports - 1 x USB 2.0 ports(per node)

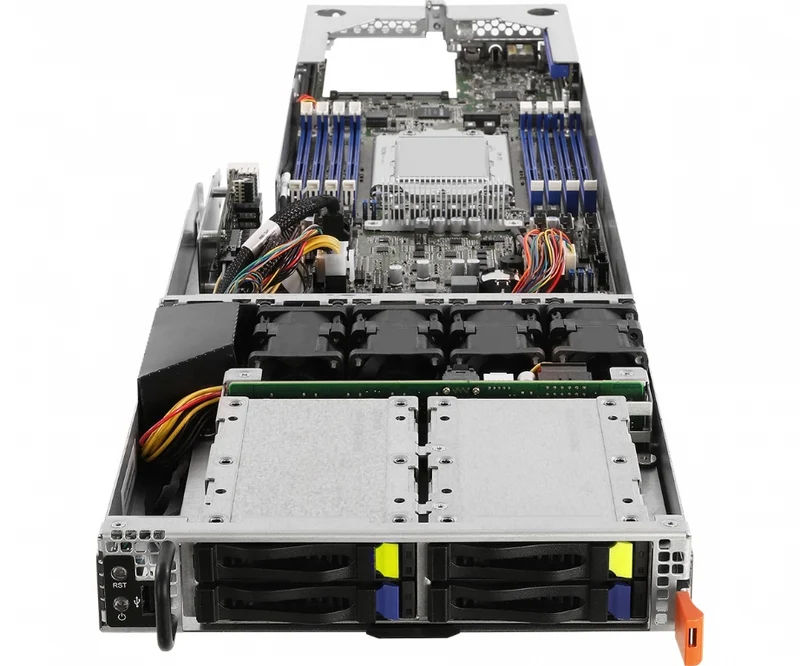

External Drive Bay / Storage
Front Side Drive Bay - 4x 2.5" HDD/SSD per node (all SATA or 2 x NVMe + 2 x SATA)
Internal Side - 2 M.2 ( (SATA/PCIe x4) 2280/22110)
Power Supply
Type - 2 (1+1) RPSU
Output Watts - 1600W
Efficiency - Platinum
System Fan
Fan - 40x56mm x16

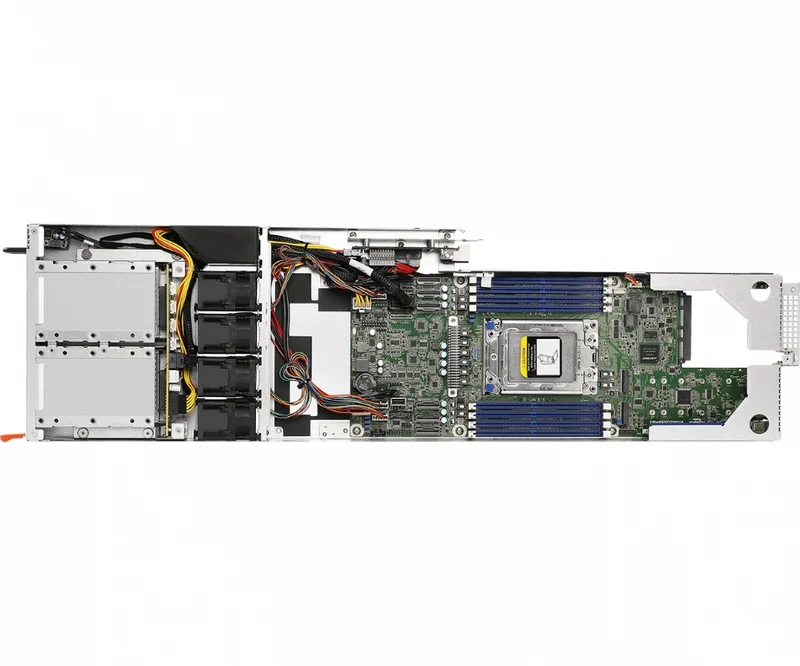

Physical Status
Form Factor - Half width
Dimensions - 6.5'' × 17"
Processor System
CPU Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
Socket - Single Socket SP3 LGA 4094
Thermal Design Power - 120W~225W
System Memory
Supported DIMM Quantity - 8 DIMM slots
Supported Type - 1 DIMM per channel. DDR4 RDIMM, LRDIMM up to 3200MHz
Voltage - 1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 - 2 PCIe4.0 x16 (Low Profile card)
Server Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
Graphics
Controller - ASPEED AST2500

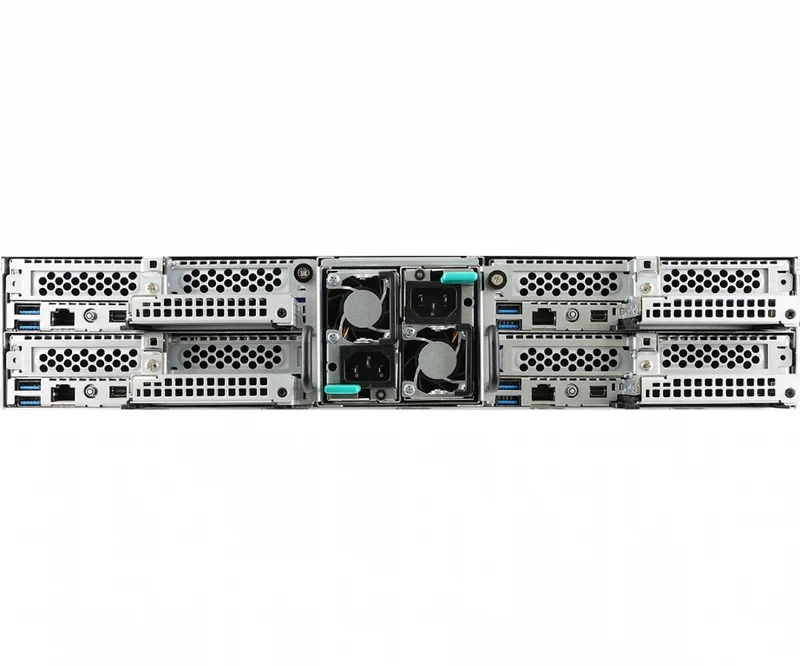

Rear I/O
UID Button/LED - 1 UID button w/ LED
VGA Port - 1 mini DIsplayPort
USB 3.2 Gen1 Port - 2 Type-A (USB3.2 Gen1)
RJ45 - 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Internal Connector/Headers
Power Connector - 2x 8-pin
Auxiliary Panel Header - 1(CI, FSMB, 2FLANLED, LOCBLED)
COM Header - 1
Fan Header - 4x 6 pin system Fan
TPM Header - 1
IPMB Header - 1
USB 3.2 (Gen1) Header - 1 header (19-pin, 2 USB3.2 Gen1)
Type A USB 2.0 Port - 1 Type-A (USB2.0)
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
- MB/Card Side Temperature Sensing
Fan - Fan Tachometer
- Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
Voltage - Voltage Monitoring:+12V, +5V, +3.3V, VSOC, VCPU, VPPM_ABCD, VPPM_EFGH, VCCM_ABCD, VCCM_EFGH, +BAT, 3VSB, 5VSB, +1.8V, +1.8VSB, MEZZ_P1_+3V
Watchdog - Yes
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity - Non operation humidity: 20% ~ 90% ( Non condensing)
