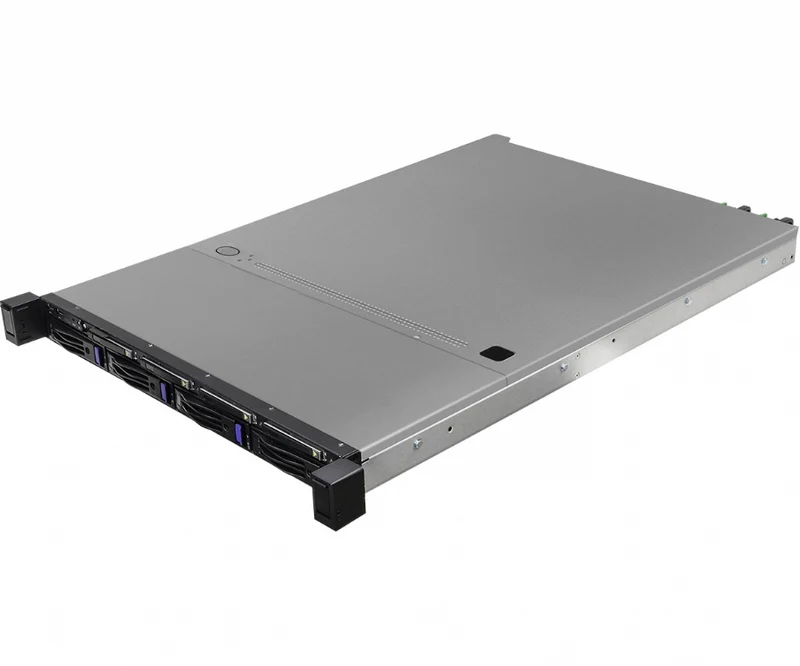

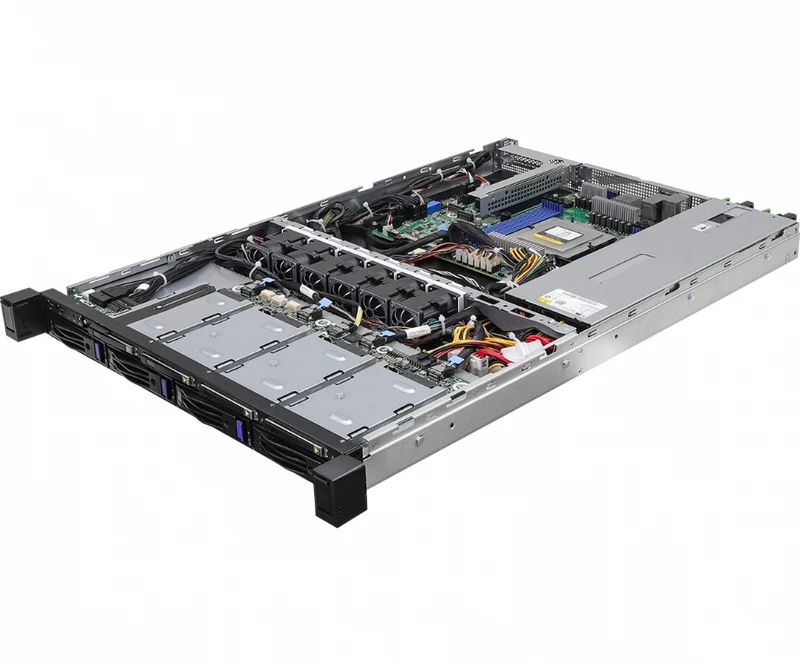

ASRock Rack 1U4L4E-GENOA/2T 1U Rackmount Server Barebone - Supports Single AMD GENOA 4th Gen CPU - 4x 3.5" & 4x 2.5" Hot-Swap - Dual PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U Rackmount
Dimensions 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB GENOAD8UD-2T/X550
Front Panel
Buttons Power button w/ LED, ID button w/ LED, System reset
LEDs HDD Activity, LAN 1/2, System Event
I/O Ports 2 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
4 hot-swap 3.5" SATA drive bays
Front Side Backplane 4-port NVMe/SATA/SAS* passive backplane, 4-port SATA passive backplane *SAS drive is only supported with additional RAID/HBA cards
Internal Side 2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
Power Supply
Type 1+1 Slim PSU
Output Watts 750W
Efficiency 80-PLUS Platinum
System Fan
Fan 6 PWM Easy-swap 40x56 mm fans
Processor System
CPU Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 300W
Chipset System on Chip
System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 64GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency 4800 MHz
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear: 1 FHHL PCIe5.0 x16 via RB1UX16R_G5
Ethernet
Additional GbE Controller Intel® X550-AT2: 2 RJ45 (10GbE)
Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB

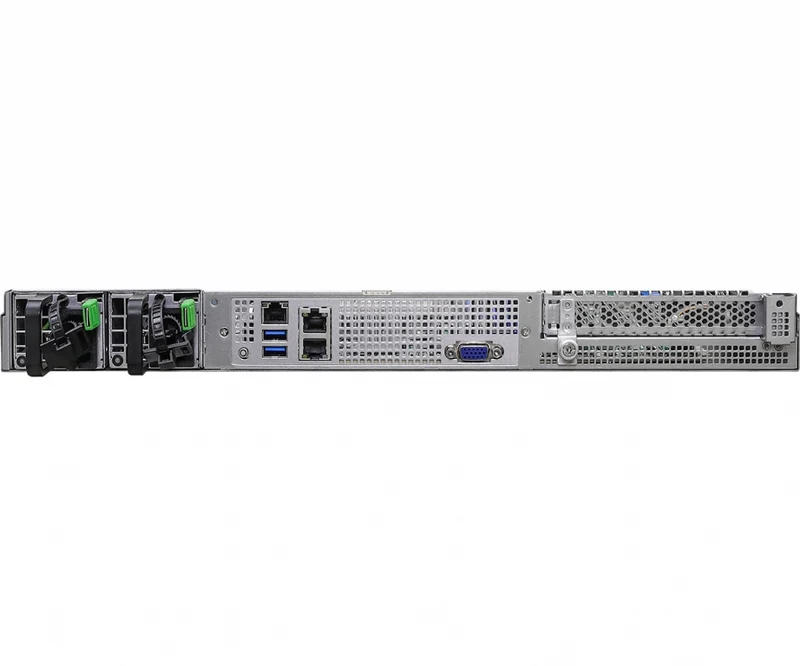

Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
Hardware Monitor
Temperature CPU, MB, TR1 Temperature sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
