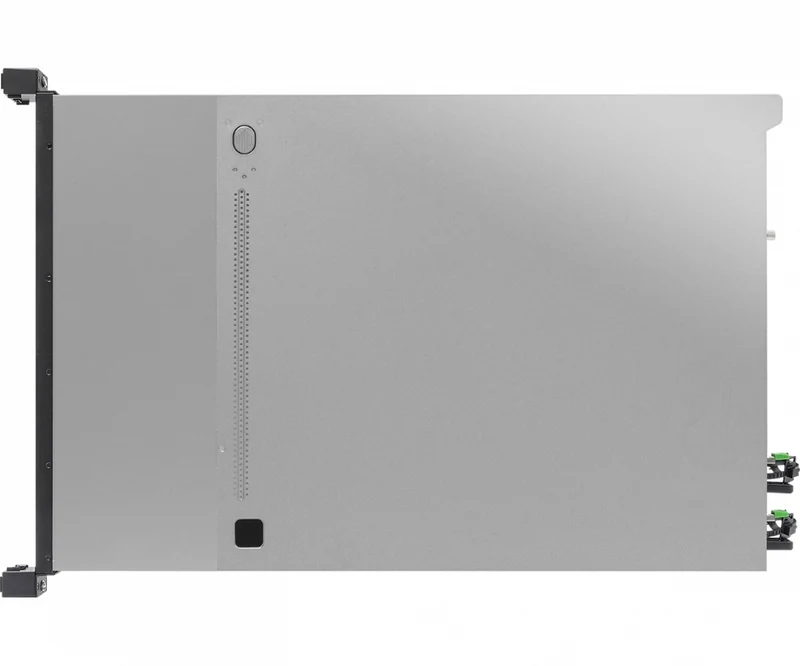

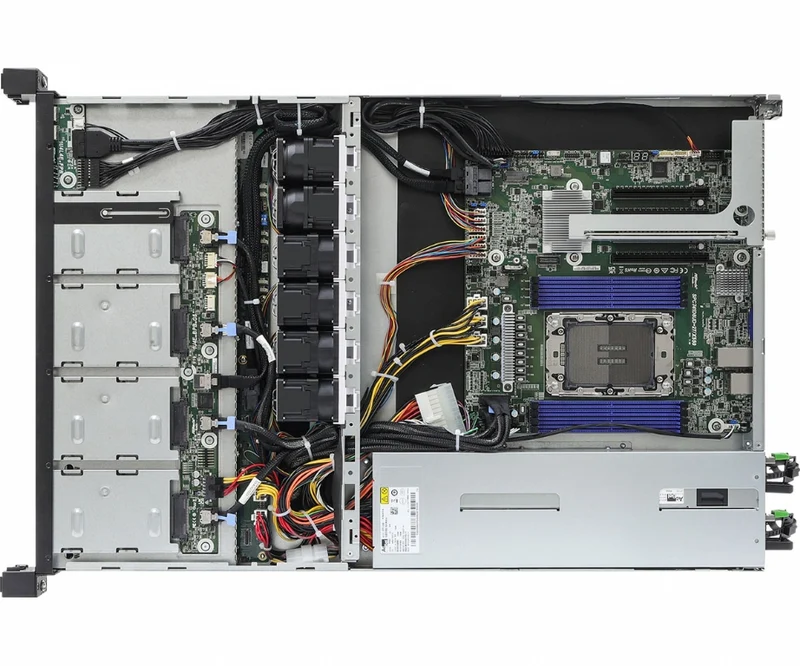

ASRock Rack 1U4L4E-EGS/2T 1U Rackmount Server Barebone - Supports Single 4th Gen Intel Xeon Scalable CPU - 4x 3.5" & 4x 2.5" Hot-Swap - Dual PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U Rackmount
Dimensions 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB SPC741D8UD-2T/X550

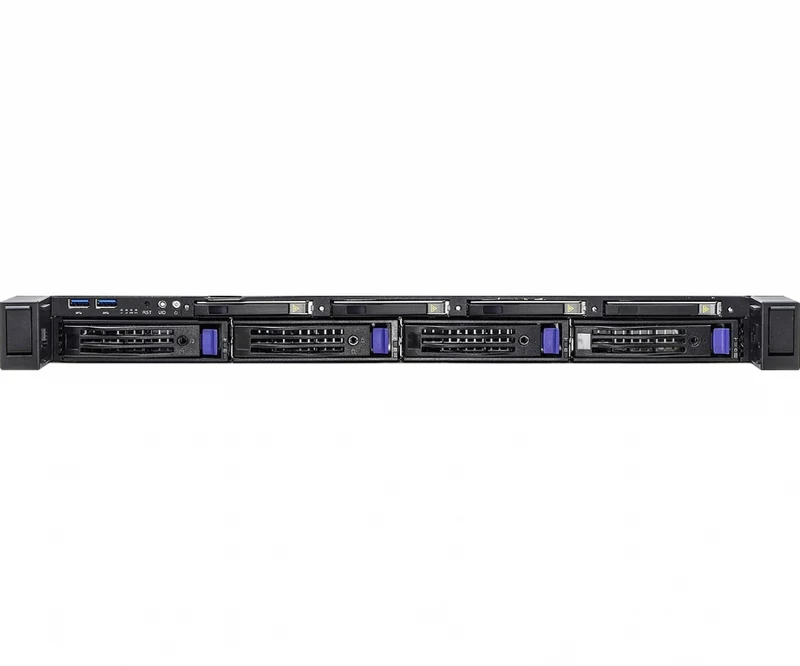

Front Panel
Buttons Power w/ LED, UID w/ LED, System Reset
LEDs HDD Activity, LAN 1/2 Activity, System Event
I/O Ports 2 Type-A (USB2.0)
External Drive Bay / Storage
Front Side Drive Bay 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS* drive bays
4 Hot-swap 3.5" SATA drive bays
*SAS drive is only supported with additional RAID/HBA cards
Front Side Backplane 4-ports NVMe/SATA/SAS* passive backplane, 4-ports SATA passive backplane
Internal Side 1 M-key (PCIe3.0 x4); support 2280 form factor
Power Supply
Type 1+1 Slim PSU
Output Watts 750W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 60/50Hz
System Fan
Fan 6 PWM Hot-swap 40x56 mm fans
Processor System
CPU Supports 4th Gen Intel® Xeon® Scalable processors
Socket Single Socket E (LGA 4677)
Thermal Design Power max. up to 300W
Chipset Intel® C741
System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 64GB
RDIMM-3DS: 256GB
Max. DIMM Frequency 4800 MT/s
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHHL PCIe5.0 x16 via RB1UX16R_G5
Ethernet
Additional GbE Controller 2 RJ45 (10GbE) by Intel® X550-AT2
Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
Controller ASPEED AST2600

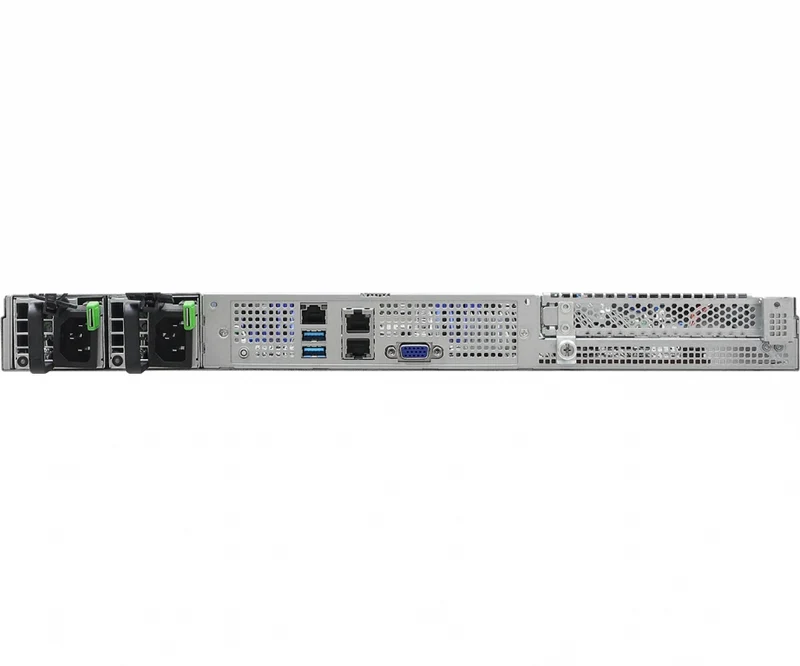

Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE), 1 dedicated IPMI
System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
Hardware Monitor
Temperature CPU, PCH, MB, Card side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
