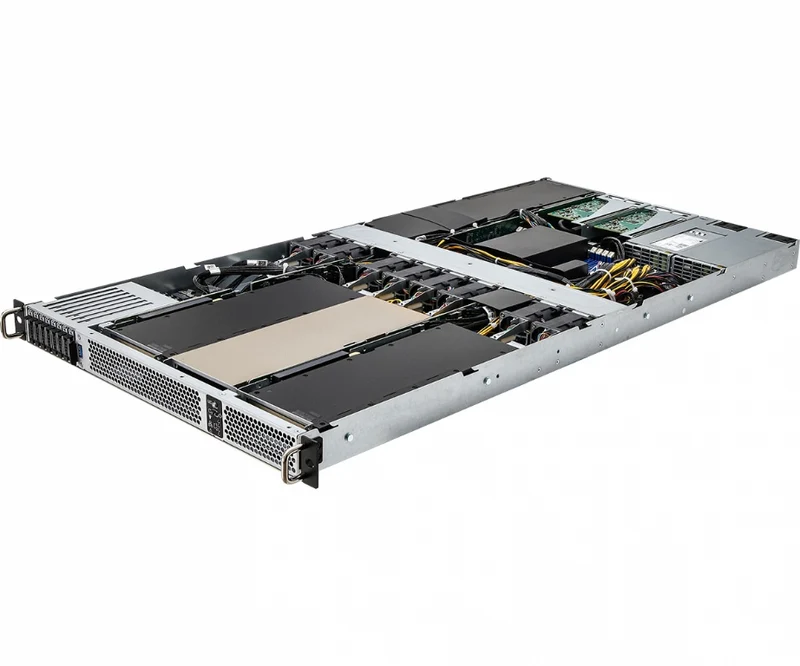

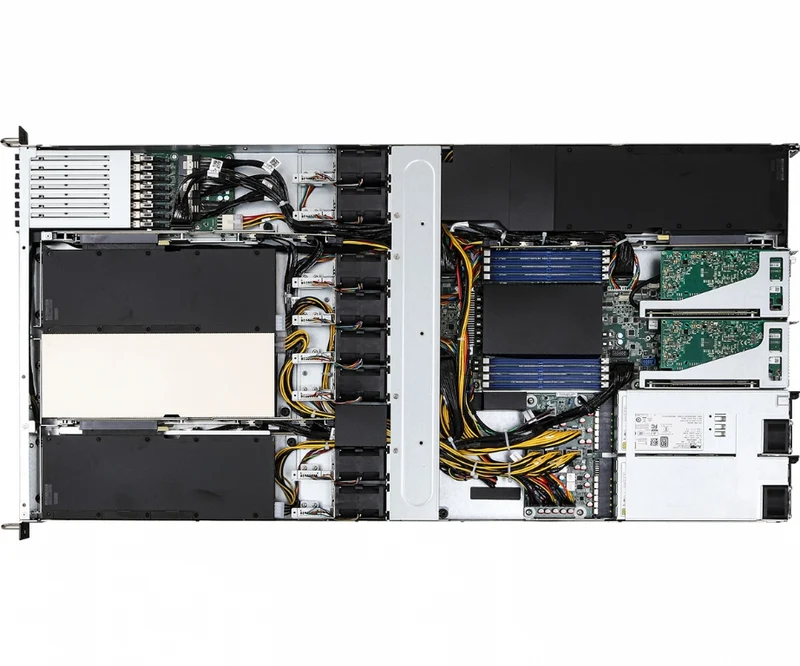

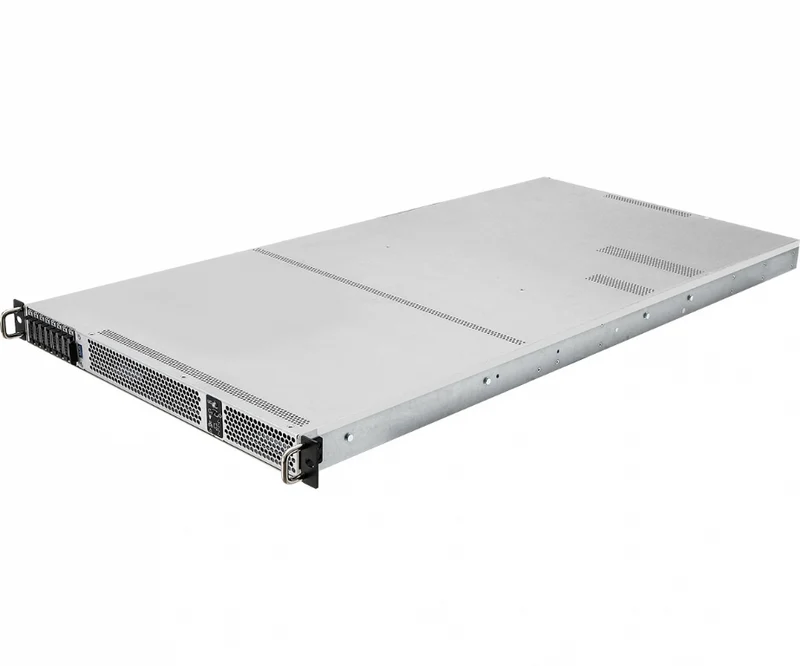

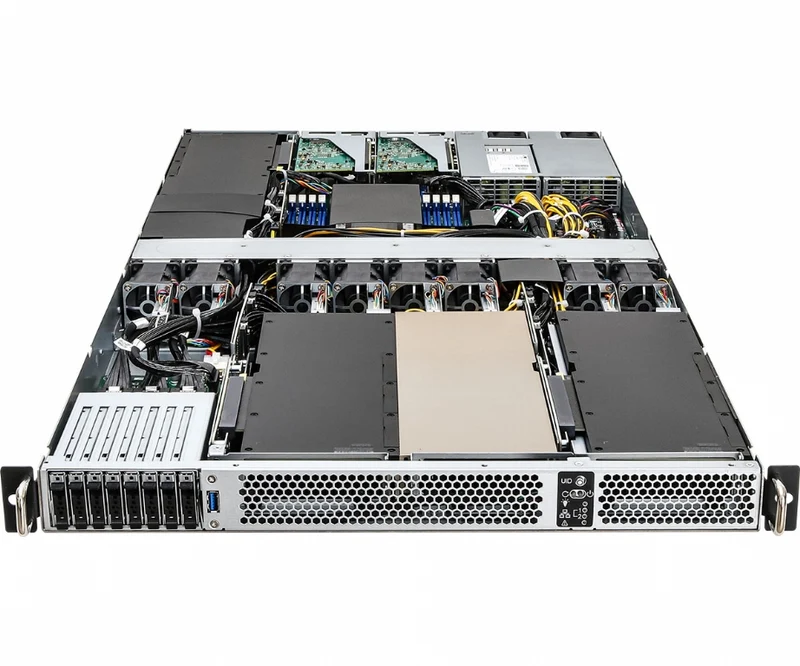

ASRock Rack 1U4G-ROME Rackmount Server Barebone - Supports Single AMD ROME 3rd Gen CPU - Up to 4x GPU Support - 8x E.1 Hot-Swap - Dual PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U
Dimensions 880 x 438 x 43.5 mm (34.6" x 17.2" x 1.7")
Support MB The motherboard not sold separately

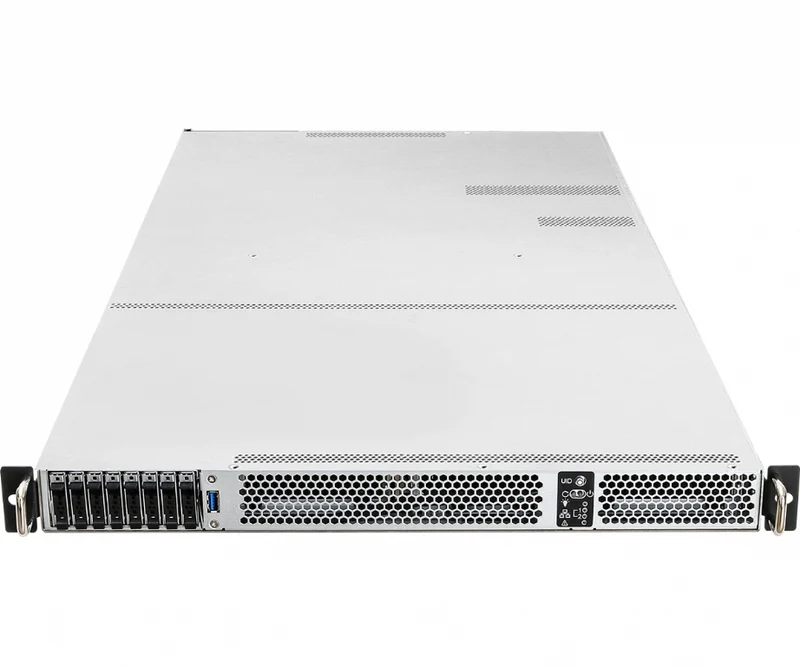

Front Panel
Buttons UID, Power, Reset
LEDs System Fail, Power, LAN1, LAN2
I/O Ports 1 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay 8 E1.S (PCIe x4) trays
support up to 8.01mm thickness E1.S or 22110/2280 M.2 (PCIe x4) by optional ED_M2W_G4 adapter card
Internal Side 2 header (9-pin, USB2.0) support USB DOM
Power Supply
Type 1+1 CRPS
Output Watts 2000W
Efficiency 80-PLUS Platinum
AC Input 200-240V, 50/60Hz
System Fan
Fan 8 dual-rotor hot-swap 40x56 mm fans
Processor System
CPU Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
Socket SP3
Chipset System on chip
System Memory
Supported DIMM Quantity 8 DDR4 288-pin DIMM slots (1DPC)
Supported Type DDR4 R DIMM/ LR DIMM
Max. Capacity per DIMM RDIMM: 64GB, 32GB, 16GB, 8GB
LRDIMM: 256GB*, 128GB, 64GB
* 256GB is to be validated
Max. DIMM Frequency RDIMM: 3200/2933/2666/2400MHz
LRDIMM: 3200/2933/2666/2400MHz
Voltage 1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Front:
supports 3 FH dual-slot* PCIe4.0 x16 via 1U4G_SL2P_L_RDV and 1U4G_SL2P_R_RDV
Rear:
supports 1 FH dual-slot* PCIe4.0 x16 via 1U4G_SL2P_L_RDV
supports 2 low-profile PCIe4.0 x16 via RB1UX16_G4
* Active-cooled cards and cards with power connector on the top edge are not supported.
TPM
TPM support Onboard INFINEON SLB9670(TPM2.0), 1 header ( 17-pin, LPC)
Ethernet
Additional GbE Controller Intel® i350-AM2: 2 (1GbE) RJ45
Server Management
BMC Controller ASPEED BMC AST2500
Graphics
Controller ASPEED BMC AST2500:
1 DB15 (VGA)
Rear I/O
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE) via i350-AM2
1 dedicated IPMI
System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
Environment
Temperature Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C
*Please contact ASRock Rack for the operating temperature while GPGPU deployed
Humidity - Non operation humidity: 20% ~ 90% ( Non condensing)
