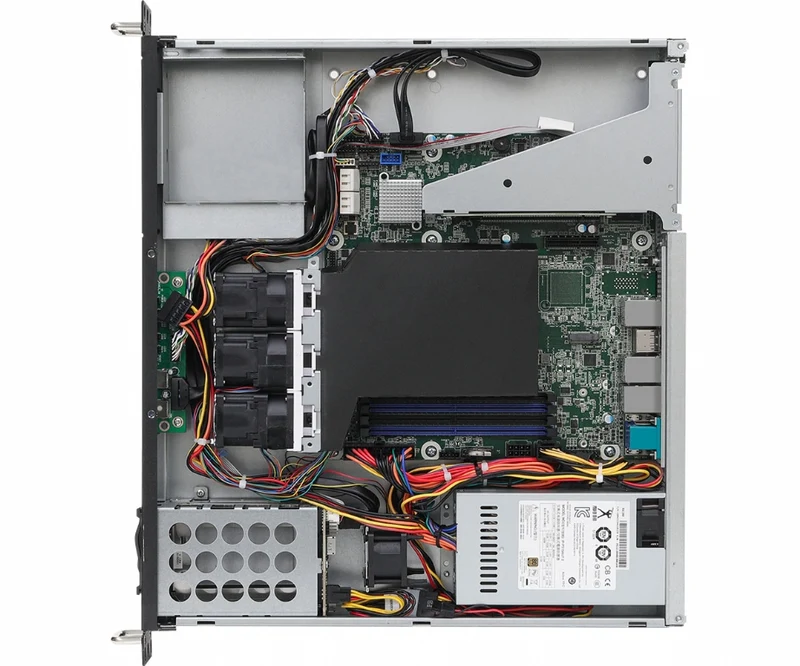

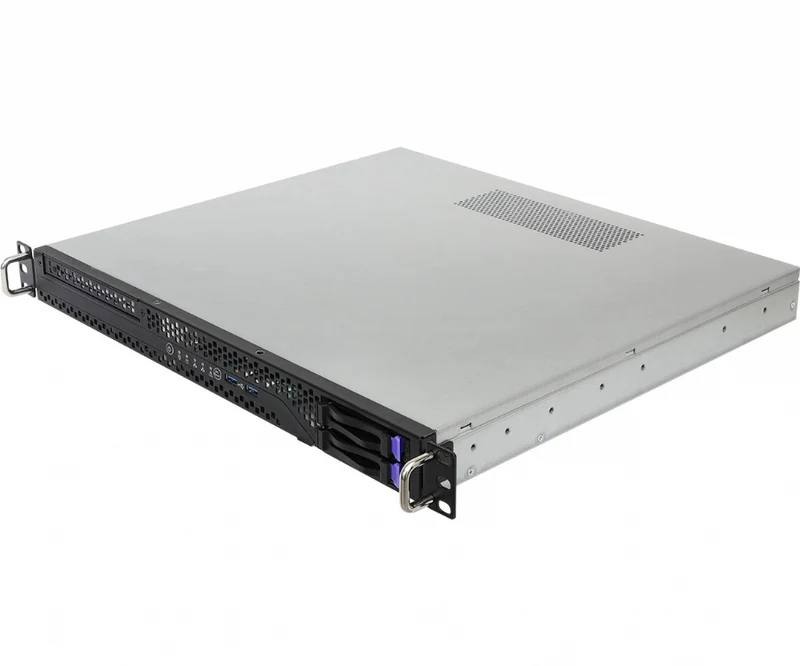

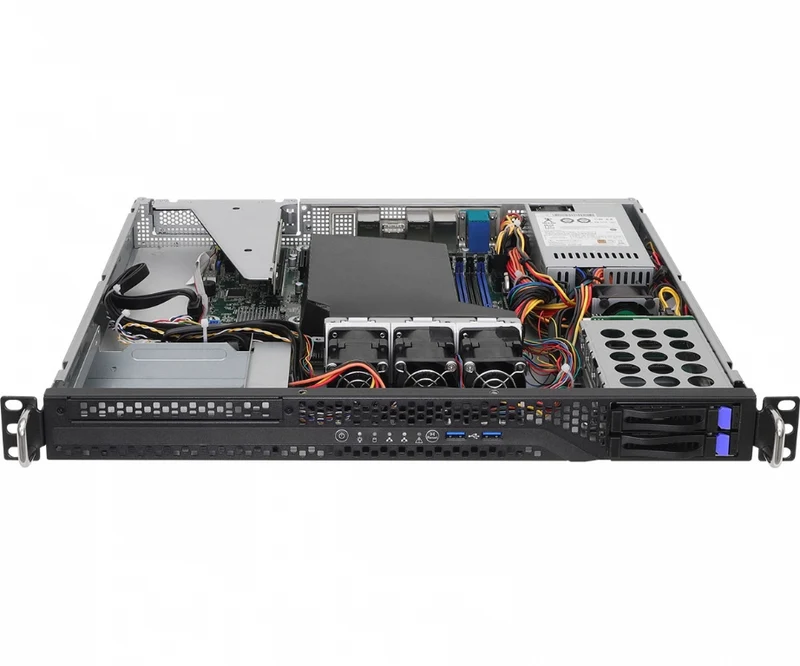

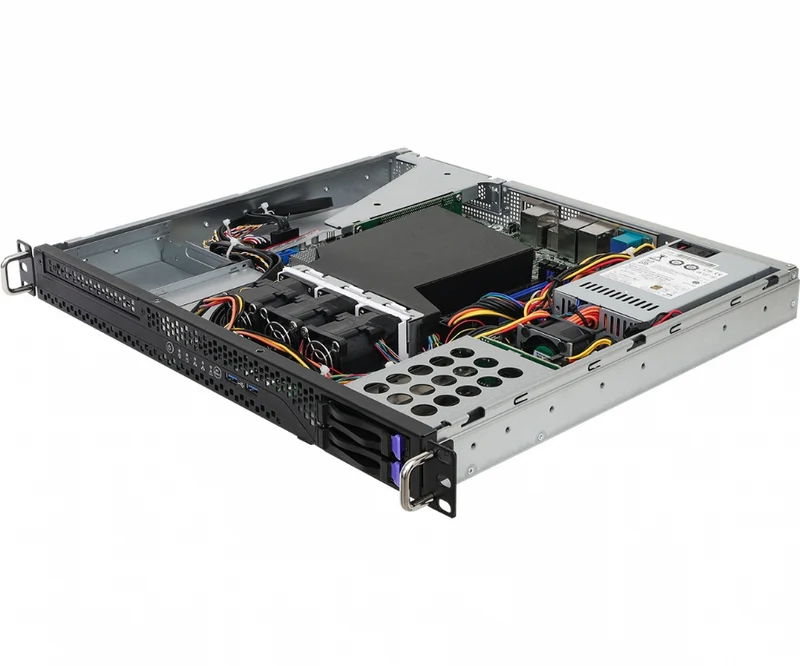

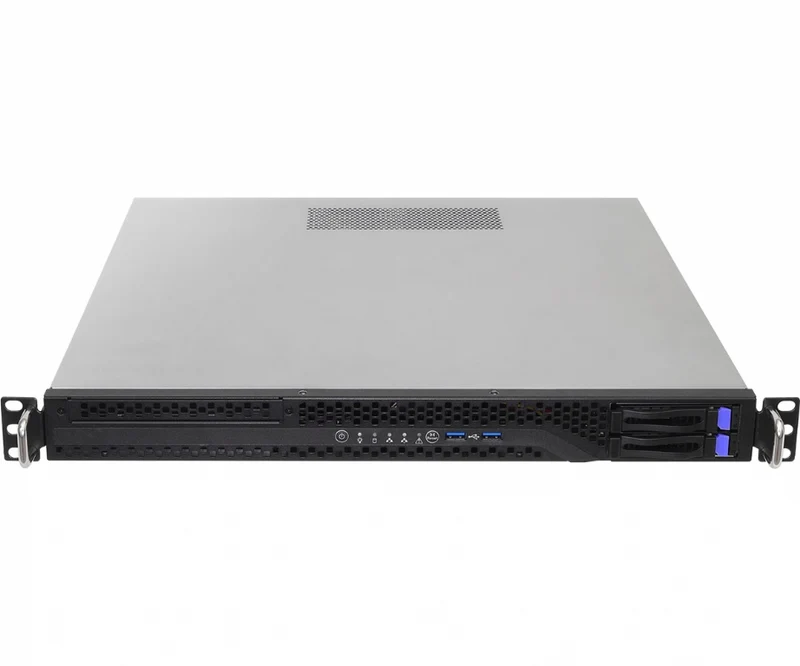

ASRock Rack 1U2S-B650 1U Rackmount Server Barebone - Single AMD EPYC 4004 - Short Depth - Single PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U Rackmount
Dimensions 393.2 x 430 x 43.5 mm (15.5'' x 16.93'' x 1.71'')
Support MB B650D4U
Front Panel
Buttons Power, System Reset
LEDs Power, HDD Activity, LANs, System Event
I/O Ports 2 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay External: 2 hot-swap 2.5" SATA drive bays
Internal: 1 fixed 3.5'' SATA drive bay or 1 Slim ODD
Internal Side 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
Power Supply
Type Single PSU
Output Watts 315W
Efficiency 80-PLUS Gold
System Fan
Fan 3 PWM Hot-swap 40x56 mm fans, 1 PWM Hot-swap 40x28 mm fans
Processor System
CPU Supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 Series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power Up to 120W
Chipset AMD B650
System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 48GB
Max. DIMM Frequency 5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear: 1 FHHL PCIe4.0 x16 via RB1UX16_G4
Ethernet
Additional GbE Controller Intel® i210: 2 RJ45 (1GbE)
Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort
Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE)
1 dedicated IPMI
System BIOS
BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
Hardware Monitor
Temperature CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
