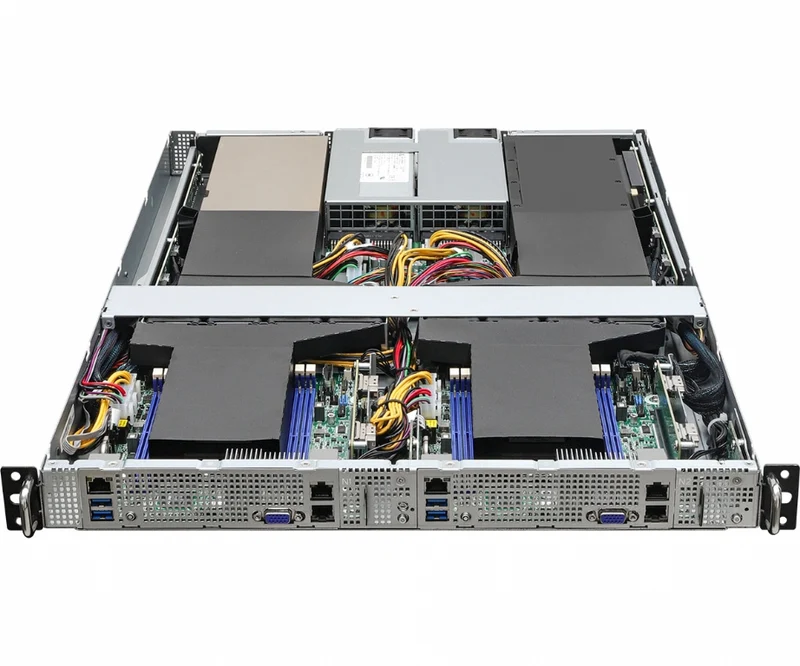

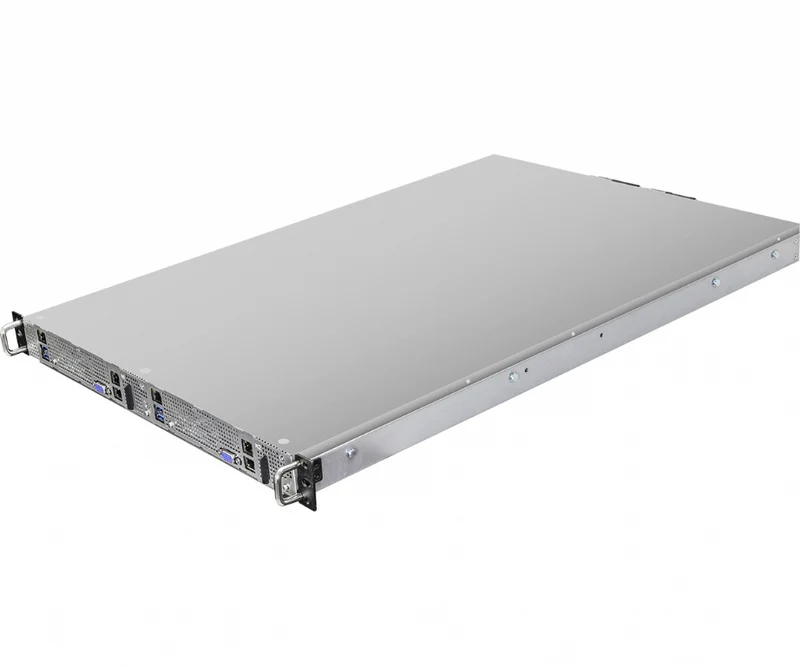

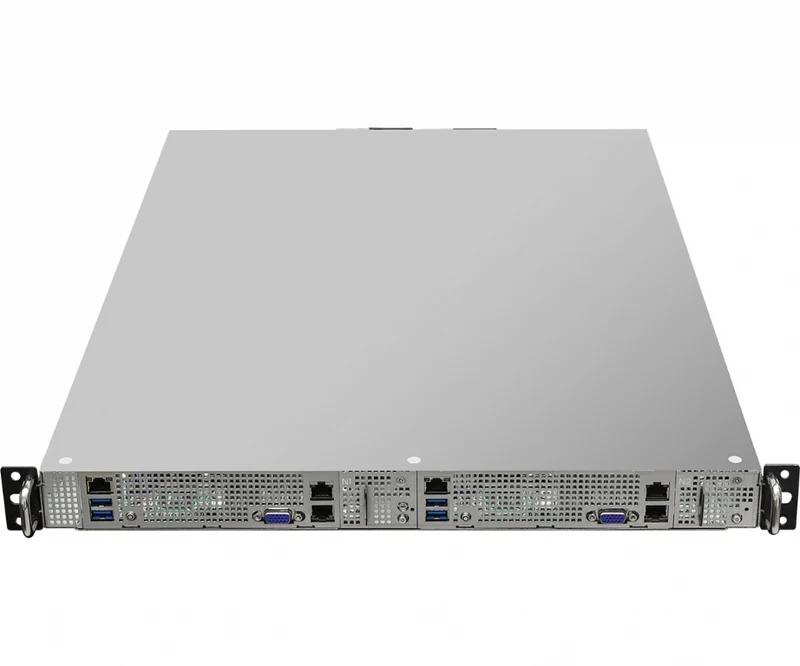

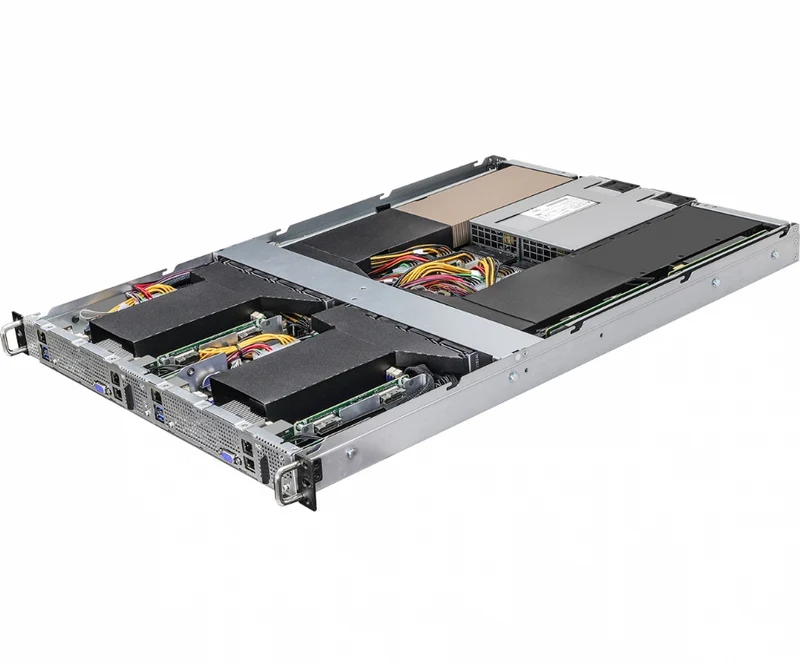

ASRock Rack 1U2N2G-ROME/2T Rackmount Server Barebone - Dual Node Each Supporting Single AMD ROME 3rd Gen CPU - Dual PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U Rackmount
Dimensions 650 x 438 x 43.5 mm (25.6'' x 17.2'' x 1.7'')
Support MB ROMED4ID-2T
Front Panel
Buttons UID w/ LED, Power w/ LED
LEDs System Fail
I/O Ports 2 RJ45 (10GbE) by Intel® X550-AT2
2 Type-A (USB3.2 Gen1)
1 DB15
IPMI LAN 1 dedicated IPMI
External Drive Bay / Storage
Internal Side 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 2280 form factor
Power Supply
Type 1+1 CRPS
Output Watts 1600W
AC Input 100-240V, 47/63Hz
System Fan
Fan 8 dual-rotor 40x56 mm fans
Processor System
CPU Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 Series Processors
Socket Single Socket SP3 (LGA4094)
Chipset System on Chip
System Memory
Supported DIMM Quantity 4 DIMM slots (1DPC)
Supported Type Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
Max. Capacity per DIMM RDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
Max. DIMM Frequency RDIMM/ LRDIMM: max. 3200MHz
Voltage 1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FH dual-slot PCIe4.0 x16
Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller ASPEED AST2500
System BIOS
BIOS Type 256Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature CPU, TRMB_IN, TRMB_OUT1 temperature sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 1.8VSB,3VSB,5VSB,1.8V,3V,5V,12V,BAT,VCPU,VSOC,VCCM ABCD,VCCM EFGH
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
