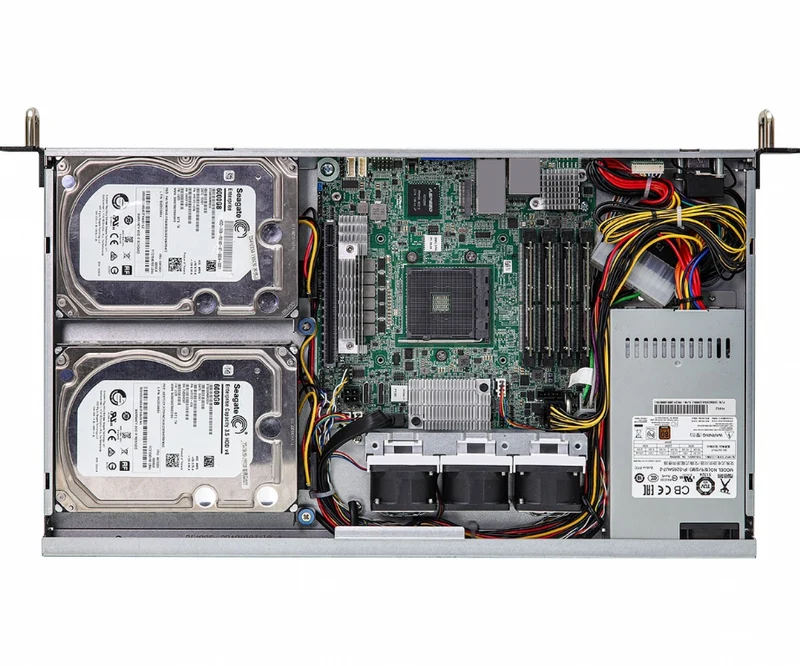

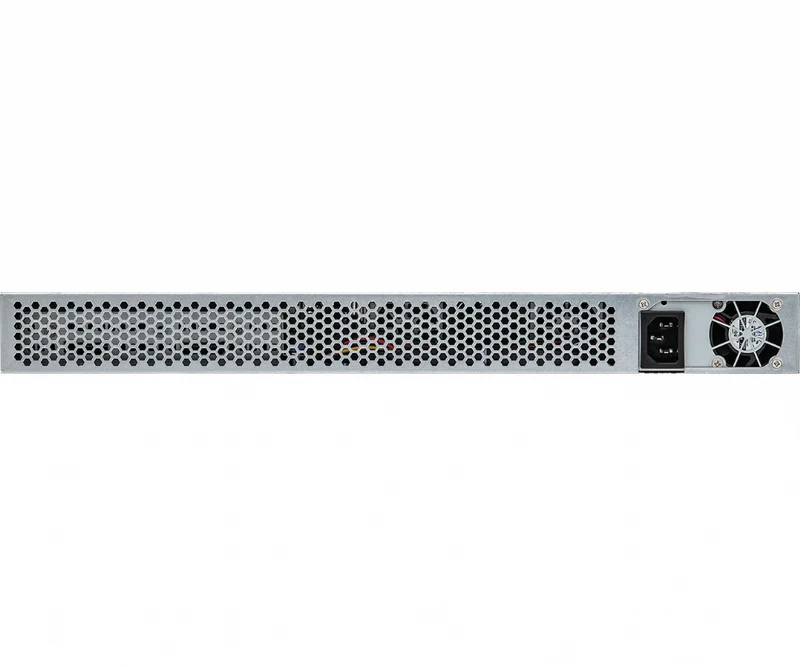

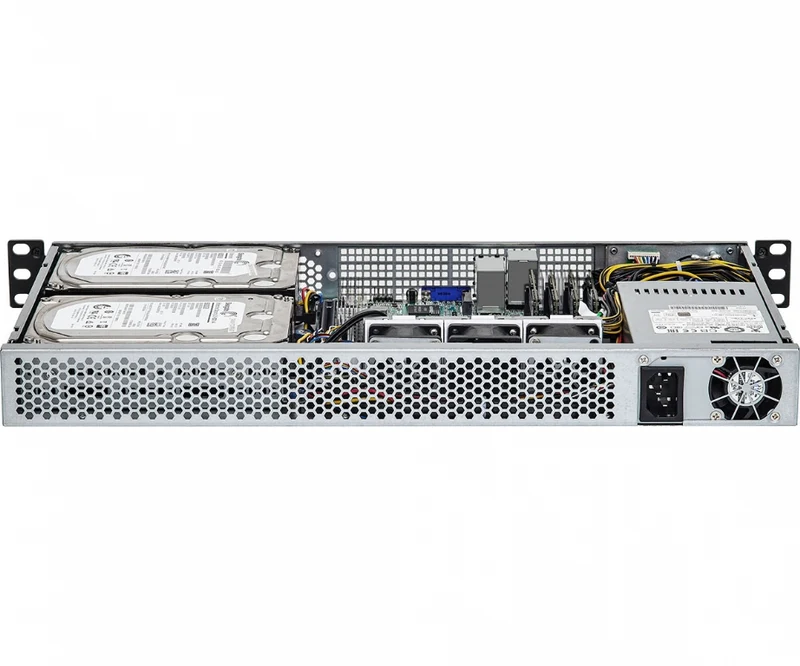

ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U
Dimensions 250 x 430 x 43.5mm (9.8'' x 16.9'' x 1.7'')
Support MB X570D4I-2T

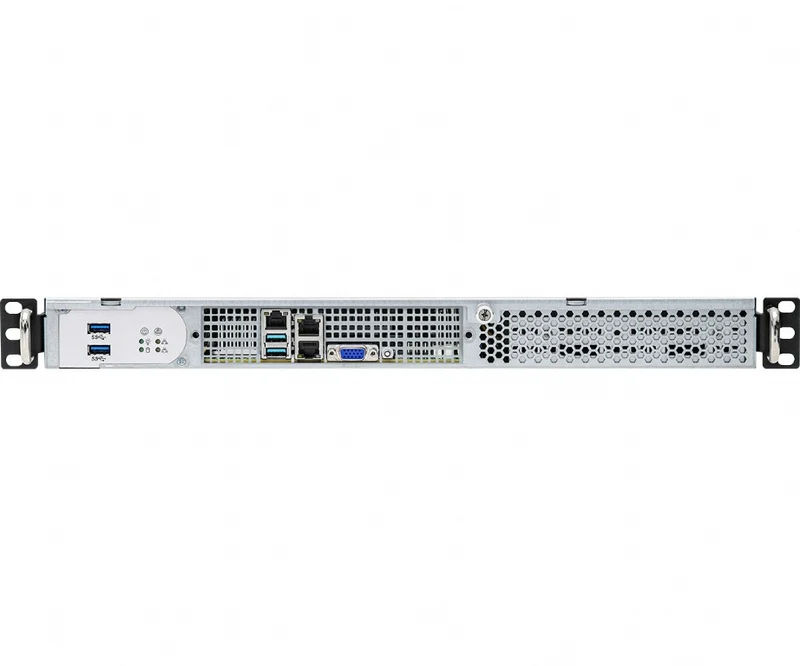

Front Panel
Buttons Power switch, System reset
LEDs Power status, HDD, LAN activity LEDs
I/O Ports 1 DB15 (VGA)
2 Type-A (USB3.2 Gen1)
2 Type-A (USB3.2 Gen2)
2 RJ45 (10GbE) by Intel® X550-AT2
1 UID w/ LED
IPMI LAN 1 dedicated IPMI
External Drive Bay / Storage
Internal Side Supports 2 fixed 3.5” drives and 2 fixed 2.5'' 7mm drives
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280
*Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
Power Supply
Type Single PSU
Output Watts 265W
Efficiency 80-Plus Bronze
AC Input 100-240V, 50-60Hz
System Fan
Fan 3 Easy-swap 40x28 mm fans
Processor System
CPU Supports:
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors
Socket AM4 PGA 1331
Thermal Design Power 105W
Chipset AMD X570
System Memory
Supported DIMM Quantity 4 DDR4 SO-DIMM slots (2DPC)
Supported Type Supports DDR4 260-pin ECC*/non-ECC SO-DIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM up to 32GB
Max. DIMM Frequency One DIMM:
1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s
Two DIMMs:
2400MT/s
Voltage 1.2V
Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller ASPEED AST2500
VRAM DDR4 16MB
System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8.0 Support
ASRock Rack Instant Flash
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
