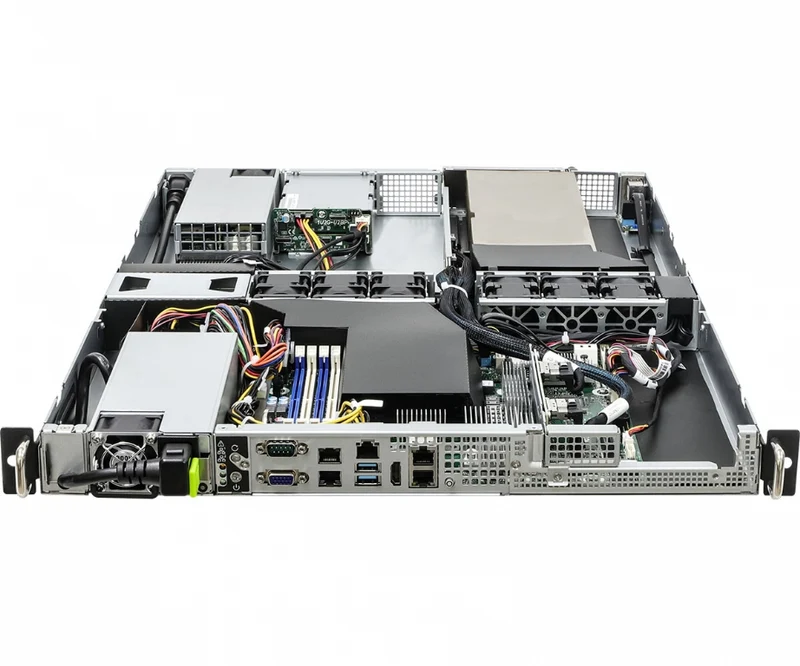

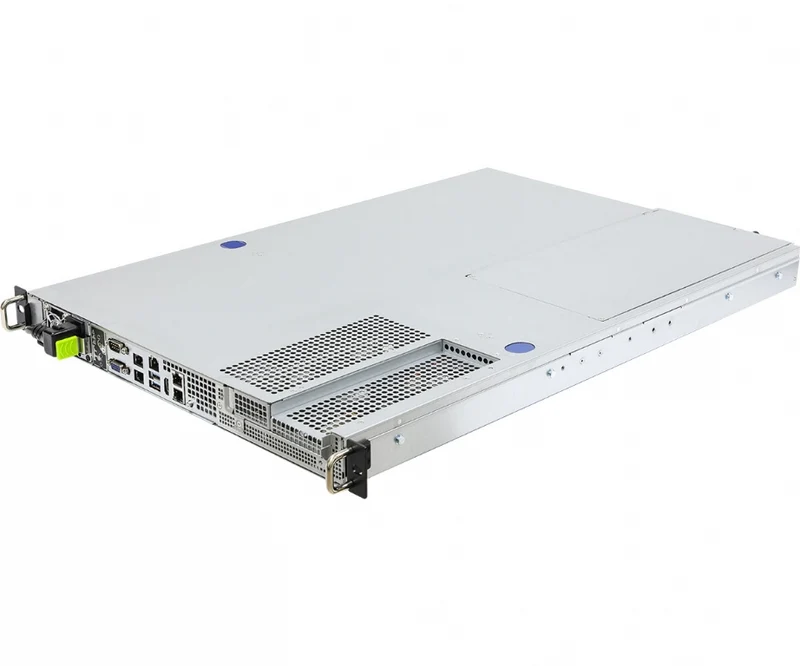

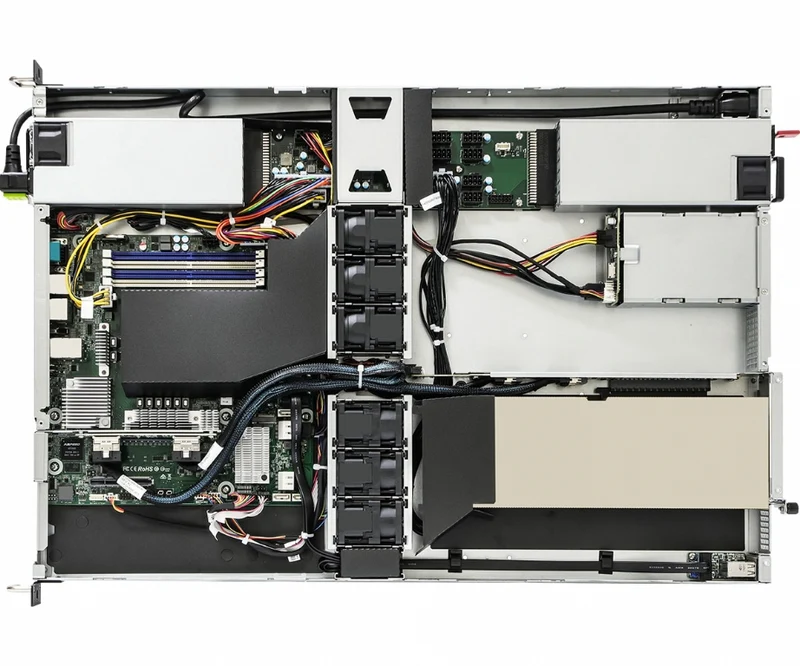

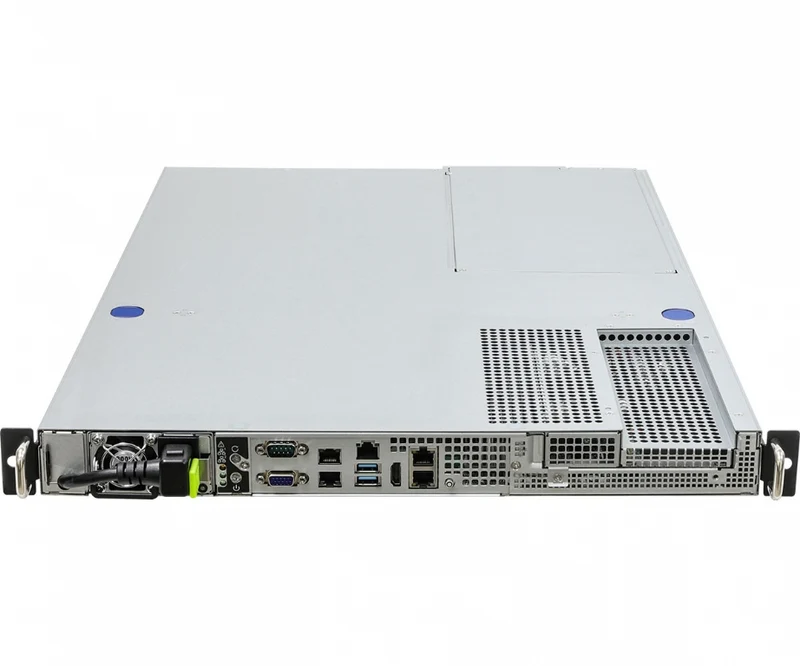

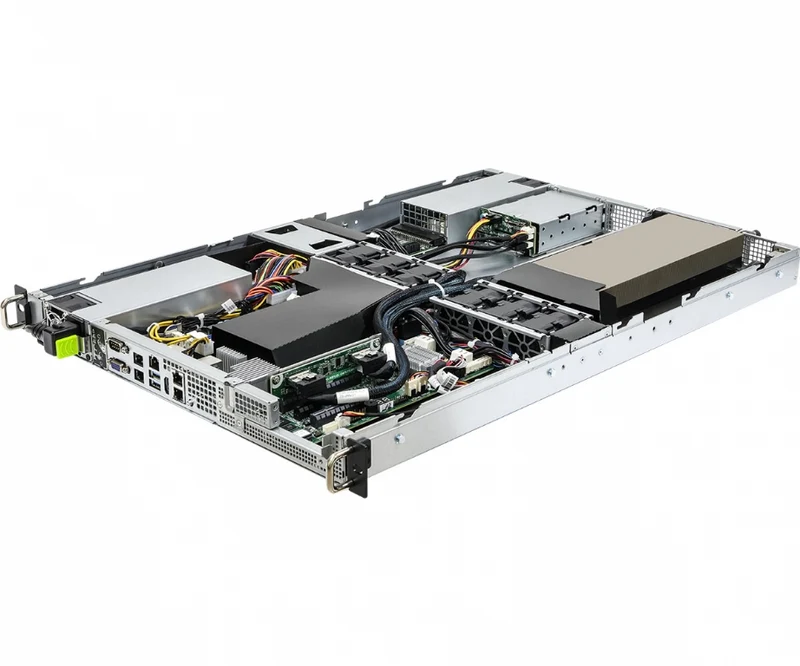

ASRock Rack 1U1G-X570/2L2T Rackmount Server Barebone - Supports Single AMD Ryzen 5000 Series CPU - 1x Full Height GPU Support - Front IO - Single PSU

0,00 €
Menge

Beschreibung

System
Form Factor 1U
Dimensions 660.4 x 438.0 x 43.5 mm (26'' x 17.2'' x 1.7'')
Support MB X570D4U-2L2T
Front Panel
Buttons Reset, Power w/ LED, UID w/ LED
LEDs System Fail, LAN1, LAN2
I/O Ports 2 RJ45(10GbE), 2 RJ45 (1GbE)
2 Type A (USB3.2 Gen1)
1 DB15 (VGA), 1 HDMI
1 DB9 (COM)
IPMI LAN 1 dedicated IPMI
External Drive Bay / Storage
Rear Side 2 SFF 2.5”(SATA 6Gb/s)
Internal Side 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH]
*Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
Power Supply
Type 1+1 CRPS
Output Watts 800W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 50/60Hz
System Fan
Fan 6 single-rotor 40x56 mm fans
Processor System
CPU Supports:
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors
Socket AM4 PGA 1331
Chipset AMD X570
System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type Supports DDR4 288-pin ECC*/non-ECC UDIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM up to 32GB per DIMM
Max. DIMM Frequency up to 3200 MHz*
* AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz
Voltage 1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Supports 1 FH dual-slot PCIe4.0 x16* via 1U4G_ROME_R_RDV
*Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
*Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics
Ethernet
Additional GbE Controller Intel® X550-AT2: 2 RJ45 (10GbE)
2 Intel® i210: 2 RJ45 (1GbE)
Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 RJ45 via Realtek RTL8211E
Rear I/O
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
System BIOS
BIOS Type 256Mb AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
