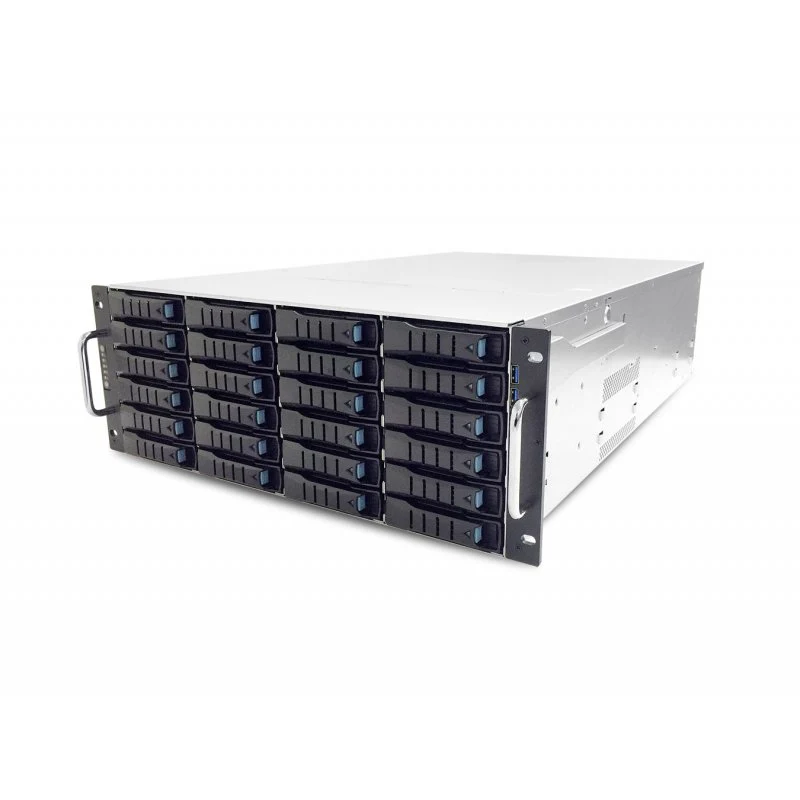

AIC 4U 12G Enterprise Storage Server Chassis 36 x 3.5" + 2 x 2.5" Internal with 1200W Redundant PSU (Rails Included) * Expander On Board

Key Features

• Tool-less design supports quick installation and easy maintenance:
• Tool-less 3.5” & 2.5” drive trays
• Tool-less top covers
• Tool-less backplane
• Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• 36 (24 front + 12 rear) bays to provide high density storage in a 4U server chassis
• Two front access USB 3.0 ports
• Comes with a 80+ Platinum redundant PSU

Features And Benefits

The IPC-C4BT-R12-EOB-12G is a T series 4U 36-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4BT supports quick installation and easy maintenance. This tool-less design solution also features 6 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 679 x 173.5
• inches : 19 x 26.7 x 6.8

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Black

Cooling

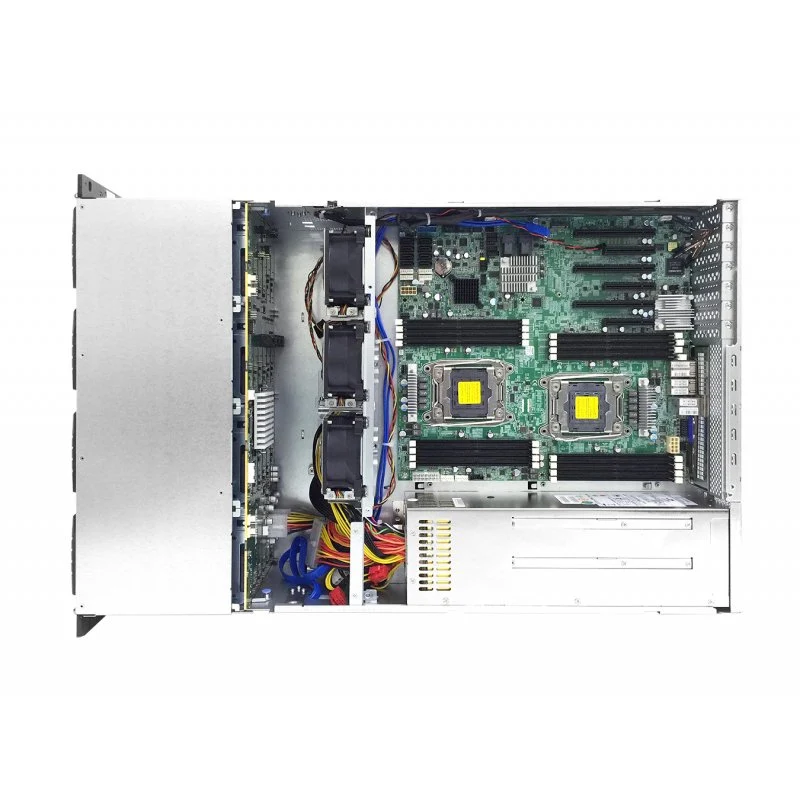

Middle : 6 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply
1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7 low profle

Front Panel
• Power on/off
• System reset
• 2 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

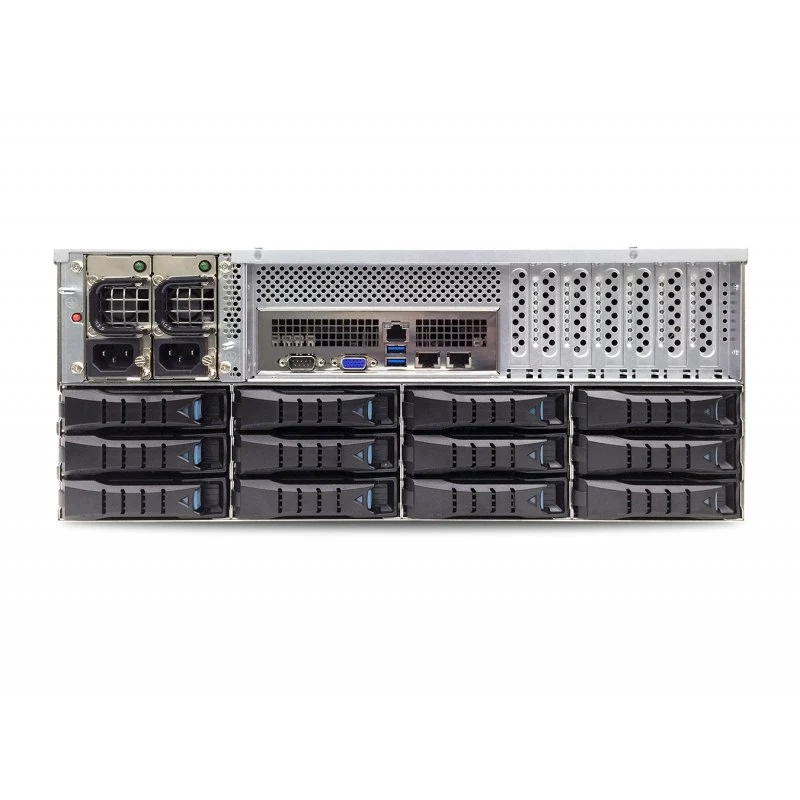

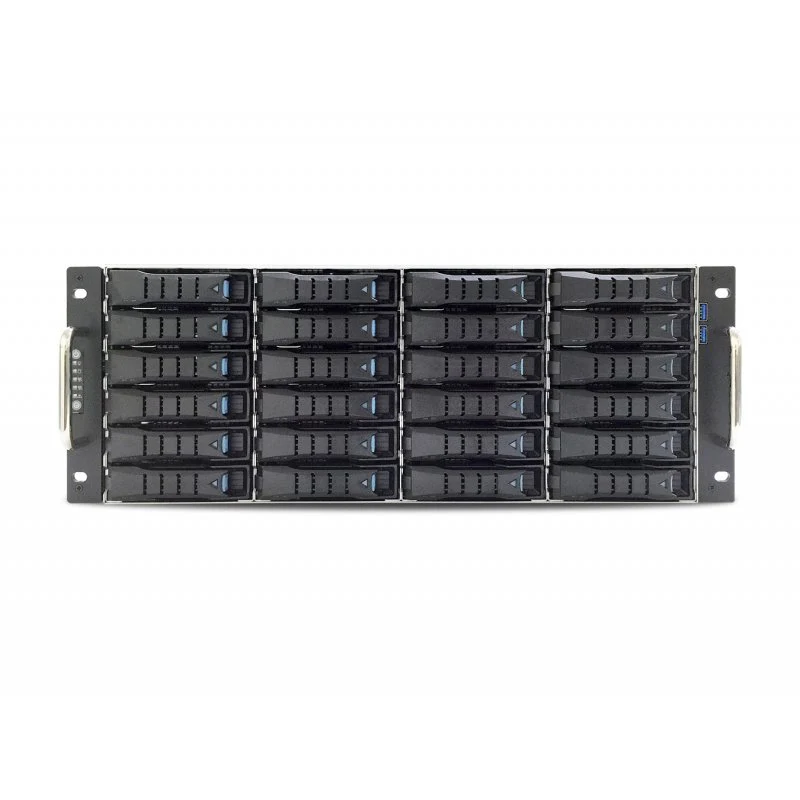

• External : 24 x 3.5” hot swap (Front) 12 x 3.5” hot swap (Rear)
• Internal : 2 x 2.5”

Backplane
• 1 x 24-port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors
• 1 x 12-port 12Gb SAS backplane with 28-PHY expander and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 40.4
• lbs : 89

Package Dimension (W x D x H)
• mm : 616 x 921 x 393
• inches : 24.3 x 36.3 x 15.5

Cubic Feet
7.6

Container Load Quantity
• 20’ : 110
• 40’ : 230
• 40’ H : 295

Mounting
Standard : 26” tool-less slide rail
* All specifications are subject to change without notice.
