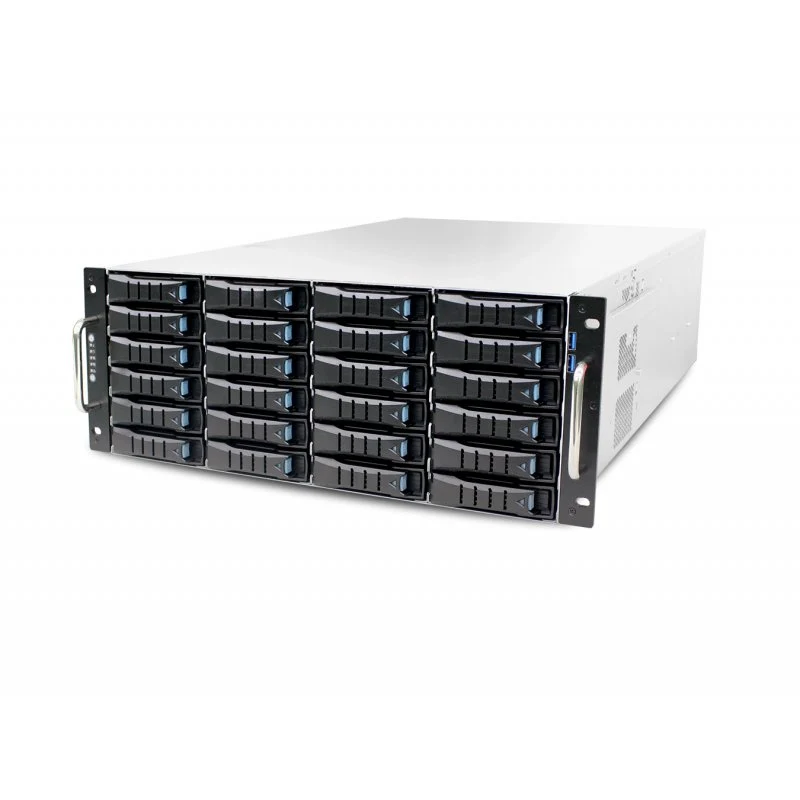

AIC 4U 12G Enterprise Storage Server Chassis 24 x 3.5" + 2 x 2.5" Rear Hot-Swap with 1200W Redundant PSU (Rails Included) * Expander On Board

Key Features

• Tool-less design supports quick installation and easy maintenance:
• Tool-less 3.5” & 2.5” drive trays
• Tool-less top covers
• Tool-less backplane
• Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Two front access USB 3.0 ports
• Comes with a 80+ Platinum redundant PSU

Features And Benefits

The IPC-C4ET-R12-EOB-12G is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C4ET-R12-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 680 x 176
• inches : 19 x 26.8 x 6.9

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

Cooling

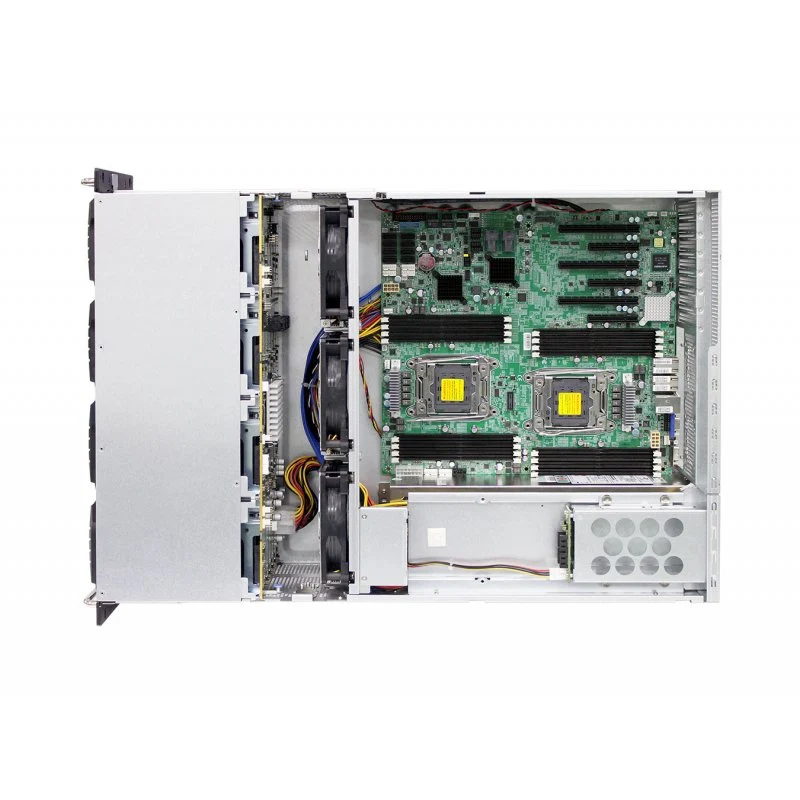

Middle : 3 x 120x25mm PWM hot swap fans

Power Supply
1200W 1+1 redundant PSU 80+ Platinum

Expansion Slots
7 full height

Front Panel
• Power on/off
• System reset
• 2 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

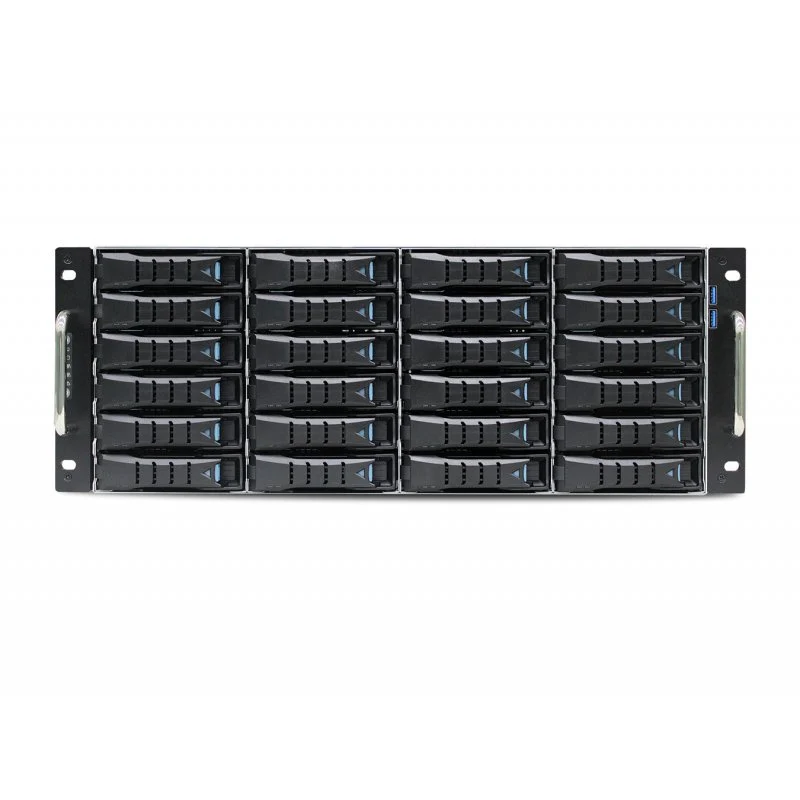

• External : 24 x 3.5” hot swap + 2 x 2.5” Rear Hot-Swap

Backplane
1 x 24-port 12Gb SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 30
• lbs : 66.14

Package Dimension (W x D x H)
• mm : 590 x 885 x 373
• inches : 23.2 x 34.8 x 14.7

Cubic Feet
6.56

Container Load Quantity
• 20’ : 145
• 40’ : 298
• 40’ H : 358

Mounting
Standard : 28” tool-less slide rail
* All specifications are subject to change without notice.
