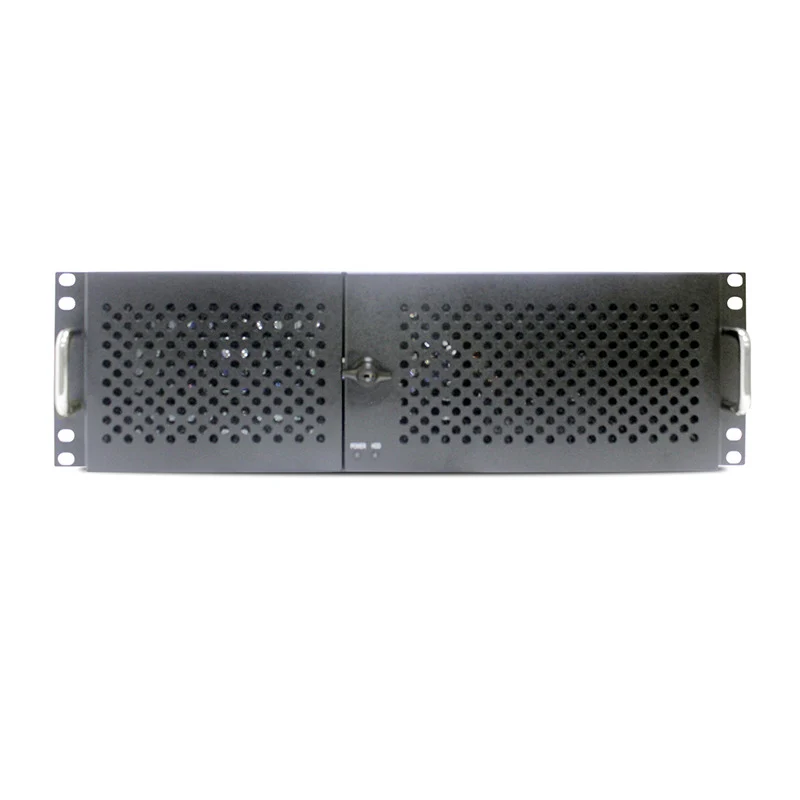

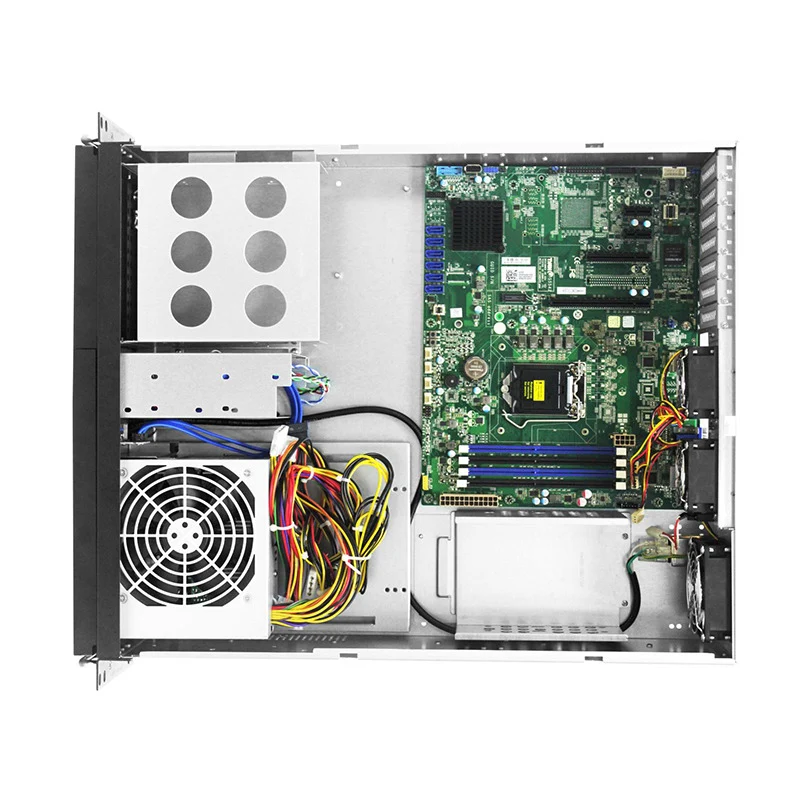

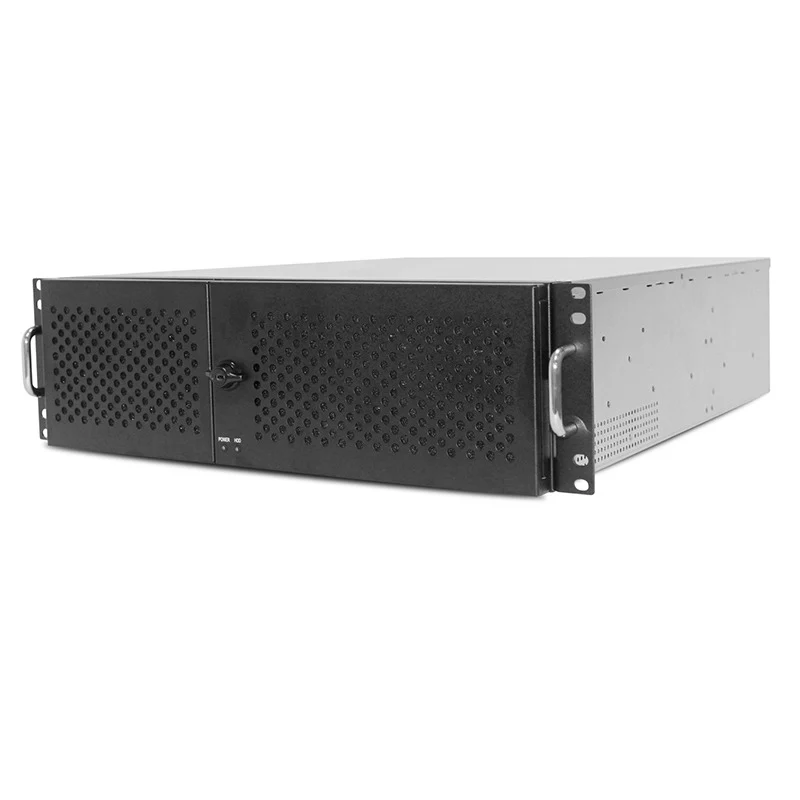

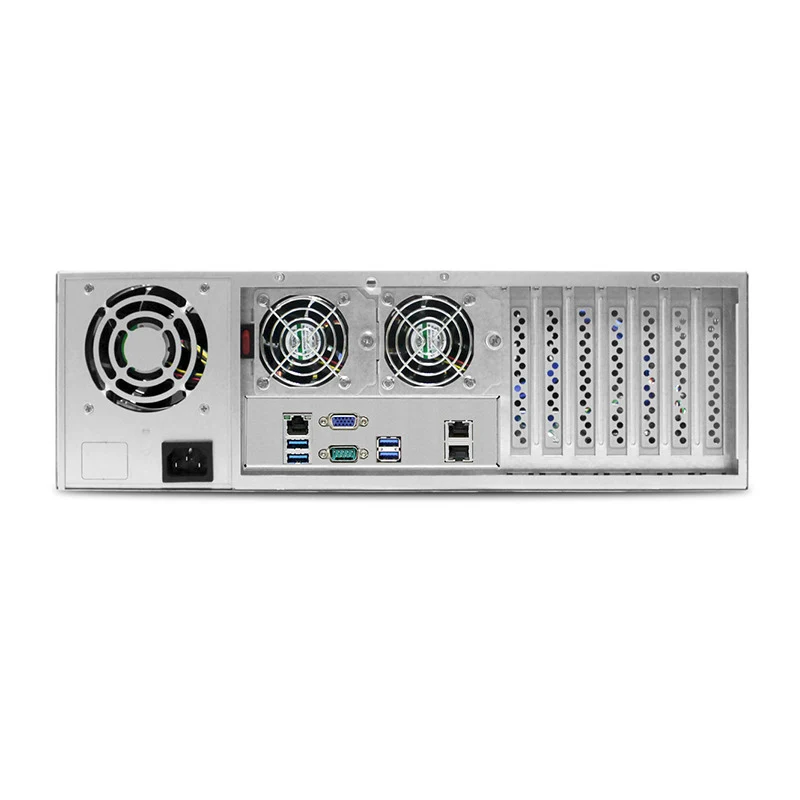

AIC 3U Rugged Short Chassis 3 x 5.25" + 1 x 3.5" External, 4 x 3.5" Internal

Key features

• Short depth design for space critical applications
• Support single PS2 or mini redundant power supply
• 7 x full height expansion slots

RMC-3S is designed for entry-level applications, A PS/2 power supply provides price advantage, power are preposition.

Dimensions (W x D x H)

• mm : 427 x 530 x 133 • inches : 16.8 x 21 x 5.23

Industry Standard

EIA-RS310D

Material

SGCC

Color

Front Panel : Black

Cooling

Middle : 2 x 6025 (3P) + 1 x 8025 (3P) cooling fans

Power Supply

Standard: PS2 type single power supply or mini redundant

Expansion Slots

7 full height

Front Panel

System power switch, System reset switch and USB3.0

LED Indicators

• System power • HDD

System Board

Up to 12” x 9.6” ATX M/B

Drive Bays

• External : 3 x 5.25” & 1 x 3.5” • Internal : 4 x 3.5”

Storage Temperature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)

• kgs : 10.5 • lbs : 23.1

Package Dimension (W x D x H)

• mm : 570 x 700 x 284 • inches : 22.4 x 27.6 x 11.2

Cubic Feet

4

Container Load Quantity

• 20’ : 250 • 40’ : 250 • 40’ H : 600

Mounting

• 20” slide rail
